Emtek Modern Styles Electronic Deadbolt Lock Sets Installation Guide

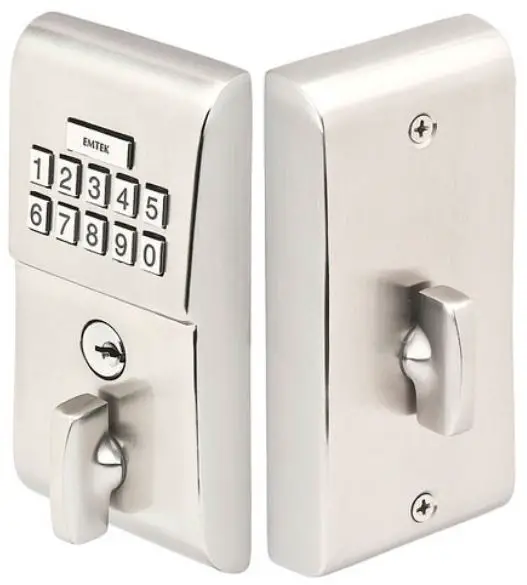

EMTEK Modern Styles Electronic Deadbolt Lock Sets

What’s in the Box

Preparation

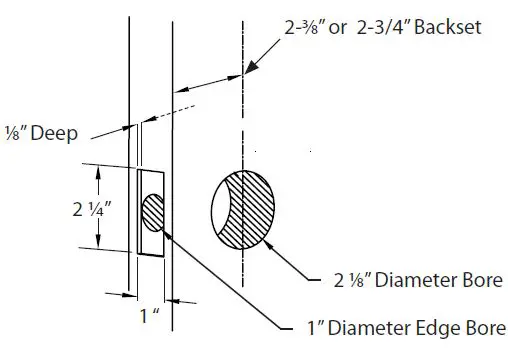

1. Door Prep
2. Door Jamb Prep

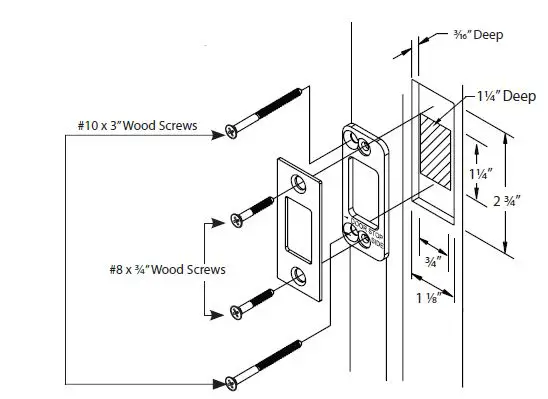

   Step 1: Fasten Security Plate using two #10 x 3” Wood Screws (item #9).
   Step 2: Fasten Strike Plate using two #8 x 3/4” Wood Screws (item #6).

How to Install

Install Latch

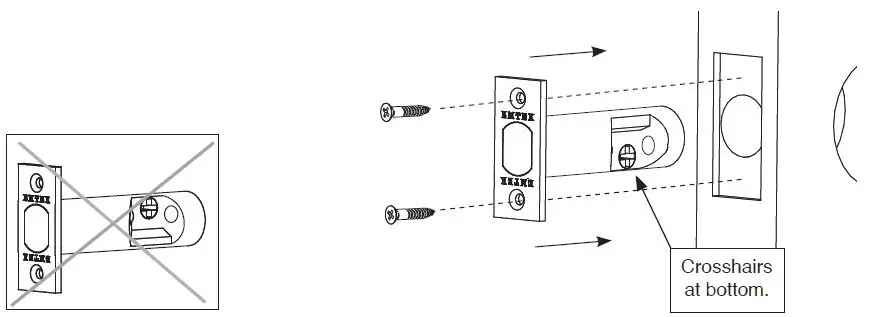

Fasten Latch using two #8 x 3/4” Wood Screws (item #6).

THE LATCH ASSEMBLY MUST BE ORIENTED AS SHOWN AND THE BOLT MUST BE IN THE RETRACTED POSITION FOR INSTALLATION.

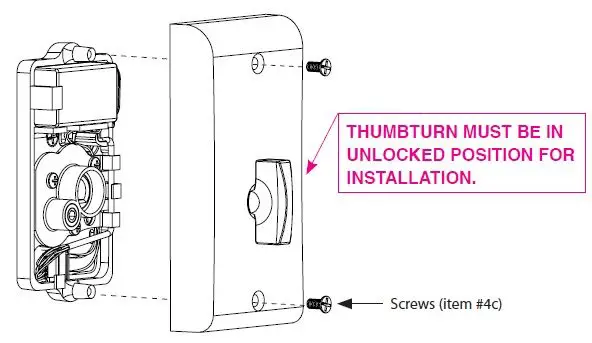

Remove Screws from Inside Trim Plate

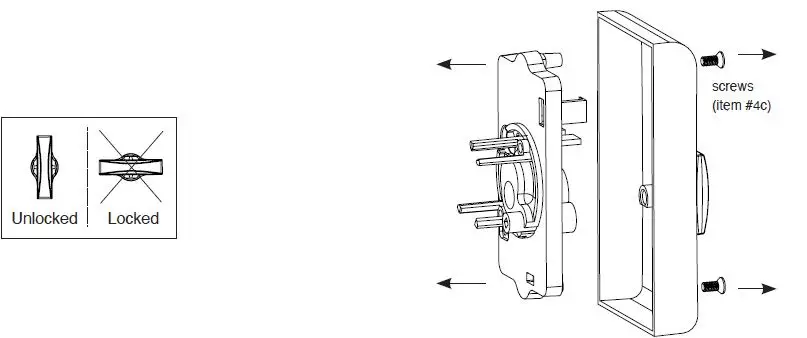

Use a Phillips head screwdriver to remove screws (item #4c) shown below and detach Inside Trim Plate from the Inside Chassis.

REMOVE INSIDE CHASSIS FROM TRIM PLATE BEFORE INSTALLING THE OUTSIDE TRIM. THUMBTURN MUST BE IN UNLOCKED POSITION.

Install Outside Trim Plate Assembly

Position the Outside Trim Plate Assembly through the bore hole.

ONCE POSITIONED, OUTSIDE TRIM PLATE ASSEMBLY REQUIRES SUPPORT.

Install Inside Chassis

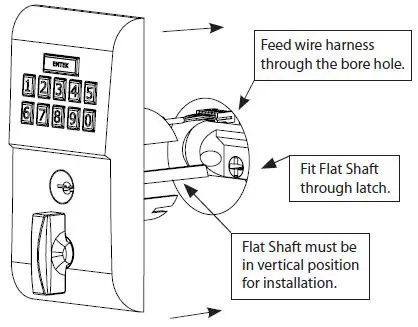

Step 1: Confirm the position of Flat Shaft.

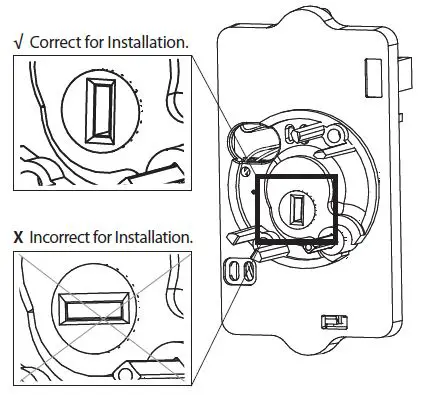

HOLE FOR FLAT SHAFT MUST BE IN VERTICAL POSITION FOR INSTALLATION.

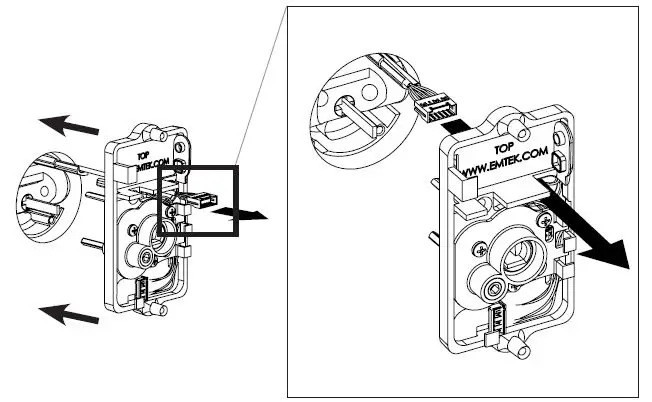

Step 2: Feed the Wire Harness through Inside Chassis.

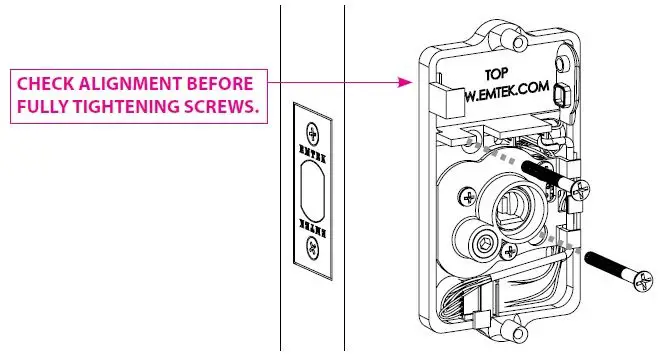

Step 3: Fasten Inside Chassis using two #8-32 x 11/2” Flat Head Machine Screws (item #5).

Step 4: Connect Wire Harness (A) and tuck Connectors as shown (B).

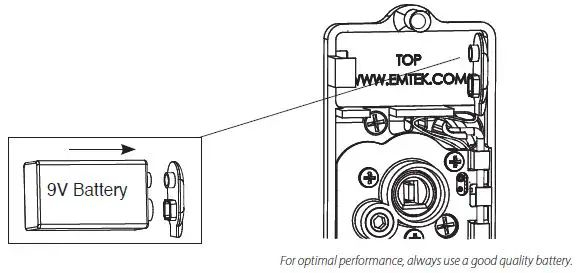

Step 5: Install Battery.

Install Inside Trim Plate

Fasten Inside Trim Plate using two #8-32 x 3/8” Flat Head Machine Screws (item #4c).

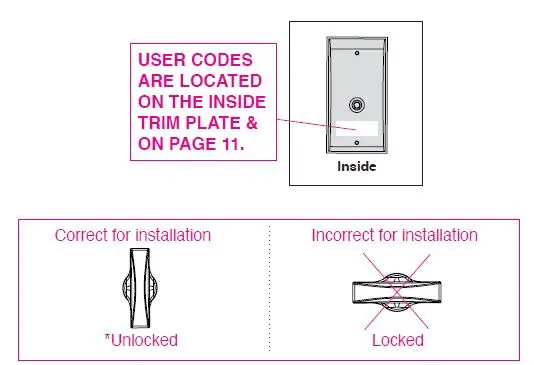

*Unlocked position is required for installation and removal of the Inside
Trim Plate Assembly.

How to Use

Your Lock is Ready to Use

Your Emtek lock is shipped with two 4-digit user codes and a 6-digit programming code. These codes are randomly generated at the factory.
(Turn to next page for Programming Instructions.)

To Unlock:

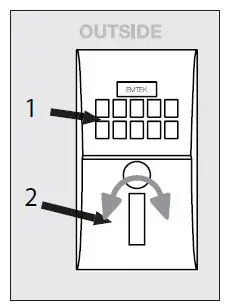

1. Enter 4-digit user codes.
   (See sticker located on the inside trim plate or on page 11).
2. Rotate Thumbturn.

To Lock:

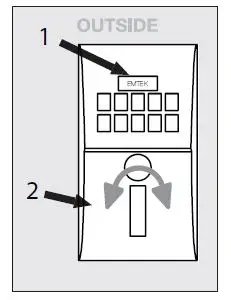

1. Press EMTEK key.
2. Rotate Thumbturn.

How to Program

Programming Your Lock

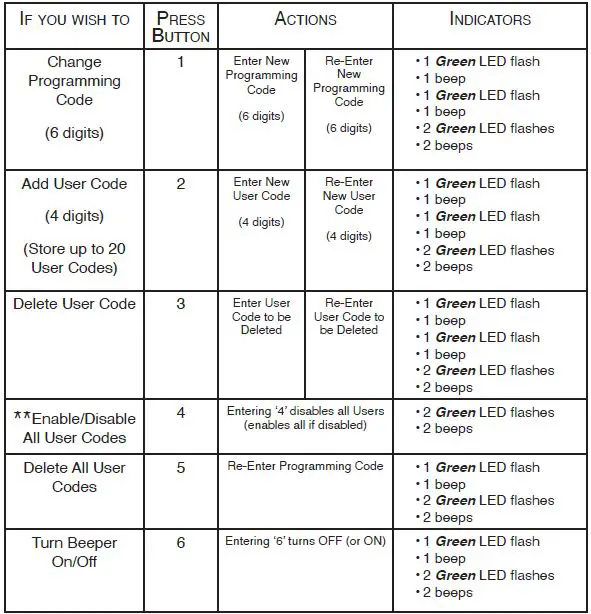

In order to perform each of the following six functions, the lock must first be placed in Programming Mode:
*If no input within 10 seconds, Yellow LED goes out, Red LED flashes and lock exits Programming Mode.

1. Press and hold EMTEK button for 3 seconds
2. Yellow LED flashes, then remains solid*, number keys also illuminate
3. Enter Programming Code
4. Yellow LED flashes, then 1 beep
5. Yellow LED remains solid (awaiting button press; see following Table)

If no input within 10 seconds, Yellow LED goes out, Red LED flashes and lock exits Programming Mode.

Also referred to as “vacation mode”. This command temporarily disables all user codes (metal key override will still work).

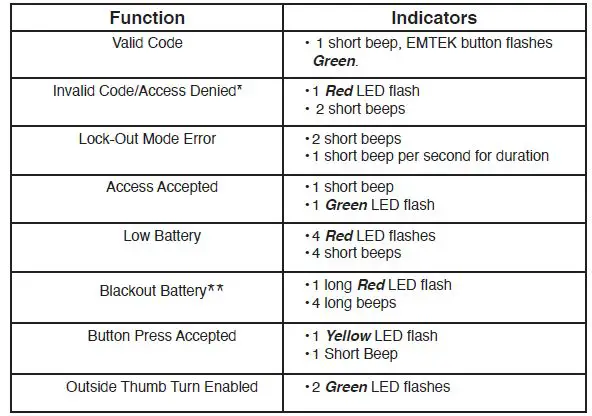

Keypad Operation – Beeper & LED Indicators

If 3 consecutive incorrect codes are entered, the lock emits 4 short beeps and a flashing Red EMTEK button. The lock will not accept additional input for 20 seconds (20 beeps). When the next valid code is entered the lock will beep quickly 10 times to alert of the incorrect codes.
Battery voltage has dropped too low; keypad will be disabled but metal key override will still work.

Restoring the Lock to Factory Default Setting

This procedure clears the lock of all users and restores the Programming Code and 2 User Codes shipped with the lock.

• Remove power (disconnect 9V battery) from Lock
• Press and Hold EMTEK button
• While continuing to hold EMTEK button, restore power (reconnect 9V battery)
• Continue to hold EMTEK button for 3 seconds
• 1 Green LED Flash and 2 short beeps followed by 1 Green LED Flash and 2 short beeps indicates the lock has been successfully restored

U.S. patents:
8,176,761
8,141,4000

Canadian patents:
2,698,041
2,789,278
2,789,280o
