Emtek Single Cylinder Deadbolts Lock Installation Guide

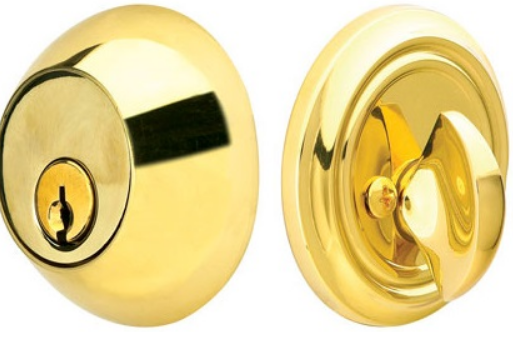

EMTEK Single Cylinder Deadbolts Lock

Installation Guide

1. Door Prep

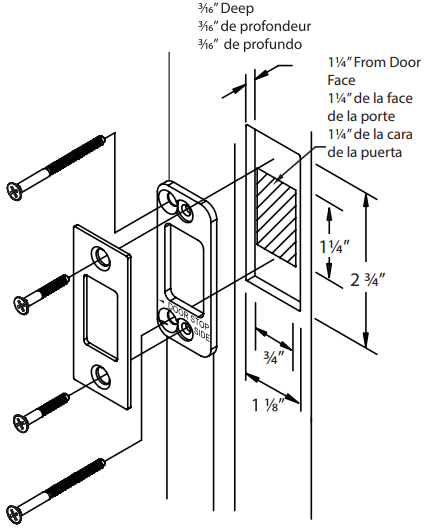

2. Door Jamb Prep

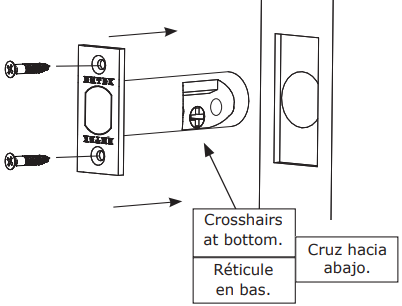

3. Install Latch



4. Outside Installation

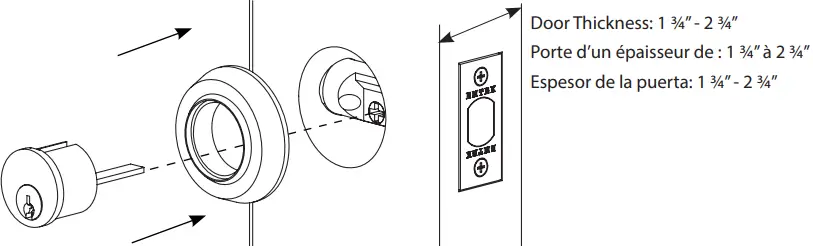

   Install Deadbolt on regular door

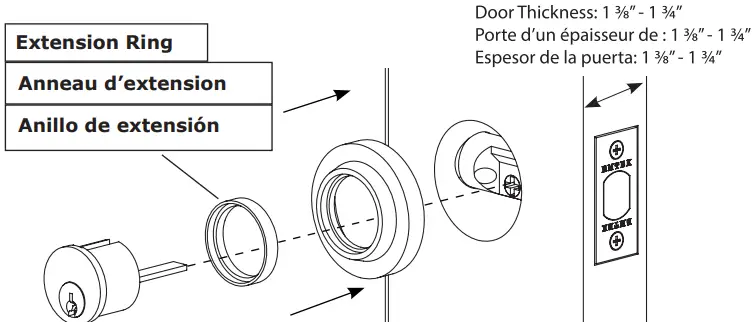

   Install Deadbolt on thin door. Extension Ring is provided for the following
   products: 8423, 8454, 8466, 8468, 8458, 8459, 8467, 8469, 8475

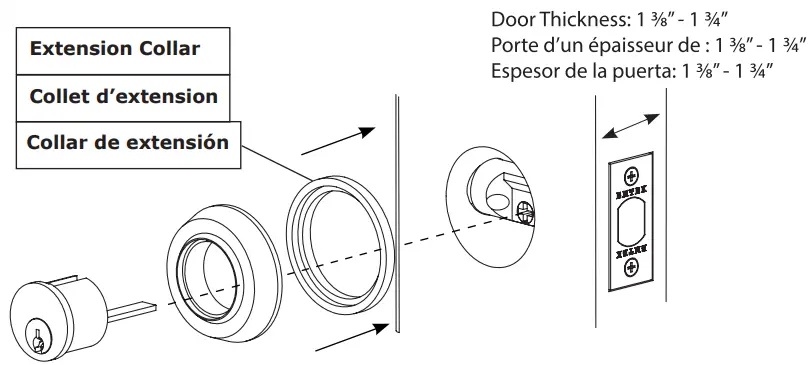

   Install Deadbolt on thin door. Extension Collar is provided for the following
   products: 8455, 8464

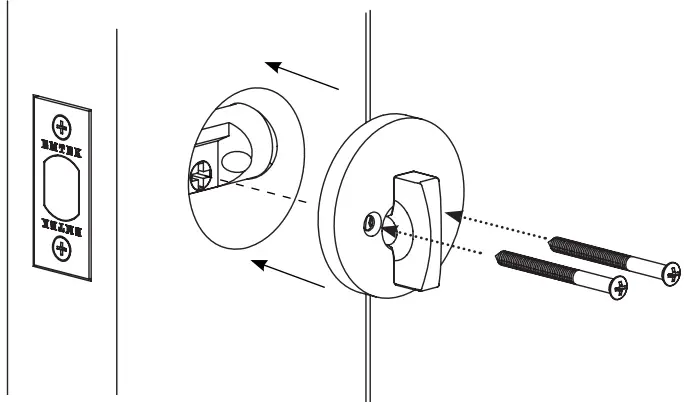

5. Inside Installation
