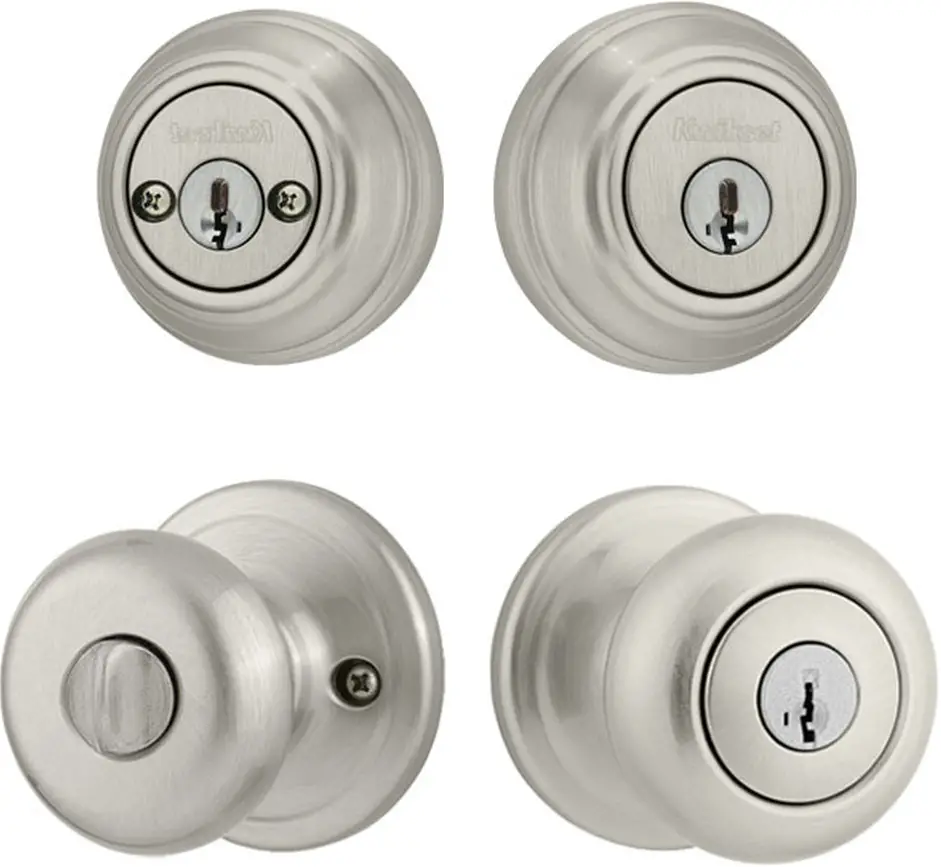

Kwikset 992 Double Cylinder Deadbolt

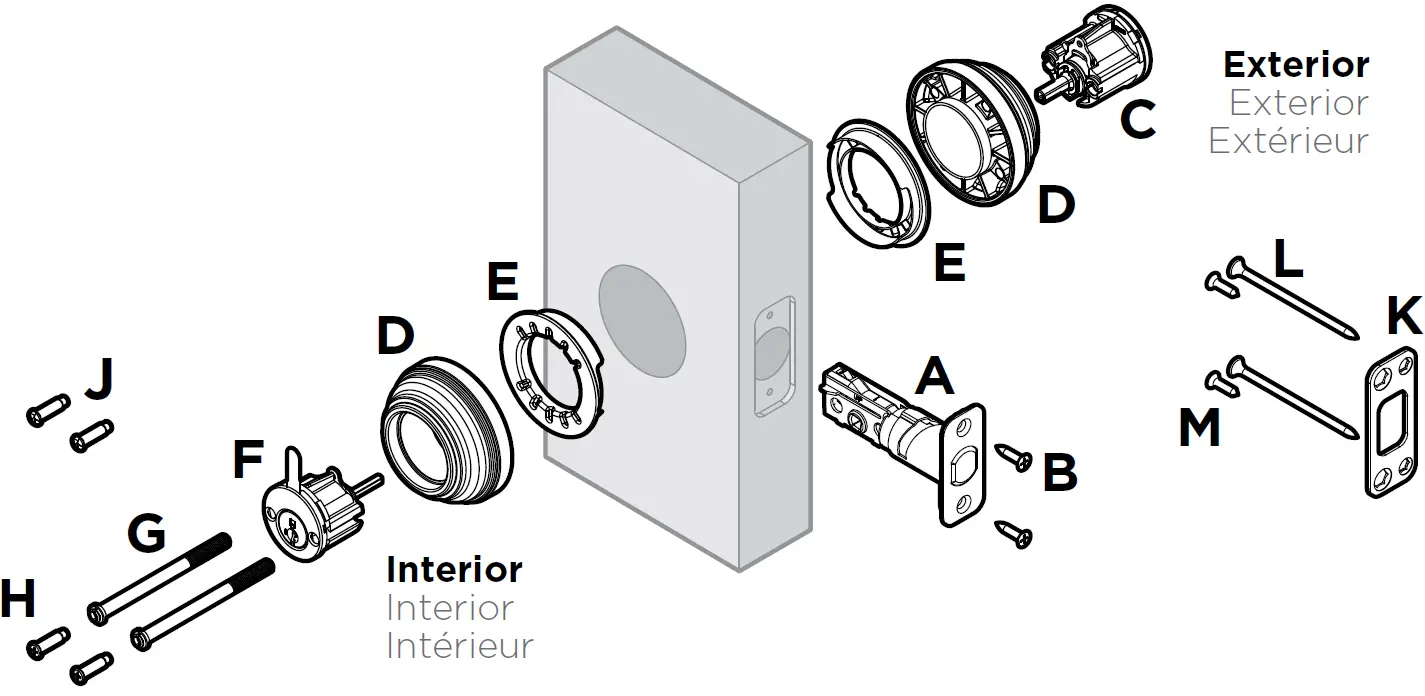

Quick Installation Guide

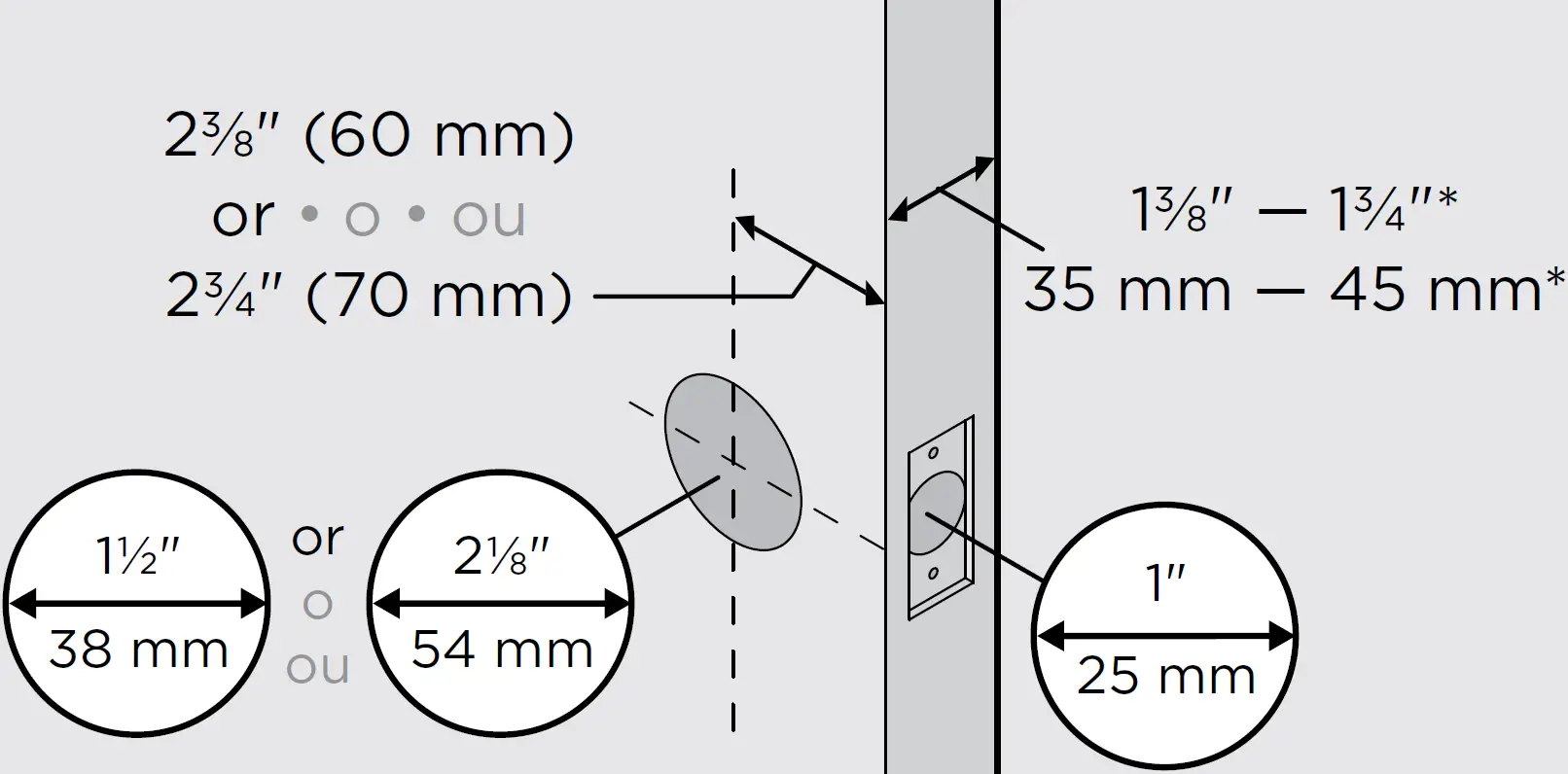

Dimensions
Thick door service kits for 2¼” (57 mm) thick doors available through customer service.
Drilling Instructions (if Required)
Tools Needed

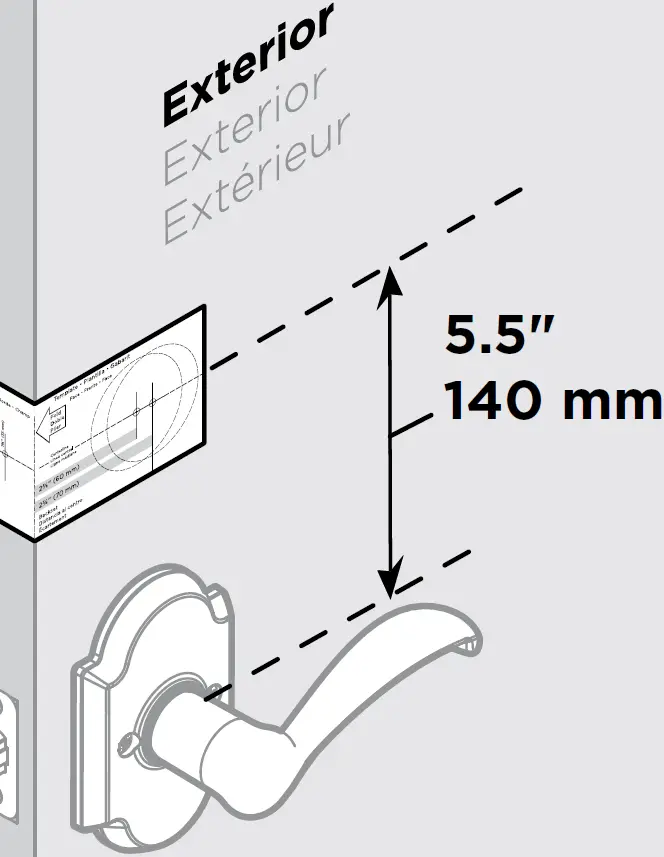

- Place the template on the EXTERIOR side of door. Fold template along fold line and place fold line along the edge of door with the centerline approximately 5-1/2″ (140mm) above centerline of knob or lever centerline.

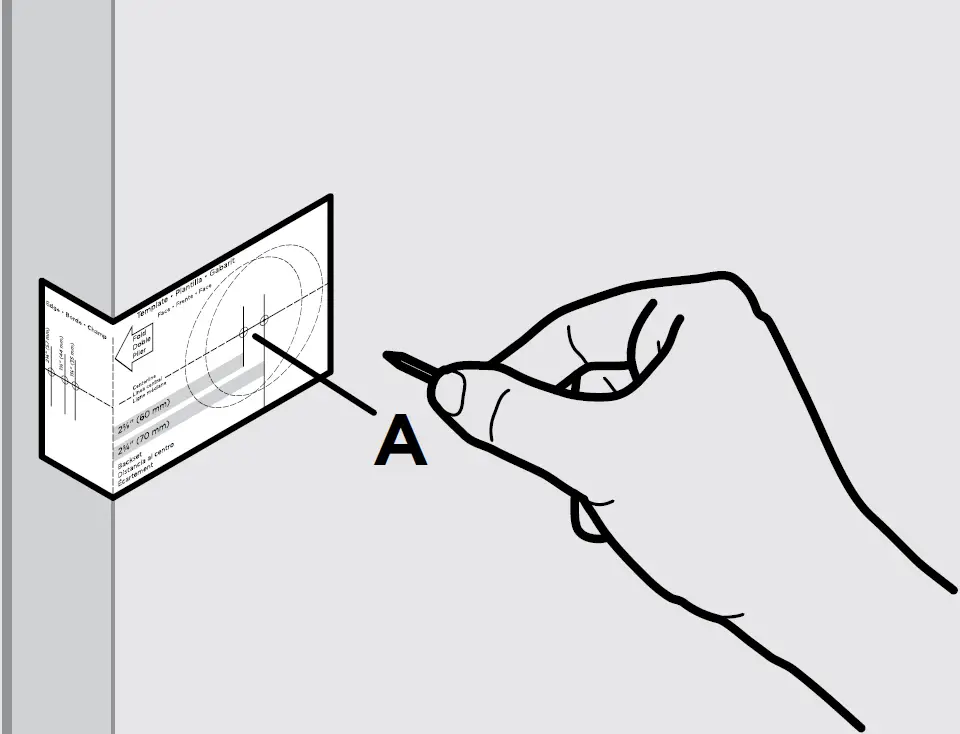

- Mark hole A. Select desired backset before marking hole.

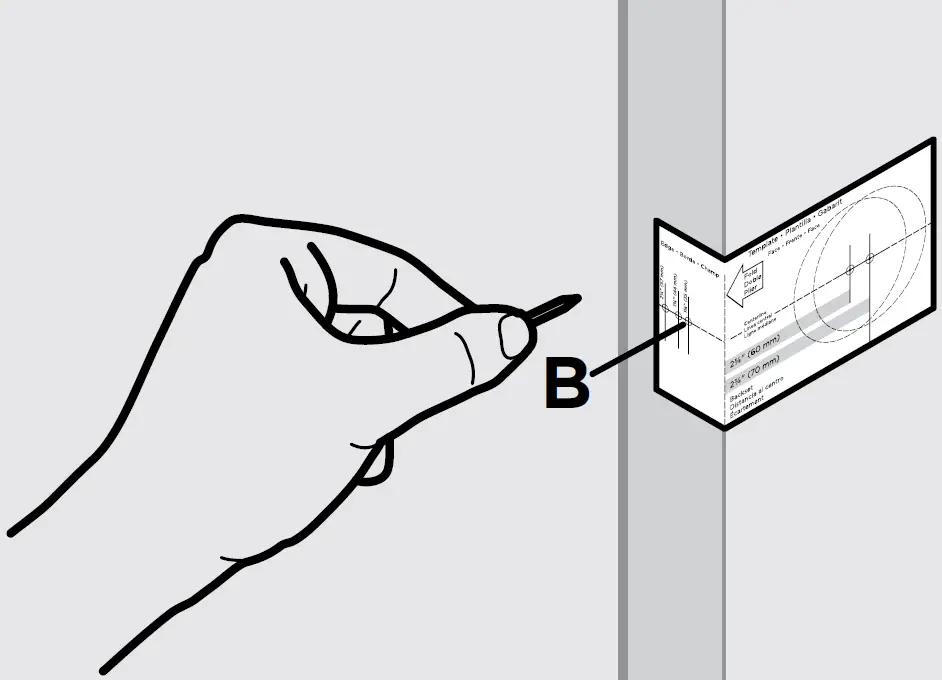

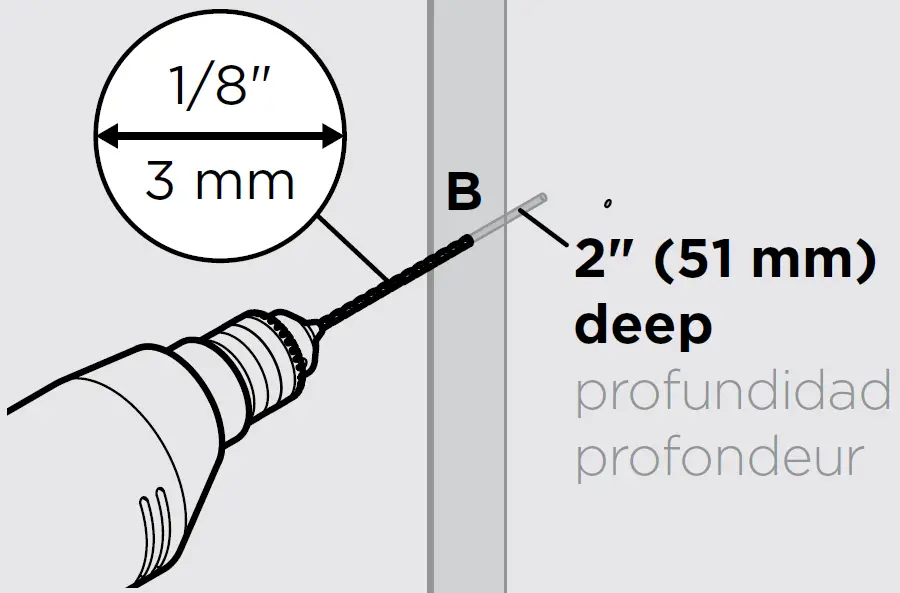

Mark hole B. Select door thickness before marking hole.

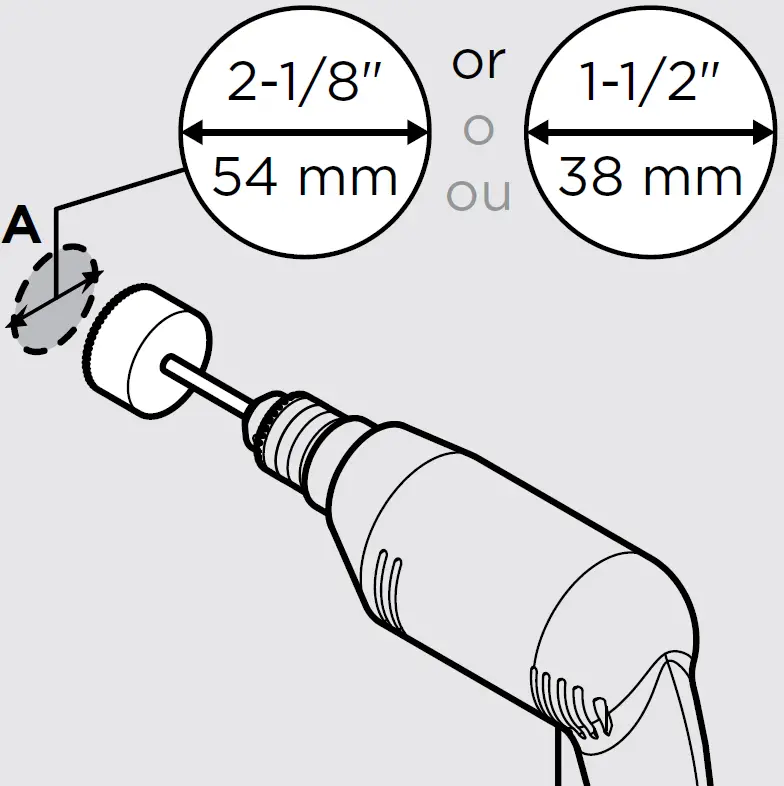

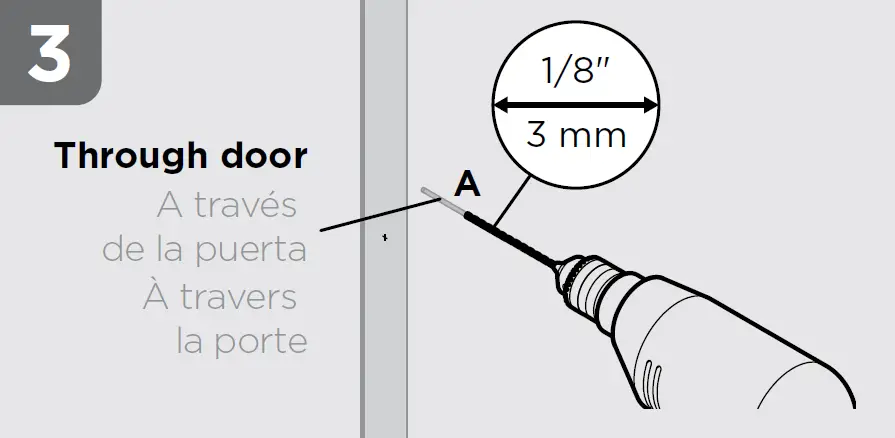

- Through door

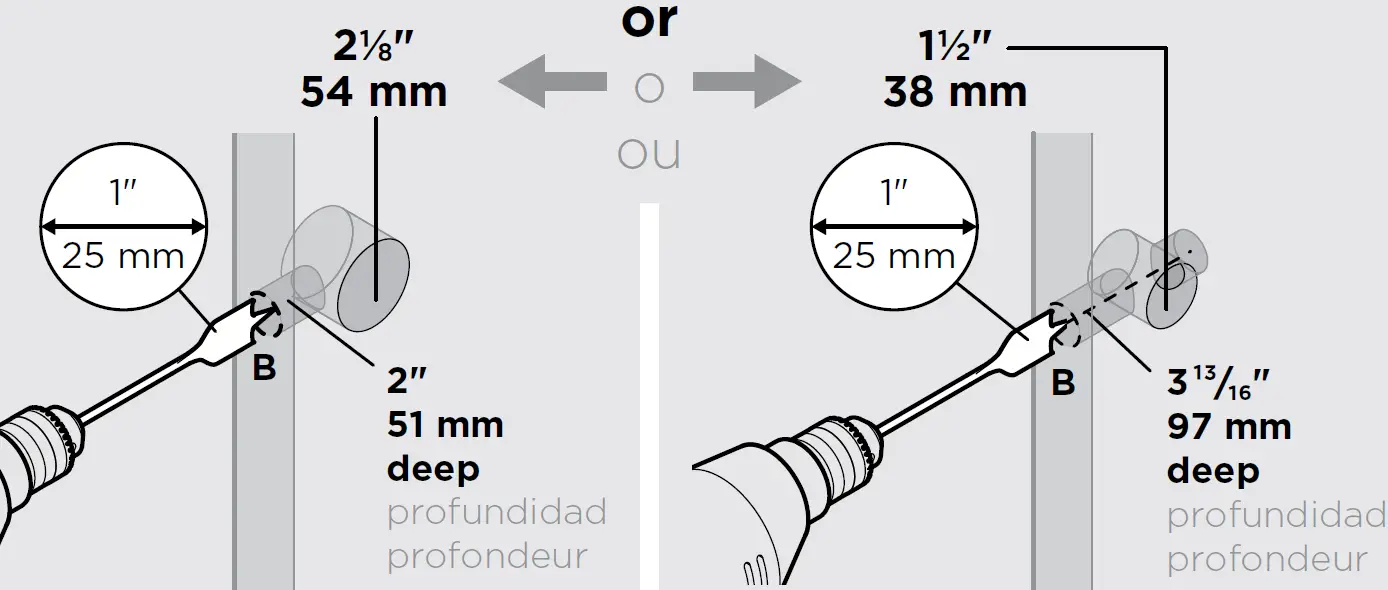

- Drill from one side until the point of drill just breaks through, then complete hole from the other side to prevent splintering.

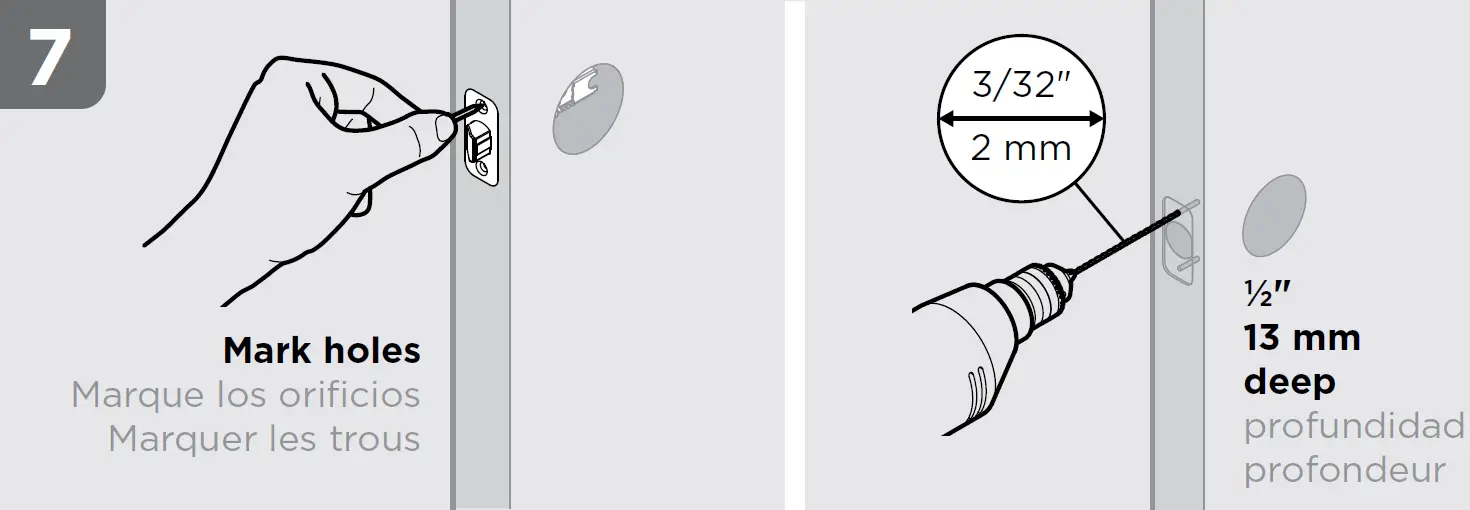

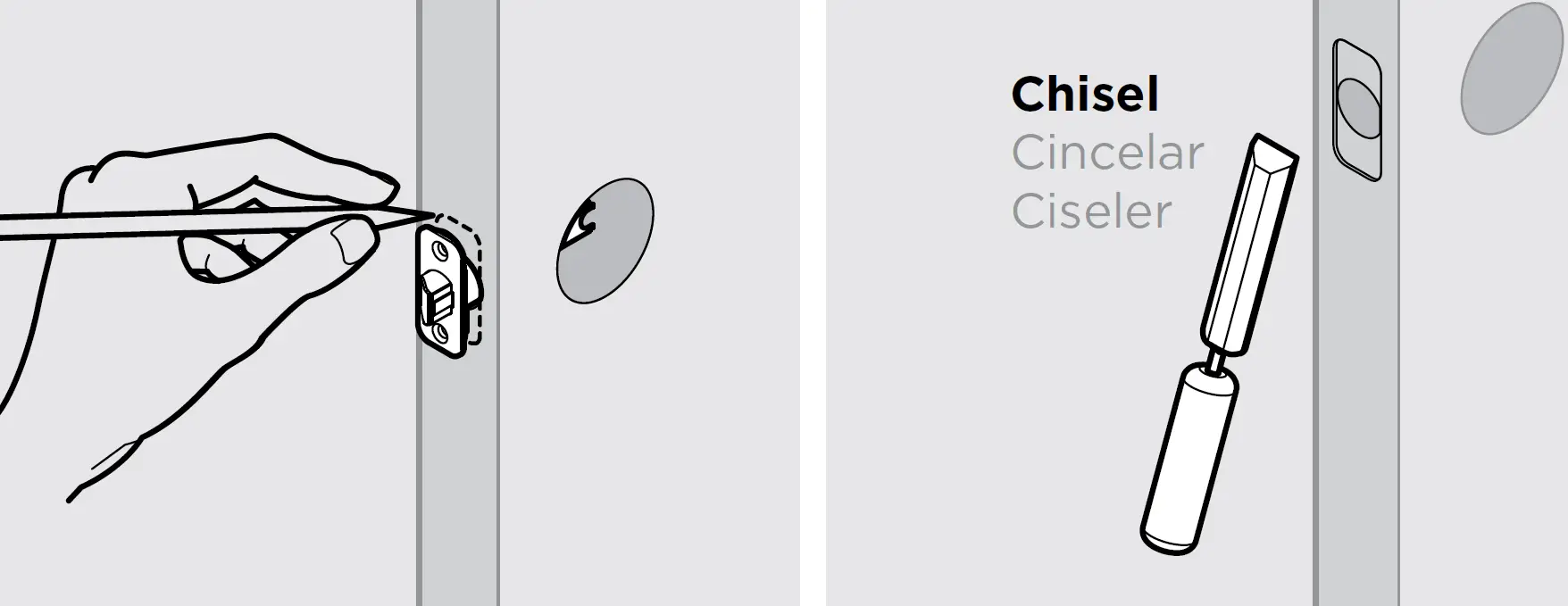

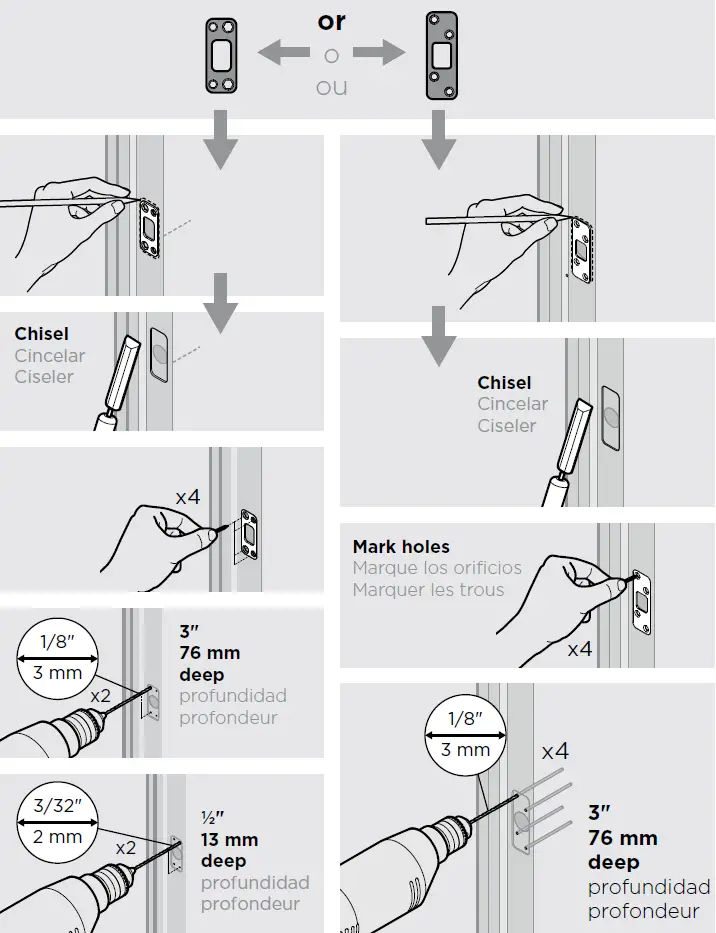

- Mark holes

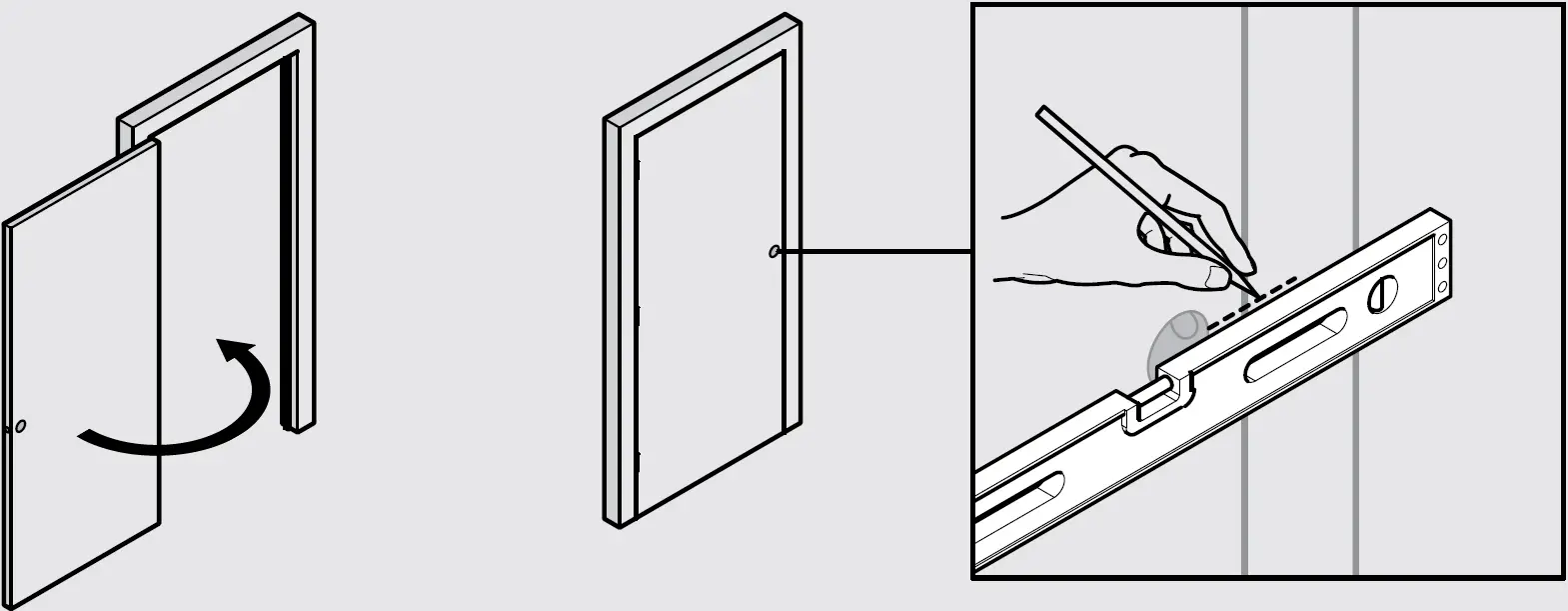

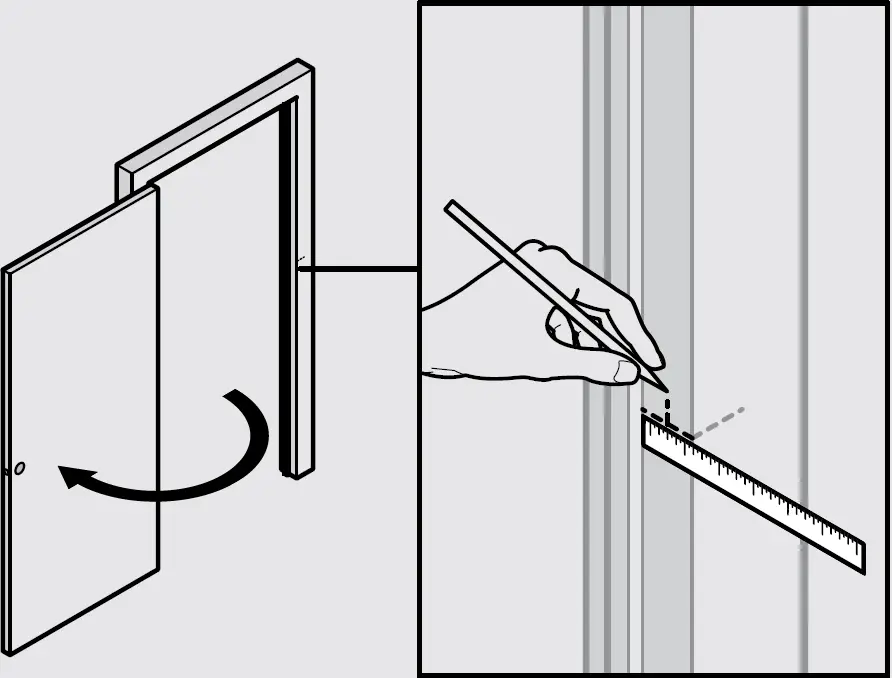

- Locate center of strike hole by measuring back from door stop, 1/2 the thickness of door.
Mark hole B. Select door thickness before marking hole.
