Emtek In4-deadbltdubl-tri Double Cylinder Deadbolts Installation Guide

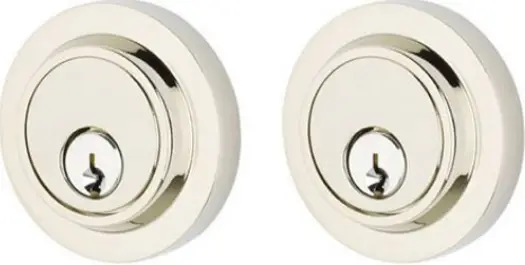

EMTEK IN4-DEADBLTDUBL-TRI Double Cylinder Deadbolts

Installation Guide

Double Cylinder Deadbolts

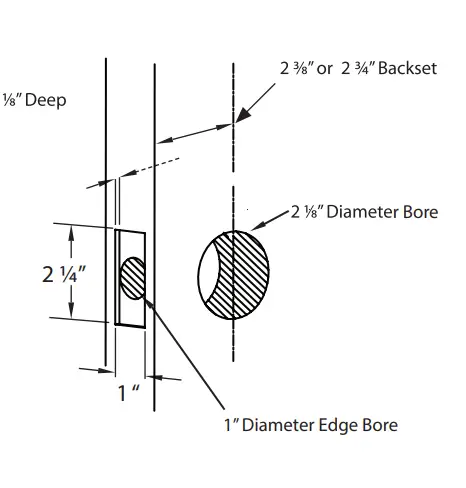

1. Door Prep

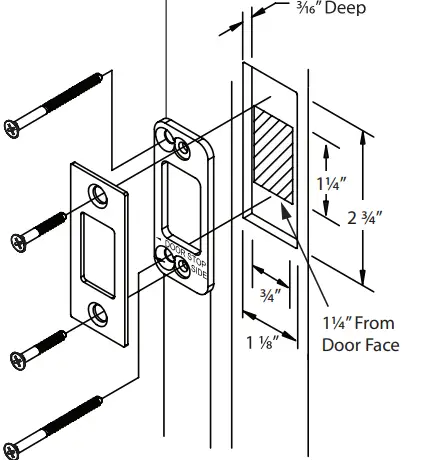

2. Door Jamb Prep

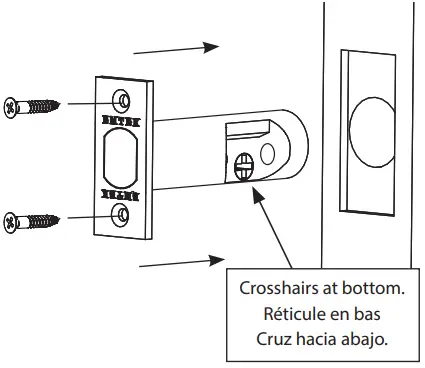

3. Install Latch



4. Outside Installation

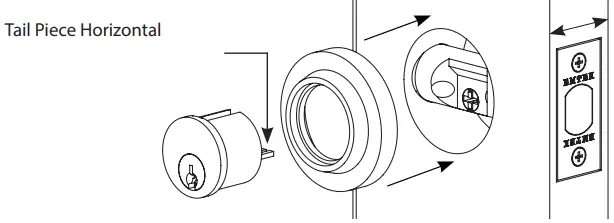

   Install Deadbolt on regular door.
   Door Thickness: 1 ¾” – 2 ¾”



5. Inside Installation
   Install Deadbolt on regular door.
   Door Thickness: 1 ¾” – 2 ¾”

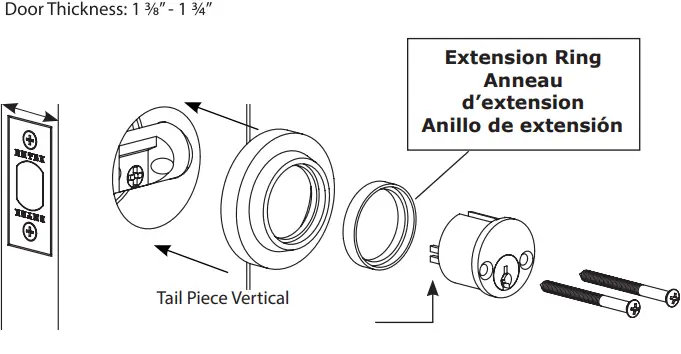

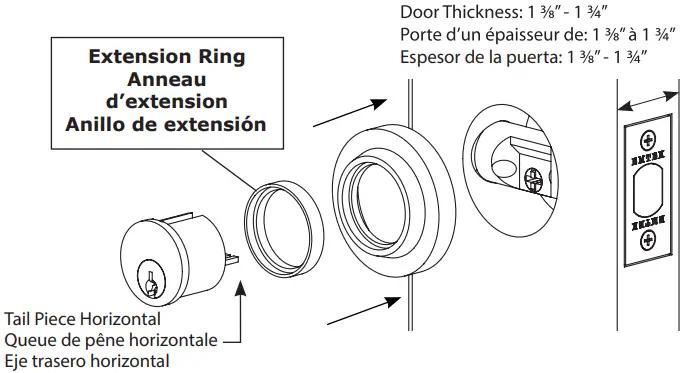

Install Deadbolt on thin door. Extension Ring is provided for the following products 8323, 8454, 8466, 8468, 8458, 8459, 8467, 8469, 8475

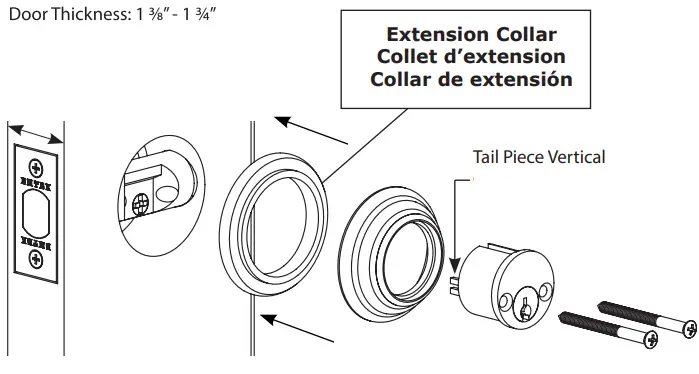

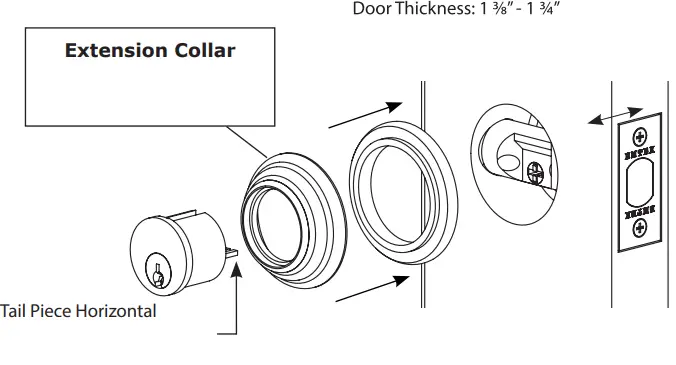

Install Deadbolt on thin door. Extension Collar is provided for the following products: 8355, 8364
