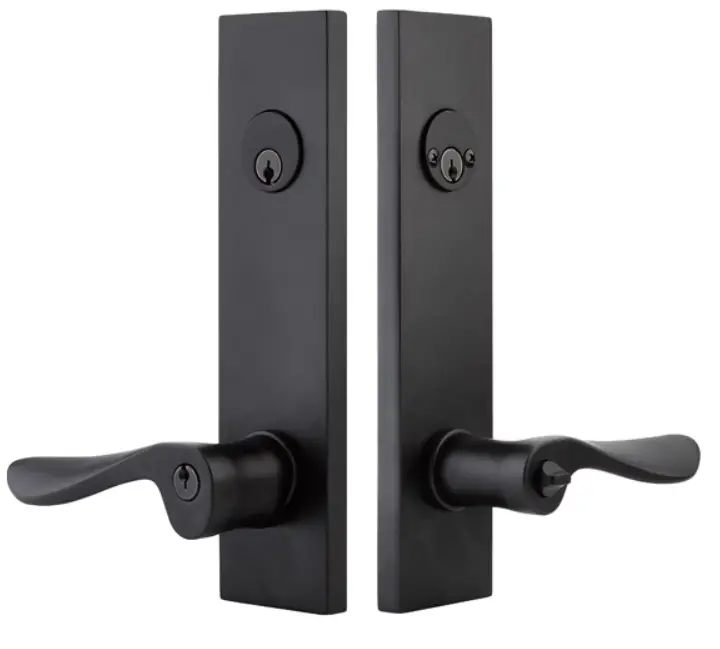

EMTEK Two Point Lock Double Cylinder
Re-Pinning Cylinder
STEP 1 Small hole should face down.

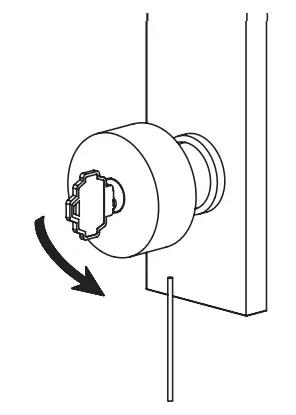

STEP 2 Rotate key counterclockwise 90º while pressing wire into hole.

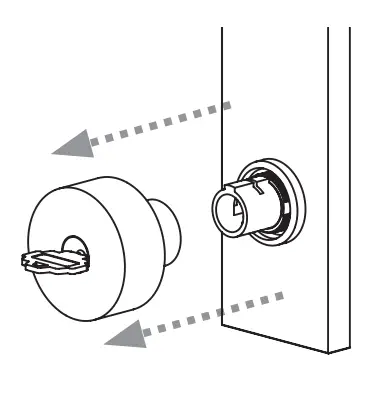

STEP 3 Slide Lever/Knob Off Stem

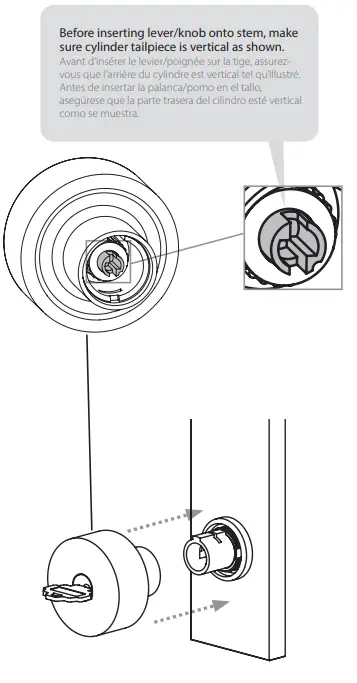

STEP 4 After re-pinning cylinder, insert lever/knob onto stem
Installation Guide
Two Point Lock, Double Cylinder
ASSA ABLOY, the global leader in door opening solutions

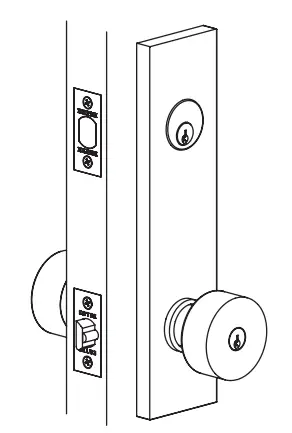

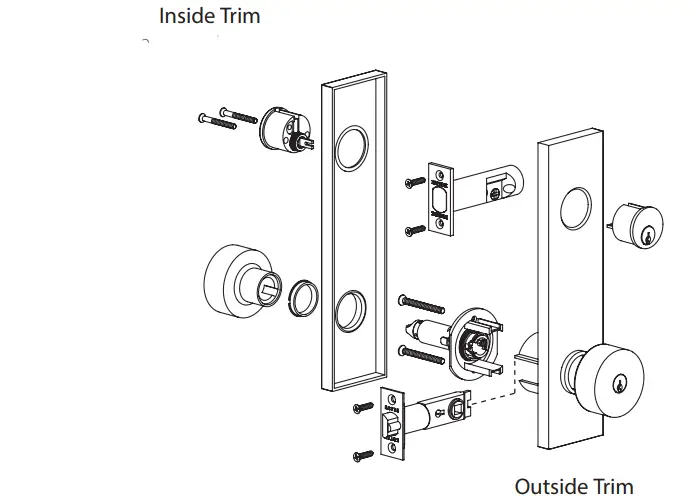

Lock Assembly

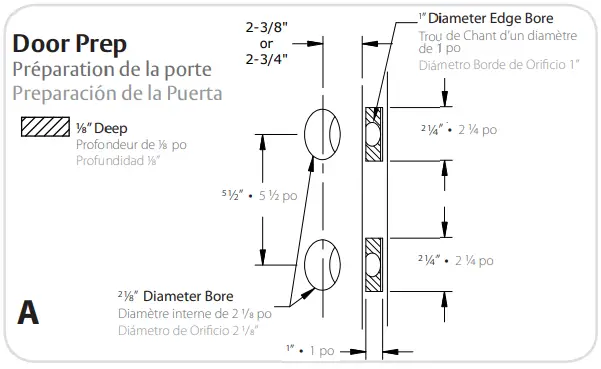

Preparation

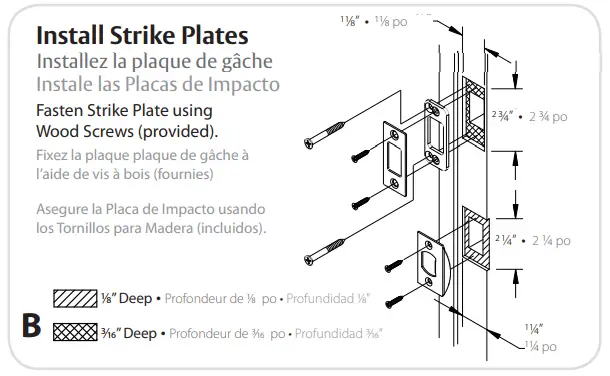

Install Strike Plates

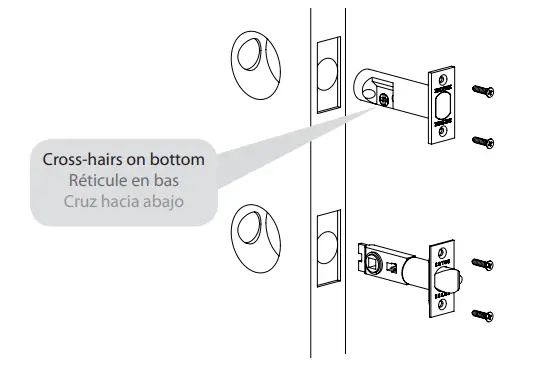

Install Bolt and Latch
Fasten Bolt and Latch using #8 x 3/4” Wood Screws (provided).
Remove Inside Trim Plate

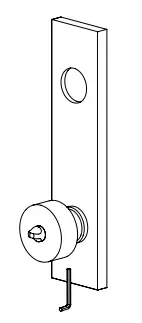

STEP 1 Remove inside lever/knob by loosening set screw w/ hex wrench (provided).

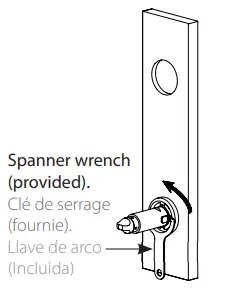

STEP 2 Unthread nut counterclockwise to remove from Interior Plate before installing on door.
Install Outside Trim Plate
Fasten Outside Trim Plate using two #8-32 x 1½” Pan Head Machine Screws (provided).
Install Inside Trim Plate

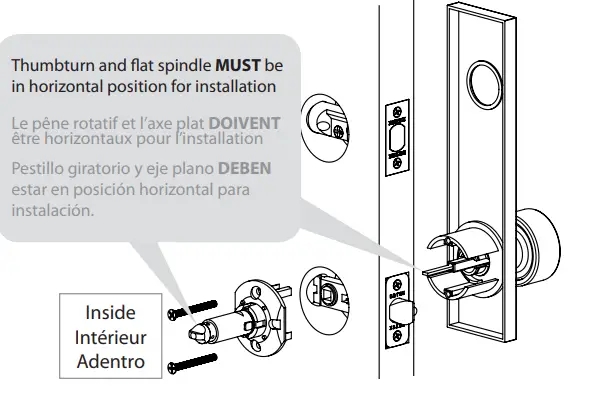

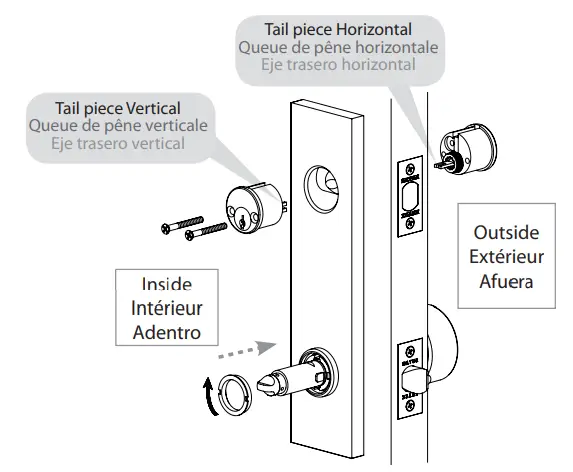

STEP 1 Install interior and exterior deadbolt using flat head screws and mount threaded nut clockwise to secure Inside Trim Plate to door.
STEP 2 Tighten set screw after placing lever/knob on stem.
