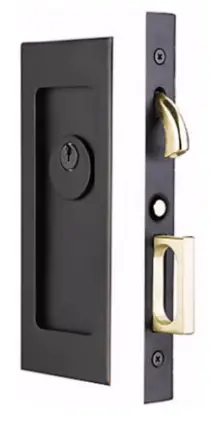

EMTEK Privacy Pocket Door Mortise Lock
Privacy Pocket Door Mortise Lock, Classic Trim

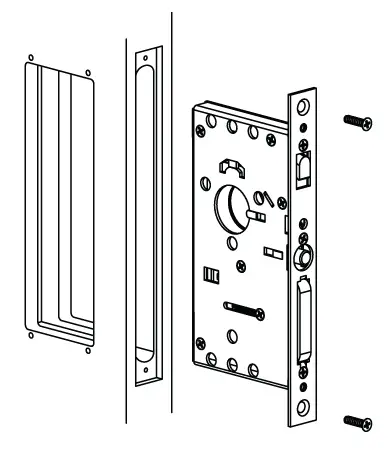

Install Lock Body
- See template for door prep specifications

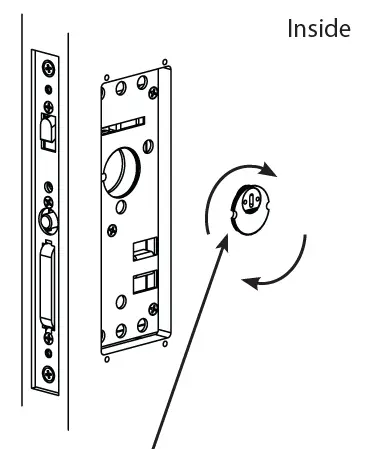

Install Drive Bar Cylinder
Note: Notch on cylinder must be in the 9 o’ clock position when fully screwed into lock body.

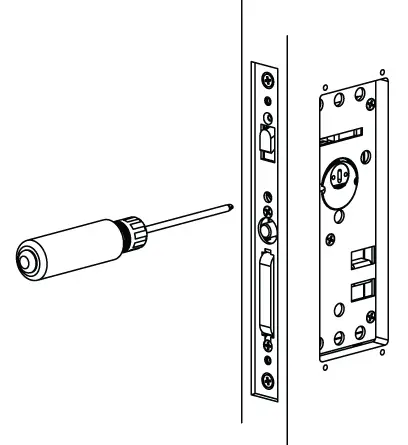

Tighten Drive Bar Cylinder
- Tighten locking screw to engage notch on cylinder
Mount Inside/Outside Plates
- Align Passage/Privacy Button with Thumb-Turn spindle and secure trim plates to door.

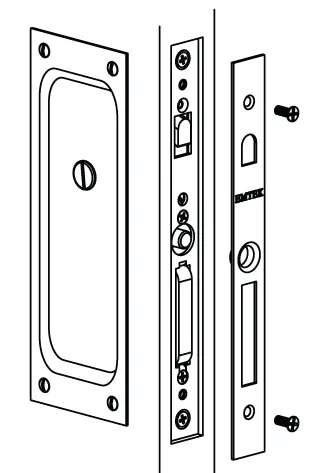

Install Trim Plate

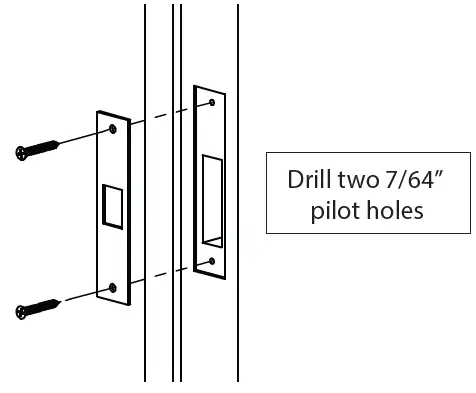

Install Door Jamb
- See template for door jamb prep specifications
