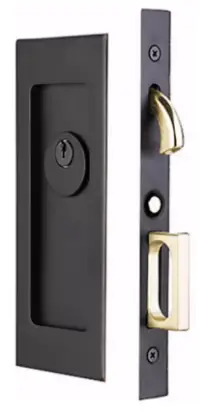

EMTEK Passage-Dummy Pocket Door Mortise Lock
Installation Guide
- Passage/Dummy Pocket Door Mortise Lock, Classic Trim

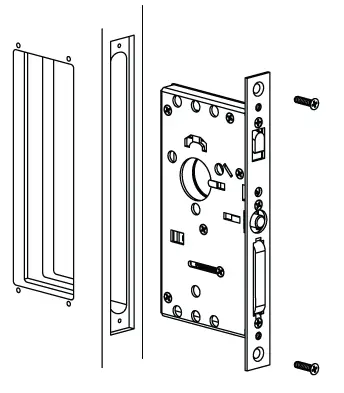

Install Lock Body

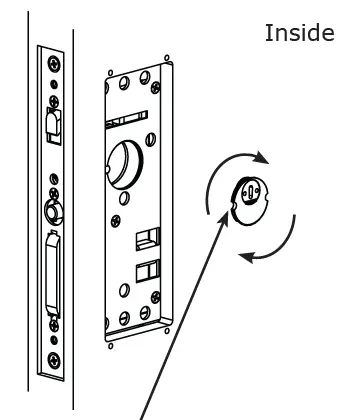

Install Drive Bar Cylinder

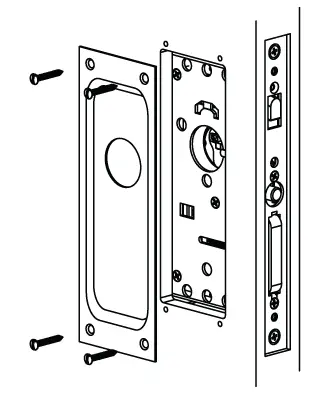

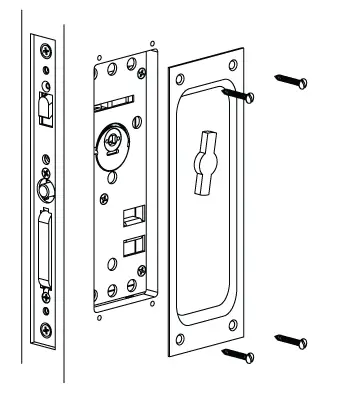

Mount Inside Plate
- See template for door prep specifications
Note: Notch on cylinder must be in the 9 o’ clock position when fully screwed into lock body.
Mount Outside Plate

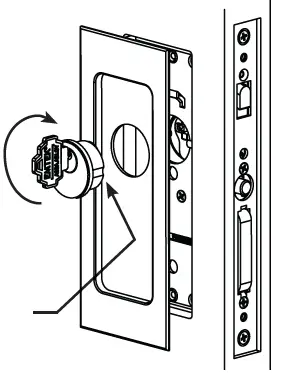

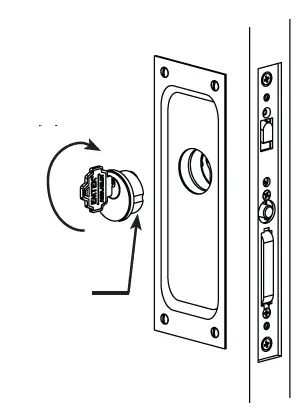

Thread Key Cylinder
- Install Key Cylinder by threading it clockwise onto lock body plate
- Key Cylinder notch must be at the 3 o’clock position when fully screwed in lock body.

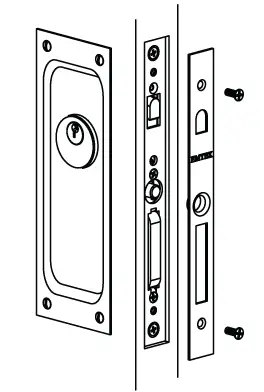

Install Trim Plate

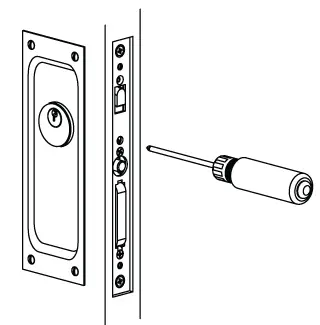

Tighten locking screw to engage notch on cylinder
Install Trim Plate

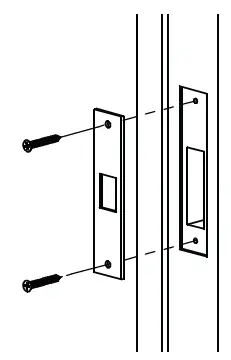

Install Door Jamb
- Drill two 7/64″ pilot holes
- See template for door jamb prep specifications
- IN4-POCKETMORTISEKYD REV. 5 11-15-21
Installation Guide
Keyed Pocket Door Mortise Lock, Modern Trim

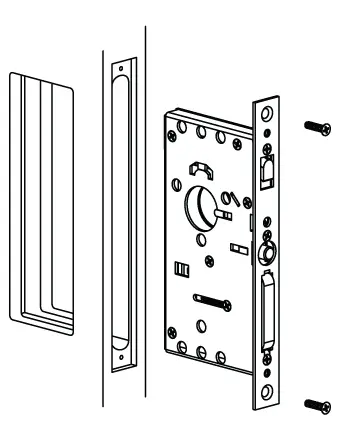

Install Lock Body

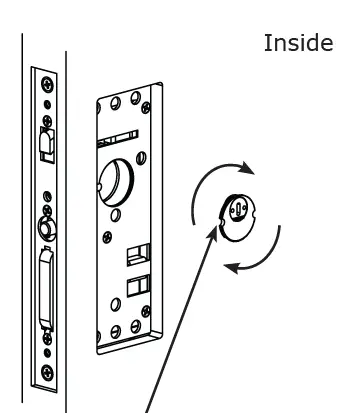

Install Drive Bar Cylinder

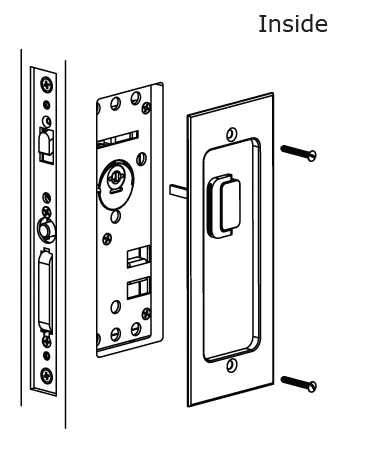

Mount Inside Plate
- See template for door prep specifications
Note: Notch on cylinder must be in the 9 o’ clock position when fully screwed into lock body.
Mount Outside Plate and Thread Key Cylinder
- Install Key Cylinder by threading it clockwise onto lock body plate
- Key Cylinder notch must be at the 3 o’clock position when fully screwed in lock body.
Tighten Drive Bar Cylinder
Key Cylinder notch must be at the 3 o’clock position when fully screwed in lock body.

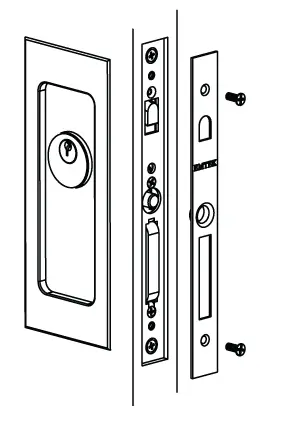

Install Trim Plate

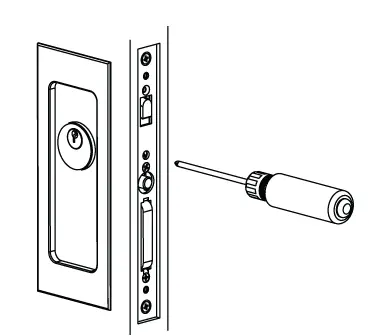

Tighten locking screw to engage notch on cylinder

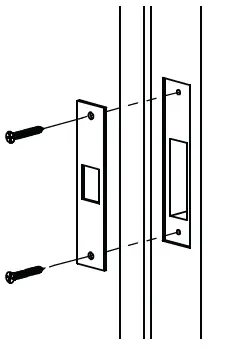

Install Door Jamb
- Drill two 7/64″ pilot holes
- See template for door jamb prep specifications
