Emtek F13 Ul Listed Mortise Lock Knob By Knob Installation Guide

EMTEK F13 UL Listed Mortise Lock Knob by Knob

Installation Guide

1. Install Cylinder Plug
   Install cylinder plug by threading it clockwise onto lock body


   Note: Notch on cylinder plug must be in the 9 o’ clock position when fully screwed onto lock body.

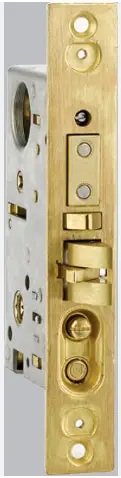

2. Install Mortise Lock

   See template for door prep specifications

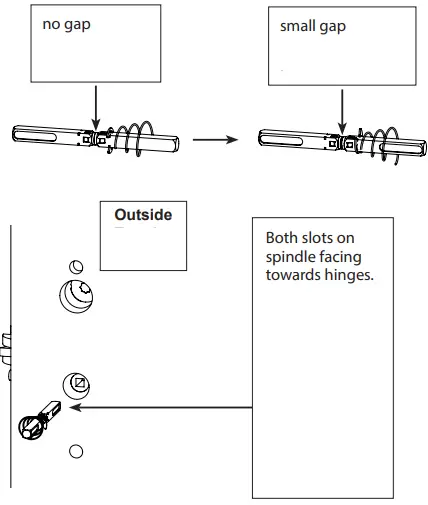

3. Adjust and Install Spindle
   Rotate one full turn until both slots are facing the same way.

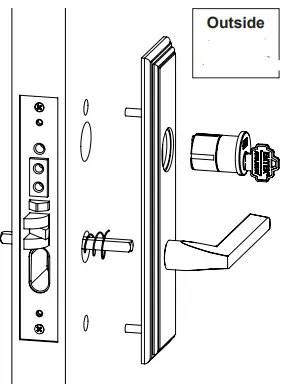

4. Install Key Cylinder
   Install key ¾ of the way into the key cylinder and thread it clock-wise onto trim plate.


   Plates and lever/knob vary depending on style.

5. Tighten Key Cylinder
   After key cylinder is installed, secure cylinder by tightening screw

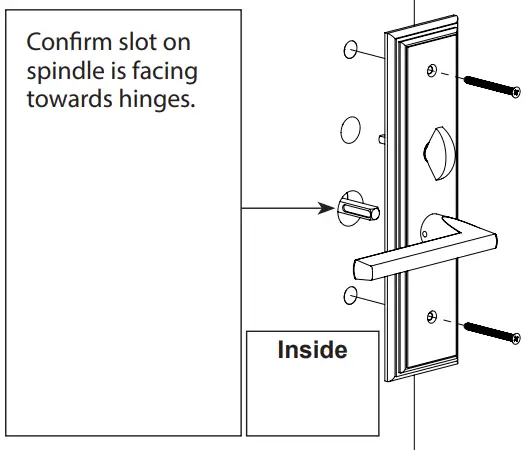

6. Mount Inside Trim to Door

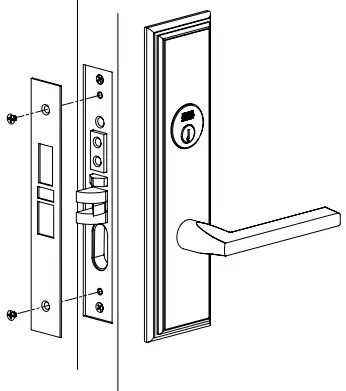

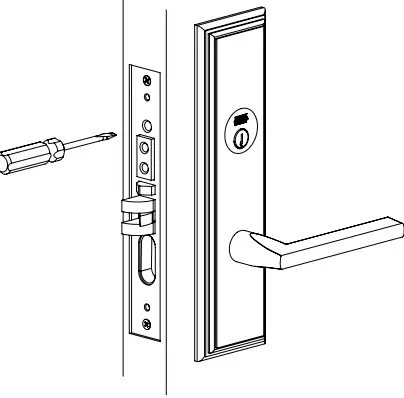

7. Install Trim Plate

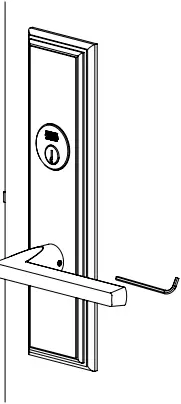

8. Tighten Inside Lever or Knob

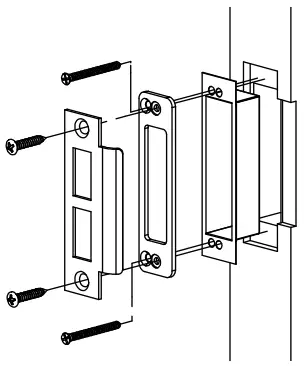

9. Install Door Jamb

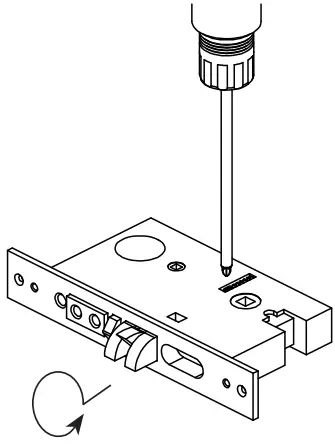

Instructions to reverse swing

1. Remove dowel screw. (Replace after reversing swing)
2. Pull out and rotate latch bolt to reverse its direction.
