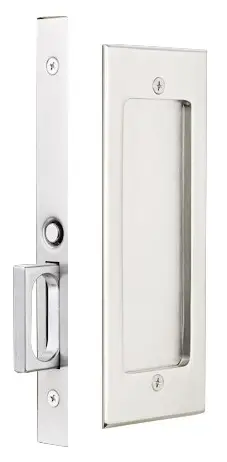

EMTEK 2184 Square Passage Pocket Door Mortise Lock
Installation Guide
Square and Round Pocket Mortise Lock – Privacy

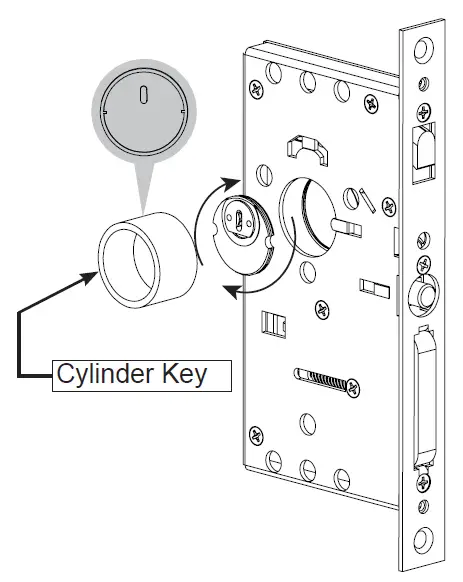

Thread Drive Bar Cylinder
Note: Drive Bar Socket must be in the 12 o’ clock position as shown.
Note: Notches on cylinder must be parallel with the horizontal plane when fully screwed into lock body.

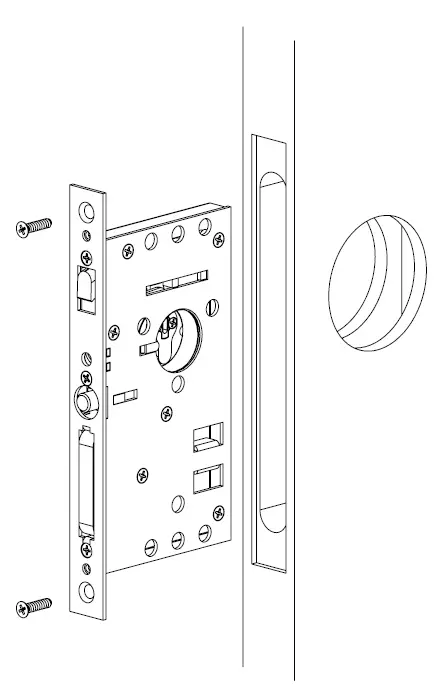

Install Lock Body

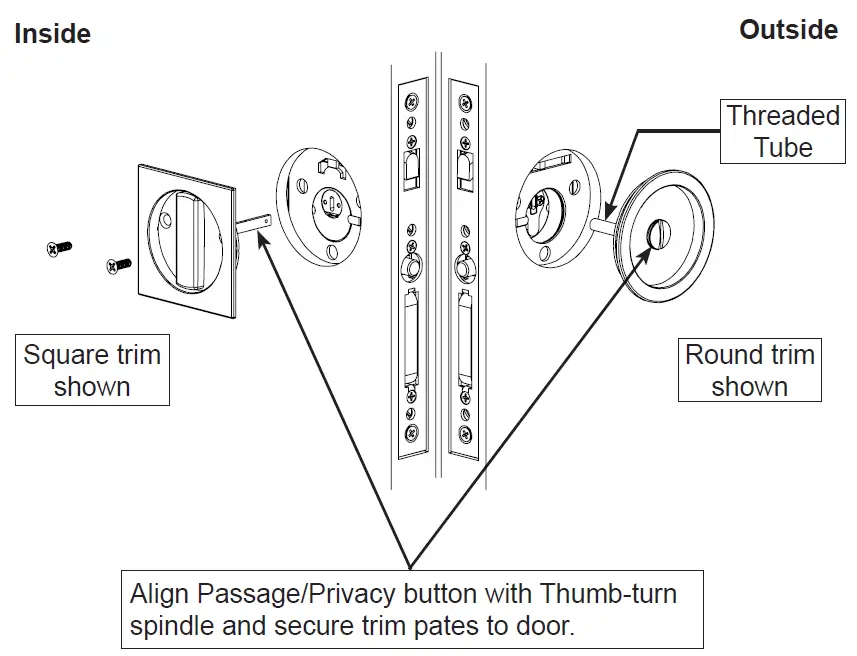

Install Inside and Outside Plates

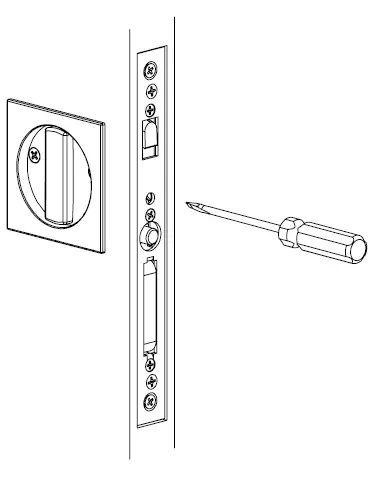

Tighten Key Cylinder
- Tighten locking screw to engage notches on cylinder

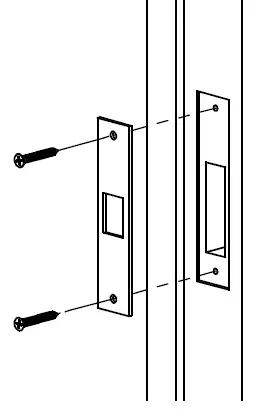

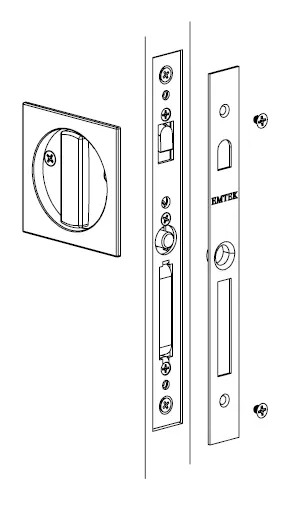

Install Trim Plate
Door Jamb Prep.
- See template for door jamb prep specifications

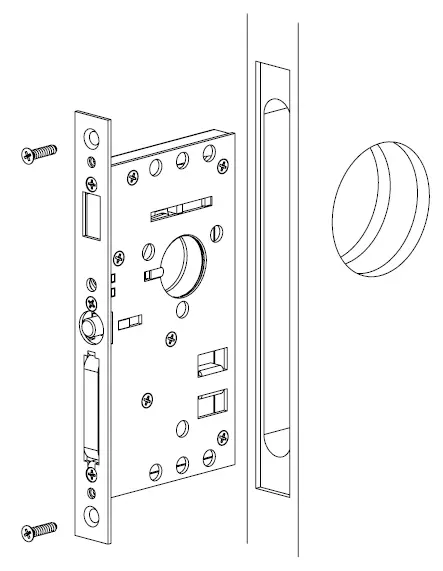

Install Lock Body
- See template for door prep specifications

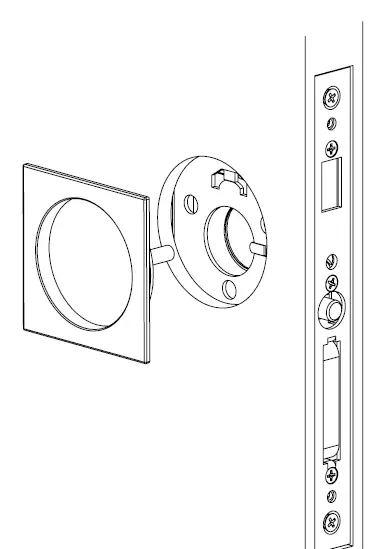

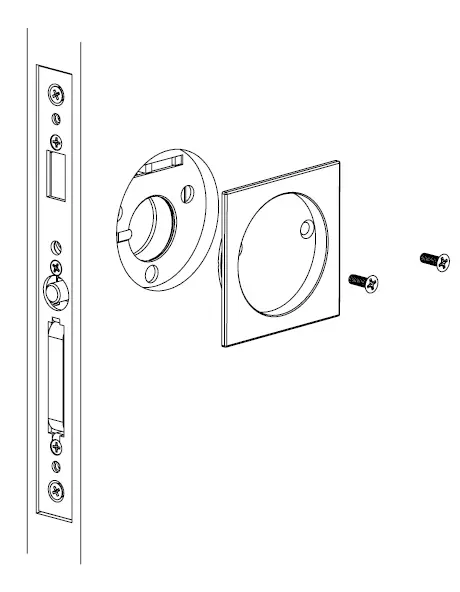

Install Outside Plate
- Square Trim shown
Install Inside Plate

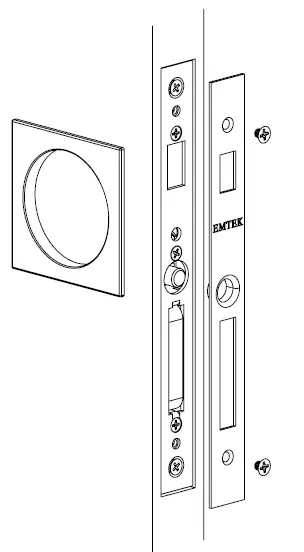

Install Trim Plate
