Installation Guide for Pocket Door Mortise Lock
Privacy Function

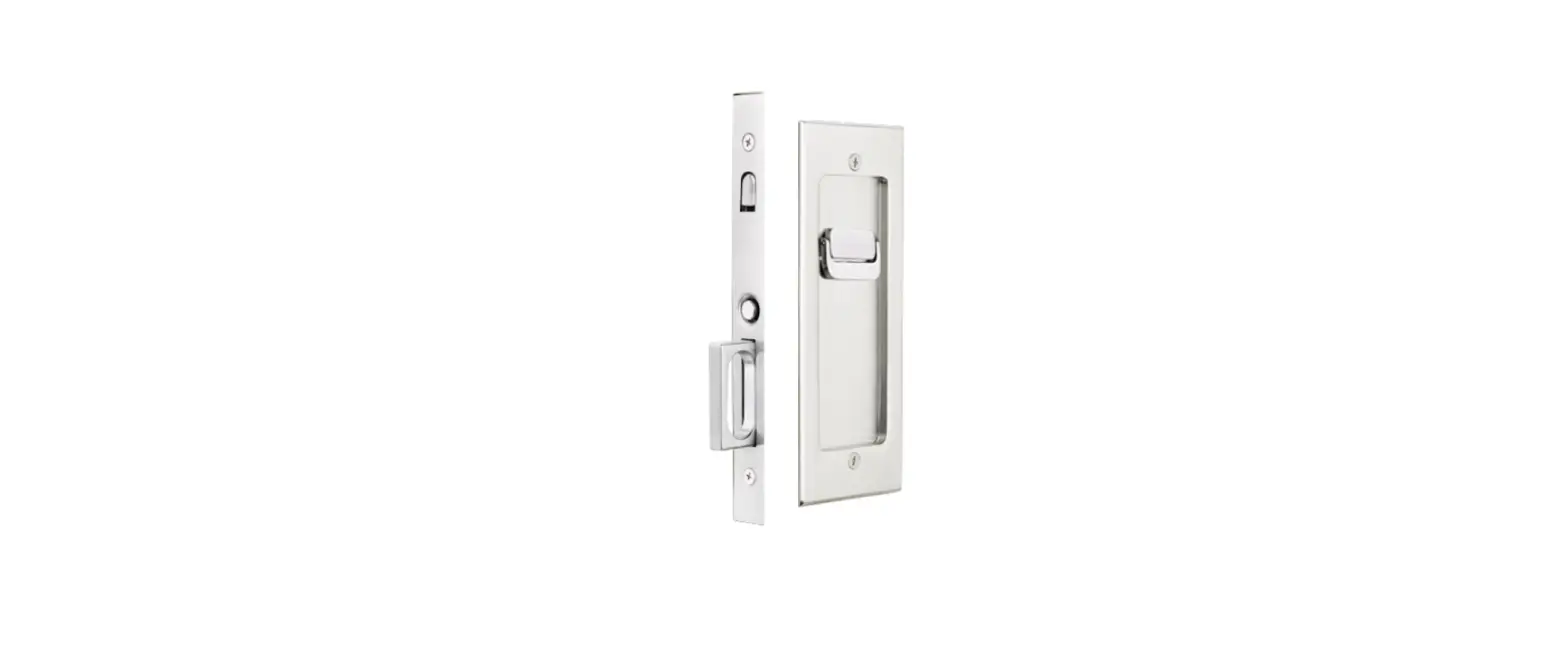

Pocket Door Mortise Lock
- Thread Drive Bar Cylinder
Use Cylinder Key to thread Drive Bar Cylinder clockwise on interior side of door.
Note: Drive Bar Socket must be in the 12 o’ clock position as shown.

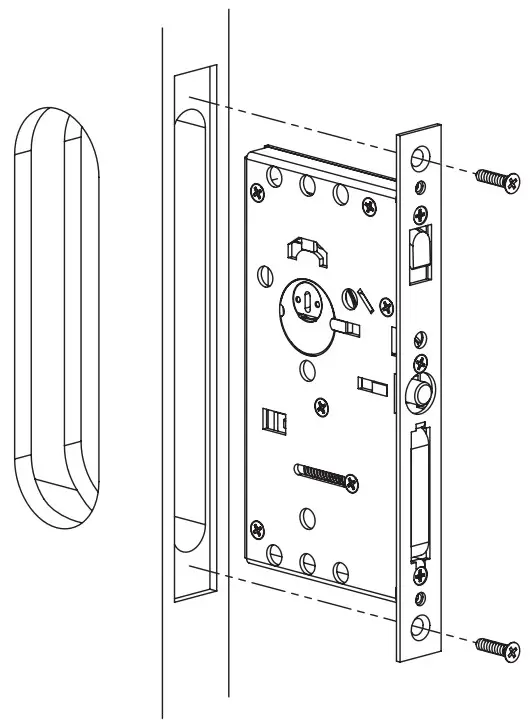

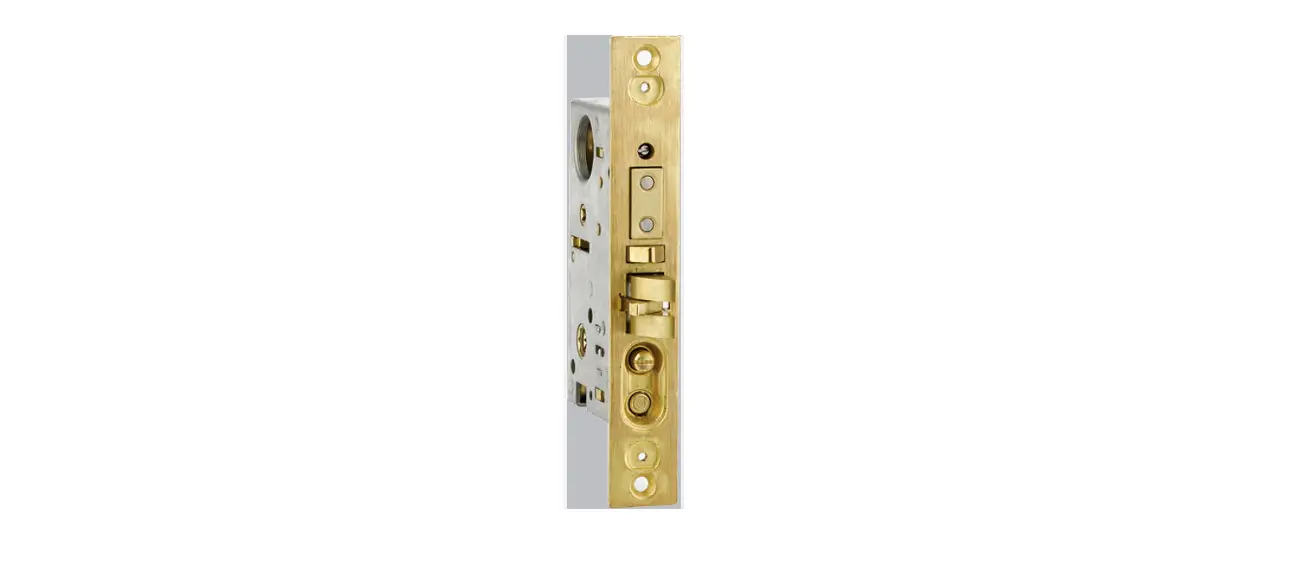

Note: Notches on cylinder must be parallel with the horizontal plane when fully screwed into lock body. - Install Lock Body

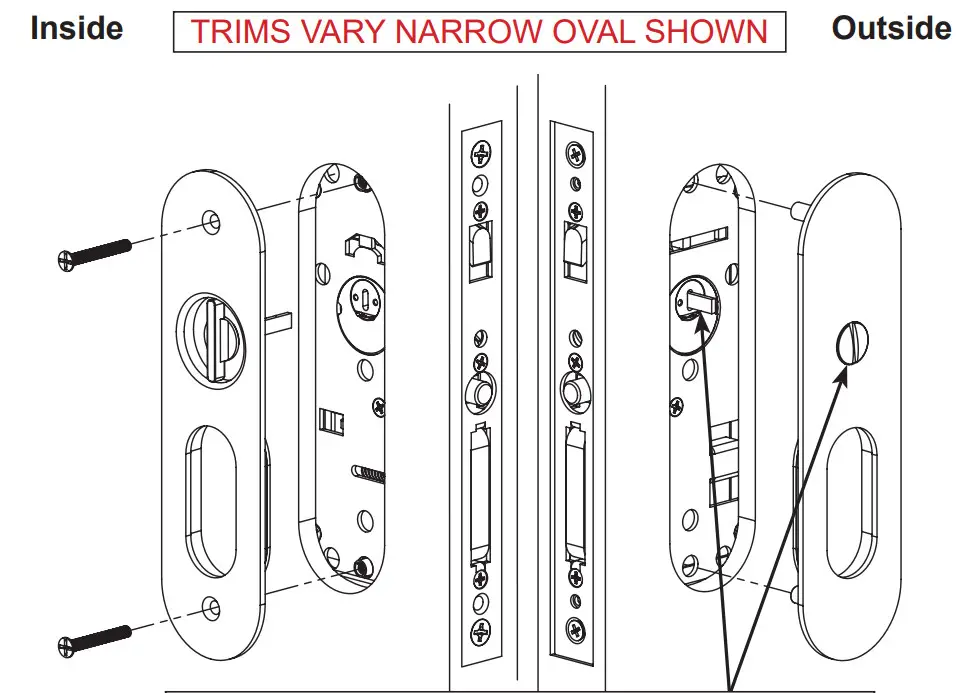

See template for door prep specification - Install Inside and Outside Plates

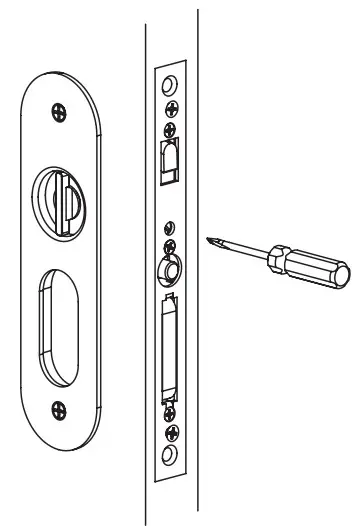

Align Passage/Privacy button with Thumb-turn spindle and secure trim pates to door. - Tighten Key Cylinder
Tighten locking screw to engage notches on cylinder

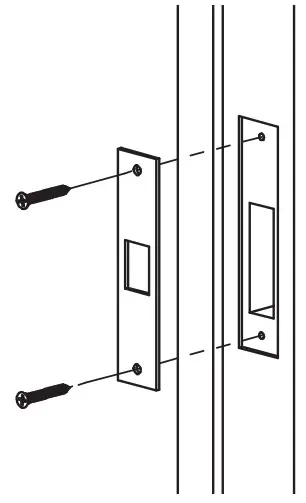

- Install Trim Plate
Door Jamb Prep.
See template for door jamb prep specification
Note: Notches on cylinder must be parallel with the horizontal plane when fully screwed into lock body.
See template for door prep specification
Align Passage/Privacy button with Thumb-turn spindle and secure trim pates to door.
Door Jamb Prep.
See template for door jamb prep specificationIN4-PCKMRLKINS-PRIV REV-1
