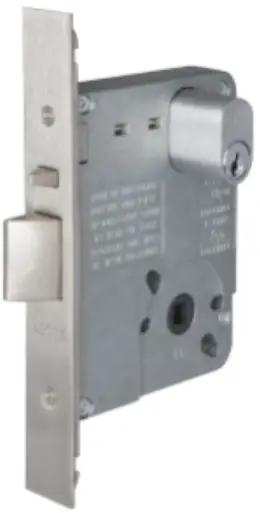

LEGGE 2204 991MF Mortice Lock

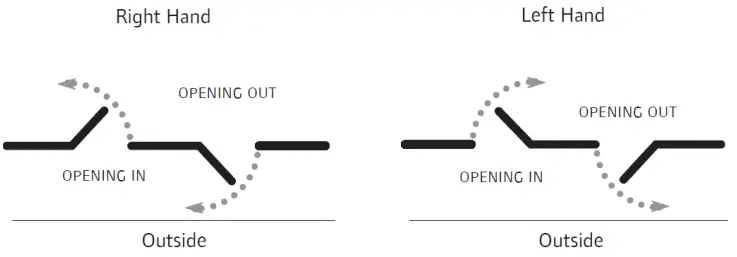

Handing Guide

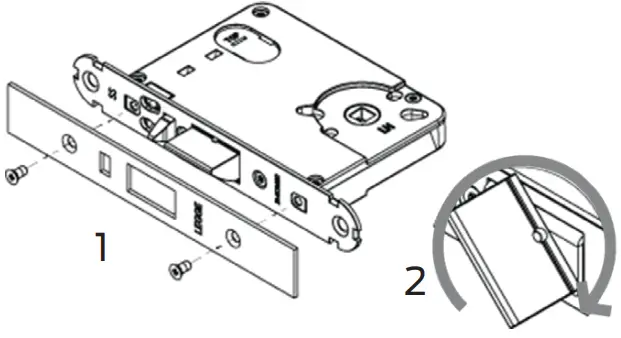

To Reverse Bolt

1. Remove outer forend.
2. Pull and rotate bolt 180° clockwise.

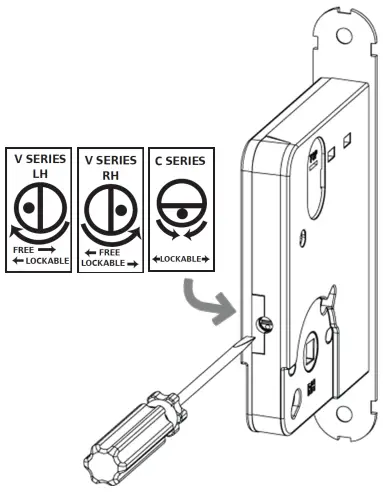

991MF Handing/Function Adjustment

V Series handing adjustment (Inside handle free)

To set for left hand
Push in and turn clockwise. Set adjuster as shown.
To set for right hand
Push in and turn anti-clockwise. Set adjuster as shown.
V9/V55
The Locking Bar must be down before installing.

To set for C Series (Both handles lockable)
Set adjuster as shown

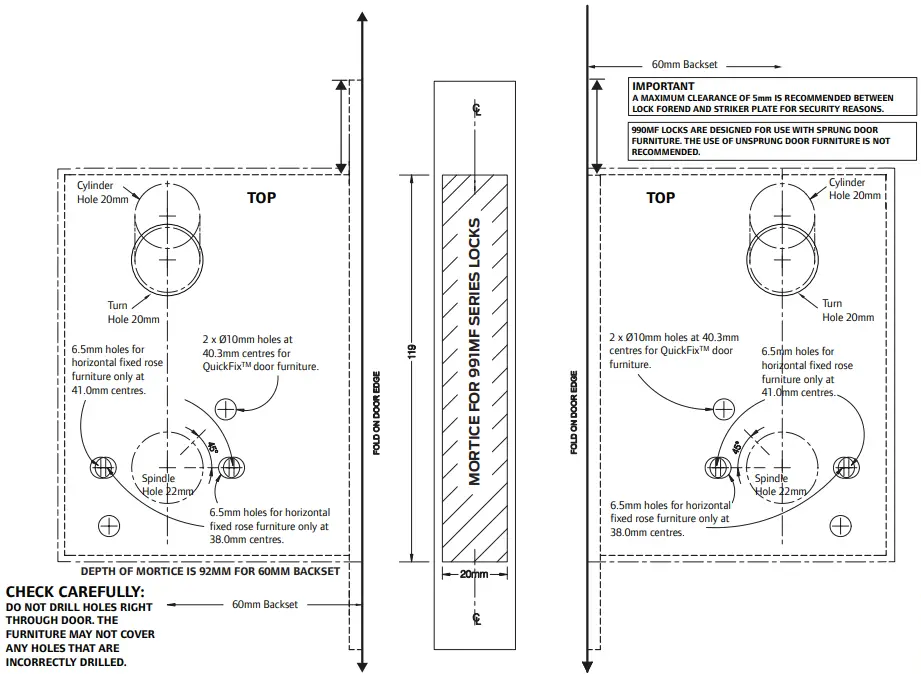

Mortice Instructions

1. Cut mortice slot using template for correct size.
2. Fit lock into mortice, scribe around forend and remove wood to allow flush fit to door
3. Remove lock and use template to mark and drill holes to suit lock and furniture being used.
