EMTEK Wilshire Passage Privacy Knob or Lever Installation
Installation Guide
- Wilshire Passage/ Privacy – Knob or Lever
WARNING
This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

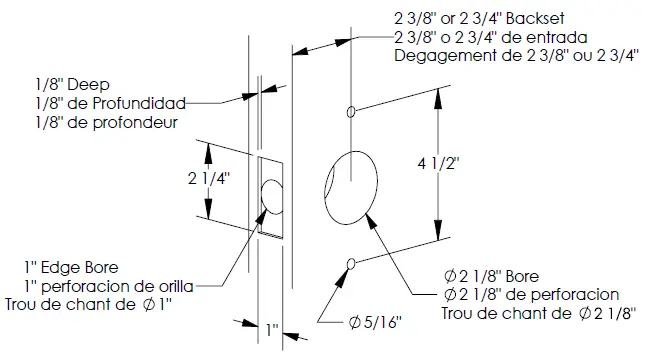

Door Prep

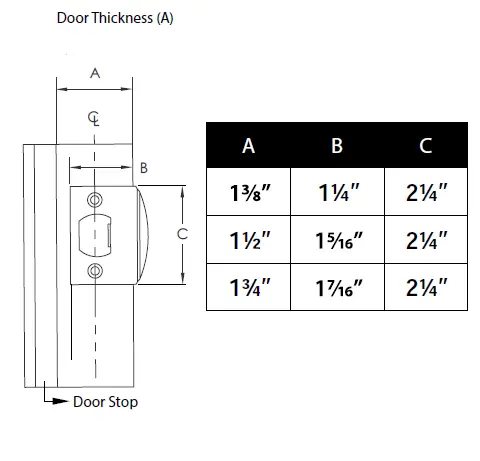

Standard Strike Plate Door Jamb Prep
NOTE: Dimensions B & C should be used as reference only. Due to tolerances actual door jamb prep dimensions will vary. Using the strike plate outline edges and locate screw holes on strike with center line on jamb.
Install Strike Plate

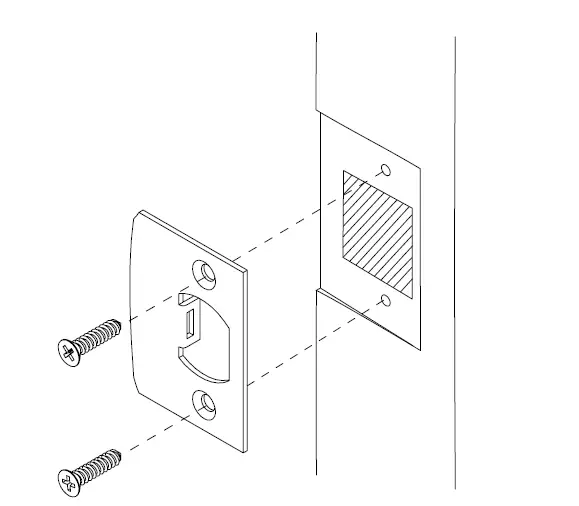

Fasten Strike Plate with #8 wood screws (provided).

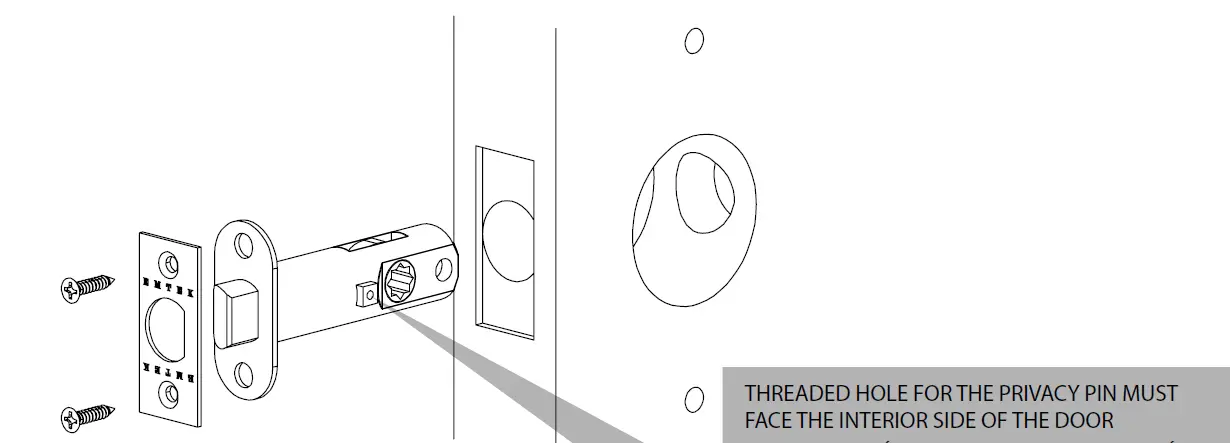

Install Latch
Install Outside and Inside Trims
Position the outside trim through the bore hole.

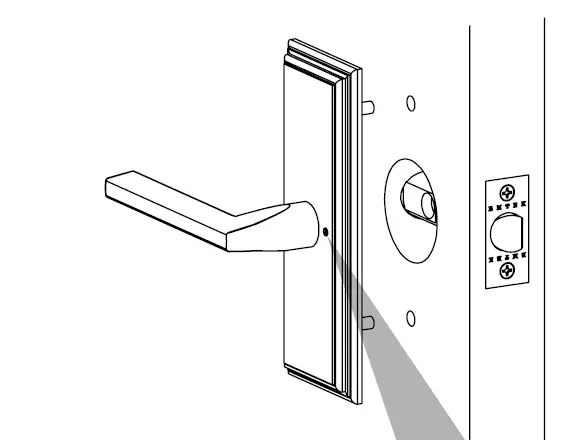

MAKE SURE THE RELEASE HOLES LINE UP WITH THE PRIVACY PIN
Fasten Inside Trim using two #8 machine screws (provided), and install Privacy Pin
Dummy Installation
Align Mounting Plate

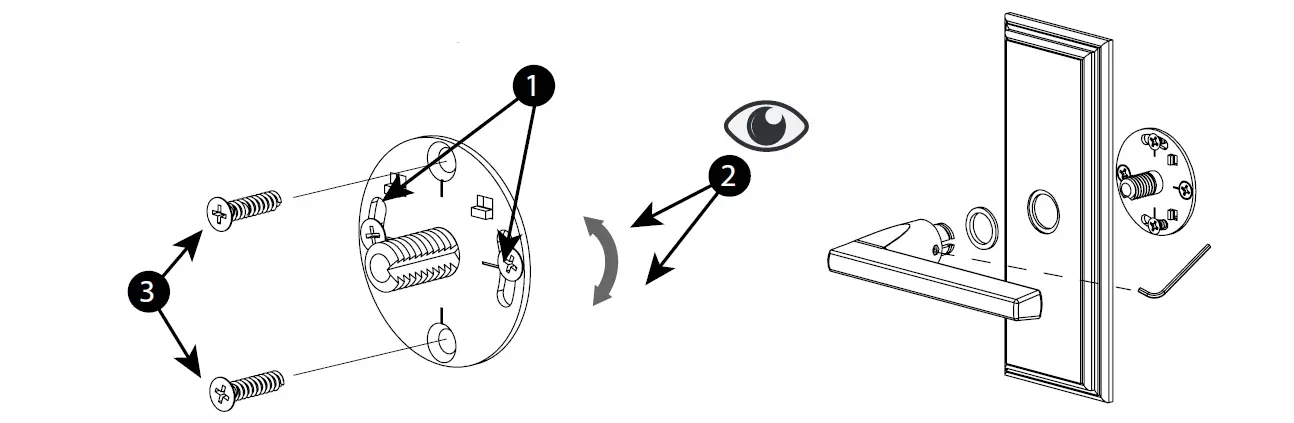

Install Mounting Plate & Adjust for Level
Installer la Plaque de Montage et Ajuster au Niveau

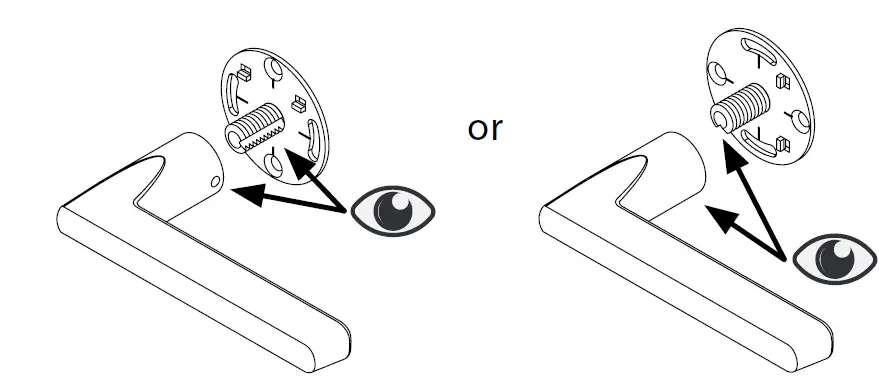

Assemble Lever/Knob & Rosette
Monter le Levier/Poignée et la Rosette
