Emtek Stretto 1.5x5 Privacy Stuttgart Door Leverset Installation Guide

STRETTO 1.5×5 Privacy
Stuttgart Door Leverset
Installation Guide

STRETTO 1.5×5 Privacy Stuttgart Door Leverset

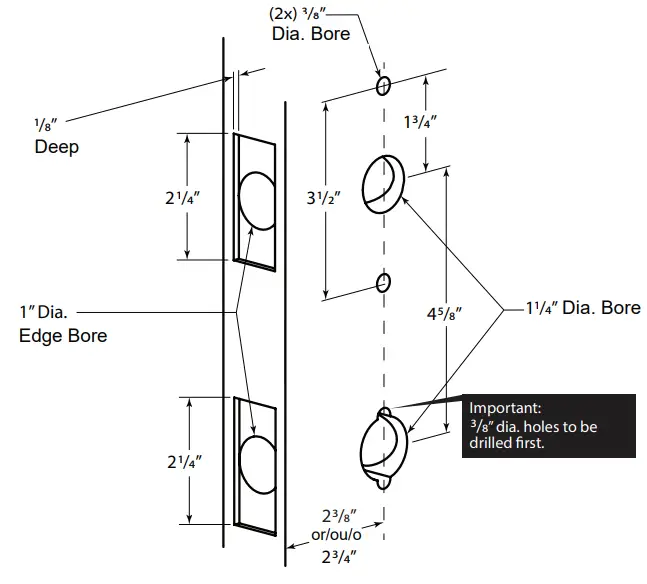

1. Door Prep
   See template for door prep specificationsDoor Jamb Prep

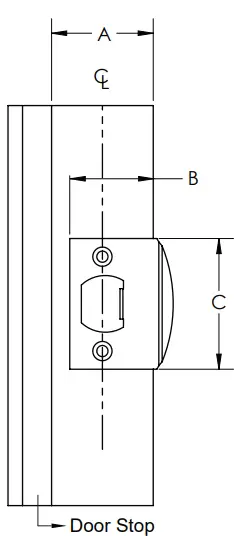

2. Door Jamb PrepDimension B & C should be used as reference only. Due to tolerances as reference only. Due to tolerances actual door jamb prep dimensions will vary. Using the strike plate outline edges and locate screw holes on strike with center line on jamb.


   A	B	C
   1-3/8˝	1-1/4˝	2-1/4˝
   1-1/2˝	1-5/16˝	2-1/4˝
   1-3/4˝	1-7/16˝	2-1/4˝

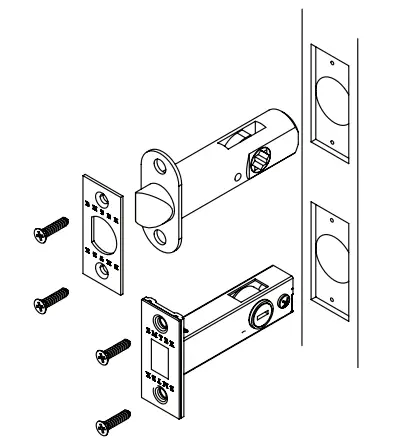

3. Install Latch

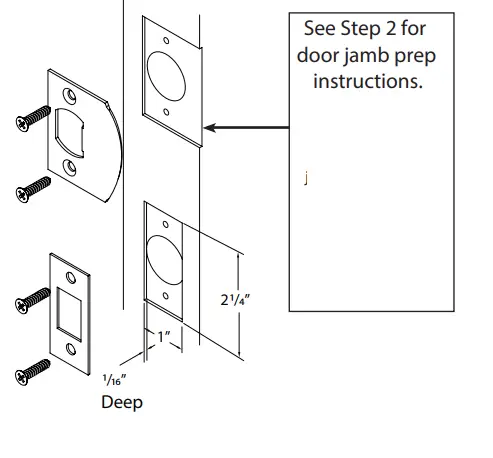

4. Install Strike Plate

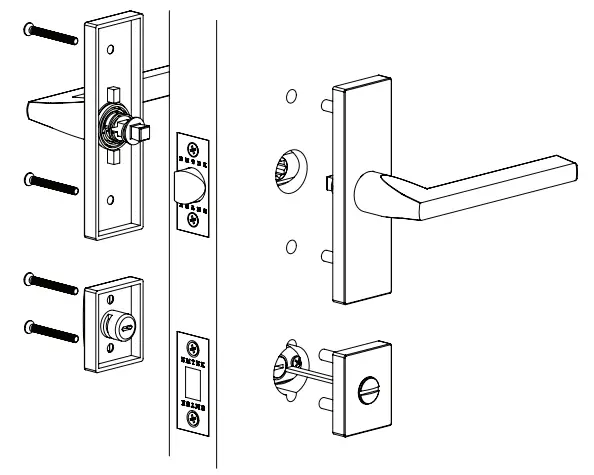

5. Install Outside and Inside Trims
   Outside
   Inside

NOTE: Handles vary depending on style.

IN4-STRETTO1.5X5PRIV REV. 21A 10-25-21
