Watercop WAT171023 Pro 110VAC Large Valve
For an indoor or outdoor system with 1 1/2” or 2” main water line:
| CHOOSE | DESCRIPTION |
| WCEH…Series | 110VAC Industrial Actuator with Valve (See Table 1 below for sizing) |

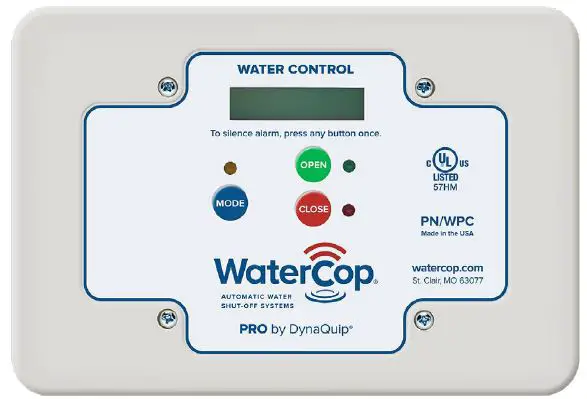

| WPC/WPCH | WaterCop PRO Control Panel (attached 20’ power cord, 12VDC output; WPCH has HW sensor terminals) |
| RK110VAC | Relay Kit |
| WPM or WPM.XT | Choose Number and Type of Wireless Sensor Hubs; with or without ambient temperature sensing |
| WPSC and Accessories | Choose # of WPSC probes and/ or other options from PRO ‘Accessories’ Section of Price List |
For outdoor installation extend wires to actuator with 18 gauge outdoor-rated wire and keep RK110VAC indoors with the Control Panel
Table 1
| PART # | DESCRIPTION |
| WCEHH27ATE25 | 1 1/2” Lead Free Brass Valve with 110VAC Industrial Actuator |
| WCEHH28ATE25 | 2” Lead Free Brass Valve with 110VAC Industrial Actuator |
- This application requires jumpers between terminals 2 & 4 and 3 & 5 for valve feedback.
- See ‘Supplemental Wiring Guide’ (Part # 192458) to control ancillary devices such as well pumps, recirculating pumps, second WaterCop Valve, etc.
The proven leader in household leak protection: WaterCop® is there when you’re not.
