FNW FIGURE 233A STAINLESS STEEL BALL VALVES User Guide
FEATURES

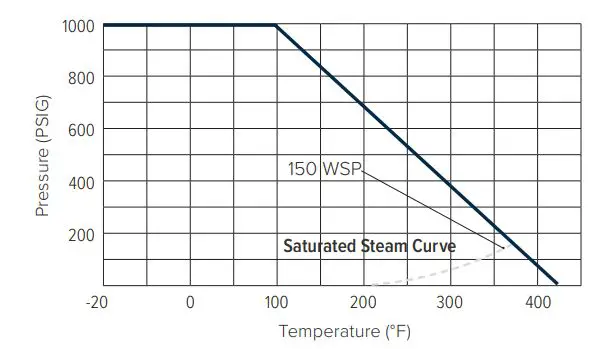

- 1000 PSI CWP non-shock
- 150 PSI WSP
- Threaded NPT ends
- Standard port
- Blowout-proof stem
- Live loaded packing
- Anti-static design
- Investment cast body
- Four seat design
- RTFE seats
- Stainless steel handle
- Locking lever
- Direct mounting pad
- Vacuum rated to 26.967″Hg (75 Torr)*
- Manufactured silicone-free

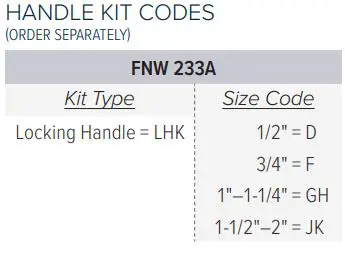

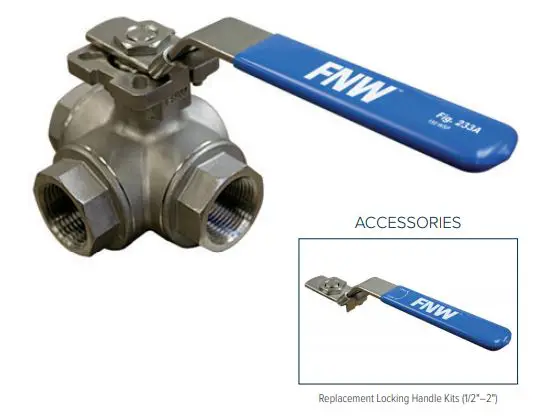

- Replacement locking handle kits available (1/2″2″)
STANDARDS
- Design: MSS SP-110
- End Connections: ASME B1.20.1
- Seat/Shell Test: MSS SP-110
- Mounting Pad: ISO 5211
- Corrosion Resistance: NACE MRO103 and MRO175
- Fugitive Emissions: ISO 15848-1 and TA-Luft
* Vacuum measurements are often made in inches of mercury below atmospheric pressure. The values calculated here assume standard atmospheric pressure of 29.92 inches of mercury.

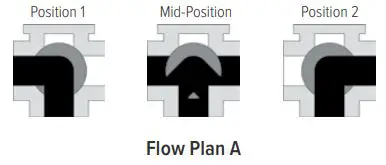

90° L-Port Pattern

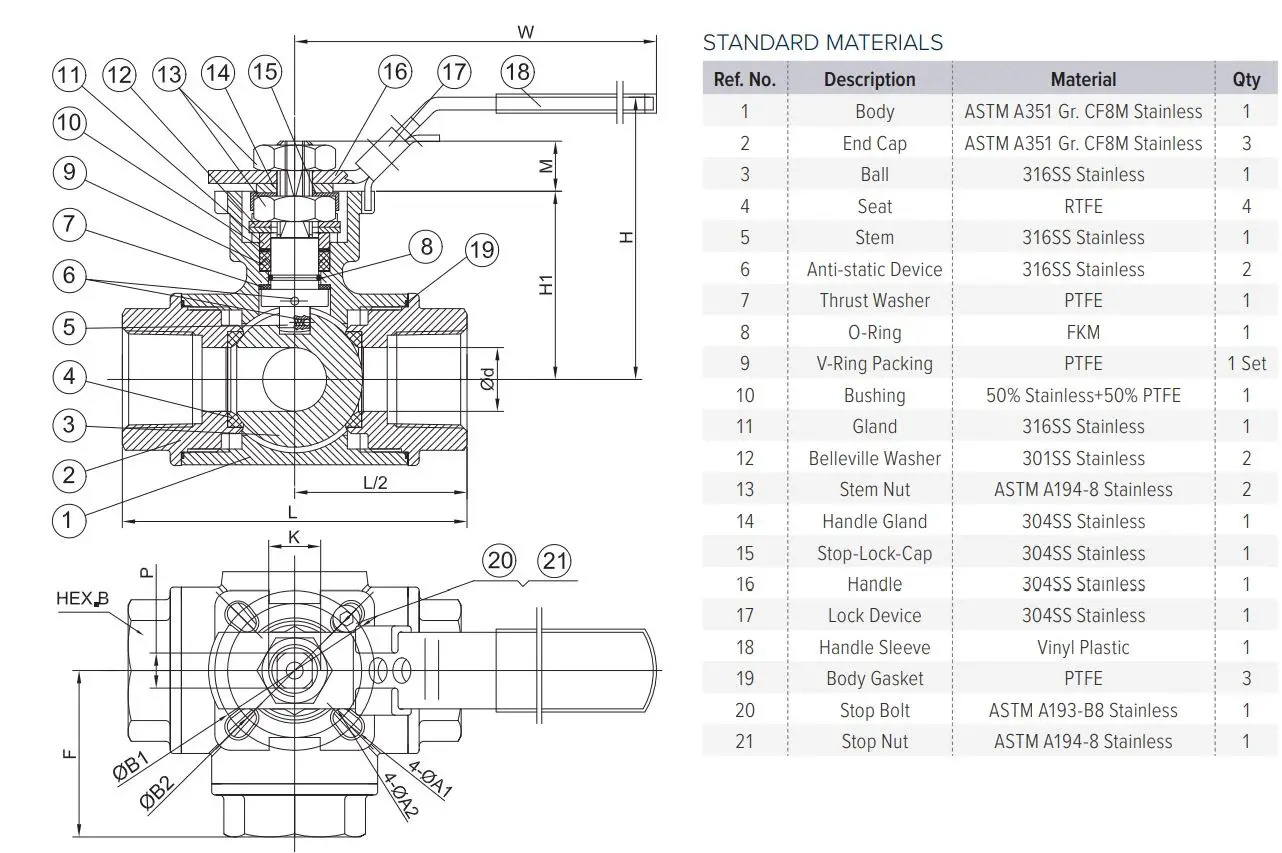

DIMENSIONS (INCHES)
FNW.COM
©2021 Ferguson Enterprises, LLC 0521 2711961
We reserve the right to modify or improve the designs or specifications of our products at any time without notice.
