Manual Ball Valve
FEATURES
- Stainless steel superior corrosion resistance
- Suited to higher pressure and temperature applications
- Investment casting
- Blow-out proof stem – protects the operator
- Anti-static device (option)

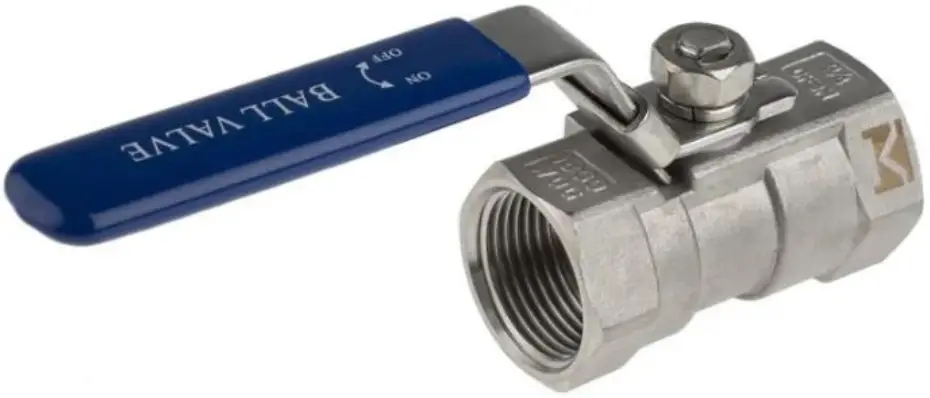

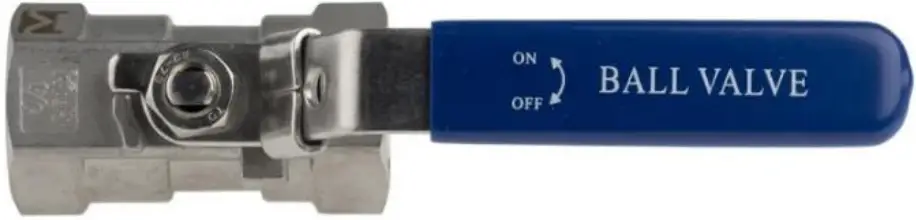

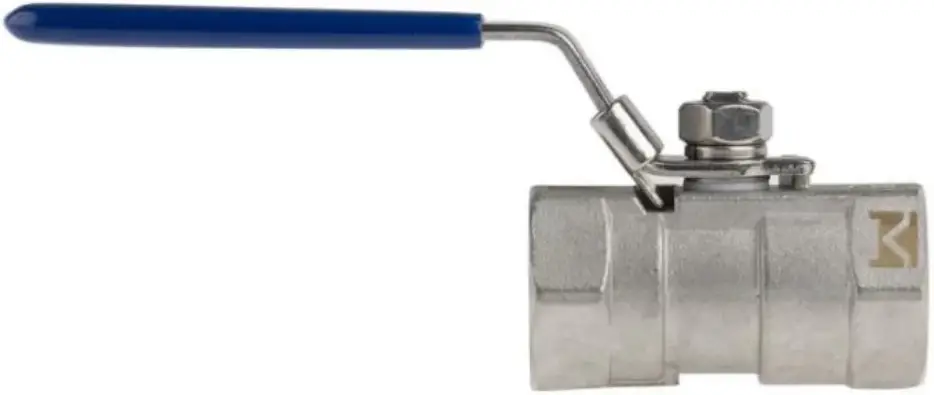

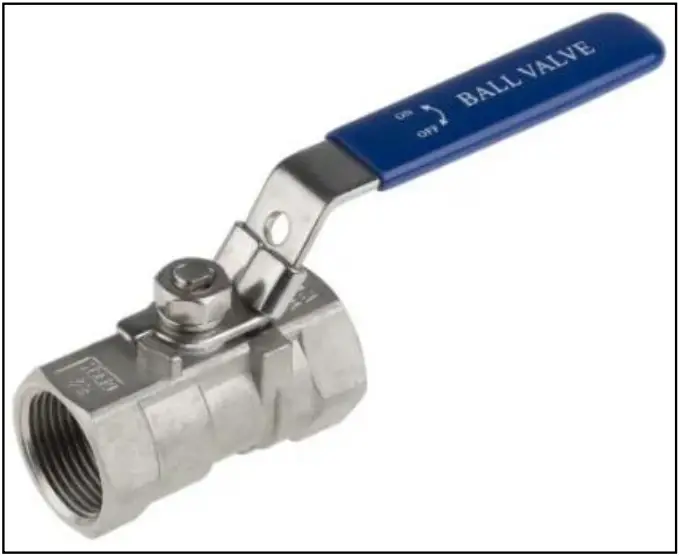

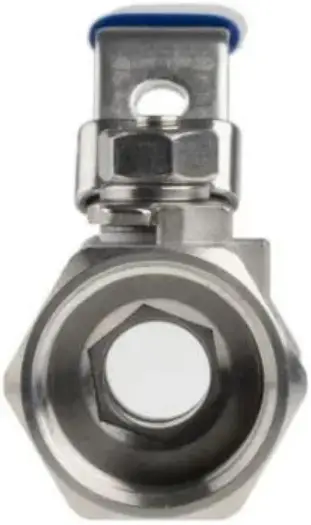

RS PRO Stainless Steel High Pressure Ball Valve 3/4 in BSPP 2 Way
RS Stock No.: 499-2802
RS Professionally Approved Products bring to you professional quality parts across all product categories. Our product range has been tested by engineers and provides a comparable quality to the leading brands without paying a premium price.
Product Description
Introducing the RS PRO general purpose manual ball valve designed for industrial applications. Manual ball valves are used to operate shut off valves which control water flow and pressure.
Available in a variety of sizes:
499-2789 – 1/4 inch BSPP F-F
499-2795 – 1/2 inch BSPP F-F
499-2802 – 3/4 inch BSPP F-F
499-2818 – 1 inch BSPP F-F
499-2824 – 1-1/4 inch BSPP F-F
499-2830 – 1-1/2 inch BSPP F-F
499-2846 – 2 inch BSPP F-F
General Specifications
| Threaded Connection | 3/4 in BSP |
| Attachment Type | Threaded |
| Body Material | ASTM A351-CF8M |
| Thread Size | 3/4in |
| Safe For Use With | Gas, Oil, Water |
| Ball Material | ASTM A351-CF8M |
| Thread Standard | BSPP |
| Handle Material | Stainless Steel |
| Type | 2 Way |
| Application | Heating systems; Water treatment; Liquid flow control |
Mechanical Specifications
| Connection Size | 19.6mm |
| Torque | 1.8Nm |
| Weight | 0.3kg |
Operation Environment Specifications
| Working Temperature | -20°C to 200°C |
| Maximum Working Pressure | 68 bar |
Approvals
| Compliance/Certifications | ISO-5211 |

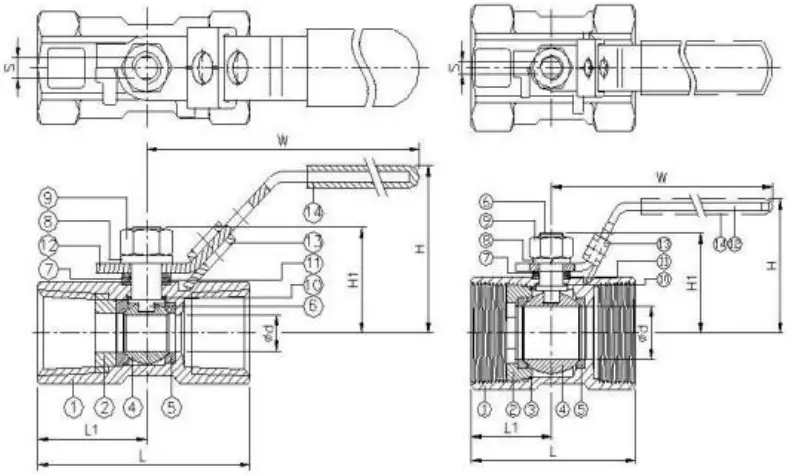

ITEM | PARTS | MATERIAL |
| 1 | BODY | ASTM A3S1-CF8M |
2 | RETAINER | ASTM A3S1-CF8M |
| 3 | BODY SEAL | PTFE |
4 | BALL | ASTM A3S1-CF8M |
| 5 | BALL SEAT | PTFE / RTFE |
6 | STEM | ASTM A276-316 |
| 7 | FLAT WASHER | AISI 304 |
8 | SPRING WASHER | AISI 304 |
| 9 | STEM NUT | AISI 304 |
10 | THRUST WASHER | PTFE |
| 11 | PACKING | PTFE |
12 | HANDLE | STAINLESS STEEL |
| 13 | LATCH LOCK | STAINLESS STEEL |
STAINLESS STEEL | ||
| 14 | HANDLE SLEEVE | PVC |
DN | 20 |
| d | 12.5 |
L | 59 |
| L1 | 29 |
H | 44.1 |
| H1 | 28.8 |
W | 94.7 |
| S | 5 |
Torque (N-m) | 1.8 |
| Weight (kg) | 0.3 |
