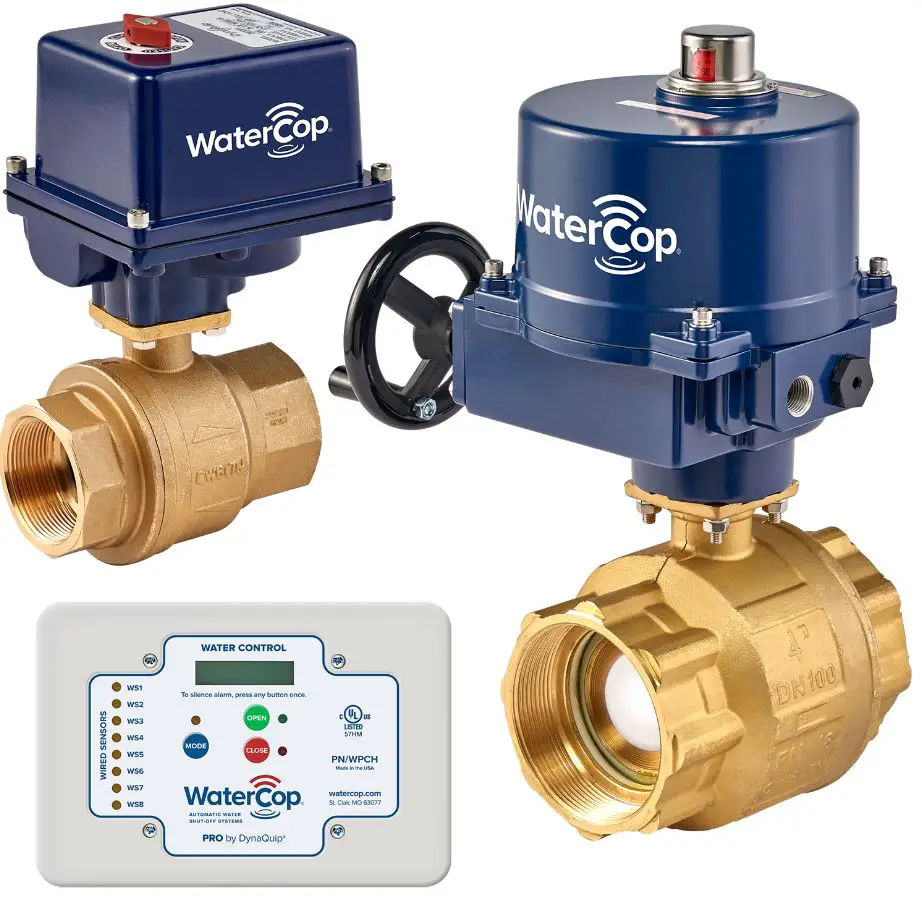

Watercop DC Pro Large Valve for Indoor System
Watercop DC Pro Large Valve for Indoor System
DC Pro Large Valve Ordering Guide
For an indoor system with 1 ½” or 2” main water line:
| CHOOSE | DESCRIPTION |
| WCEH…Series | 12VDC Industrial Actuator with Valve (See Table 1 below for sizing) |
| WPC/WPCH | WaterCop PRO Control Panel (attached 20’ power cord, 12VDC output; WPCH has HW sensor terminals) |
| Connect Cable | Attaches WPC/H to the EH Series (See Table 2 for available lengths) |
| WPM or WPM.XT | Choose Number and Type of Wireless Sensor Hubs; with or without ambient temperature sensing |
| WPSC and Accessories | Choose # of WPSC probes and/ or other options from PRO ‘Accessories’ Section of Price List |
Table 1
| PART # | DESCRIPTION |
| WCEHH27ATE25H | 1 ½” Lead Free Brass Valve with 12VDC Industrial Actuator |
| WCEHH28ATE25H | 2” Lead Free Brass Valve with 12VDC Industrial Actuator |
Table2
| PART # | DESCRIPTION |
| 192596.025 | 25’ indoor Connect Cable |
| 192596.050 | 50’ indoor Connect Cable |
| 192596.075 | 75’ indoor Connect Cable |
See ‘Supplemental Wiring Guide’ (Part # 192458) to control ancillary devices such as well pumps, recirculating pumps, second WaterCop Valve, etc.
