Wireless Water Valve Control Device
User Manual
Wireless Water Valve Control Device
WIRELESS WATER VALVE CONTROL DEVICE
Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
U-Prox Valve – is a wireless device designed to control a valve actuator for water supply, irrigation etc or other external devices.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
https://u-prox.systems/Installer

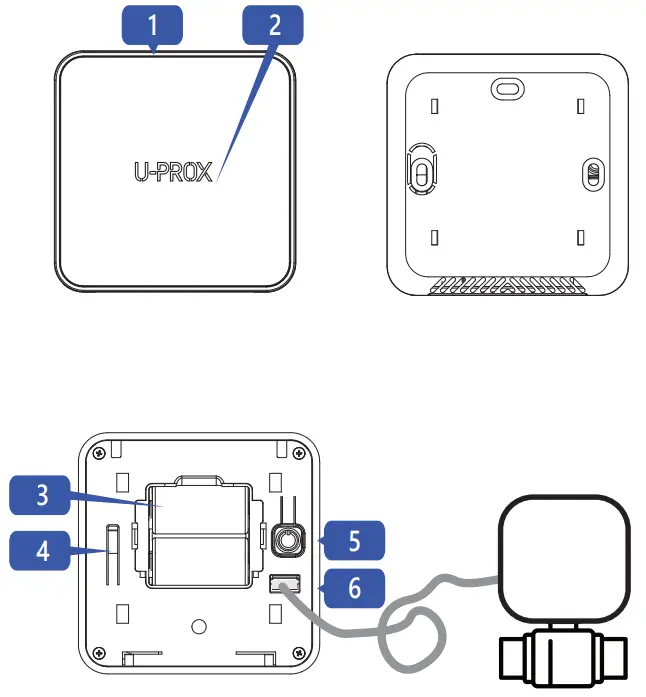

Functional parts of the device (see picture)
- Device case
- Light indicator
- Batteries
- Tamper switch
- On/off button
- Connection for valve actuator
TECHNICAL SPECIFICATIONS
| Output | 3-pin, 12V DC |
| Delay | no more than 10 seconds |
| Power | 3V, two CR123A lithium batteries included |
| Service life of battery | up to 3 years |
| Radio frequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Dimensions & weight | -10°C to +55°C |
| Operating temperature range | 84.5 x 84.5 x 24.3 mm & 135 grams |
| Case colour | white, black |
COMPLETE SET
- U-Prox Valve;
- Two CR123A batteries (pre-installed);
- Quick start guide
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS WARRANTY

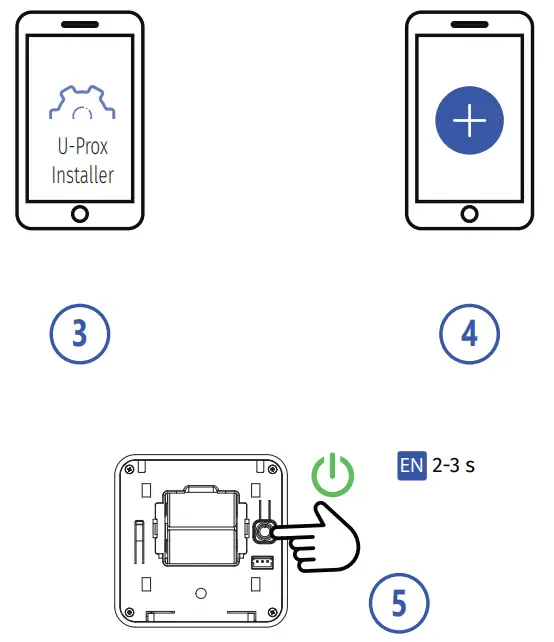

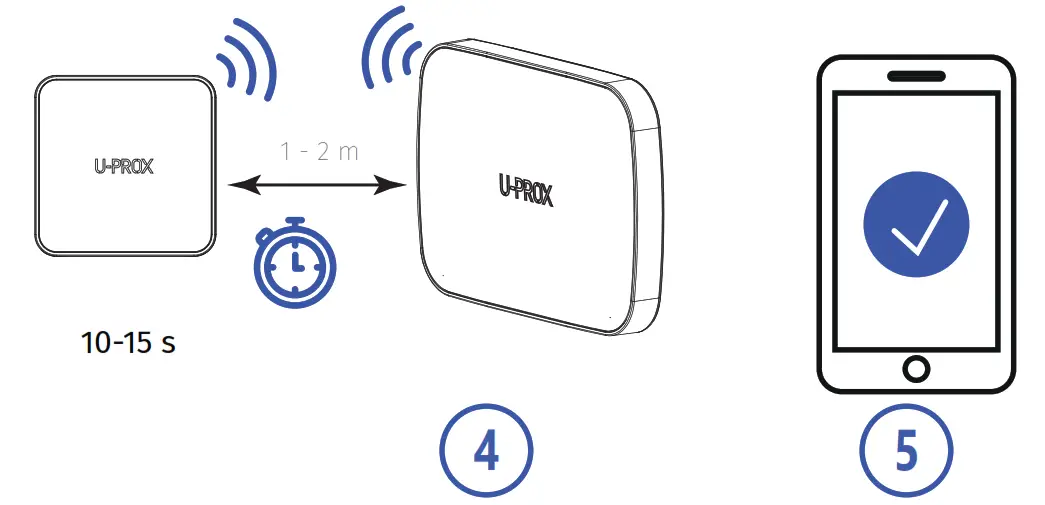

REGISTRATION

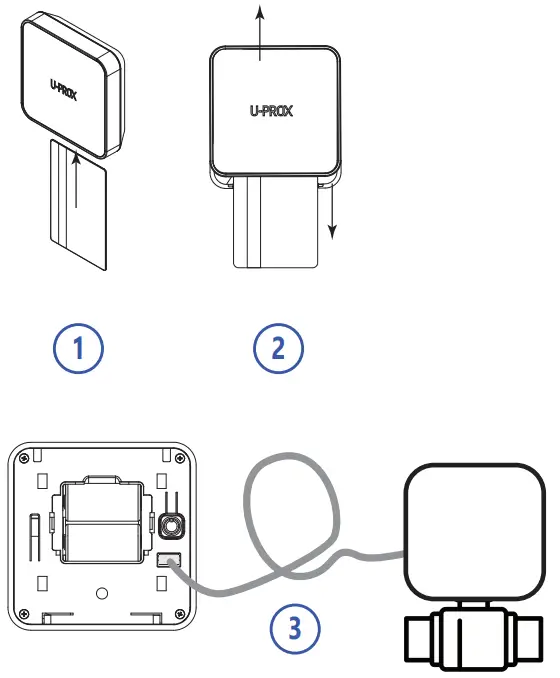

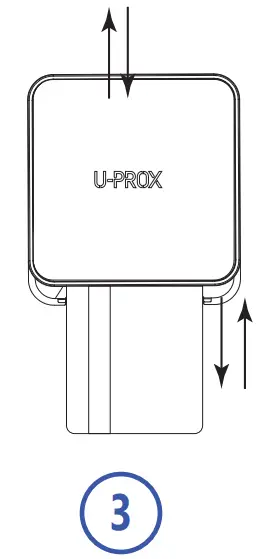

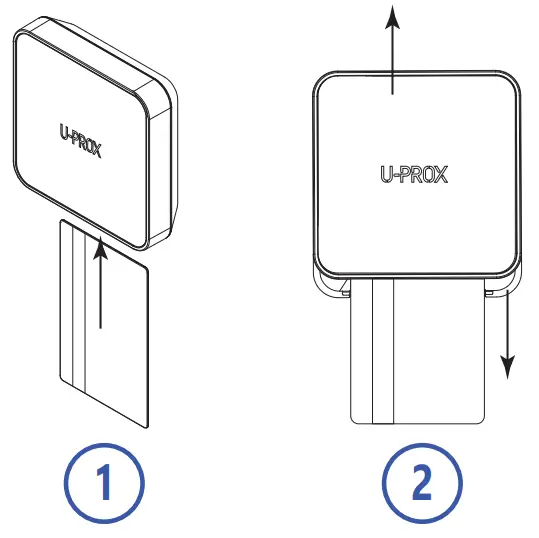

Use a plastic card to open the device

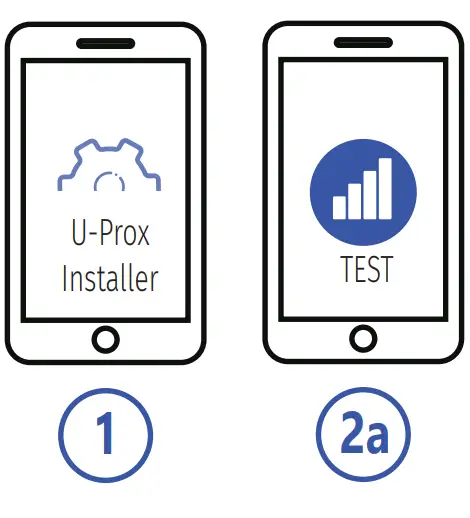

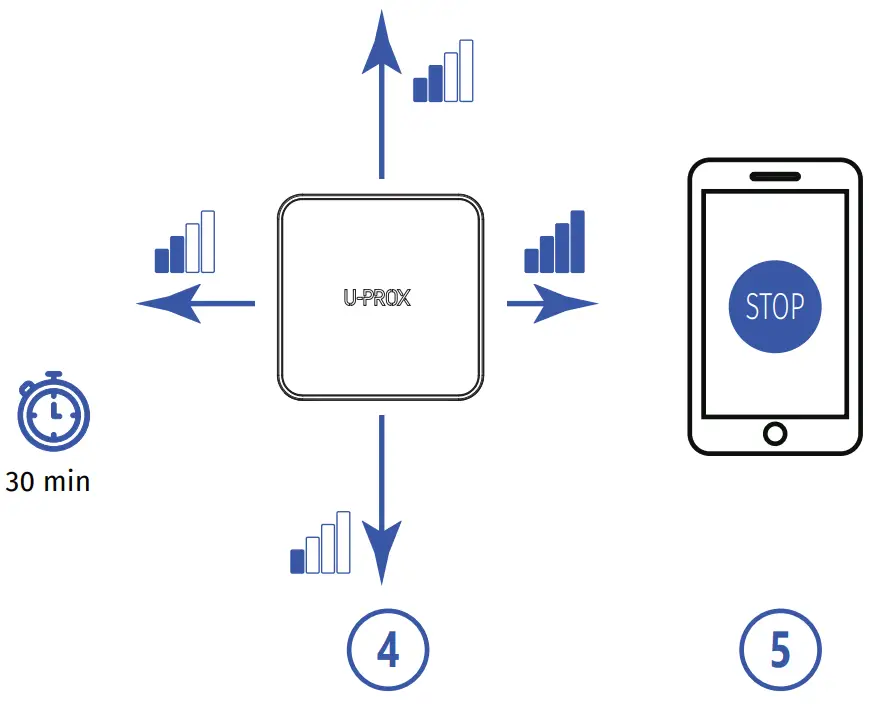

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION

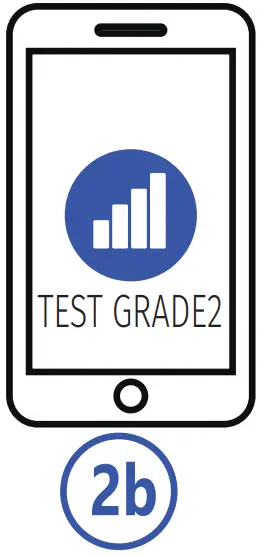

Due to Grade 2 requirement RF link works with reduction of power in 8 dB

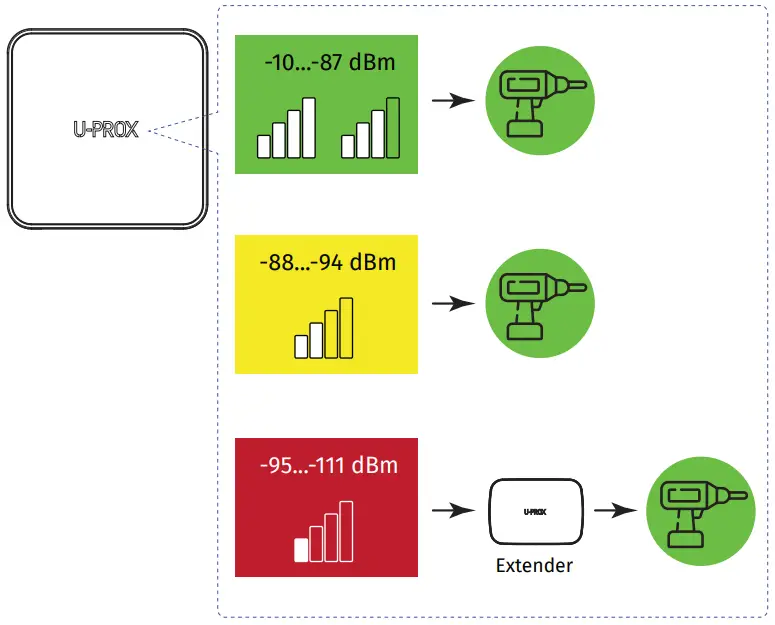

INDICATION IN RANGE TEST MODE

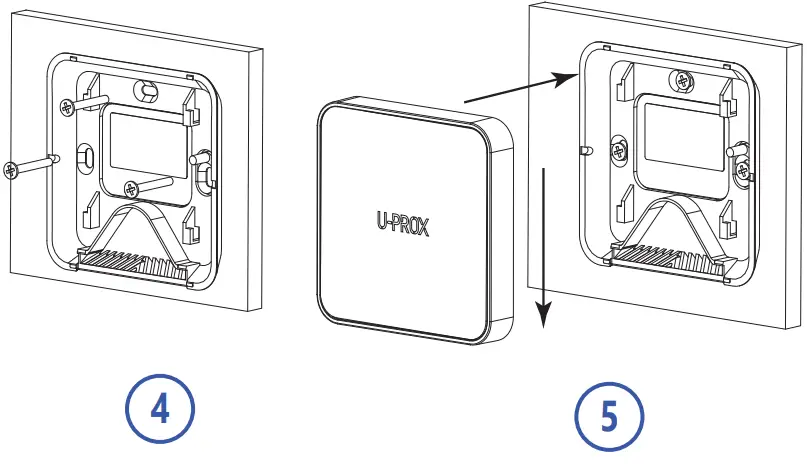

INSTALLATION

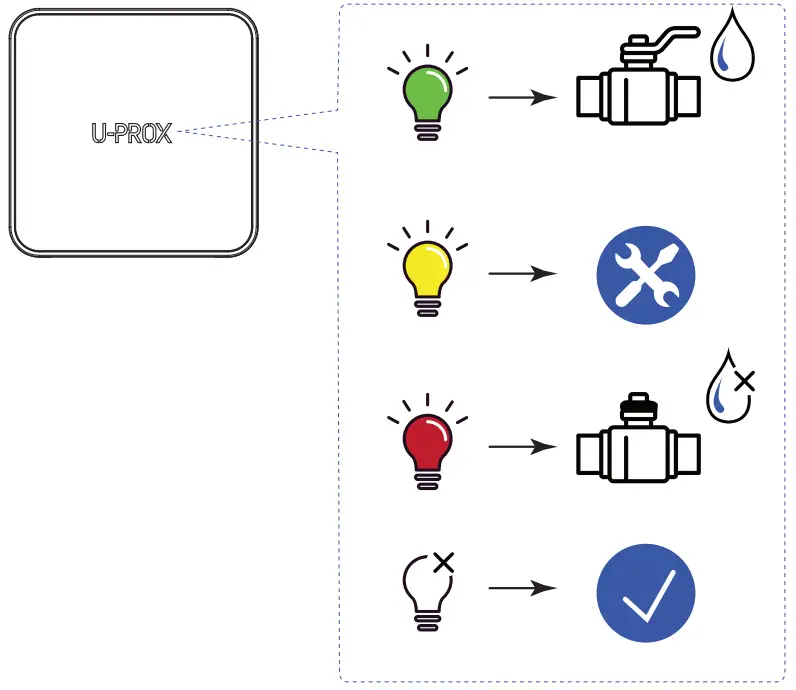

INDICATION
https://www.u-prox.systems/doc_valve
