WIRELESS WATER LEAK DETECTOR
Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd. Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
Wireless Water Leak Detector
U-Prox Water – is a wireless detector which is designed to detect water leakage. The device sends an alarm notification to the
U-Prox control panel.
No installation required, for indoor use only.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
https://u-prox.systems/Installer

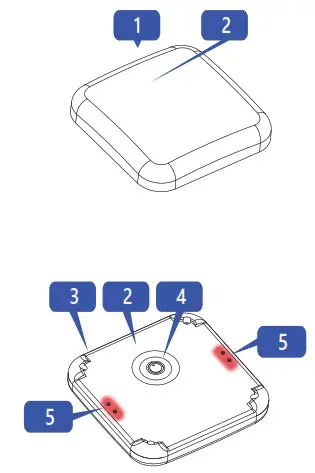

Functional parts of the device (see picture)
- Top view of the detector case
- LED indicator
- Bottom view of the detector case
- On/off button
- Sensor contacts
TECHNICAL SPECIFICATIONS
| Number of contacts | 4 |
| Power | 3V, two AAA (FR03) lithium batteries included |
| Service life of battery | up to 5 years |
| Radio frequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Dimensions & weight | 0°C to +55°C |
| Operating temperature range | 67,5 х 67 х 18 mm & 55 grams |
| Case colour | white, black |
| Protection class | IP65 |
COMPLETE SET
1. U-Prox Water; 2. Two AAA FR03 batteries (pre-installed);
3. Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
Do not use salt batteries (R03)! FR03 lithium batteries are highly recommended. Usage of alkaline batteries (LR03) allowed only at temperatures above +5°C.
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

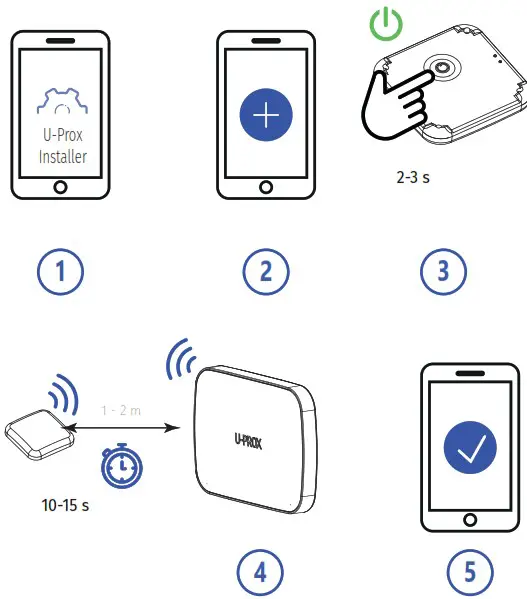

REGISTRATION

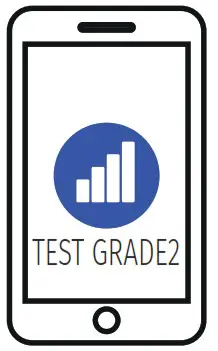

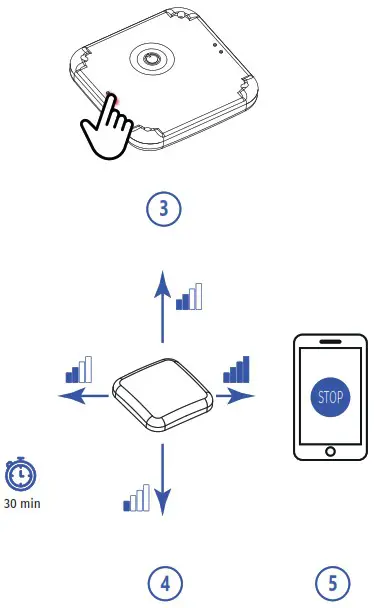

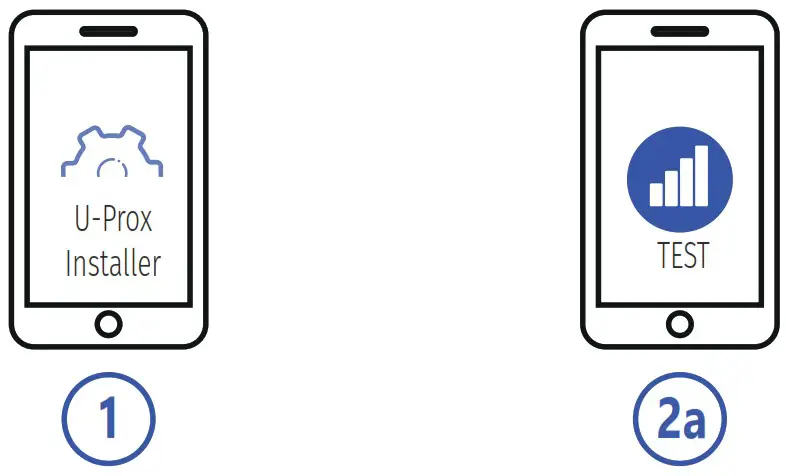

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB

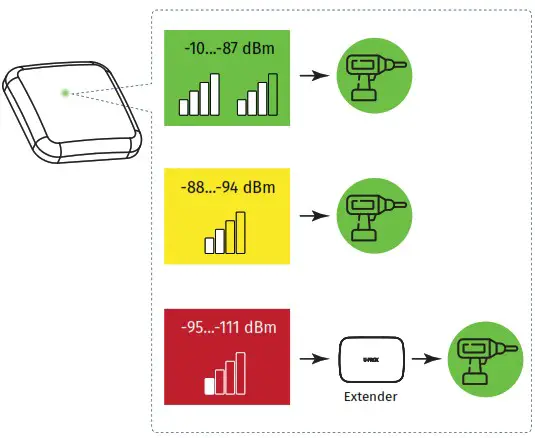

INDICATION IN RANGE TEST MODE

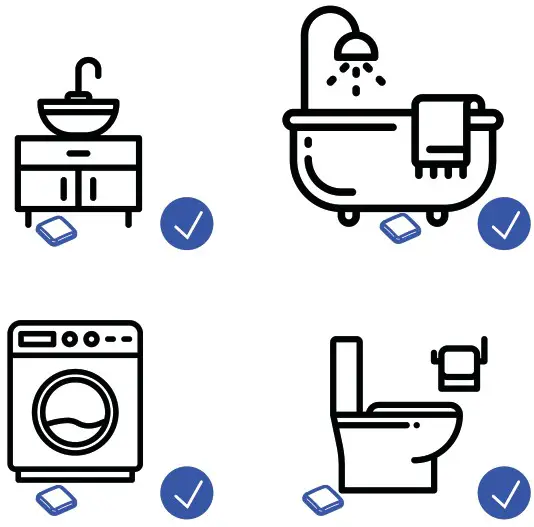

INSTALLATION
No installation required, just put the sensor on the floor
