U-PROX BAND RADIO RANGE EXTENDER
Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
Band Radio Range Extender
U-Prox Extender – is a range extender. The device significantly increases the radio communication distance between the U-Prox control panel and other wireless devices.
Supports connection up to 200 devices (sensors, keypads, key fobs, etc.) via radio channel at a distance of up to 4800 m. Distance to U-Prox – up to 4800m line of sight.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
https://u-prox.systems/Installer

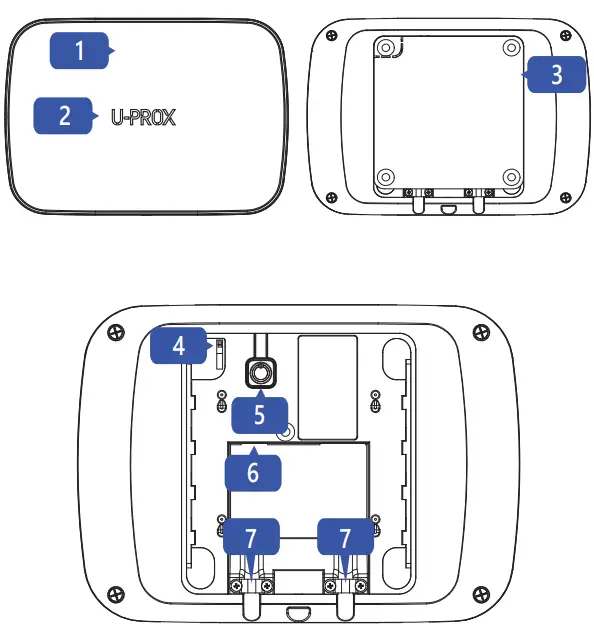

Functional parts of the device (see picture)
- Device case
- Light indicator
- Mounting plate
- Tamper switch
- On/Off button
- Power supply connector
- Cable clamp
TECHNICAL SPECIFICATIONS
| Retransmission | automatic, the optimal route selection |
| Repeaters in the system | 8 |
| Retransmission levels | 1 |
| Power supply | 12 VDC |
| Battery backup | 2500 mAh battery, up to 36 hours |
| Radio frequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m to hub and up to 4800m to wireless devices (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m to hub and up to 4800m to wireless devices (in line of sight). | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Operating temperature range | 0°C to +45°C |
| Dimensions & weight | 167 x 120 x 25.4 mm & 260 grams |
| Case colour | white, black |
COMPLETE SET
- U-Prox Extender;
- One 18650 battery (pre-installed);
- Power supply;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

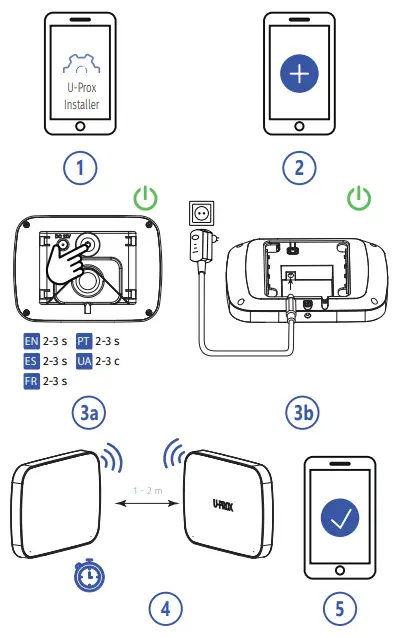

REGISTRATION
2-3 s

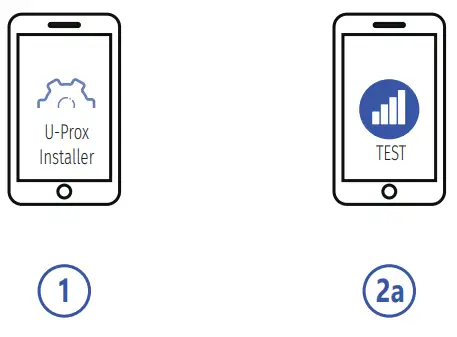

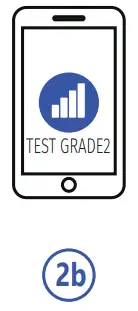

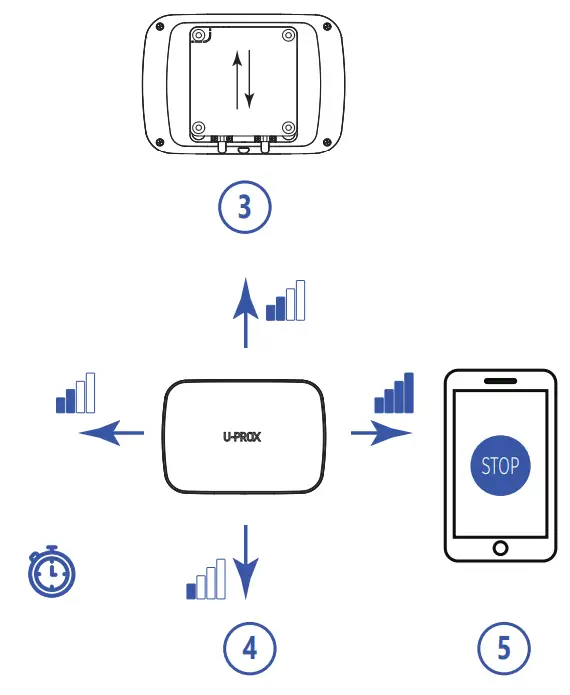

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB
30 min

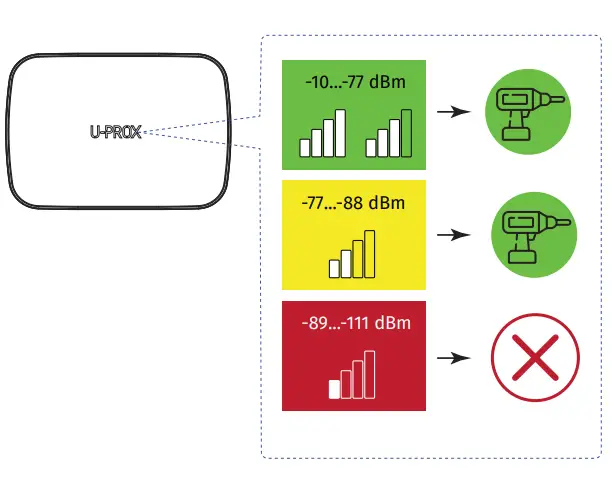

INDICATION IN RANGE TEST MODE

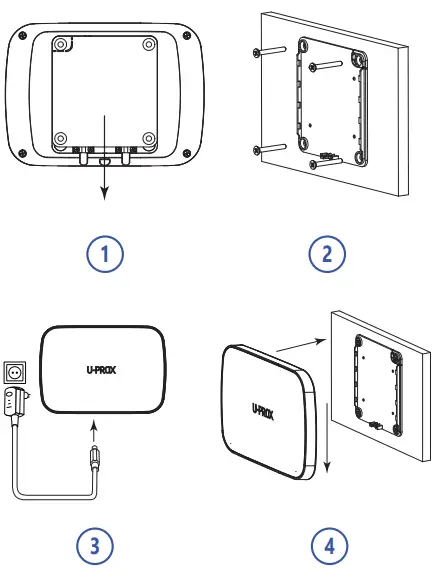

INSTALLATION

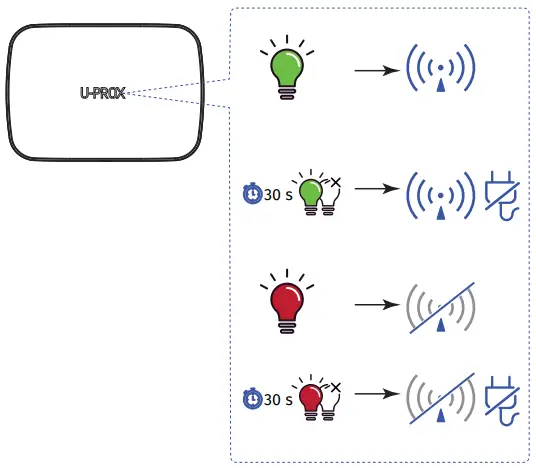

INDICATION
