WIRELESS MOTION AND BREAK GLASS DETECTOR
WITH “VERTICAL BARRIER” LENS
Is part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
PIR Combi Wireless Motion and Break Glass Detector
U-Prox PIR Combi (VB) – is a combined wireless motion detector and acoustic breakglass sensor. The device is equipped with a PIR-sensor, the Vertical Barrier lens with a narrow horizontal viewing angle and microphone. Device designed to control the perimeter inside the room, to protect glass structures, windows, doors, garage doors, etc. When the thermal balance of the environment changes or there is the sound of breaking glass, the device sends an alarm notification to the U-Prox control panel. For indoor use only.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
https://u-prox.systems/Installer

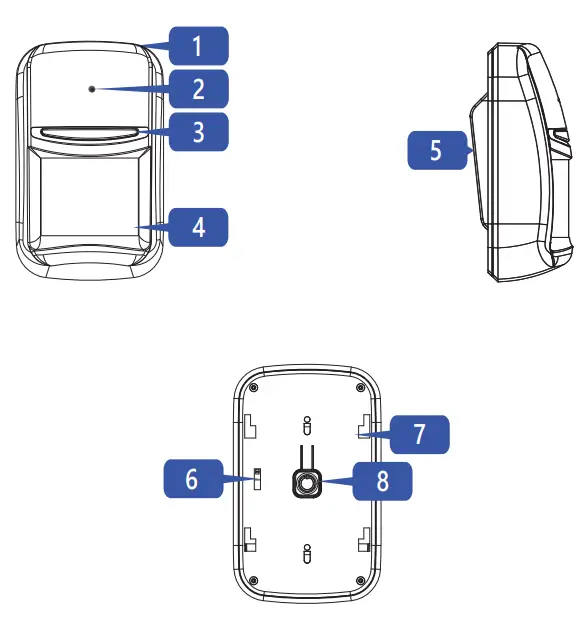

Functional parts of the device (see picture)
- Device case
- Microphone hole
- Light indicator of the operation modes
- Fresnel lens
- Bracket for mounting
- Tamper switch
- Back of the device
- Power button
TECHNICAL SPECIFICATIONS
| Motion detector • | |
| Maximum working distance | 410 m |
| Detection angle | 750 |
| PIR target detection speed | 0.3 to 3 m/s |
| Optical noise immunity Maximum distance | > 6500 Lux Break glass detector 8 m |
| Detection angle | 120° |
| Types of glass | Ordinary, patterned, tempered, laminated, reinforced, protected by polymer film of classes Al, A2, A3, double-glazed windows 4x16x |
| Glass thickness | 2 mm to 8 mm |
| Glass dimension | 0.5 m x 0.5 m to 3.0 m x 3.0 m |
| Power | 3V, CR123A lithium battery included |
| Service life of battery | up to 5 years |
| Radio frequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight). | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Operating temperature range | -10°C to +55°C |
| Dimensions & weight with a wall bracket with an angle bracket | 90 x 60 x 34.35 mm & 150 grams |
| 90 x 60 x 41.6 mm 90 x 60 x 48.84 mm | |
| Case colour | white, black |
COMPLETE SET
- U-Prox PIR Combi (VB);
- CR123A battery (pre-installed);
- Wall bracket;
- Angle bracket;
- Mounting kit;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] first, maybe it can be solved remotely.

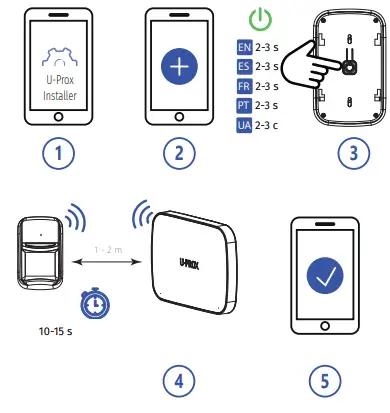

REGISTRATION

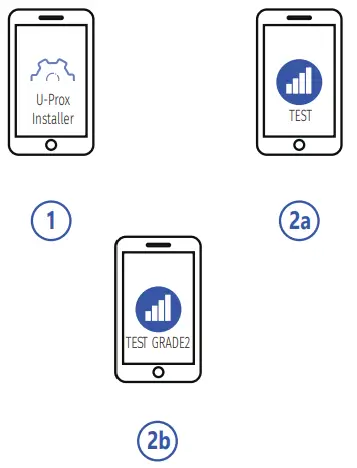

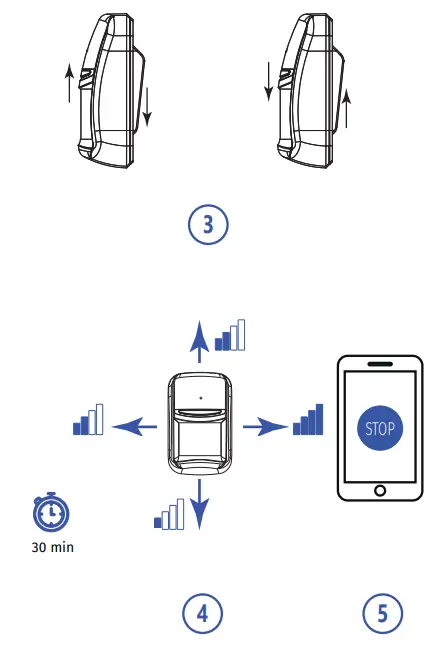

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB

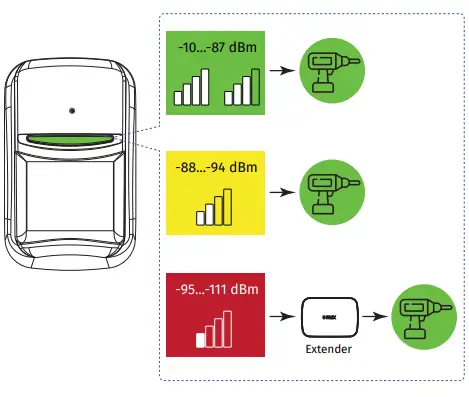

INDICATION IN RANGE TEST MODE

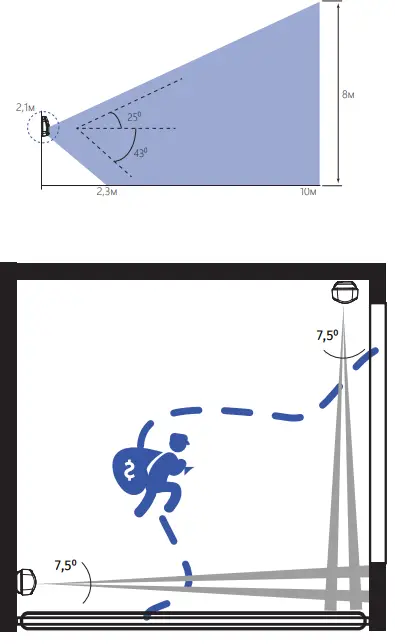

DEVICE PLACEMENT
 |  |

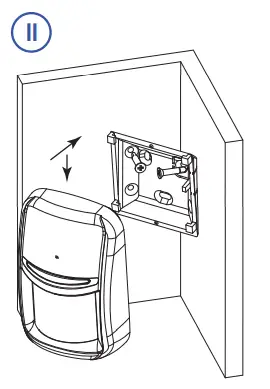

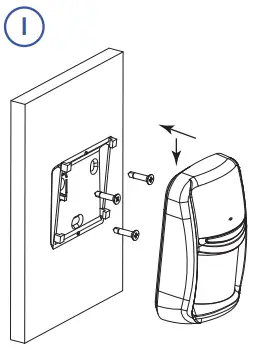

Wall bracket
Angle bracket
