DS-PDBG8-EG2-WA Wireless Glass Break Detector
User Guide

Contents hide

8 Documents / Resources

9 Related Posts

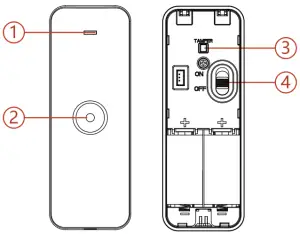

APPEARANCE

Indicator
Microphone
Tamper Button
Power Switch

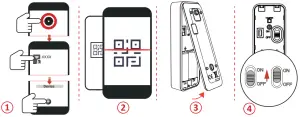

ENROLLMENT TEST

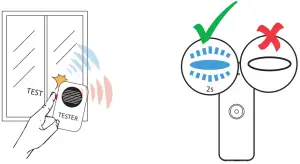

BG (Break Glass) Test

INSTALLATION

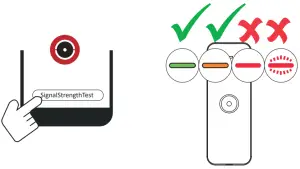

I. Check signal strength.

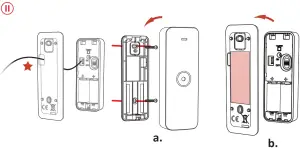

II. Install the detector.

(optional)route the cable through the cable hole if external inputs are required.
a. with screw b. with sponge tape (EN non-compliant)

User Manual

Scan the QR code for more information and operation help.

Specification

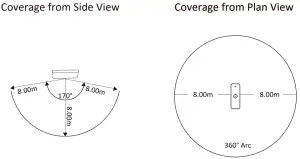

Detection range	8m radius
Glass type	Float, Plate, Tempered, Wired, Laminated Leaded, Double glazing
External Inputs	2
Tamper protection	Front & Back
LED indicator	Blue(alarm)
Operating temperature	-10 °C to 55 °C (14 °F to 131 °F) -10 °C to 40 °C (14 °F to 104 °F) Certified
Storage temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Operating humidity	10% to 90%
Installation	Wall/Ceiling mount
Dimension (H x W x D)	107.0 mm x 38.8 mm x 24.5 mm
Weight	83 g
Transmission frequency	915 MHz
RF range	1.6 Km (free space)
Battery	CR123A x 2 (included), 3 VDC, Max.1600 mAh
Standard battery life	3 years
Low voltage value	2.45 V
Current	Max. current: 22 mA Quiescent current: 16 uA
Voltage Range	Fully charged (new) to 2.45 VDC (battery)
PS Type	Type C

Note: When the low voltage message appears there will be at least 30 days of use.

Not to obscure partially or completely the detector’s field of view with large objects such as furniture, curtains, blinds, etc.
Make sure that any curtains, plants, furniture, or other objects do not overcover the microphone opening.
If there are curtains on the window, place the detector between them and the window, for instance, at the window side jamb. Otherwise, curtains can mute the glass break sound, and the detector will not be triggered.
Before installing the detector, make sure that you have selected the optimal location that follows the guidelines of this manual.

1.

http://enpinfodata.hikvision.com/analysisQR/showQR/ba204cfc

2.

The screw must be used to secure the front and rear parts together to ensure compliance to grade 2.

3.

4.
