WIRELESS OUTDOOR MOTION DETECTOR
Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
U-Prox PIR Outdoor – is a wireless outdoor motion detector with advanced detection algorithms, digital temperature compensation of sensor, and an antimasking system.
When the thermal balance of the environment changes, the device processes a digital signal from two PIR sensors, filters noise and interference and sends an alarm notification to the U-Prox control panel.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
https://u-prox.systems/Installer

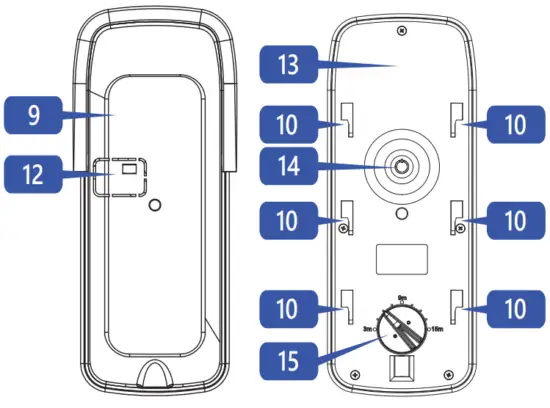

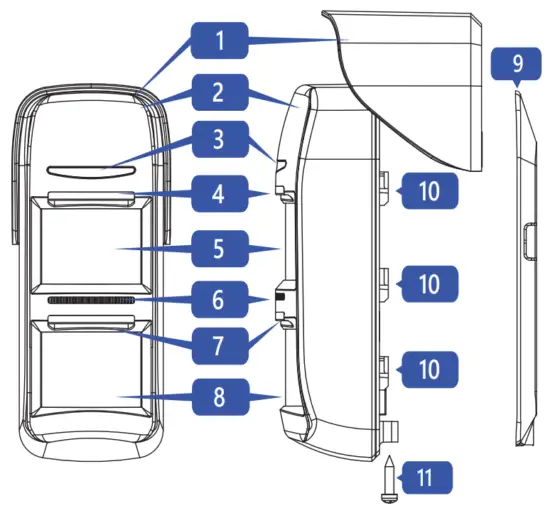

Functional parts of the device (see picture)
| 1. Device hood 2. Device case 3. Light indicator of the operation modes 4. Anti-masking diffuser #1 5. Fresnel lens 6. Anti-masking LED 7. Anti-masking diffuser #2 8. Fresnel lens | 9. Bracket for mounting 10. Bracket connector 11. Fixing screw 12. Tamper switch plate 13. Back of the device 14. Power button 15. Motion detection range adjuster |
TECHNICAL SPECIFICATIONS
| Working distances | 3 to 15 m |
| Detection angle | 90° |
| PIR target detection speed | 0.2 to 5 m/s |
| Optical noise immunity | > 6500 Lux |
| Mounting heights | 0.9 to 1.10 m |
| Pet immunity | weight up to 20 kg |
| Power | 3V, two CR123A lithium batteries included |
| The service life of the battery | up to 5 years |
| Radiofrequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) | |
| Communication | Secure two-way communication, sabotage detection, key – 256 bits |
| Operating temperature range | -20°C to +55°C |
| Dimensions no hood with a hood | 183.8 x 77.2 x 88.6 mm 180 x 70 x 62.5 mm |
| Weight | 290 grams |
| Case color | white |
| Protection class | IP55 |
COMPLETE SET
- U-Prox PIR Outdoor;
- Two CR123A batteries (pre-installed);
- Device hood;
- Mounting kit;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

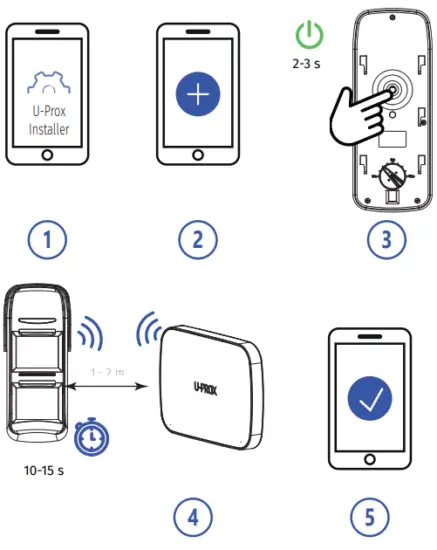

REGISTRATION

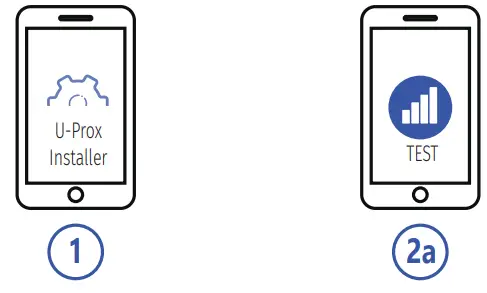

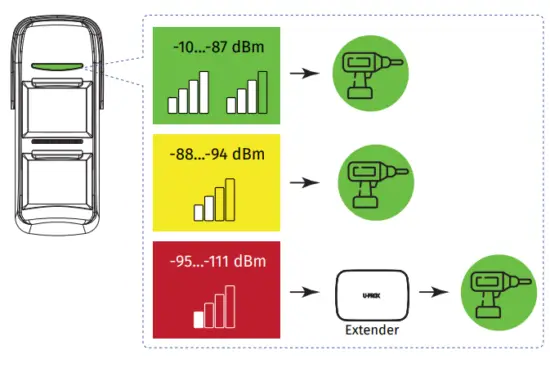

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION

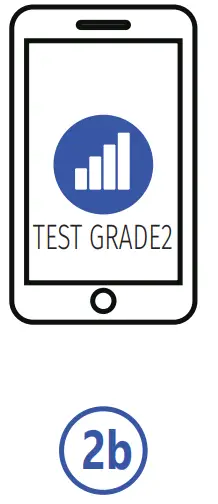

Due to the Grade 2 requirement, the RF link works with a reduction of power to 8 dB

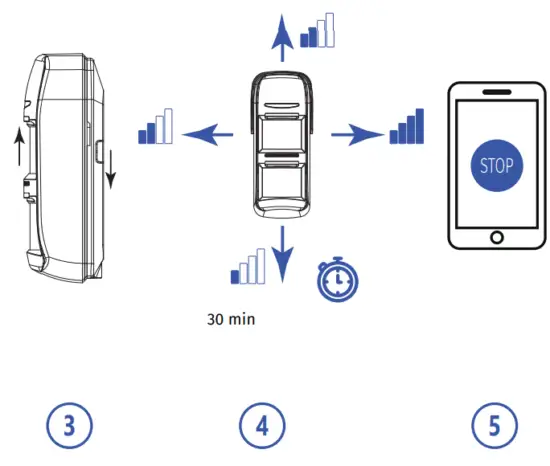

INDICATION IN RANGE TEST MODE

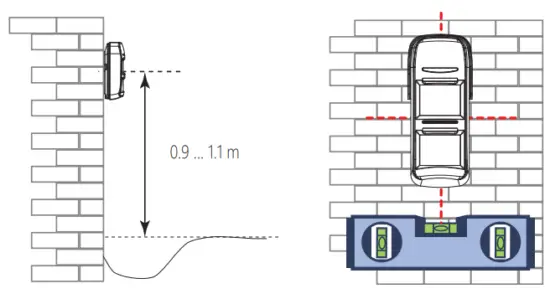

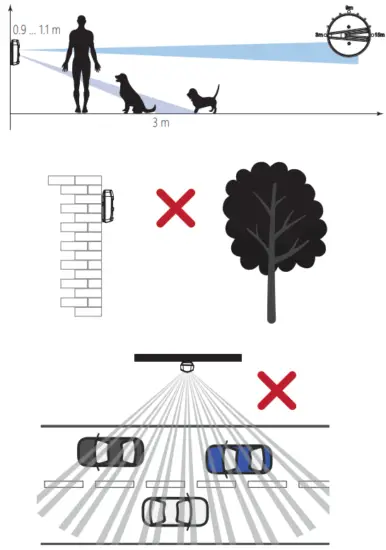

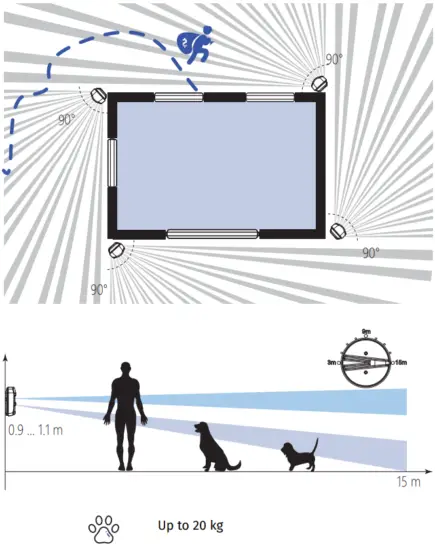

DEVICE PLACEMENT

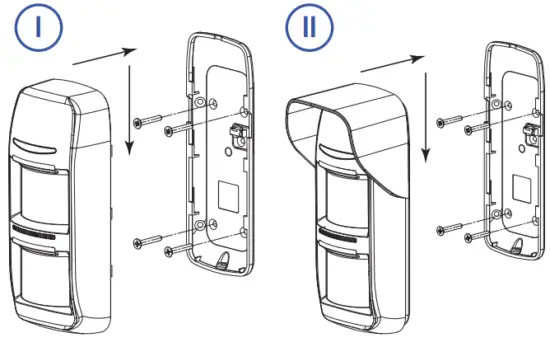

INSTALLATION

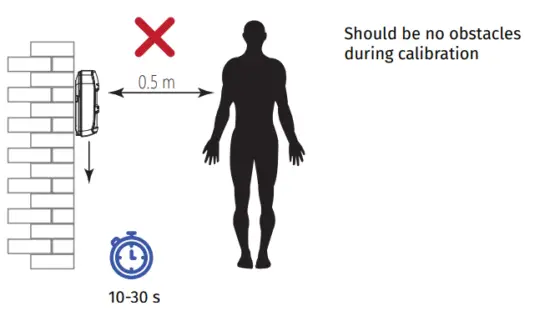

ANTI-MASKING CALIBRATION

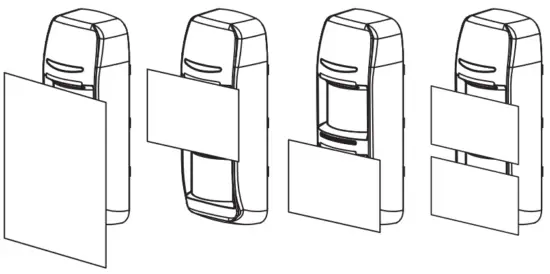

ANTI-MAKING

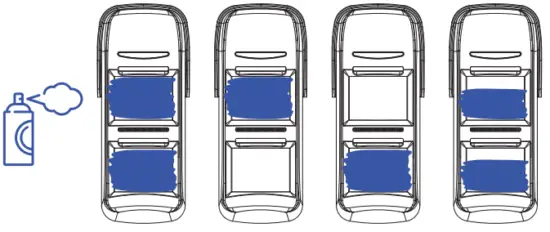

Partial and full masking detection (70% – 100%)

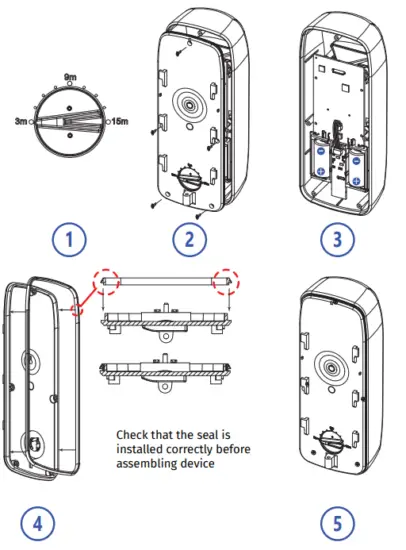

BATTERY REPLACEMENT
https://www.u-prox.systems/doc_pirout
