Wireless Optical Smoke Alarm
User Manual
Wireless Optical Smoke Alarm
Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
www.u-prox.systems[email protected] www.u-prox.systems/doc_smoke

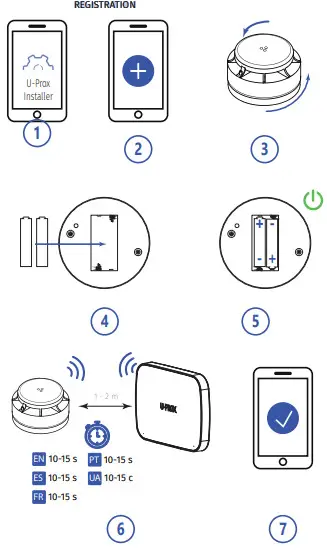

U-Prox Smoke – is a wireless optical smoke alarm designed for notification of smoke detection in residential or industrial premises. A smoke alarm does not prevent fire but allows to react to danger in time. Every correctly installed smoke detector you will increase your potential escape time. The device is connected to the control panel and is configured with the U-Prox Installer mobile application.

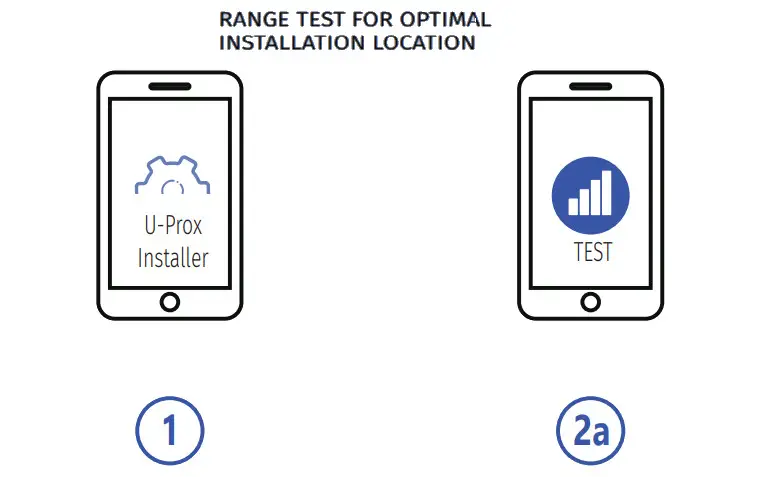

U-Prox Installer
Functional parts of the device (see picture)
- Device case

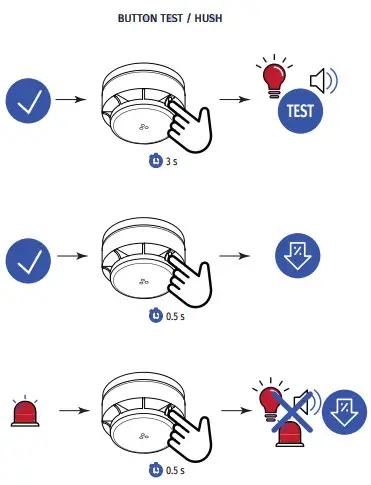

- Button “Test/Hush”
- Light indicator
- The bottom plate of the case.
- Device bottom view without bottom plate of the case
- Batteries ААА

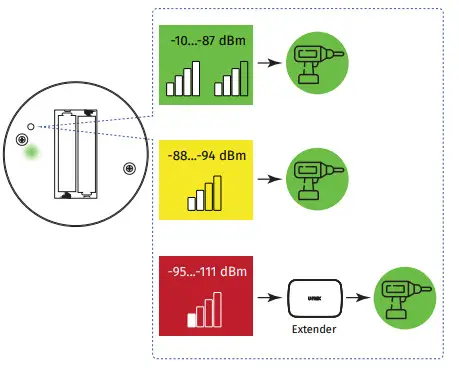

- Transmitter LED indicator
TECHNICAL SPECIFICATIONS
| Sensitivity range | 0.08–0.12dB/m (under conditions: cotton smoke, air speed 0.2 m/sec) |
| Sound pressure level at 3 m | at least 85 dB |
| Power | 3V, two AAA (LR03) alkaline batteries included |
| Service life of battery | up to 3 years |
| Radio frequency | ISM-band wireless interface with several channels ITU: region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) ITU: region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Dimensions & weight | -10°C to +55°C |
| Operating temperature rang | Ø 80 х 45 mm & 150 grams |
| Case colour | white |
COMPLETE SET
- U-Prox Smoke;
- Two LR03 AAA batteries;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE ATIONAL REGULATIONS
CAUTION: Do not use salt batteries (R03)! FR03 lithium batteries or alkaline batteries (LR03) are highly recommended. Usage of alkaline batteries (LR03) allowed only at temperatures above +5°C.
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] first, maybe it can be solved remotely.
 |  |
 |  |
 |  |
 |  |
 | |
