Wireless Multifunction Button
User Manual
www.u-prox.systems/doc_button www.u-prox.systems [email protected]
Is a part of the U-Prox security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd. Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
https://www.u-prox.systems/doc_button
U-Prox Button – is a wireless key fob / button designed to control the U-Prox security system.
It has one soft key and a LED indicator for interaction with the user of the alarm system. Can be used as a panic button, fire alarm button, medical alert key fob or button, for confirmation of patrol arrival, for switching on or off relay, etc. Button press time is adjustable.
The device is registered for the user of the control panel and is configured with the U-Prox Installer mobile application.

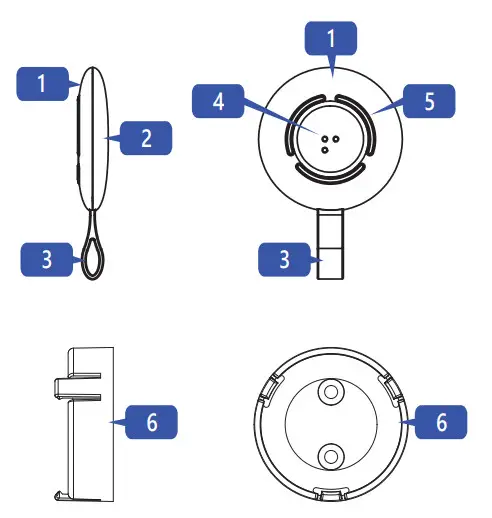

Functional parts of the device (see picture)
- Top case cover
- Bottom case cover
- Fastening strap
- Button

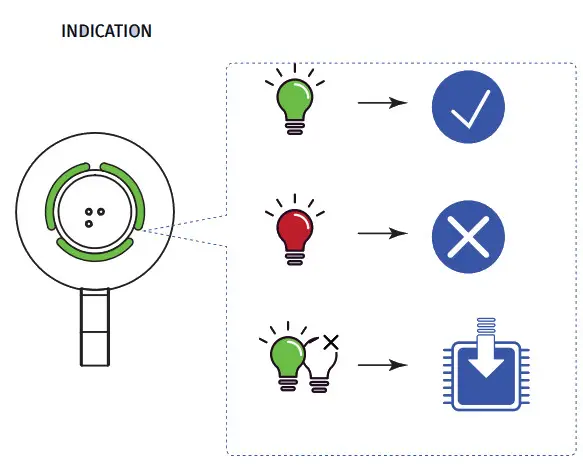

- LED indicator

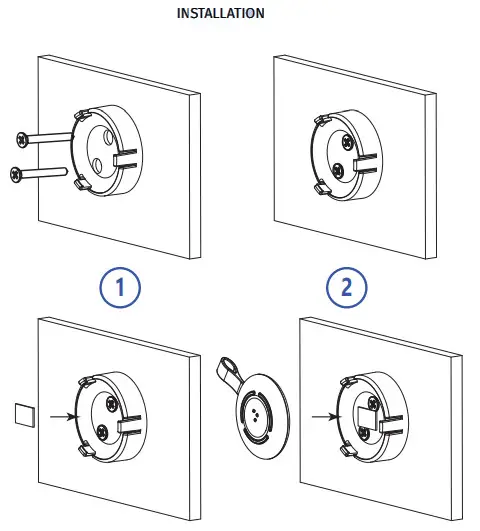

- Mounting bracket
TECHNICAL SPECIFICATIONS
| Power | 3V, CR2032 lithium battery included |
| Service life of battery | up to 5 years |
| Communication | ISM-band wireless interface with several channels |
| Dimensions | ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 10 mW max., up to 300m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 10 mW max.,up to 300m (in line of sight). |
| Operating temperature r | -10°C to +55°C |
| Radio frequency | Ø 39 x 9 x 57 mm |
| Bracket dimensions | Ø 43 x 16 mm |
| Case colour | white, black |
| Weight | 15 grams |
COMPLETE SET
- U-Prox Button;
- CR2032 battery (pre-installed);
- Mounting bracket
- Mounting kit;
- Quick start guide

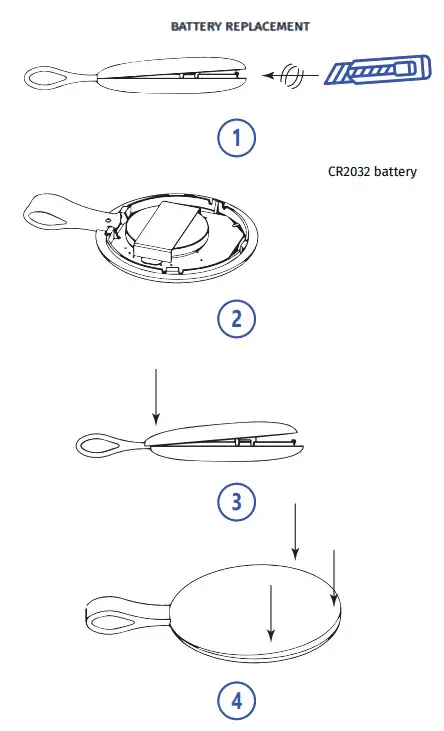

CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date. If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

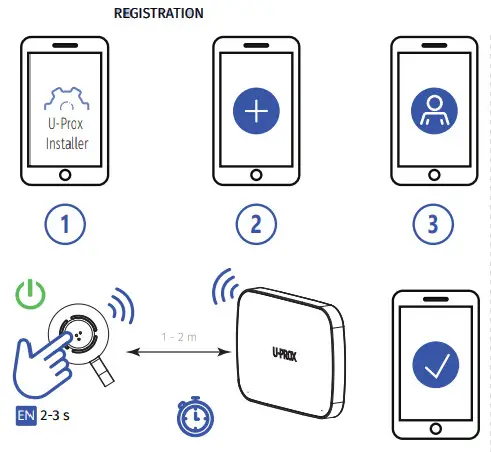

REGISTRATION
 |  |
 |  |
