Safety Instruction
Thank you for purchasing Autoslide Wireless Push Button. Please refer to the following operation sheet before usage.

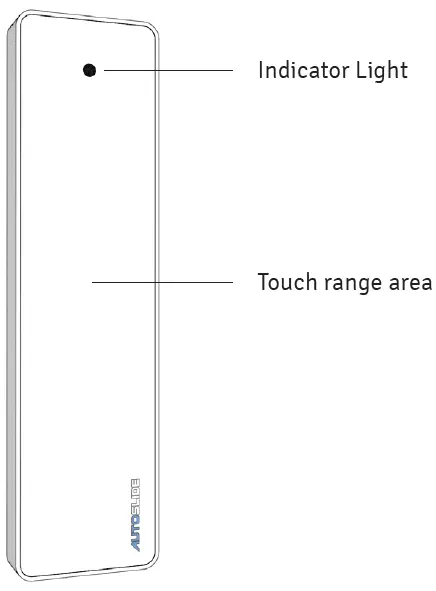

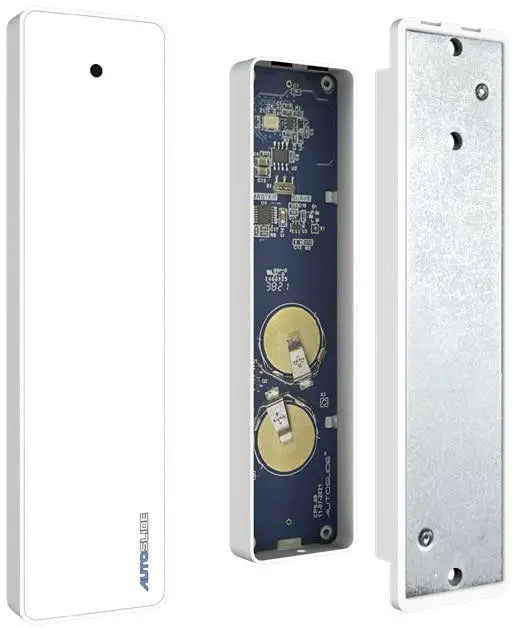

Product Overview
Features
- Wireless touch button, no wiring required.
- Entire activation area, soft touch to activate the door.
- 2.4G wireless communication technology, stable frequency.
- Transmitter uses Low power transmission technology. It has long-range and low power consumption.
- Easy to connect with Autoslide operator.
- LED light indicates the switch is active.

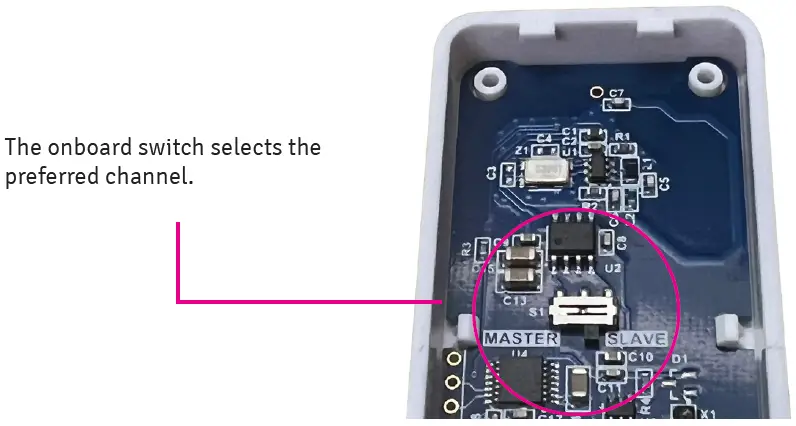

Channel Selection
Autoslide Wireless Touch Button has two-channel selections, Master or Slave. The onboard switch selects the preferred channel.
Wall mount options

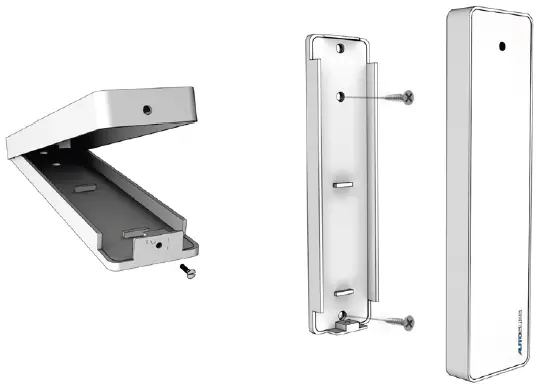

Option 1
- Undo the screww at the bottom of the switch.
- Use 2 wall screws to fix the switch to the wall.

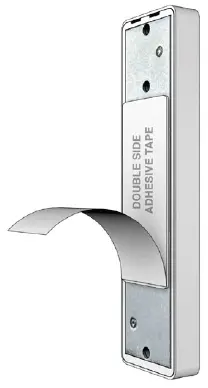

Option 2
Or use double side self-adhesive tape.

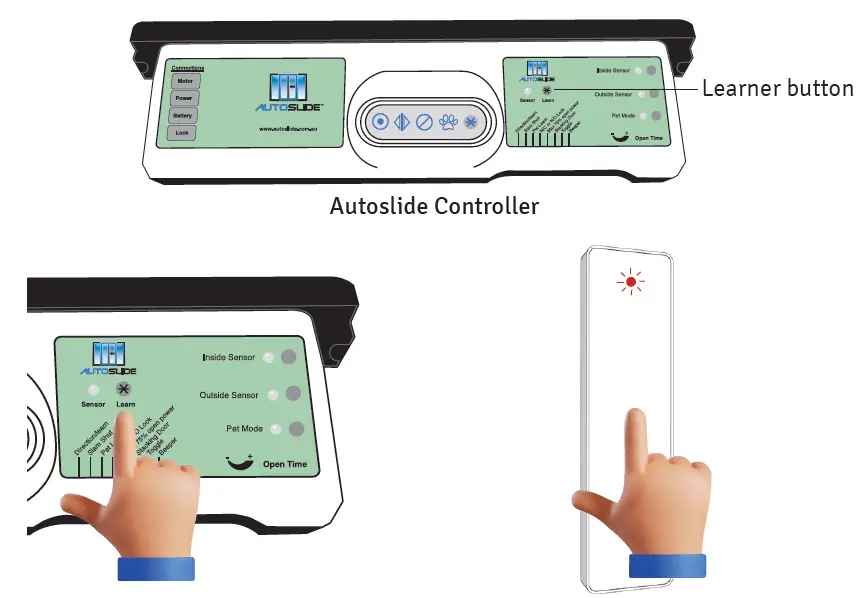

How to connect to Autoslide Controller
- Press the learn button on the Autoslide Controller.
- Press the touch button, and when the indicator light flashes red, the switch is connected.
The touch button now is connected to the controller and ready to activate the door.
Technical Specifications
| Rated voltage | 3VDC (2x lithium coin batteries in parallel) |
| Rated current | Average 13uA |
| IP protection class | IP30 |
| Product Maximum frequency | 16MHz |
| RF transmitter specifications | |
| RF Frequency | 433.92MHz |
| Type of modulation | ASK/OOK |
| Type of encoding | Pulse width modulation |
| Transmission bit rate | 830 bit/sec |
| Transmission protocol | Keeloq |
| Length of the transmitted packet | 66 bits |
| Period of re-transmission when activated | Not re-transmitted until released |
| Transmitting power | <10dBm (nom 7dBm) |
