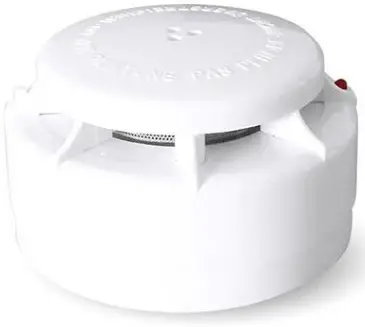

U-PROX Modification 2 Wireless Optical Smoke Alarm User Manual
U-Prox Smoke – is a wireless optical smoke alarm designed for notification of smoke detection in residential or industrial premises. A smoke alarm does not prevent fire but allows to react to danger in time. Every correctly installed smoke detector you will increase your potential escape time.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
U-Prox Installer

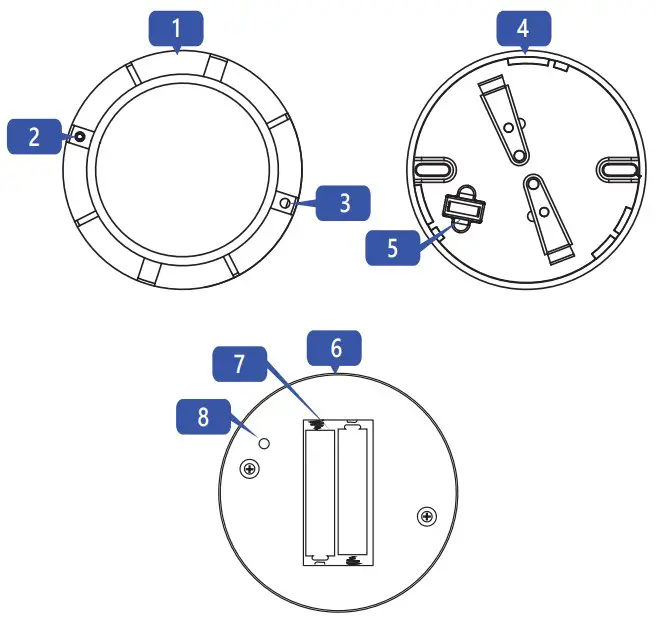

Functional parts of the device (see picture)
- Device case
- Button “Test/Hush”
- Light indicator
- The bottom plate of the case
- Tamper magnet
- Device bottom view without bottom plate of the case
- Batteries ААА
- Transmitter LED indicator
TECHNICAL SPECIFICATIONS
| Sensitivity range | 0.08-0.12dB/m (under conditions: cotton smoke, air speed 0.2 m/sec) |
| Sound pressure level at 3 m | at least 85 dB |
| Power | 3V, two AAA (LR03) alkaline batteries included |
| Service life of battery | up to 3 years |
| Radio frequency. | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz,bandwidth 100kHz, 20 mW max.,up to 4800m (in line of sight) ITU region 3 (AU): 916.5 to 917 MHz,bandwidth 100kHz, 20 mW max.,up to 4800m (in line of sight) | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Operating temperature range | -10°C to +55°C |
| Dimensions & weight | 0 80 x 47 mm & 160 grams |
| Case colour | white |
COMPLETE SET
- U-Prox Smoke;
- Two LR03 AAA batteries;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
CAUTION. Do not use salt batteries (R03)! FR03 lithium batteries or alkaline batteries (LR03) are highly recommended. Usage of alkaline batteries (LR03) allowed only at temperatures above +5°C.

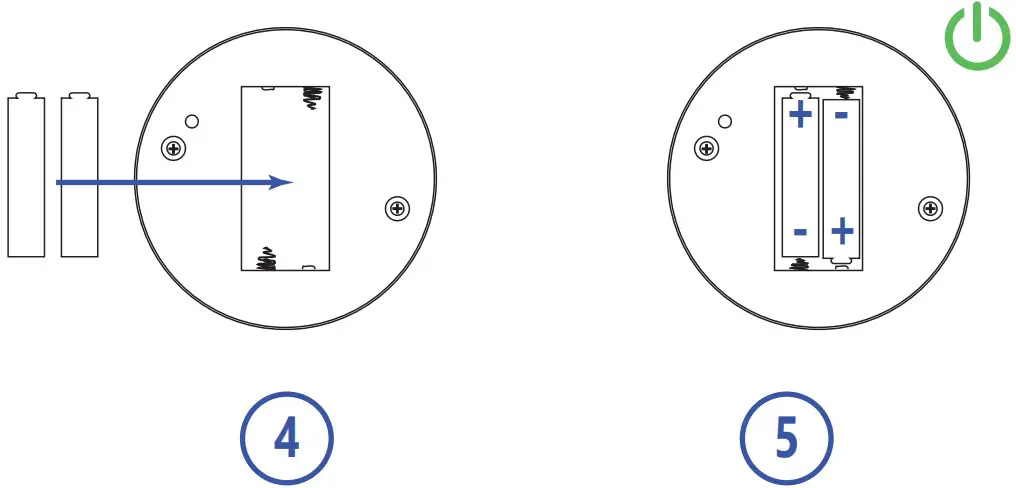

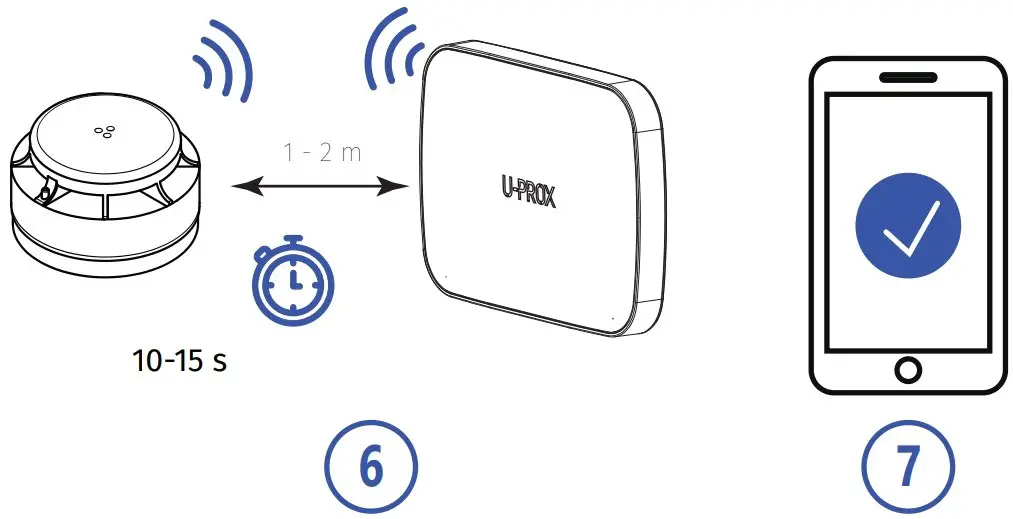

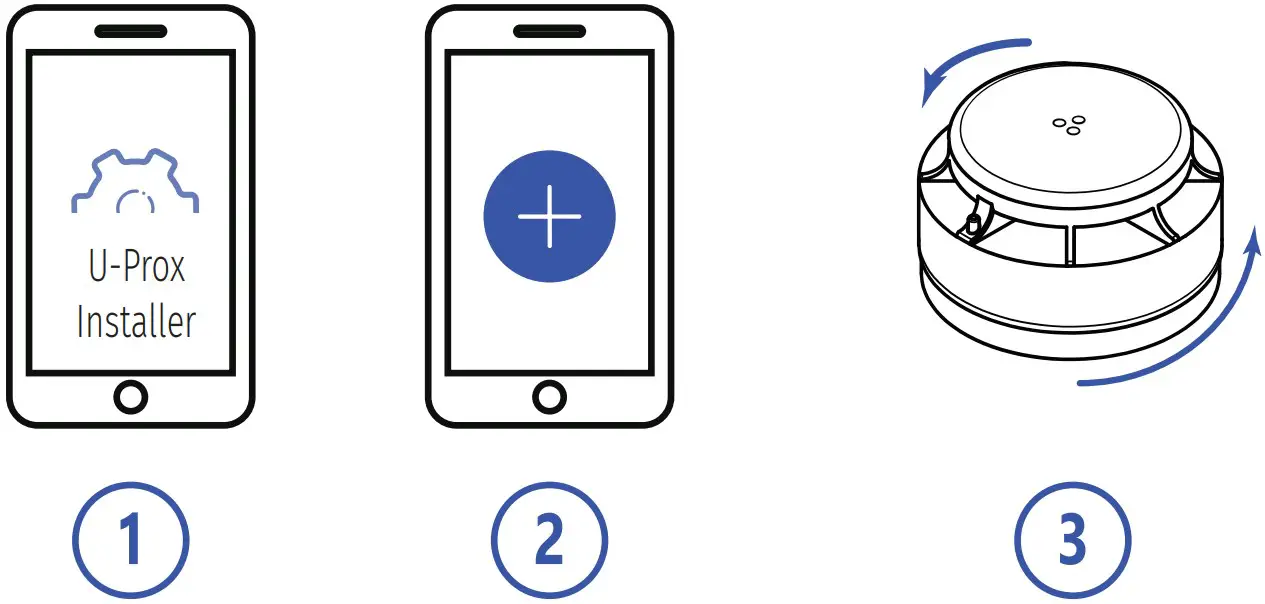

REGISTRATION

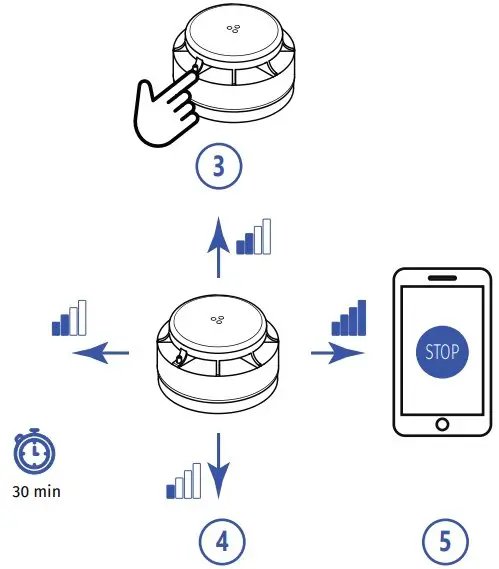

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB.

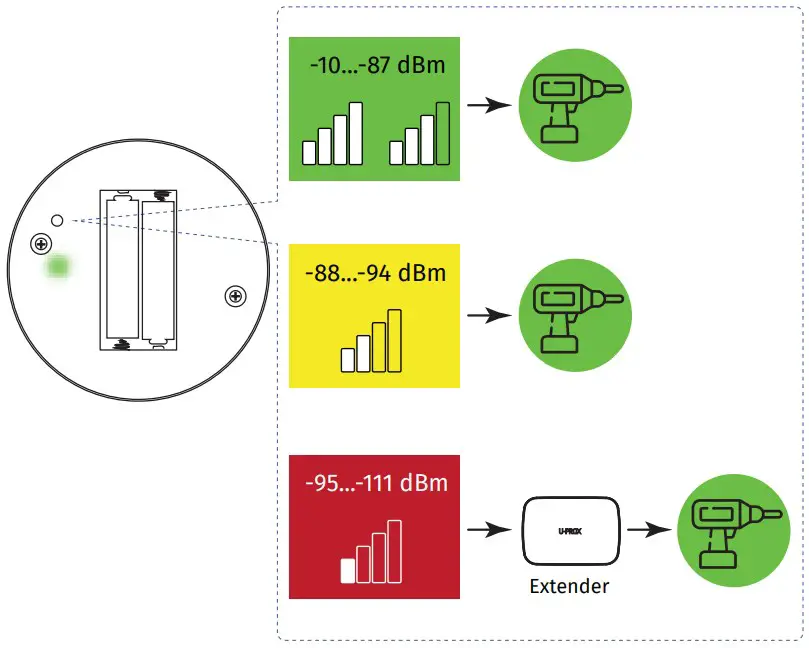

INDICATION IN RANGE TEST MODE

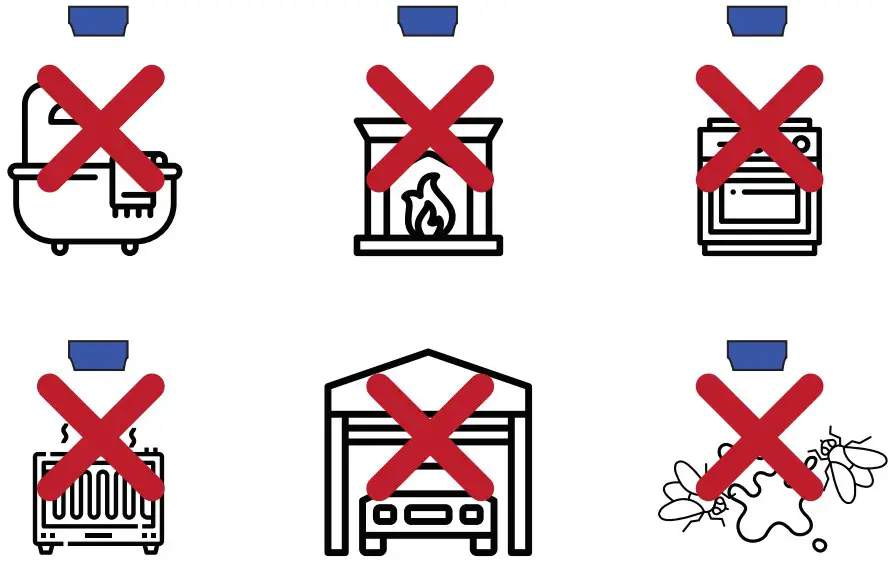

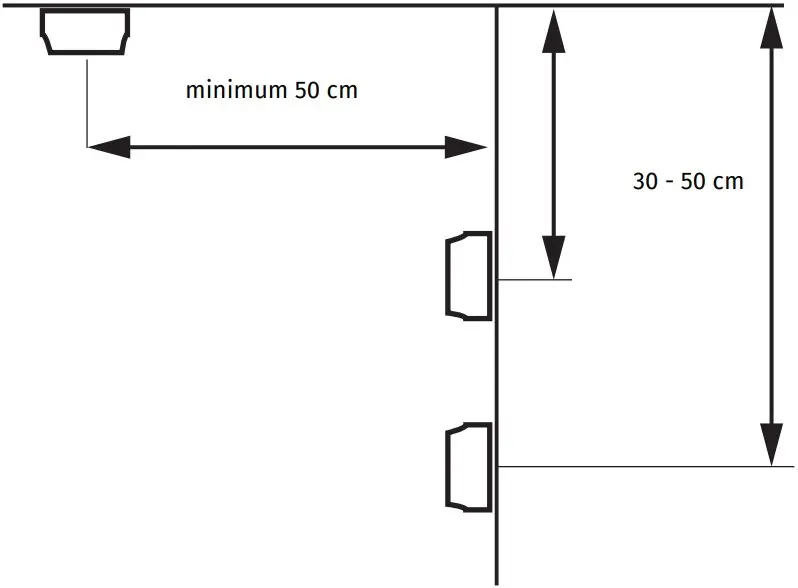

DEVICE PLACEMENT

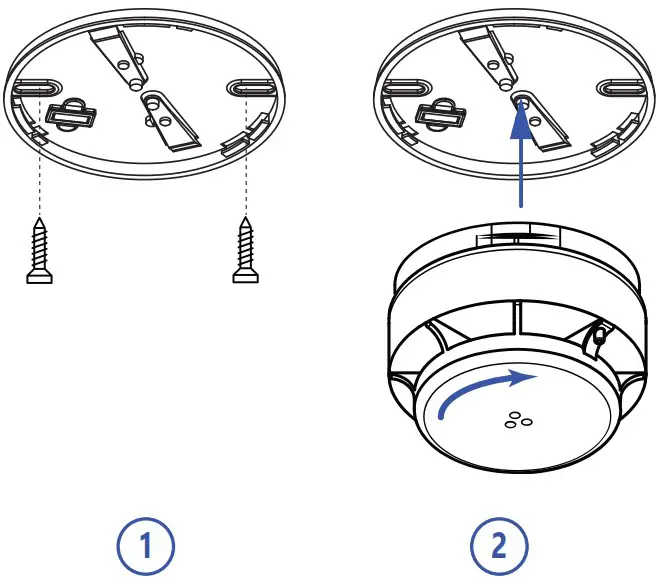

INSTALLATION

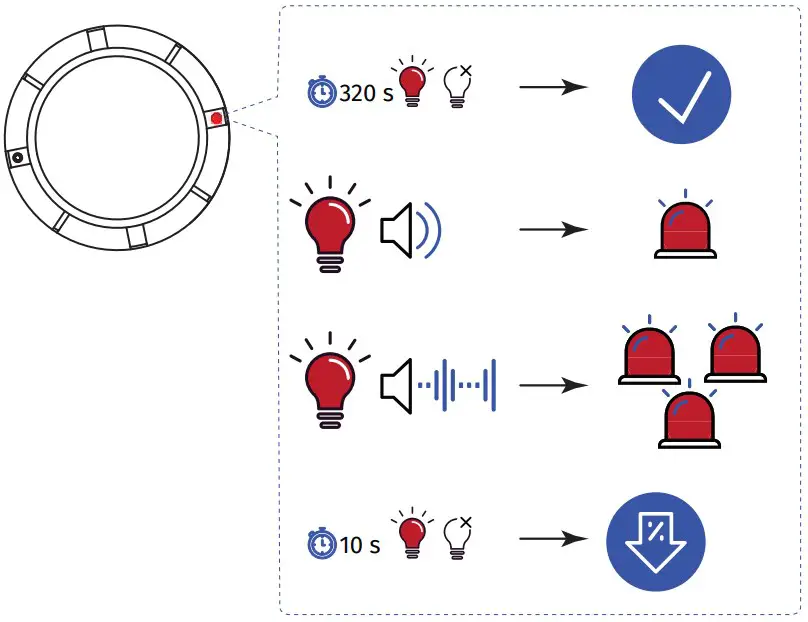

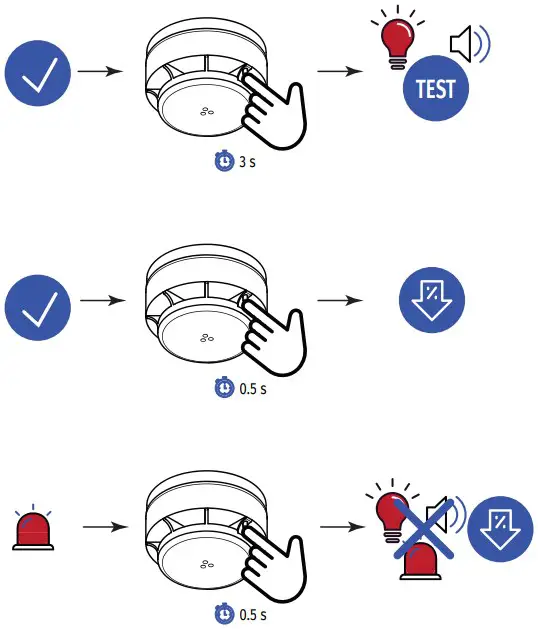

INDICATION

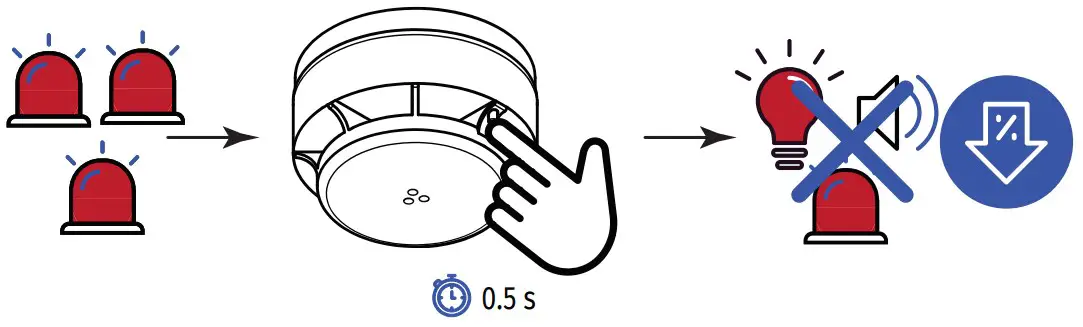

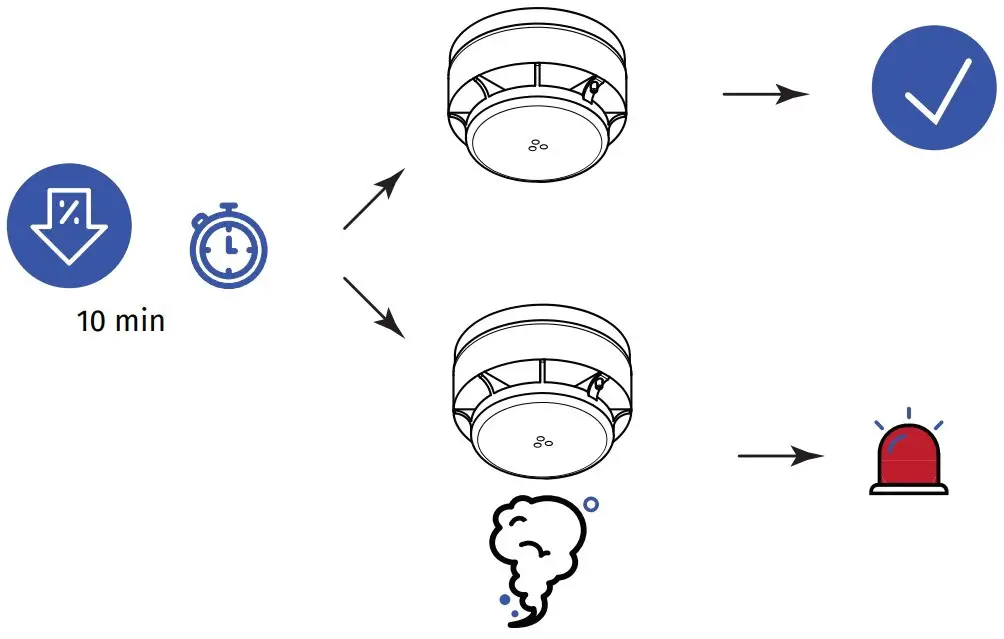

REDUCED SENSITIVITY MODE
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.
Manufacturer
Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv
Ukraine
http://www.u-prox.systems/
[email protected]
http://www.u-prox.systems/doc_smoke2
