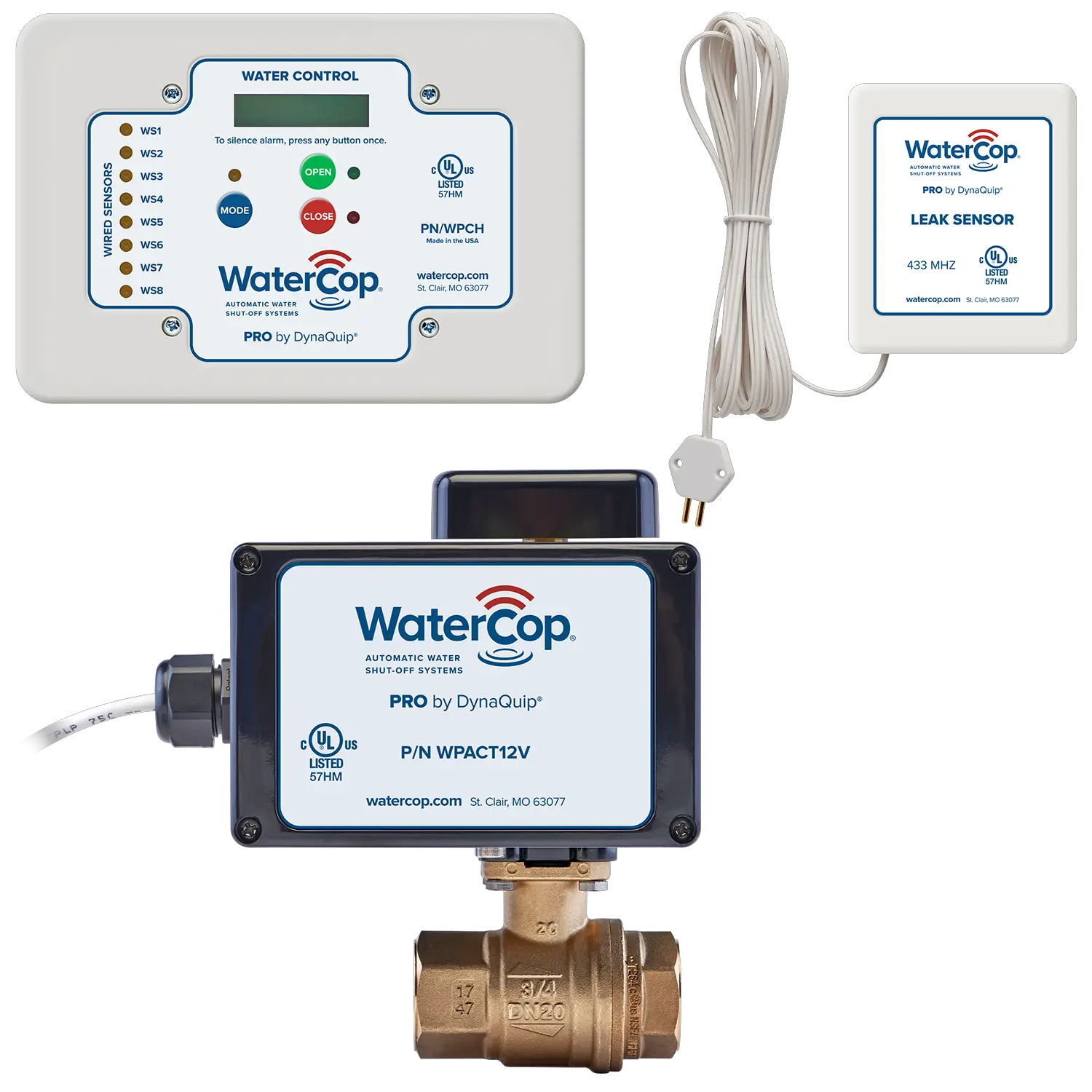

WaterCop 192544 Pro DC Large Valve Wiring
Installation
CAUTION: DO NOT POWER THE CONTROL PANEL UNTIL ALL WIRING CONNECTIONS ARE MADE AND INSTALLATION IS COMPLETE.

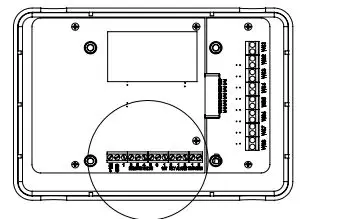

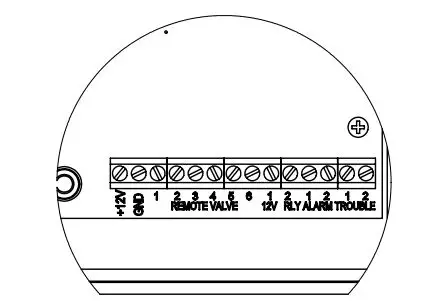

REMOVE JUMPERS FROM TERMINALS 2, 3, 4 & 5 ATTACH CABLE LEADS TO
REMOTE VALVE TERMINALS
AS FOLLOWS:
1 – BLACK
2 – RED
3 – GREEN
4 – BROWN / YELLOW FOR OUTDOOR
5 – WHITE
BLUE LEAD IS NOT USED
DYNAQUIP CONTROLS – 10 HARRIS INDUSTRIAL PARK – ST. CLAIR, MO 63077 TEL. 800-545-3636 FAX. 636-629-5528 www.watercop.com
INSTALL CABLE RESTRAINT INTO ACTUATOR HOUSING
INDOOR CABLES 192596.025 / 192596.050 / 192596.075
OUTDOOR CABLES 192600.025 / 192600.050 / 192600.075
FEED CABLE THROUGH CABLE RESTRAINT AND ATTACH LEADS TO TERMINAL BLOCK
AS FOLLOWS: NOTE THE LOWEST TERMINAL IS NO. 1
1 – BLACK
2 – RED
3 – GREEN
4 – BROWN / YELLOW FOR OUTDOOR
5 – WHITE
BLUE LEAD IS NOT USED
NOTE: ROUTE WIRES AWAY FROM CAMS AND TIGHTEN CABLE RESTRAINT
