B G 22045500 XR Valve
DESCRIPTION

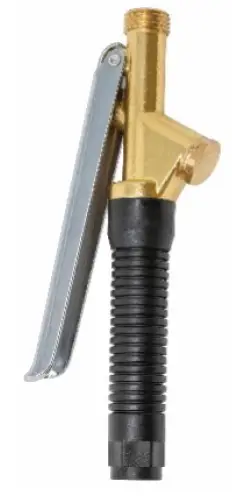

The XR valve is a resin and brass heavy-duty corrosion-resistant valve with trigger handle shut-off primarily used for outdoor liquid applications. It is used on several of the B&G products, including models of the Primeline and VersaFoamer HH. Please refer to the User Manual for your sprayer, this addendum only provides information on the valve and associated nozzles and is designed to supplement the User Manual of the sprayer.
EXTENSIONS
Extensions are available for the XR valve in brass and stainless steel to extend the distance between the valve and the nozzle from 9”, 18” or 24”.

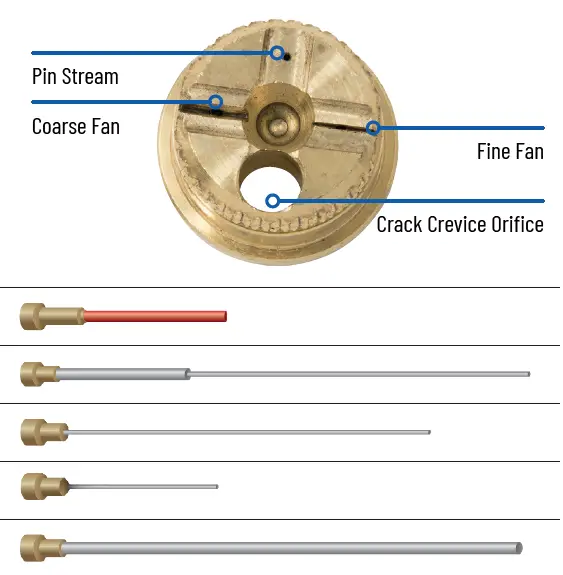

| oz/min | ml/min | |

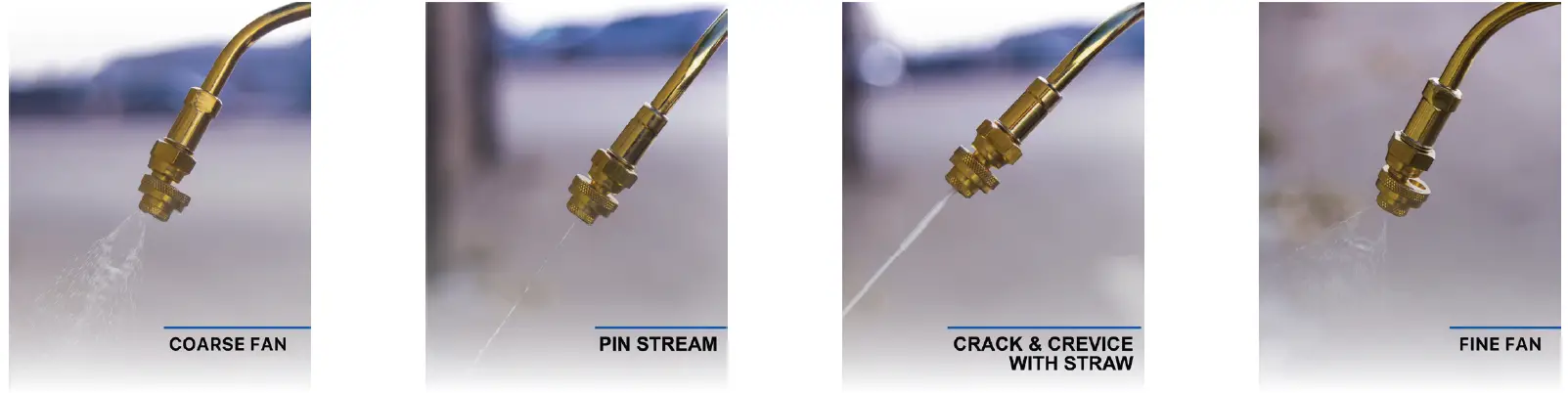

| 50° Narrow/Coarse Fan | 14.1 | 417.0 |
| 80° Wide/Fine Fan | 6.4 | 189.3 |
| Large Pin Stream | 8.9 | 263.2 |
| Tips that Are Inserted into Crack & Crevice Orifice | ||
| 1” (2.5 cm) Red Crack & Crevice Straw 6 oz/min (177.4 ml/min) | ||
| 6” (15 cm) Crack & Crevice White Straw 3.8 oz/min (112.4 ml/min) | ||
| 3.5” (9 cm) Stainless Steel Injector Needle | ||
| 2” (5 cm) Stainless Steel Void Tip | ||
| 4” (10 cm) Stainless Steel 4-Way Void Tip | ||
NOZZLES & TIP ASSEMBLIES

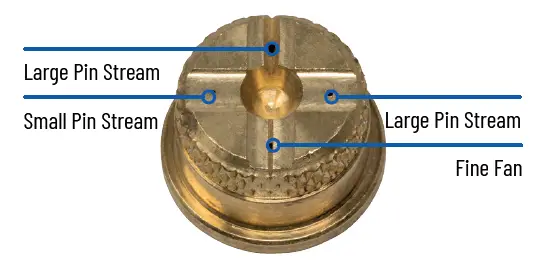

B&G 4-WAY CRACK & CREVICE TIP ASSEMBLY #22049466/1608003819
| oz/min | ml/min |
Large Pin Stream Small Pin Stream Large Pin Stream Fine Fan | |
| 50° Narrow/Coarse Fan | 14.1 | 417.0 | |
| 80° Wide/Fine Fan | 6.4 | 189.3 | |
| Large Pin Stream | 8.9 | 263.2 | |
| Small Pin Stream | 4.5 | 133.16 |

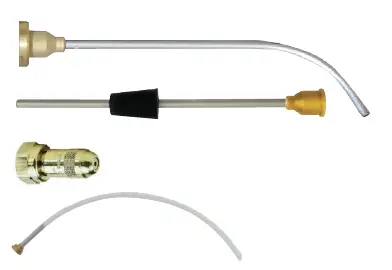

- 6” CURVED TIP FOR VERSAFOAMER HH #16200013/1208001095
- STRAIGHT TIP FOR VERSAFOAMER HH #16200018/1108004767
- ADJUSTABLE PIN-TO-CONE #23083602/1608003917
- DRAIN TIP FOR VERSAFOAMER HH #16200023/1108004768
EXTENDA-BAN VALVE PARTS
| Number | Description | Order Number (US) | Order Number (EU) |
| 1 | Valve assembly (complete without tip) | 22037500 | 1208001177 |
| 2 | XR Valve Kit (includes parts 2a-2h) | 22037510 | 1108004812 |
| 2a | O-ring | N/A | N/A |
| 2b | Brass guide | N/A | N/A |
| 2c | Valve stem | N/A | N/A |
| 2d | Valve spring | N/A | N/A |
| 2e | Copper gasket | N/A | N/A |
| 2f | Cap | N/A | N/A |
| 2g | Gasket | N/A | N/A |
| 2h | O-ring | N/A | N/A |
| 3 | Handle | 22037503 | 1208001178 |
| 4 | XR Valve body | 22037501 | 1608003690 |
TROUBLESHOOTING
| Problem | Solution |
| Valve body leaking | • Replace O-ring at base of handle; replace copper gasket at base of valve stem. |
| Tip Leaking | • Clean or replace check valve at end of valve extension. |
DISPOSAL
Please follow all local regulations when disposing of equipment.
CONTACT
Contact your local distributor or Pelsis country-specific location for information on spares and service.
- US: B&G Equipment, 135 Region South, Jackson, GA, 30233, USA Contact Number: 1-800-544-8811 Email Address: [email protected]
- UK: Pelsis Ltd, Sterling House, Grimbald Crag Close, Knaresborough, HG5 8PJ, UK. Contact Number: +44 (0) 800 988 5359
- Europe: Pelsis Belgium NV, Industrieweg 15, 2880, Bornem, Belgium. Contact Number: +32 (0) 3 886 22 11
- All Other Countries: B&G Equipment, 135 Region South, Jackson, GA, 30233, USA Contact Number: 1-678-688-5601 Email Address: [email protected]
