B G 22049466 Ban-Drip Valve
DESCRIPTION

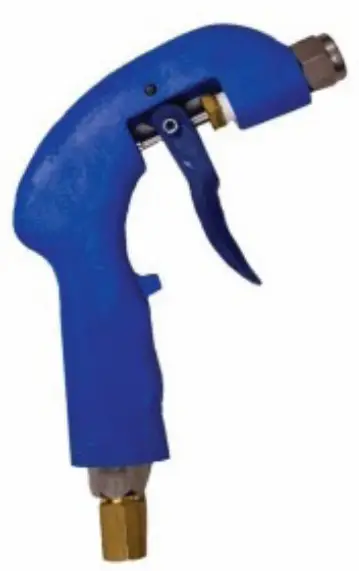

- The Ban-Drip valve is a resin pistol-grip valve with tip shut-off, designed for indoor and outdoor use. It is used on several of the B&G products, including models of the Primeline.
- Please refer to the User Manual for your sprayer, this addendum only provides information on the valve and associated nozzles and is designed to supplement the User Manual of the sprayer.
NOZZLES & TIP ASSEMBLIES

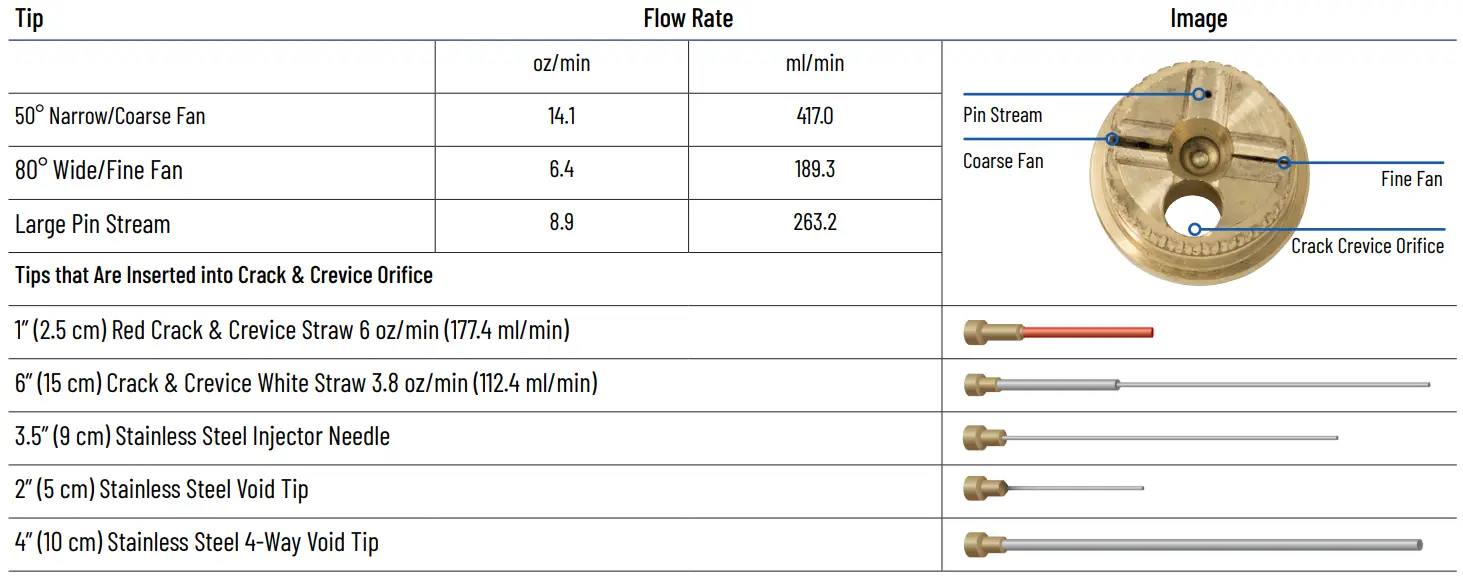

1.B&G 4-WAY CRACK & CREVICE TIP ASSEMBLY #22049466 / 1608003819
BAN-DRIP VALVE

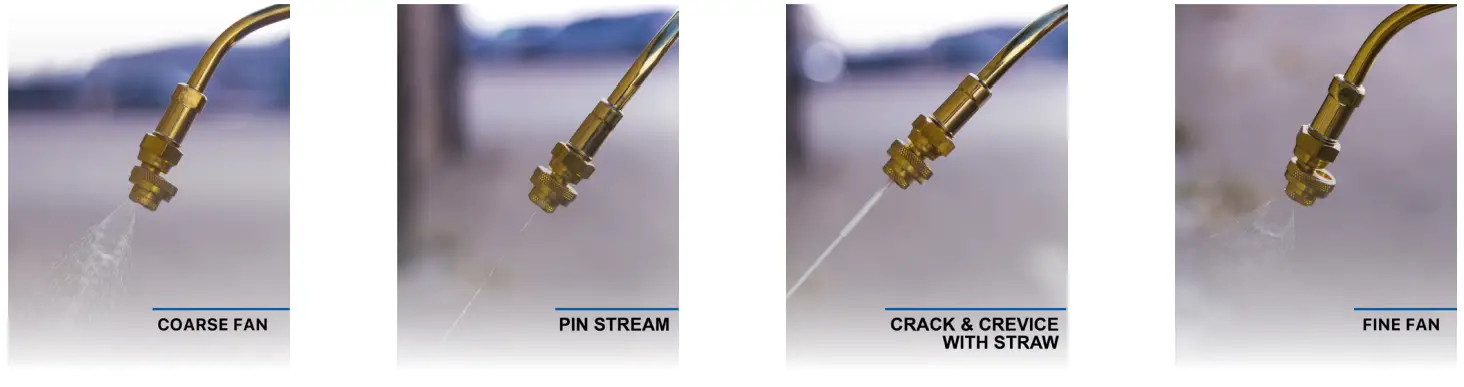

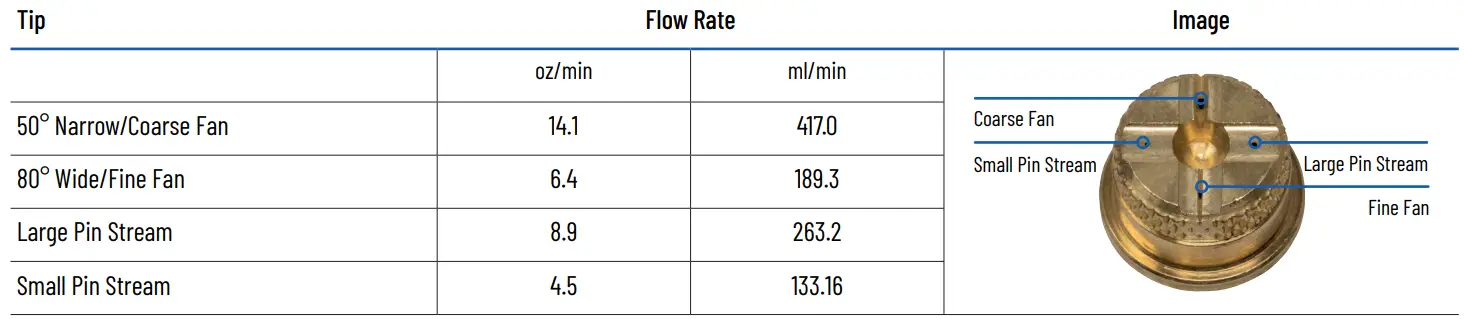

B&G 4-WAY TIP ASSEMBLY #22049451 / 1608003816

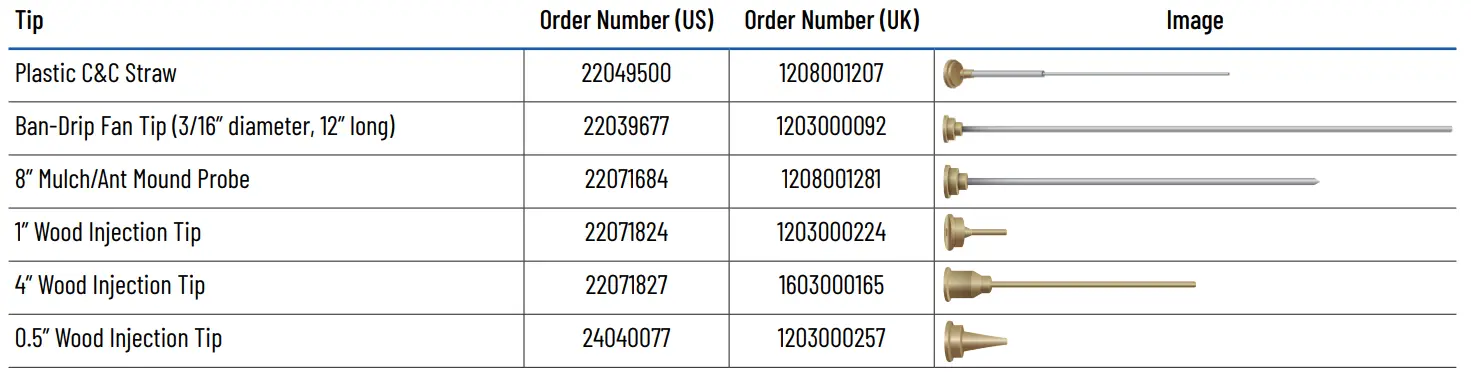

TIPS THAT ARE INSERTED INTO THE TIP CAP
BAN-DRIP VALVE

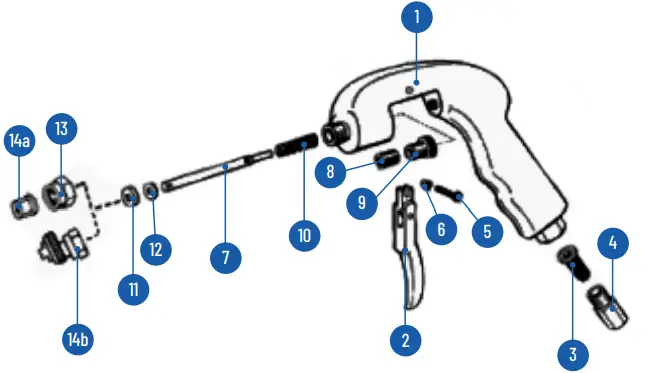

PARTS
| Number | Description | Order Number (US) | Order Number (EU) |
| 1 | Valve body | 22039700 | 1208001181 |
| 2 | Valve trigger | 22039800 | 1208001182 |
| 3 | Mesh strainer | 22039900 | 1608003706 |
| 4 | Pipe thread strainer | 22040100 | 1608003707 |
| 5 | Trigger screw | 22040300 | 1608003708 |
| 6 | Trigger nut | 22040500 | 1608003709 |
| 7 | Valve rod and pin | 22040700 | 1208001183 |
| 8 | Rod packing | 22041100 | 1608003710 |
| 9 | Brass packing nut | 22040900 | 1208001184 |
| 10 | Rod spring | 22041300 | 1608003711 |
| 11 | Seat gasket holder | 22041500 | 1208001185 |
| 12 | Seat gasket | 22041700 | 1608003712 |
| 13 | Tip cap | 22033100 | 168003669 |
| 14a | Fine fan tip | 22032100 | 1608003646 |
| 14b | 4-Way Crack & Crevice Tip | 22049466 | 1608003819 |
TROUBLESHOOTING
| Problem | Solution |
| Valve body leaking | • Tighten packing nut; replace rod packing (22041100/1608003710). |
| Tip Leaking No Liquid comming out | • Clean or replace seat gasket (22041700/1608003712) • Inspect and clean filter (22039900/1608003706) |
DISPOSAL
Please follow all local regulations when disposing of equipment.
CONTACT
- Contact your local distributor or Pelsis country-specific location for information on spares and service.
- US: B&G Equipment, 135 Region South, Jackson, GA, 30233, USA
Contact Number: 1-800-544-8811
Email Address: [email protected] - UK: Pelsis Ltd, Sterling House, Grimbald Crag Close, Knaresborough, HG5 8PJ, UK.
Contact Number: +44 (0) 800 988 5359 - Europe: Pelsis Belgium NV, Industrieweg 15, 2880, Bornem, Belgium.
Contact Number: +32 (0) 3 886 22 11 - All Other Countries: B&G Equipment, 135 Region South, Jackson, GA, 30233, USA
Contact Number: 1-678-688-5601
Email Address: [email protected]
