Gardena 1354 Master Unit 2000 Micro Drip System Instruction Manual

GARDENA 1354 Master Unit 2000 Micro Drip System Instruction Manual

Assembly Instructions

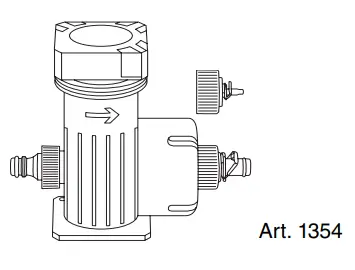

Master Unit 2000 with installation hints

1. Clean the filter regularly and, if necessary, immersed in a household descaling solution.
2. Connecting piece for hose connection.
3. Reduces pressure automatically to an operating pressure of approx. 1,5 bar (21 p.s.i.).
4. Connecting piece for GARDENA Micro-DripSystem Connecting Pipe 13 mm (1/2”).
5. Connecting piece for GARDENA Micro-DripSystem Supply Pipe 4,6 mm (3/16”).

Hint

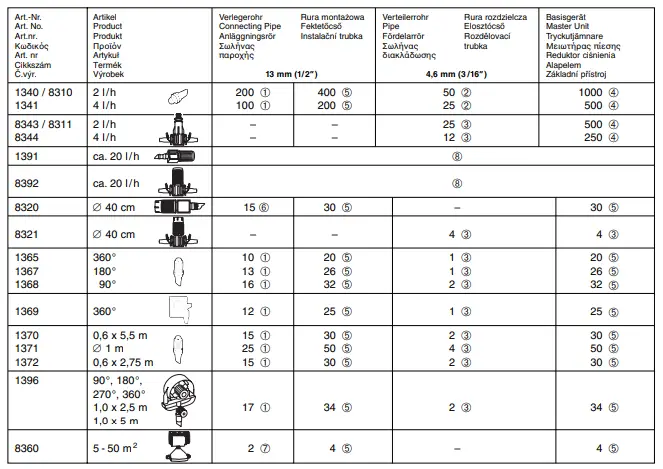

The number of sprinklers per table column are alternatively applicable.
Example: It is possible to connect max. 26 Spray Nozzles 180° (Art. 1367) or 32 Spray Nozzles 90° (Art. 1368) or… per Master Unit.

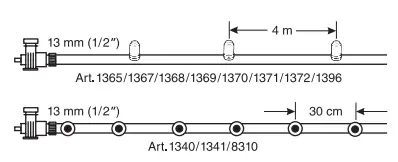

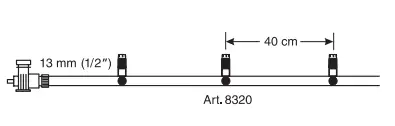

With Drip Heads or Spray Nozzles directly installed into the Connecting Pipe at a distance of 30 cm (1 inch) or 4 m (13 inches) respectively

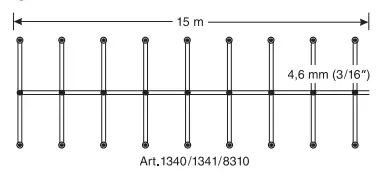

With a Pipe length of maximum 15 m and 2 connected Drip Heads per Four-Way Coupling 4,6 mm (3/16 ”).

Art. 8311/8321/8343/8344/1365/1367/1368/1369/1370/1371/ 1372/1396

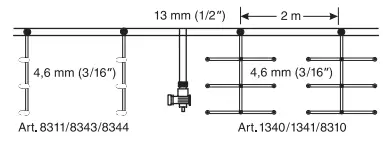

With a Pipe length of maximum 15 m.

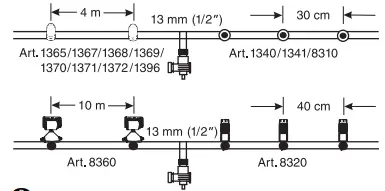

When connecting the Master Unit in the middle of the 13 mm (1/2”) pipe so that the water flows to the right and to the left.

With a Sprinkler distance of 10 m
The number of Drip Heads which can be connected to each supply linedepends on the flow rate setting. Install separate lines, if necessary
