INSTALLATION INSTRUCTIONS
Model GE2050
Drip and Micro Sprayer
Watering Kit with
Waterproof Digital Solar
Powered Hose End Timer

INTRODUCTION

THANK YOU for purchasing the DIG Model GE2050 Drip and Micro Sprayer Watering Kit with Waterproof Digital Solar Powered Hose End Timer. Please take the time to read through the enclosed instructions and follow them step by step. If you have any questions, please call our customer service line at 1-800-344-2281.

GENERAL DESCRIPTION

Use these guidelines for the design and installation of a cost-effective and reliable drip and micro sprayer irrigation system for your landscape area, perfect for promoting efficient water use and protecting natural resources.

PLANNING

Make a rough sketch of the areas you would like to water. Make sure you take into account plant type, the location of each tree, shrub, or groundcover, planting density, and soil type. Based on the plant size and concentration, you will determine the number of drippers per plant or the use of micro sprayers. Show the site’s water sources and paved areas. This will require measuring the area you wish to water. We recommend using graph paper; this will make a drawing to scale easier.

DESIGNING

When designing your system, make sure to have a design drawing before you start the job. Design drawings should be clearly readable to scale and should include water location, the layout of drip tubing, drip emitters, micro sprayers, fittings, the end of the line for periodic flushing, plant materials, and sidewalks. You have various options with your layout. To cover a concentrated area such as flowerbeds or densely planted groundcover, use micro sprayers and place them 5′-6′ apart. For shrubs, vines, and roses, use drippers (see details on page 10 of The Drip Installation Guide). These drawings illustrate some methods by which you may layout a drip system or micro-sprinkler system.

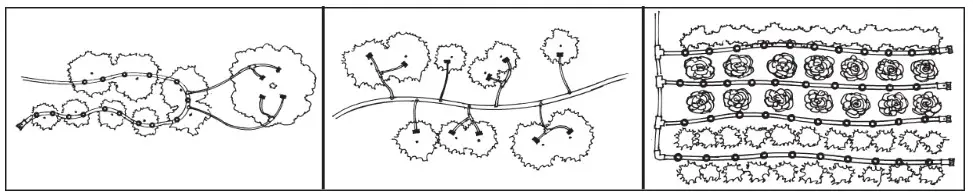

DRIP LAYOUT

For detailed information, see DIG Drip Installation Guide, or visit www.digcorp.com

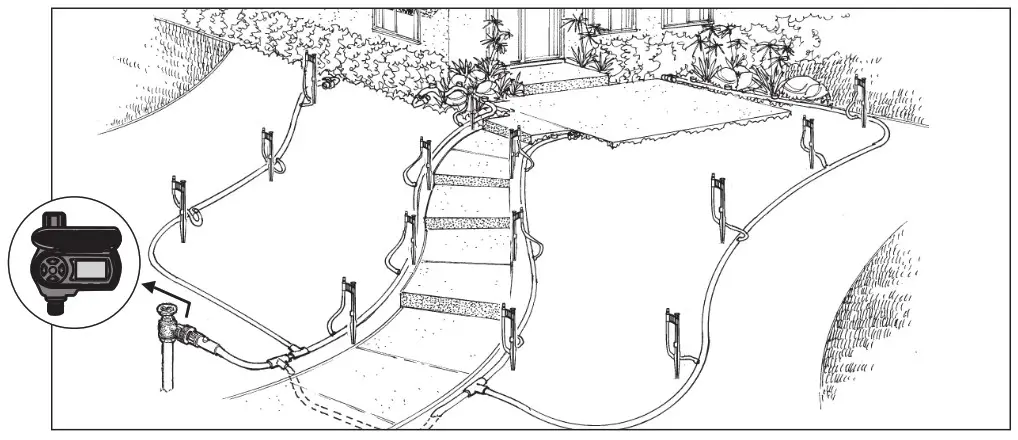

MICRO SPRAYER LAYOUT

INSTALLATION

Begin your installation at the water source by attaching the solar-powered timer (1) to your faucet and then attach the backflow preventer to the timer (2). After the backflow preventer, attach the 25-PSI preset pressure regulator (3). Then, connect the swivel adapter (4) to your pressure regulator and insert the drip tubing to the adapter.
Next, lay down your 1/2” drip tubing. If you plan to leave it above the ground, allow the drip tubing to sit in the sun before installation, making it easier to work with. Use stakes to secure drip tubing to the ground. If you are burying the drip tubing, dig a trench about 6″ from the roots of your plants. A shallow trench, 3″-6″ deep is all that is needed to keep the drip tubing safe from
cultivation practices. Do not bury the end of the drip tubing; allow it to remain on the surface for periodic flushing.

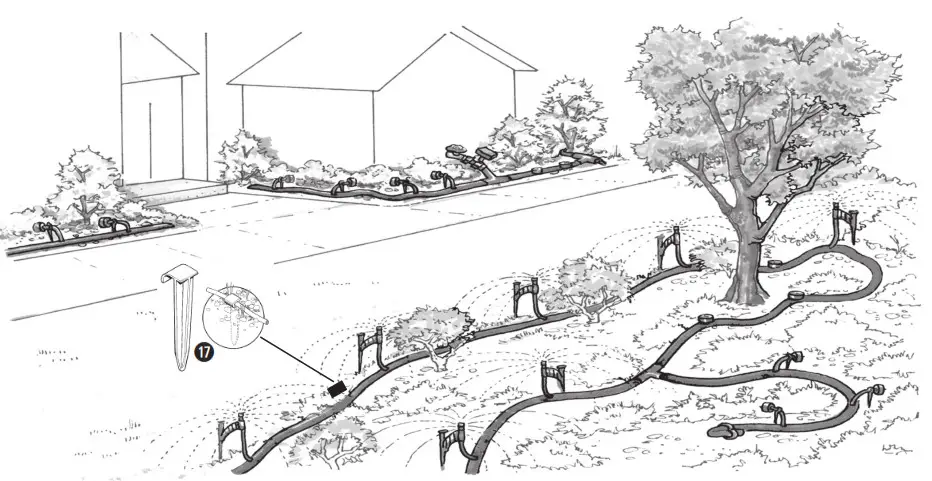

TYPICAL INSTALLATION

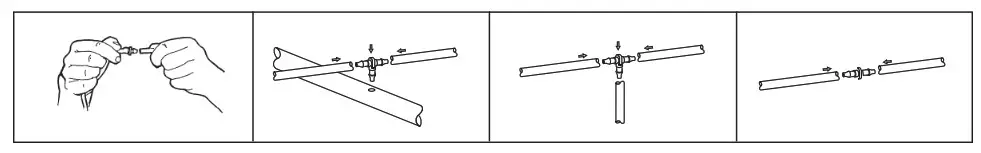

Connecting and installing 1/2″ fittings:

To install your 1/2” fittings, cut the poly tubing with a hand pruner or scissors, being careful to keep dirt from entering the line. Push the poly tubing into the fitting by wiggling it as you apply force.

Connecting 1/4″ fittings:
To install your 1/4″ barbs, tees or elbows, push the micro tubing over each of the barbed ends. Soaking the micro tubing in warm water will make it softer and make the fittings easier to install.

Using the punch:
To insert drippers, micro sprayers, and 1/4″ fittings into the 1/2″ line, hold the line in one hand and apply just enough pressure with the punch to puncture tubing.

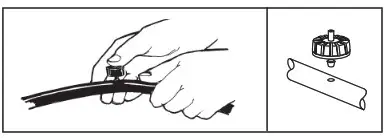

Installing drippers to 1/2″ drip hose:
Drippers are installed by punching a hole in 1/2″ drip tubing and snapping the larger barbed side in. If your tubing is buried, the drippers should always be located above the ground. This is achieved by inserting a 1/4″ barb or tee into the drip tubing and running 1/4″ micro tubing to the surface where the dripper is installed.

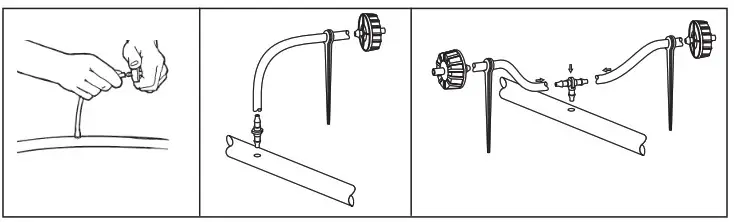

Installing drippers to 1/4″ microtube:
For plants far from the drip tubing, first insert a 1/4″ barb or tee into one end of the 1/4″ micro tubing, then insert the barb into the punched hole in the 1/2″ poly tubing and run the micro tubing to the plant.
Next insert the barbed inlet of the dripper into the end of the micro tubing and secure it with a stake.

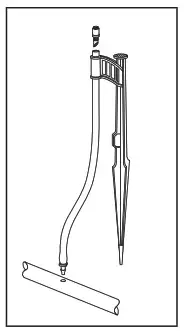

Installing micro sprayers to 1/2″ drip tubing:
Install micro sprayers to drip tubing using the same method as used for installing drippers to 1/2″ drip tubing. First, install the spike assembly with the micro tubing, and then flush the line before threading on the spray head with the pattern that you selected. We recommend installing micro sprayers a minimum of 6″ above the surface and around 5′ to 6′ apart for best coverage.

Initial System Start-Up
Before turning the system on for the first time, leave all 1/2″ tubing ends open and turn your water on and allow it to run freely for a few minutes. This will flush out any dirt or debris that may be in the line.
Close the end of the line by using a “figure 8” hose end or the end cap. Check to see that drippers and micro sprayers are operating correctly and that no leakage is occurring.

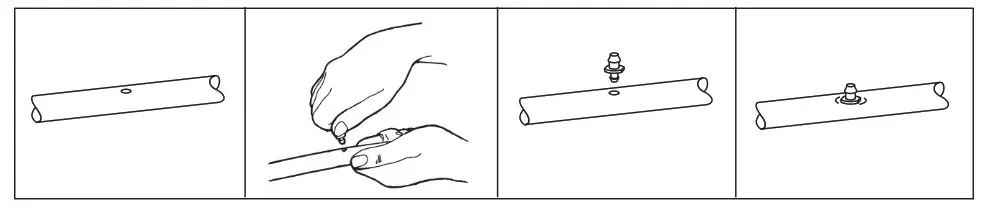

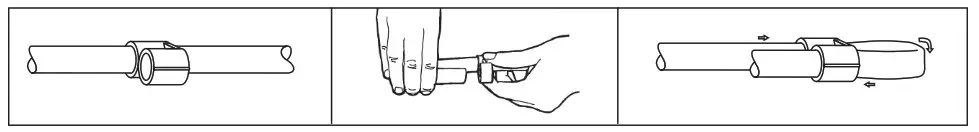

Repairing or Plugging a Hole on 1/2″ Poly Tube:
If leakage occurs on 1/2″ tubing at the base of a dripper or micro sprayer, remove that dripper/micro sprayer and insert a goof plug to close the hole. Reinsert the dripper or micro sprayer in a different place.

PARTS LIST

DIG CORPORATION 3 YEAR WARRANTY

DIG CORPORATION warrants these products to be free from defects in material and workmanship for a period of three years from the date of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, modification, improper installation, or subjection to line pressure in excess of 50 lbs. per square inch. This warranty shall extend only to the original purchaser of the product for use by the purchaser. This warranty shall not cover batteries or any malfunction of the product due to battery failure. The obligation of DIG CORPORATION under this warranty is limited to repairing or replacing at its factory this product shall be returned to the factory within three years after the original purchase and which on examination is found to contain defects in material and workmanship.
DIG CORPORATION SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND; THE SOLE OBLIGATION OF DIG BEING LIMITED TO REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF  INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Unattended use for prolonged periods without inspection to verify proper operation is beyond the intended use of this product, and any damage resulting from such use shall not be the responsibility of DIG CORPORATION. There are no warranties that extend beyond the description on the face hereof. In the case of purchase of the product for use other than, for irrigation purposes, DIG CORPORATION hereby disclaims any implied warranties including any warranties of merchantability and fitness for a particular purpose. In the case of the purchase of the product for personal, family or household purposes, DIG CORPORATION disclaims any such warranties to the extent permitted by law. To the extent that any such disclaimer or implied warranties shall be ineffectual, then any implied warranties shall be limited in duration to a period of one year from the date of the original purchase for use by the purchaser. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
In order to obtain performance under this warranty, the unit must be returned to the factory, along with proof of purchase indicating original date of purchase, shipping prepaid, addressed as follows:
DIG CORPORATION, 1210 Activity Drive, Vista, CA 92083. Repaired or replaced units will be shipped prepaid to the name and address supplied with the unit returned under warranty. Allow four weeks for repairs and shipping time. Repair of damaged units not otherwise within warranty may be refused or done at a reasonable cost or charge at the option of DIG CORPORATION.
