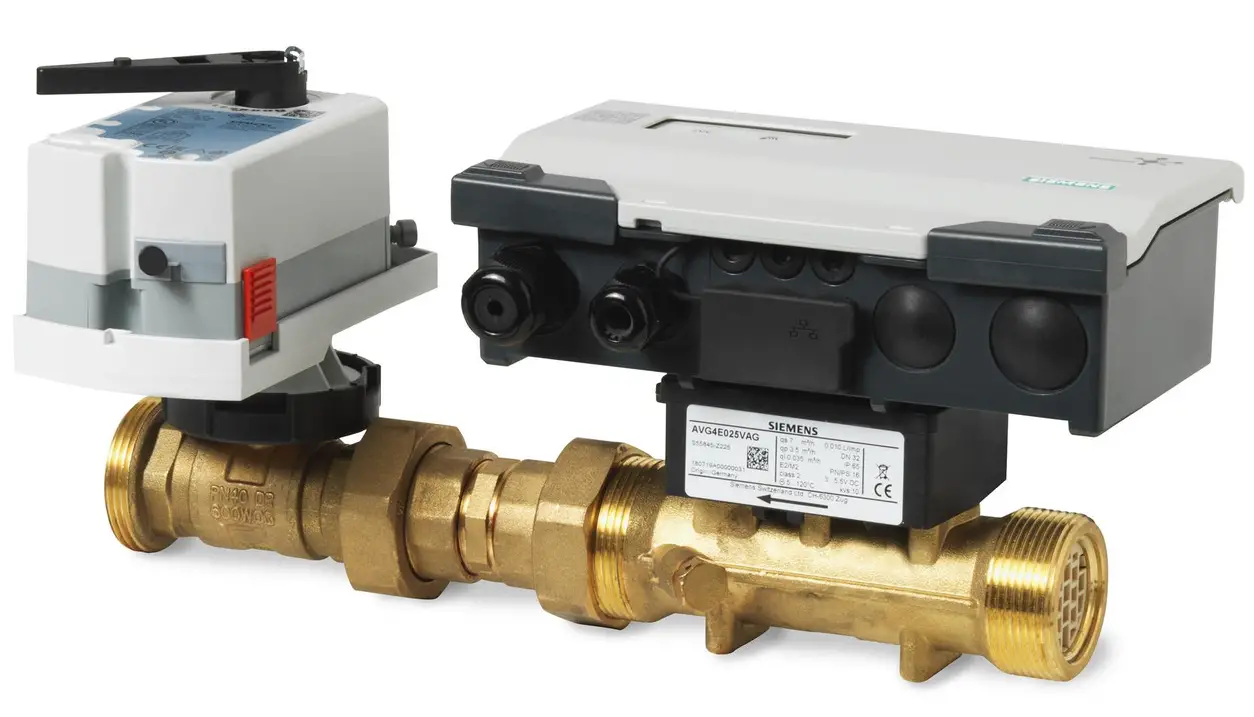

SIEMENS EVG4U10E Intelligent Valve
Product Information
The Intelligent Valve is a product manufactured by Siemens Switzerland Ltd. It is a radio equipment type ASE4U10E that operates in a frequency band of 2.4 GHz with a transmission power of 17 dBm. The product conforms to Directive 2014/53/EU and has an EU declaration of conformity A6V11664685 available for download on the Siemens website.
Product Usage Instructions
The Intelligent Valve is designed to be used as a valve control device. It comes in different models such as EVG4U10E, EXG4U10E, EVF4U20E, and EXF4U20E, with varying sizes and power ratings. The package includes the valve and its corresponding components, which may vary depending on the model.
Before installing the Intelligent Valve, make sure to read and understand the user manual thoroughly. The manual contains instructions on how to install, configure, and operate the product safely and efficiently. It also provides important notes and warnings that should be observed during installation and use.
To install the Intelligent Valve, follow the steps below:
- Identify the valve and its corresponding components included in the package.
- Prepare the installation site and ensure that it is free from any obstruction.
- Install the valve according to the instructions provided in the user manual.
- Configure the valve settings according to your requirements.
- Test the valve operation to ensure that it is working properly.
When operating the Intelligent Valve, follow these guidelines:
- Do not expose the valve to extreme temperatures or humidity.
- Avoid using the valve in corrosive environments.
- Do not modify or tamper with the valve components.
- Use only the recommended power supply for the valve.
If you encounter any issues with the Intelligent Valve, refer to the user manual for troubleshooting tips. If the issue persists, contact Siemens customer support for assistance.

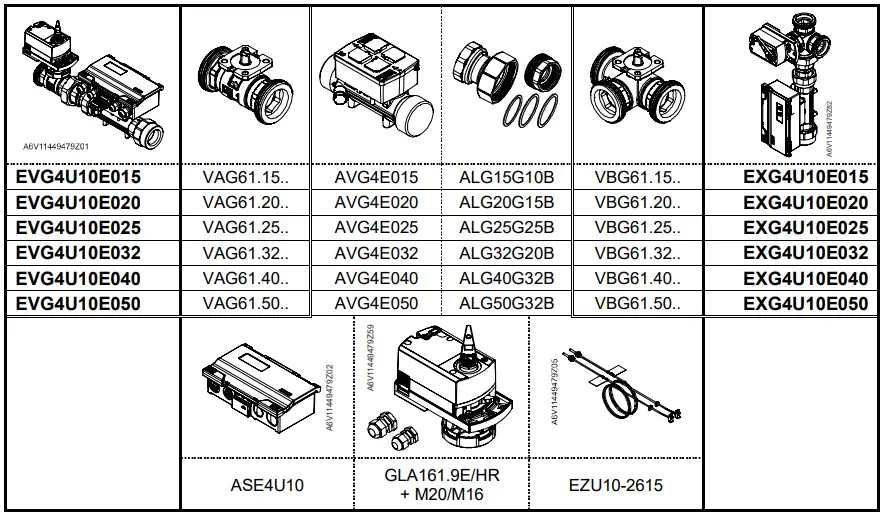

A1 Deliverables
A1a
A2a
A2 Required tools

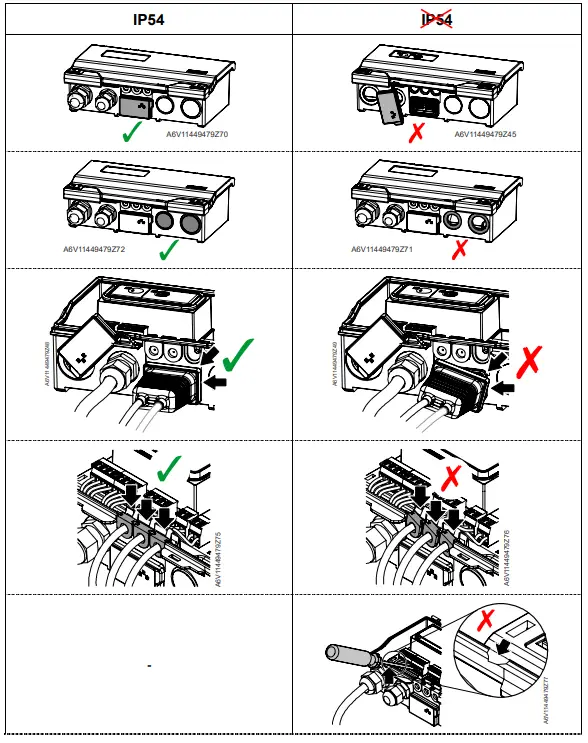

A3 Notes / Warnings
| en | ||
| Frequency band | 2.4 GHz | |
| Transmission power | 17 dBm | |
Siemens Switzerland Ltd. declares that the radio equipment type ASE4U10E is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity A6V11664685 is available at www.siemens.com/download.

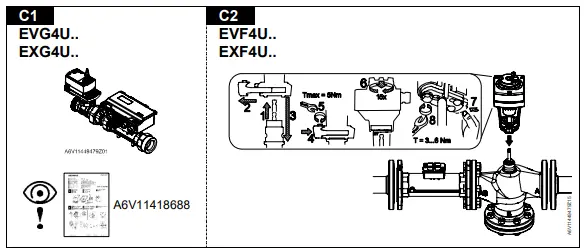

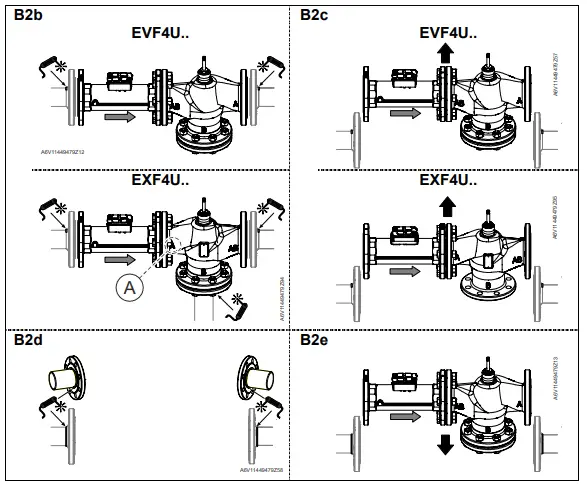

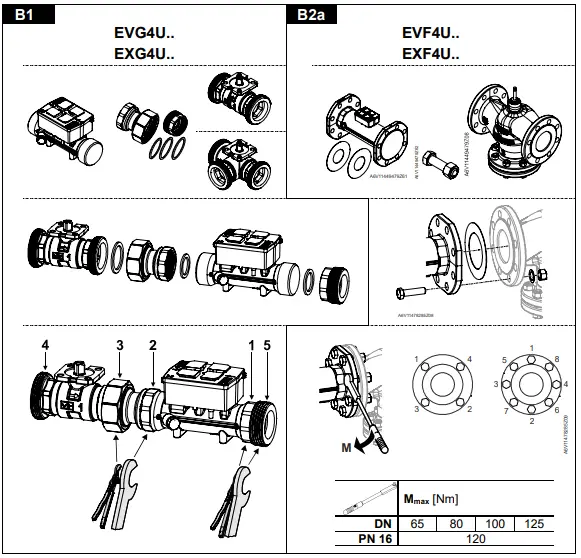

Mount flow sensor

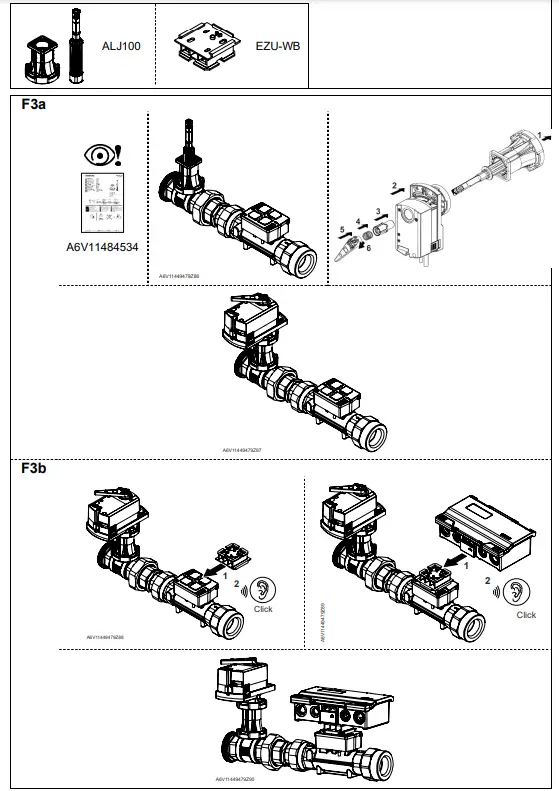

Mount actuator
Mount actuator

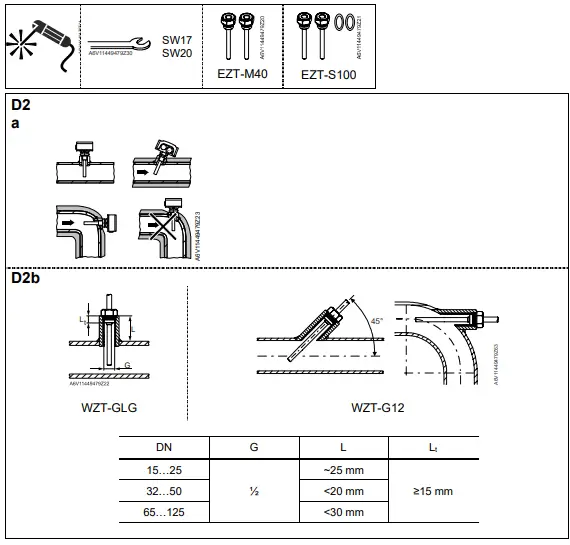

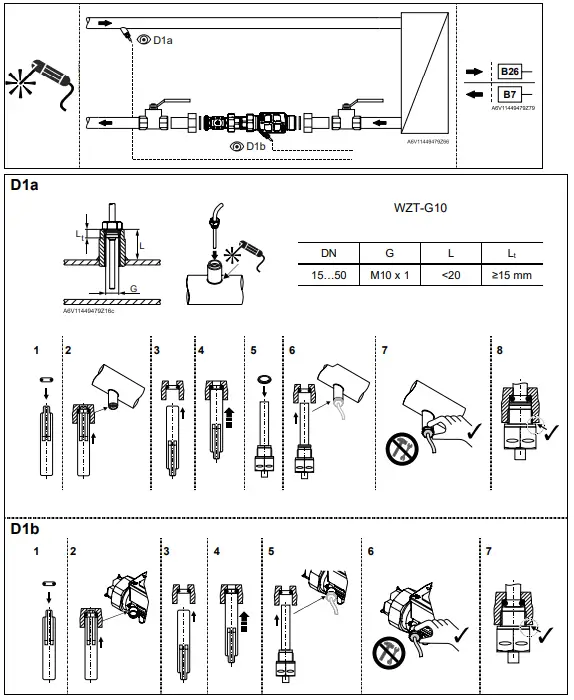

Mount temperature sensors directly
Mount temperature sensors with protective pockets

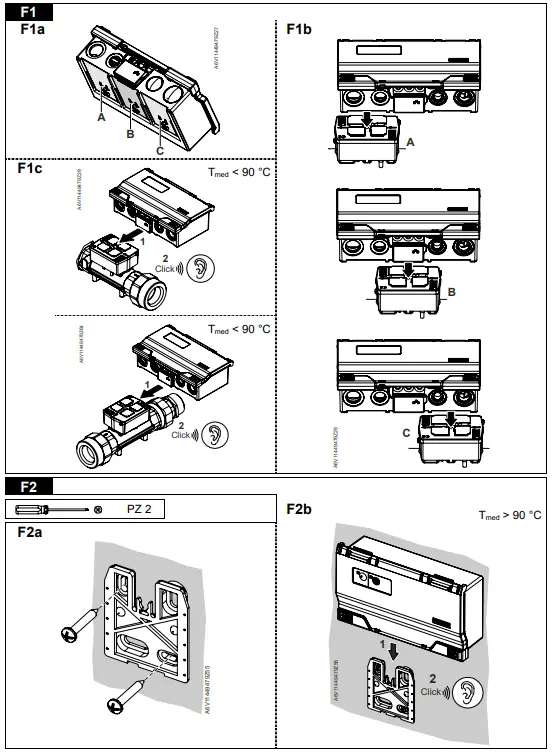

Controller mounting positions

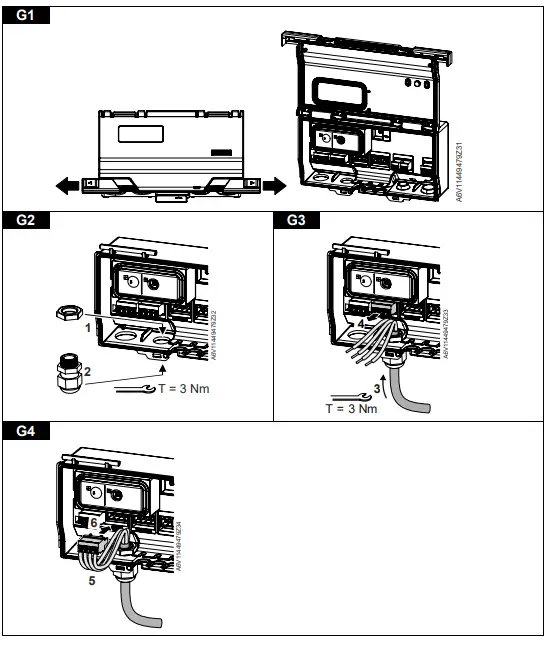

Mount controller

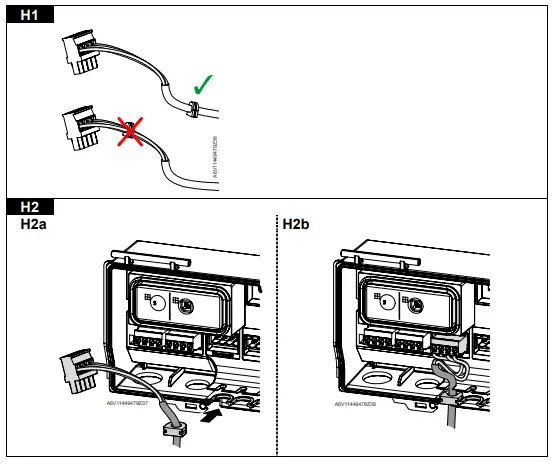

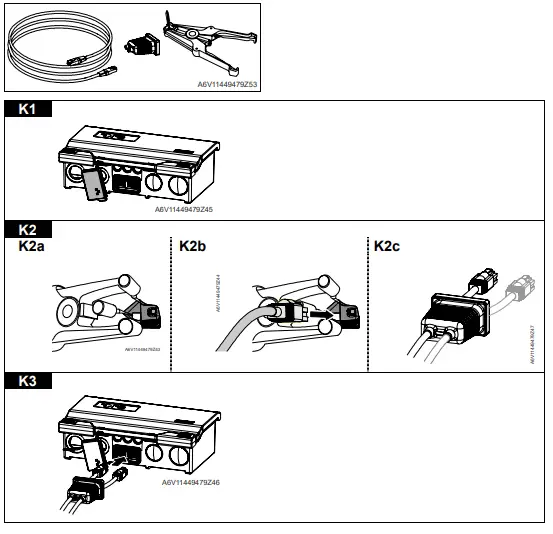

Connect actuator

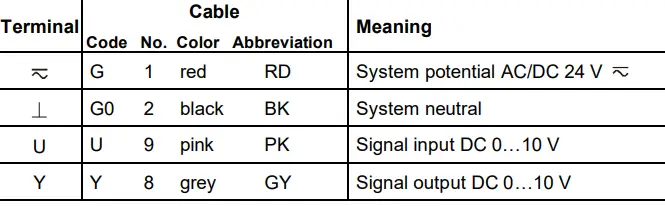

Wire designations
Connect low sensor

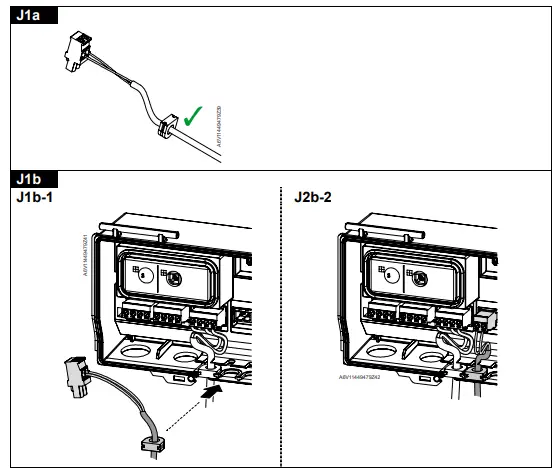

Connect temperature sensors to B7/B26

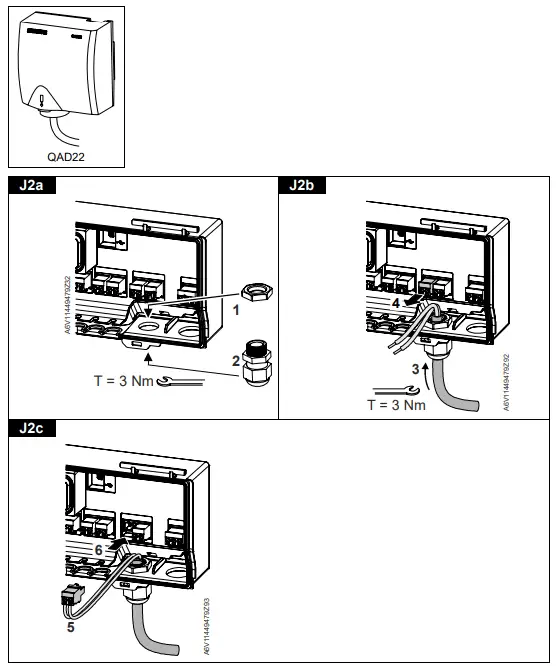

Connect temperature sensors to X3
Connect Ethernet

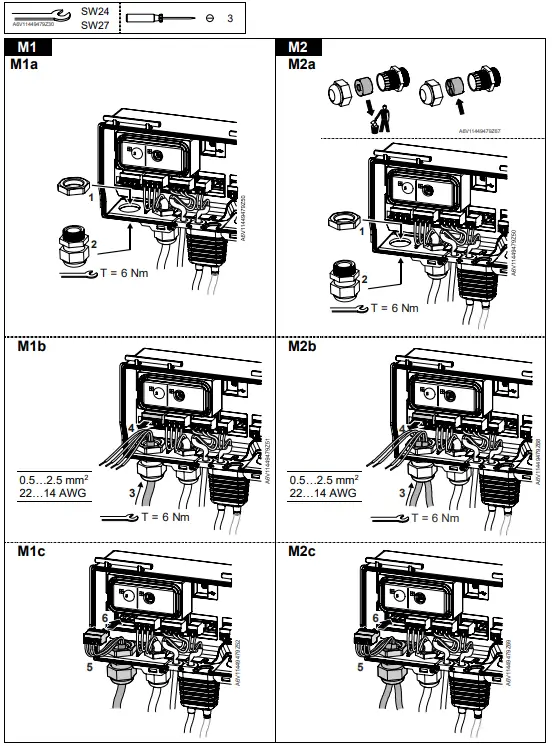

Connect controller

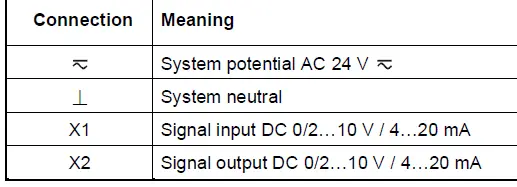

Connection terminals
Open Source Software (OSS)
Information on the open source software components used within the product (including their copyright- holders and the license conditions) can be found in the datasheets A6V11444716 (EVG4U10E.., EVF4U20E..) and A6V12028437 (EXG4U10E.., EXF4U20E..) at www.siemens.com/download.
End User License Agreement
Unless otherwise agreed in separate writing between parties (i.e., Siemens and you or the company legally represent), the software included in this product is licensed for use subject to the Siemens end-user license agreement (EULA) posted at www.siemens.com/intelligentvalve for this software identified by product model or part number on the website.
Issued by
Siemens Switzerland Ltd Smart Infrastructure Global Headquarters Theilerstrasse 1a 6300 Zug Switzerland
Tel. +41 58-724 24 24
www.siemens.com/buildingtechnologies
Siemens Switzerland Ltd, 2019 Technical specifications and availability are subject to change without notice.
