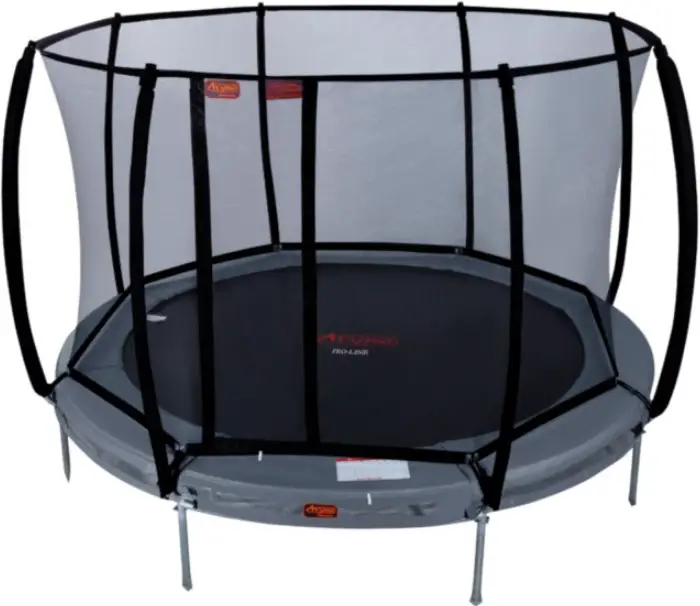

Avyna 12-I Round Trampolines Instruction Manual

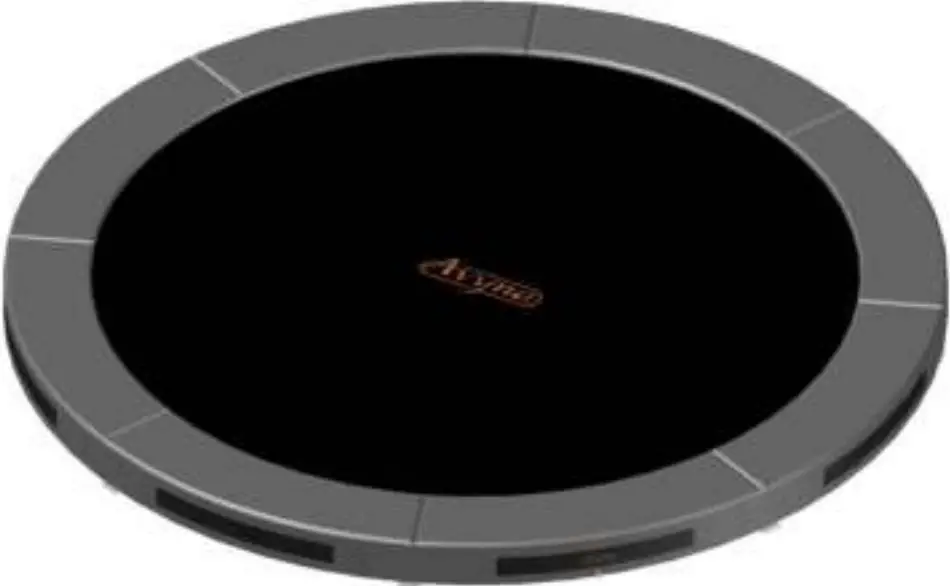

Model 12-I / Model 14-I

	Model 12-I365cm			Model 14-I430cm
	Quantity	Part number		Quantity	Part number
Jumping mat	1	TEPL-12-222		1	TEPL-14-222
Galvanized springL=215mm 3.2mm	80	TEPL-200-211/A		96	TEPL-200-211/A
Safety pad	1	TEPL-12-333-I (green) or AVGR-12-333-I (grey) or CAM-12-333-I(camouflage)or AVBL-12-333-I (black)		1	TEPL-14-333-I (green) or AVGR-14-333-I (grey) or CAM-14-333-I(camouflage)or AVBL-14-333-I (black)

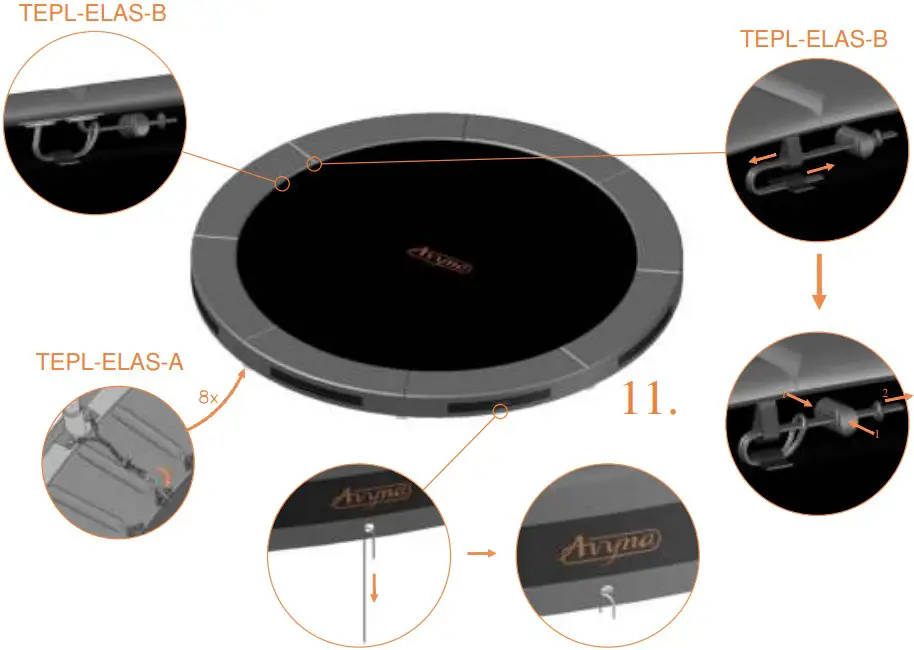

Fastener for safety pad	8	TEPL-ELAS-A		8	TEPL-ELAS-A
Fastener for safety pad	24	TEPL-ELAS-B		24	TEPL-ELAS-B

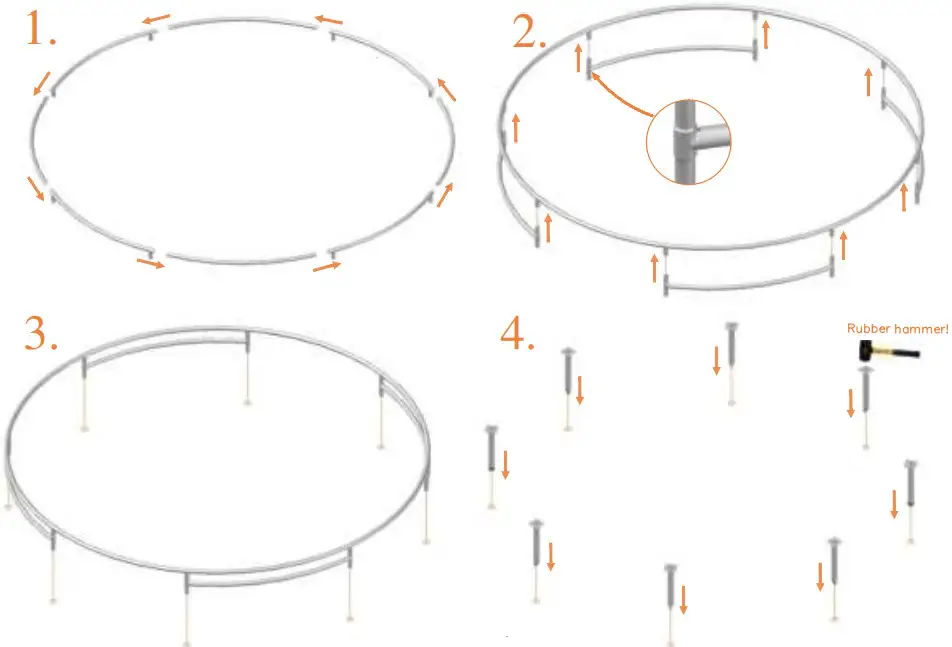

Inground pin	8	TEPL-PIN		8	TEPL-PIN
C-tube	4	TEPL-12-113		4	TEPL-14-113
K-tube	4	TEPL-12-114		4	TEPL-14-114
H-tube	4	TEPL-12-115		4	TEPL-14-115
Inground pin safety pad	24	TEPL-SP-PIN		24	TEPL-SP-PIN
Tool for spring	1	TOOL-SPRING		1	TOOL-SPRING
Users Manual	1	208010101		1	208010101
Warning Card	1	208040101		1	208040101
Tie rip for warning card	1	209010102		1	209010102
Safety manual	1	208020301		1	208020301

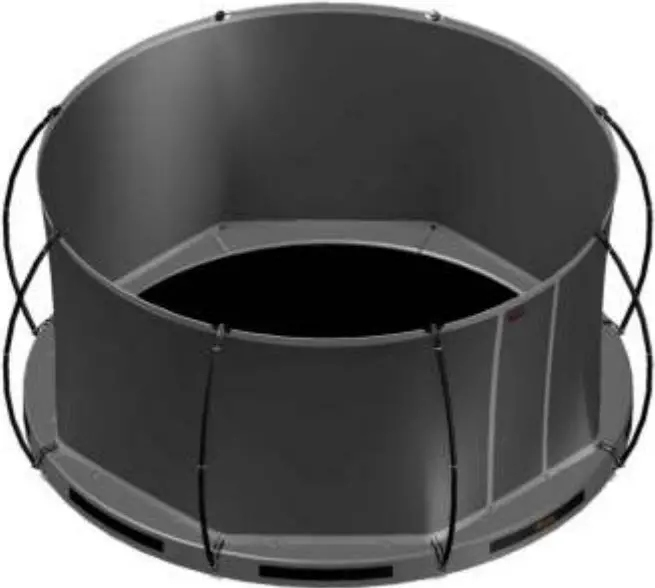

Safety net for Model 12-I / Model 14-I

	Model12-IȾ365cm			Model14-IȾ430cm
	Quantity	Part number		Quantity	Part number
Pole with sleeve for safety net	8	AVBL-12-802-A + AVBL-12-802-C		8	AVBL-12-802-A + AVBL-12-802-C
Pole for safety net	8	AVBL-12-802-B		8	AVBL-14-802-B
Clamp	8	CLAMP-TOOL-SN-12-i		8	CLAMP-TOOL-SN-14-i
Safety net	1	ABNL-12		1	ANBL-14
Straps for safety net	8	TEPL-BAND		8	TEPL-BAND
Closure for safety net	2	TEPL-KNOOPJE		2	TEPL-KNOOPJE
Screw M6	8	M6-30		8	M6-30

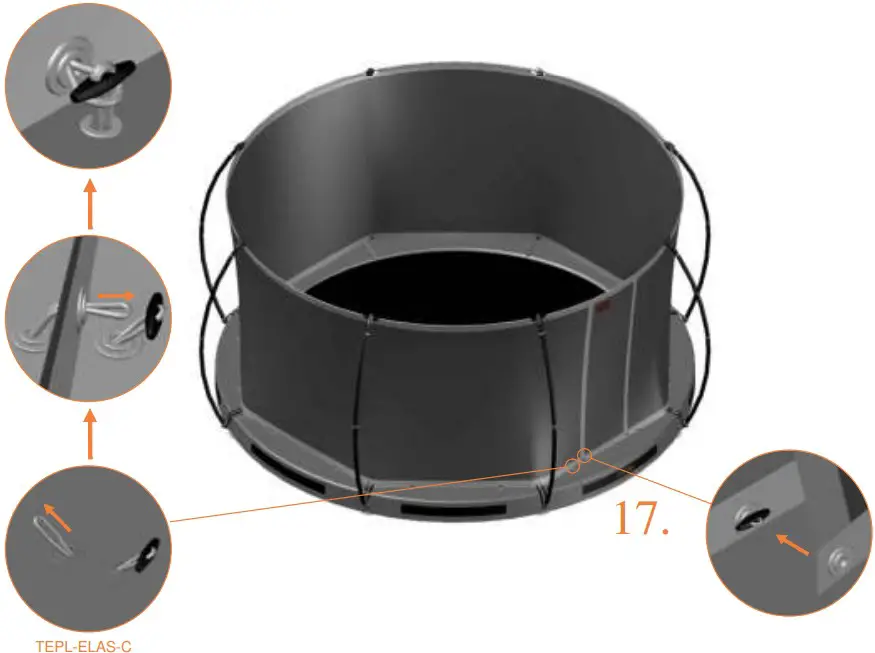

Fastener for safety net	8	TEPL-ELAS-C		16	TEPL-ELAS-C
Screw M8	32	M8-20		32	M8-20
Allen key	2	ALLEN-KEY		2	ALLEN-KEY
Wrench	2	WRENCH		2	WRENCH

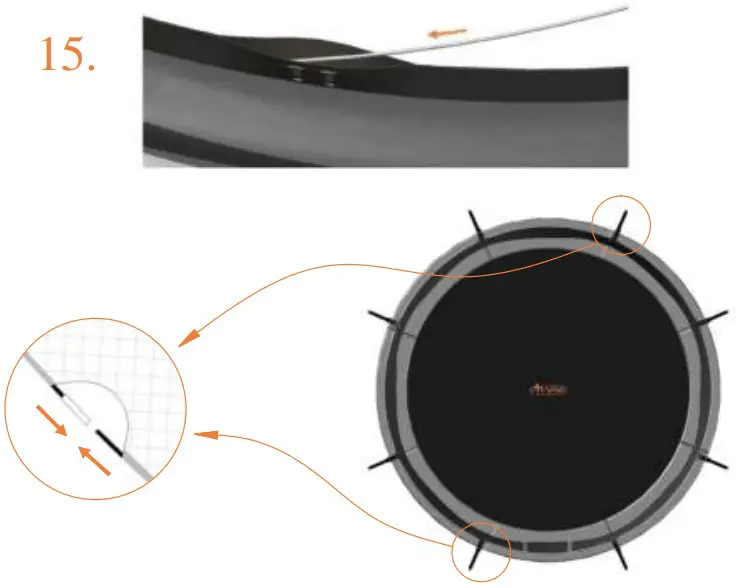

Fiberglass Rod	1set	FIBERGLASS-ROD-12		1set	FIBERGLASS-ROD-14

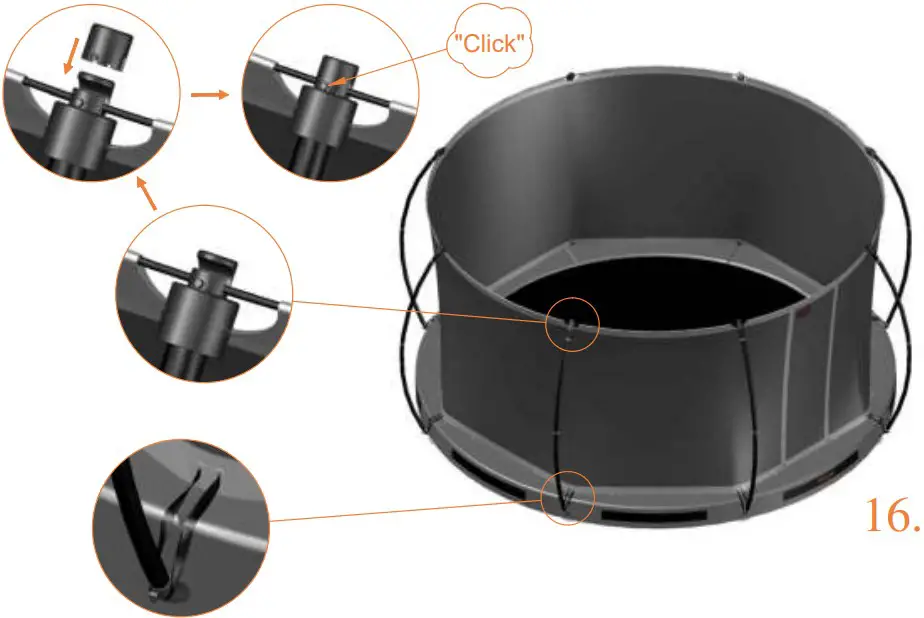

Cap	8	TOP-CAP-BD		8	TOP-CAP-BD

Sales office: Beneluxbaan 7
5121 DC Rijen
The Netherlands
[email protected]
www.avyna.eu
