AVYFIT Fitness Trampoline
AJYFIT Round Trampolines

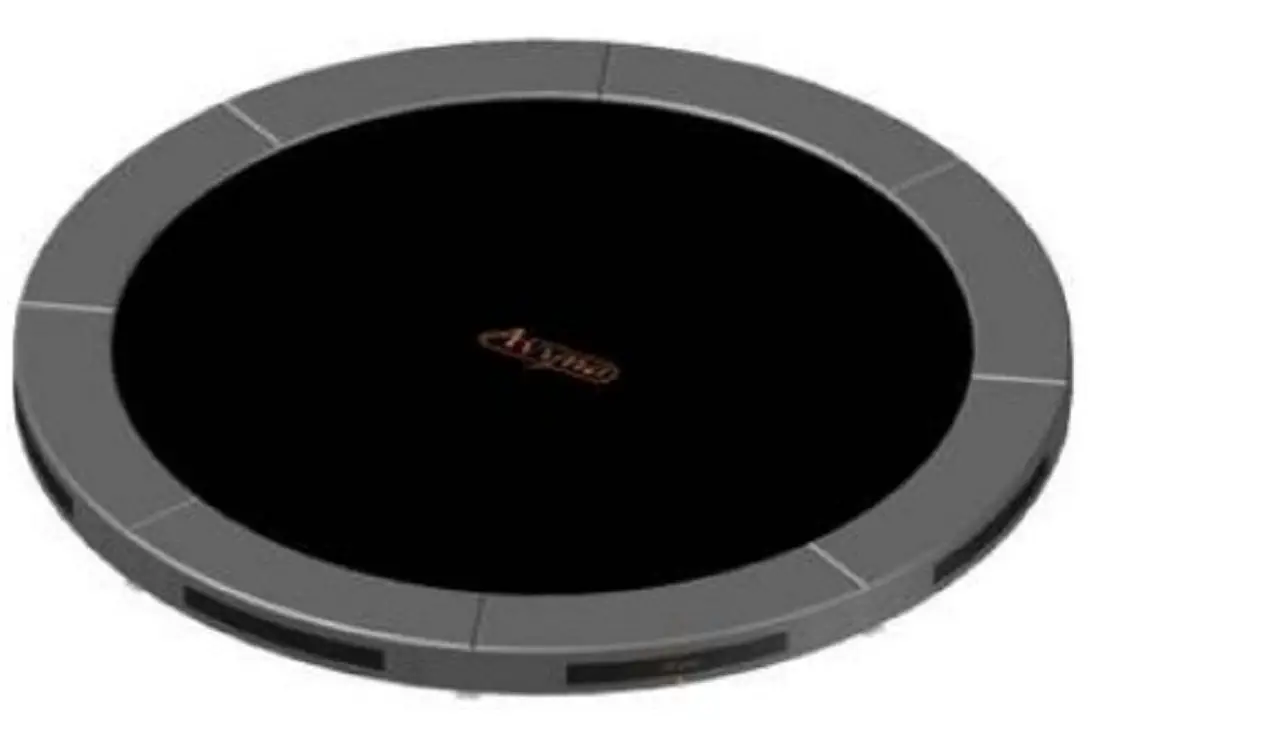

The AJYFIT Round Trampoline is a high-quality trampoline
designed for both indoor and outdoor use. It is suitable for
children and adults of all ages, and provides a fun and safe way to
exercise and improve balance.
Assembly Instructions
Assembly of the AJYFIT Round Trampoline requires the following
parts:
| Quantity | Part Number |
|---|---|
| 1 | AVFT-01-222 (Jumping mat + frame) |
| 1 | AVFT-01-116 (U-tube) |
| 1 | AVFT-01-121-A (I-tube A) |
| 1 | AVFT-01-121-B (I-tube B) |
| 2 | AVFT-01-112-A (Leg A) |
| 4 | AVFT-01-112-B (Leg B) |
| 4 | AVFT-01-M6-W2N70 (Screw M6 + washer & nut) |
| 6 | AVFT-01-M6-W2N20 (Screw M6 + washer & nut) |
| 2 | TEPL-KEY (Allen key) |
| 1 | Model 40 (User’s manual) |
Follow these steps to assemble the trampoline:
- Attach the U-tube to the I-tubes (A and B) using the screws and
nuts provided. - Attach the legs (A and B) to the U-tube using the screws and
nuts provided. - Attach the jumping mat + frame to the legs using the screws and
nuts provided. - Use the Allen key to tighten all screws and nuts.
- Refer to the user’s manual for safety instructions and tips on
how to use the trampoline.
If you have any questions or concerns about the assembly or
usage of the AJYFIT Round Trampoline, please contact our sales
office at Beneluxbaan 7, 5121 DC Rijen, The Netherlands or email us
at [email protected]. You can also visit our website at www.avyna.eu
for more information.
AJYFIT
Round Trampolines
Assembly manual
Model AVYFIT
Quantity Part number
Jumping mat + frame 1 AVFT-01-222
FP
U-tube I-tube (A) I-tube (B)
1 AVFT-01-116 1 AVFT-01-121-A 1 AVFT-01-121-B
Leg (A)
2 AVFT-01-112-A
Leg (B)
4 AVFT-01-112-B
Srew M6+ washer & nut 4 AVFT-01-M6-W2N70
Srew M6+ washer & nut 6 AVFT-01-M6-W2N20
Allen key
2 TEPL-KEY
Users manual
1
6x
Model 40
1-tube (A)
/
3.
1-tube (B)
l
Leg A
4.
Sales office:Beneluxbaan 7 5121 DC Rijen The Netherlands sales@ avyna.eu www.avyna.eu
