Model 223 / Model 234
Model 238
Rectangular trampolines
Assembly manual

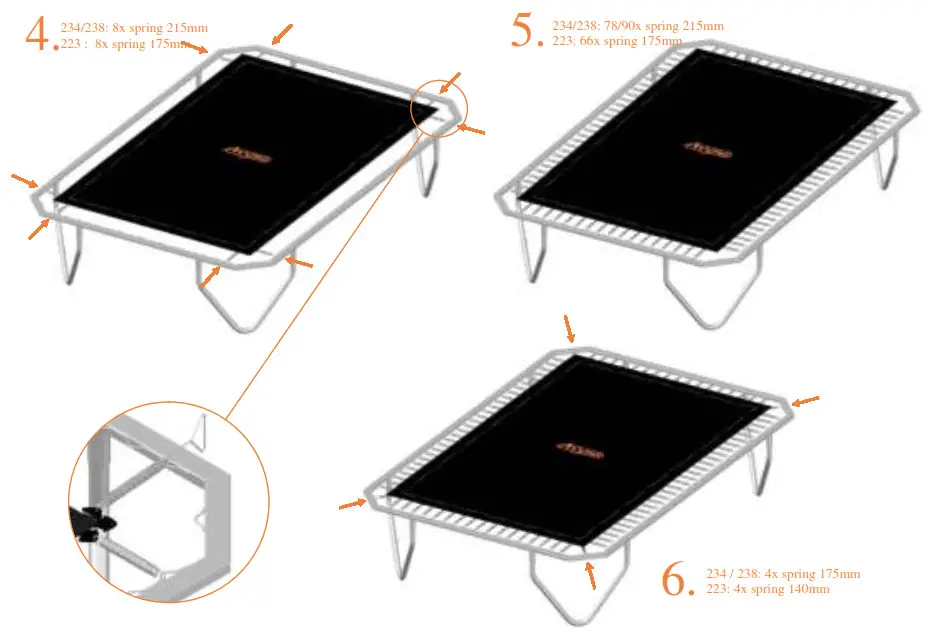

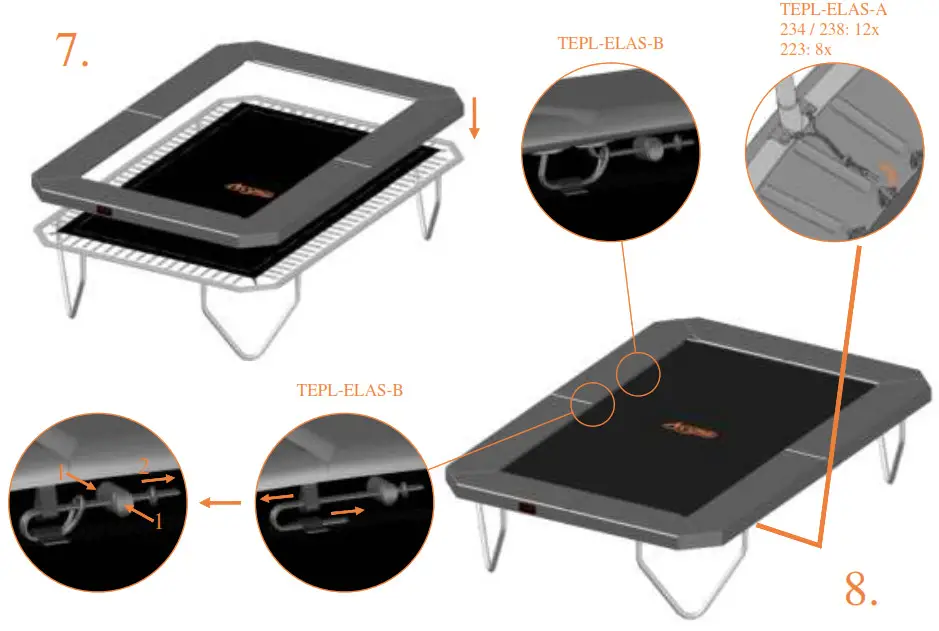

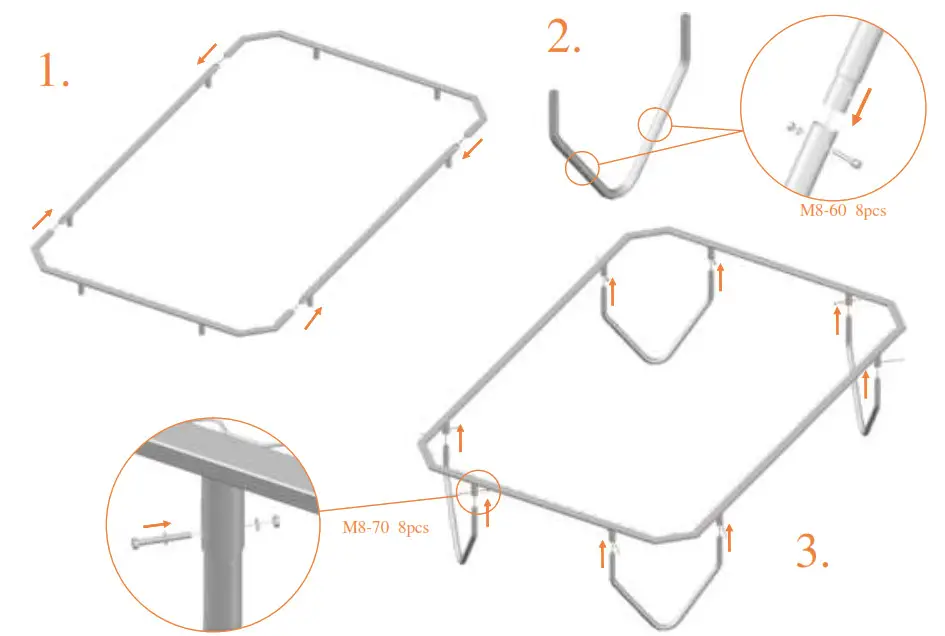

| Model 223 APPROX 305x225cm | |||
| Quantity | Part number | ||
| Jumping mat | 1 | TEPL-223-222 |  |
| Galvanized spring L=175mm Ø3.2mm | 74 | TEPL-200-211/C |  |
| Galvanized spring L=140mm Ø3.2mm | 4 | TEPL-200-211/E | |
| Safety pad | 1 | TEPL-223-333-green Or AVGR-223-333-grey Or CAM-223-333-camouflage |  |
| Fastener for Safety pad | 8 | TEPL-ELAS-A |  |
| V-tube | 4 | TEPL-223-116 A |  |
| U-tube | 2 | TEPL-223-1142 |  |
| Model 223 APPROX 305x225cm | |||
| Quantity | Part number | ||
| K-tube | 2 | TEPL-223-1141 |  |
| Wrench | 2 | WRENCH |  |
| Screw Mt nut and washer | 8 | M8-70 |  |
| Fastener for Safety pad | 20 | TEPL-ELAS-B |  |
| Tool for springs | 1 | TOOL-SPRING |  |
| Safety Manual | 1 | 208010301 | |
| Users Manual | 1 | 208010101 | |
| Warning Card | 1 | 208040101 | |
| Tie rip for a warning card | 1 | 209010102 | |
| J-tube | 8 | TEPL-223-116 B | |
| Screw Mt nut and washer | 8 | M8 – 60 |  |
| Model 234 APPROX 340x240cm | |||
| Quantity | Part number | ||
| Jumping mat | 1 | TEPL-234-222 | |
| Galvanized spring L=215mm Ø3.2mm | 78 | TEPL-200-211/A | |
| Galvanized spring L=175mm Ø3.2mm | 4 | TEPL-200-211/C | |
| Safety pad | 1 | TEPL-234-333-green Or AVGR-234-333-grey Or CAM-234-333-camouflage | |
| Fastener for Safety pad | 12 | TEPL-ELAS-A | |
| V-tube | 4 | TEPL-234-116 A | |
| U-tube | 2 | TEPL-234-1142 | |
| Model 234 APPROX 340x240cm | |||
| Quantity | Part number | ||
| K-tube | 2 | TEPL-234-1141 | |
| Wrench | 2 | WRENCH | |
| Screw Mt nut and washer | 8 | M8-70 | |
| Fastener for Safety pad | 20 | TEPL-ELAS-B | |
| Tool for springs | 1 | TOOL-SPRING | |
| Safety Manual | 1 | 208010301 | |
| Users Manual | 1 | 208010101 | |
| Warning Card | 1 | 208040101 | |
| Tie rip for a warning card | 1 | 209010102 | |
| J-tube | 8 | TEPL-234-116 B | |
| Screw Mt nut and washer | 8 | M8 – 60 | |
| Model 238 APPROX 380x255cm | |||
| Quantity | Part number | ||
| Jumping mat | 1 | TEPL-238-222 | |
| Galvanized spring L=215mm Ø3.2mm | 90 | TEPL-200-211/A | |
| Galvanized spring L=175mm Ø3.2mm | 4 | TEPL-200-211/C | |
| Safety pad | 1 | TEPL-238-333-green Or AVGR-238-333-grey Or CAM-238-333-camouflage | |
| Fastener for Safety pad | 12 | TEPL-ELAS-A | |
| V-tube | 4 | TEPL-238-116 A | |
| U-tube | 2 | TEPL-238-1142 | |
| Model 238 APPROX 380x255cm | |||
| Quantity | Part number | ||
| K-tube | 2 | TEPL-238-1141 | |
| Wrench | 2 | WRENCH | |
| Screw Mt nut and washer | 8 | M8-70 | |
| Fastener for Safety pad | 20 | TEPL-ELAS-B | |
| Tool for springs | 1 | TOOL-SPRING | |
| Safety Manual | 1 | 208010301 | |
| Users Manual | 1 | 208010101 | |
| Warning Card | 1 | 208040101 | |
| Tie rip for a warning card | 1 | 209010102 | |
| J-tube | 8 | TEPL-238-116 B | |
| Screw Mt nut and washer | 8 | M8 – 60 | |

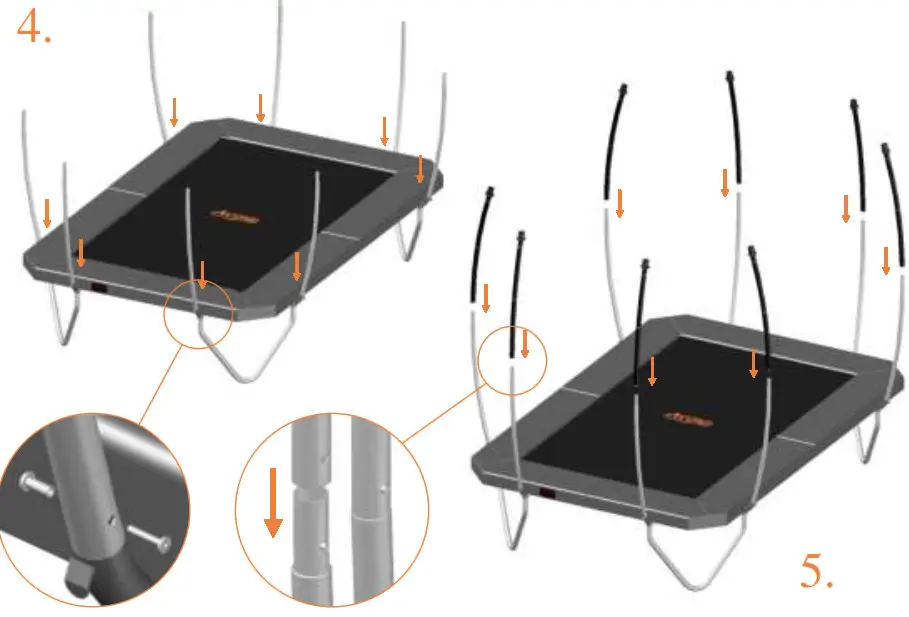

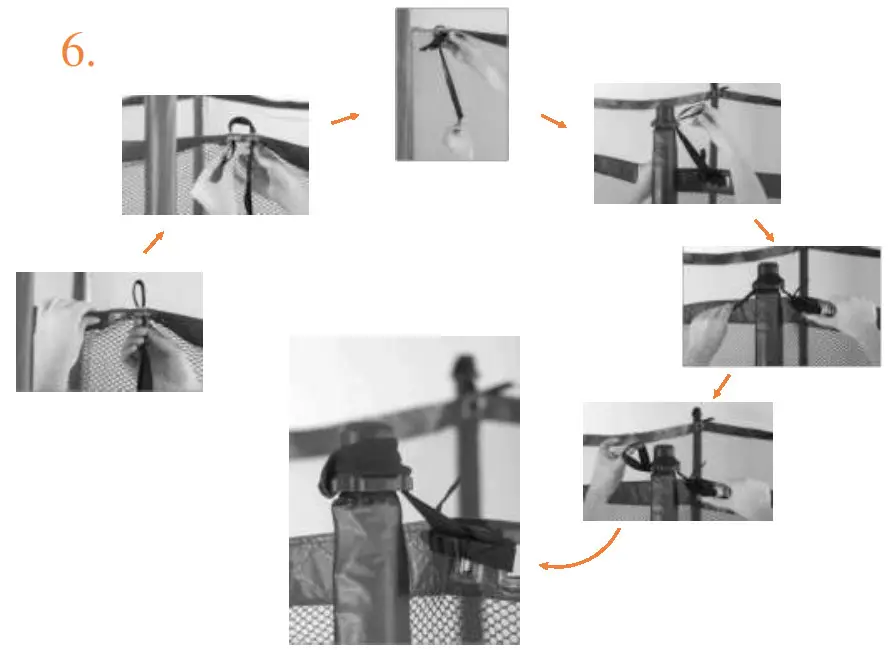

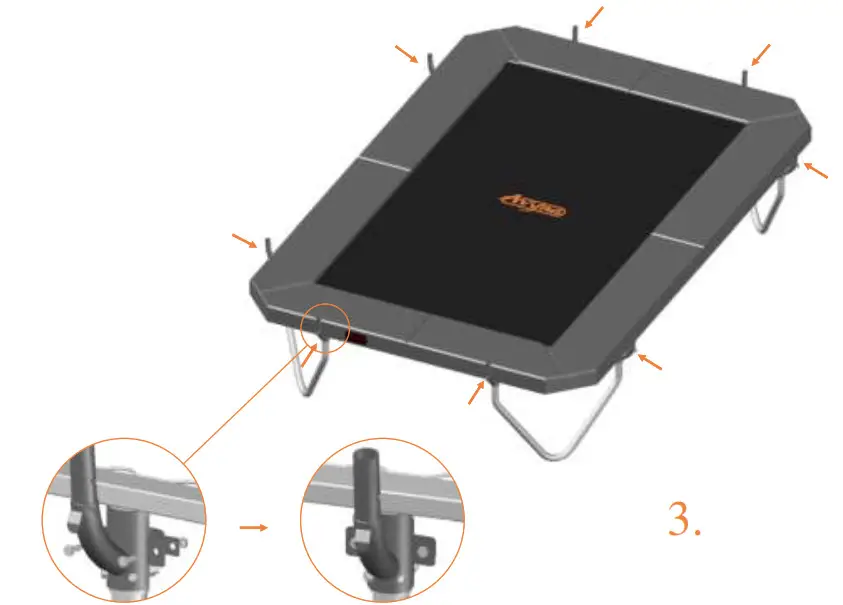

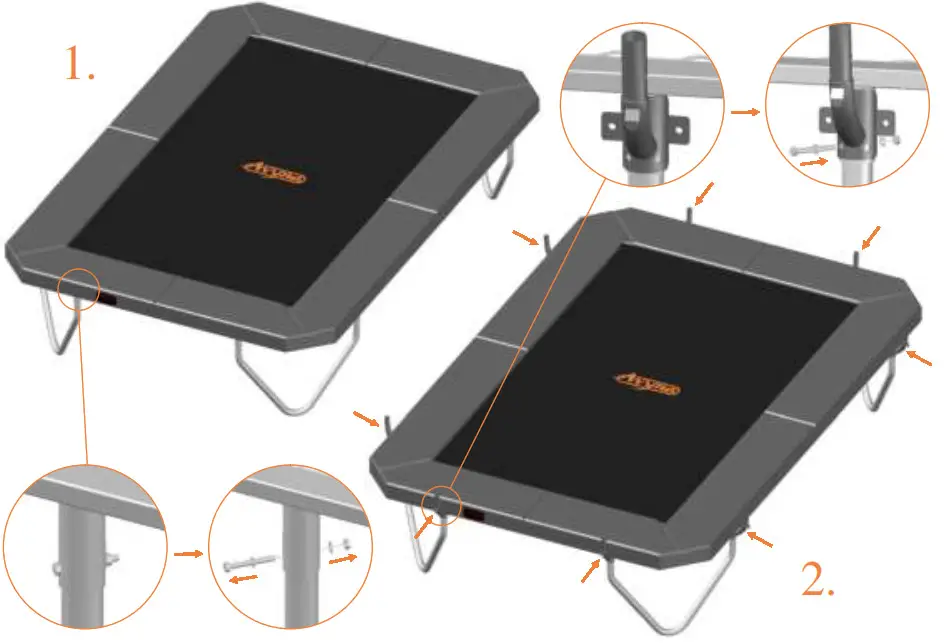

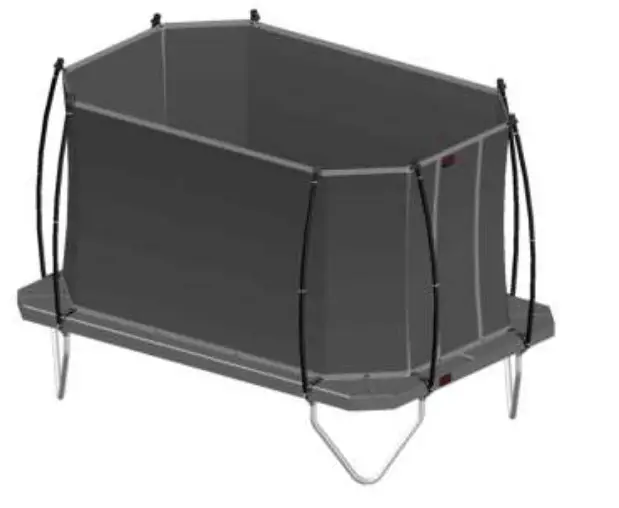

Model 223 / Model 234 / Model 238

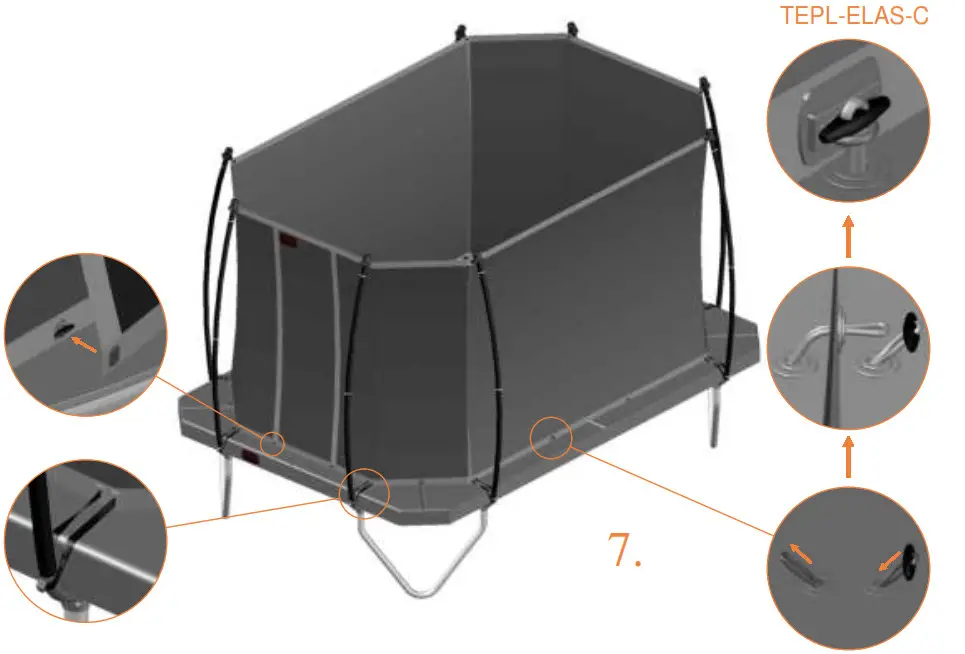

| Model 223 APPROX 305x225cm | Model 234 APPROX 340x240cm | Model 238 APPROX 380x255cm | |||||
| Quantity | Pall number | Quantity | Part number | Quantity | Part number | ||
| Pole with sleeve for safety net |  | 8 | AVBL-223-802 A | 8 | AVBL-234-802 A | 8 | AVBL-238-802 A |
| Pole for SafetyNet |  | 8 | AVBL-223-80213 | 8 | AVBL-234-80213 | 8 | AVBL-238-80213 |
| Clamp |  | 8 | CLAMP-TOOL-SN-223 | 8 | CLAMP-TOOL-SN-234 | 8 | CLAMP-TOOL-SN-238 |
| Safety net |  | 1 | ANBL-223 | 1 | ANBL-234 | I | ANBL-238 |
| Straps for safety net |  | 8 | TEPL-BAND 16x short:1.0m(below) 4x long:1.5m(above) | 20 | TEPL-BAND 16x short:1.0m(below) 4x long:1.5m(above) | 20 | TEPL-BAND 16x short:1.0m(below) 4x long:1.5m(above) |
| Closure for safety net |  | 2 | TEPL-KNOOPJE | 2 | TEPL-KNOOPJE | 2 | TEPL-KNOOPJE |
| Screw M6 | | 8 | M6-30 | 8 | M6-30 | 8 | M6-30 |
| Screw M8 | | 16 | M8-30 | 16 | M8-30 | 16 | M8-30 |
| Allen key |  | 2 | ALLEN-KEY | 2 | ALLEN-KEY | 2 | ALLEN-KEY |
| Wrench | | 2 | WRENCH | 2 | WRENCH | 2 | WRENCH |
| Closure for safety net |  | 10 | TEPL-ELAS-C | 10 | TEPL-ELASTIEK | 10 | TEPL-ELAS-C |
Sales office: Beneluxbaan 7
5121 DC Rijen
The Netherlands
[email protected]
www.avyna.eu
