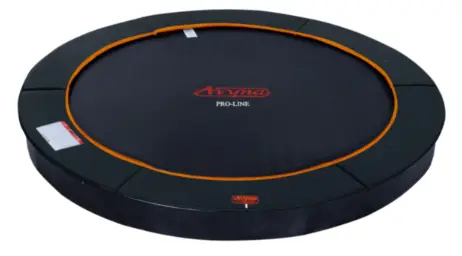

Avyna 12-FL Round Trampolines Set
Product Information
The Model 12-FL and Model 14-FL are round trampolines that come with an assembly manual. The jumping mat of Model 12-FL measures 365cm and comes with 1 TEPL-12-222 part number. The galvanized spring L=215mm 3.2mm has 80 TEPL-200-211/A part numbers. The safety pad can be either TEPL-12-333-FL-green, AVGR-12-333-FL-grey, or ABVL-12-333-FL-black. The safety pad has 24 fasteners with TEPL-ELAS-D part number and 24 fasteners with TEPL-ELAS-B part number. The trampoline has 4 C-tubes and 4 H-tubes with TEPL-12-FL-114 and TEPL-12-FL-115 part numbers respectively. It also has 4 C-tubes with TEPL-12-113 part number and 4 K-tubes with TEPL-12-114 part number. A tool for spring and 8 M8-16 screws are included in the package.
The Model 14-FL has a jumping mat that measures 430cm and comes with 1 TEPL-14-222 part number. It has 96 galvanized springs L=215mm 3.2mm with TEPL-200-211/A part numbers. The safety pad can be either TEPL-14-333-FL-green, AVGR-14-333-FL-grey, or ABVL-14-333-FL-black. The safety pad has 24 fasteners with TEPL-ELAS-D part number and 24 fasteners with TEPL-ELAS-B part number. The trampoline has 4 C-tubes with TEPL-14-FL-114 part number and 4 H-tubes with TEPL-14-FL-115 part number. It also has 4 C-tubes with TEPL-14-113 part number and 4 K-tubes with TEPL-14-114 part number. A tool for spring and 8 M8-16 screws are included in the package.
The package also includes plastic plates, measuring rods, users manual, warning card, tie rip for warning card, safety manual, MEASURING-ROD/A, and MEASURING-ROD/B. The Model 12-FL comes with 4 2112-121 plastic plates, 32 M4-16 Parker screws, and 1 measuring rod L=220mm. The Model 14-FL comes with 4 2114-121 plastic plates, 32 M4-16 Parker screws, and 1 measuring rod L=220mm.
The safety net for Model 12 – FL / Model 14 – FL comes with poles with sleeve for safety net (8 AVBL-12-802-A + AVBL-12-802-C), pole for safety net (8 AVBL-12-802-B), clamp, fiberglass rod, fastener for safety net, screw M6x30, safety net, straps for safety net, closure for safety net, screw M8, Allen key wrench, and top cap.
Product Usage Instructions
- Follow the assembly manual provided in the package to assemble the trampoline.
- Attach the jumping mat to the trampoline using the galvanized springs.
- Attach the safety pad to the trampoline using the fasteners provided.
- Use the C-tubes and H-tubes to create the trampoline frame.
- Attach the C-tubes and K-tubes to create the trampoline legs.
- Use the tool for spring and M8-16 screws to secure the trampoline frame and legs.
- Attach the plastic plates to the trampoline legs using the Parker screws.
- Use the measuring rods to ensure that the trampoline is assembled to the correct dimensions.
- Read the users manual and safety manual provided in the package before using the trampoline.
- Attach the safety net to the trampoline using the poles, clamp, fiberglass rod, fastener, screw M6x30, and straps provided.
- Use the closure for safety net to close the safety net securely.
- Use the Allen key wrench to tighten the screw M8.
- Use the top cap to cover the poles for a finished look.
- Ensure that the warning card is attached to the trampoline using the tie rip provided.
- Follow all safety guidelines provided in the safety manual while using the trampoline.
- To disassemble the trampoline, follow the instructions provided in the assembly manual in reverse order.
Model 12-FL / Model 14-FL
| Model 12-FL <365cm | Model 14-FL <430cm | |||||||||||||
| Quantity | Part number | Quantity | Part number | |||||||||||
| Jumping mat | 1 | TEPL-12-222 |  | 1 | TEPL-14-222 | | ||||||||
| Galvanized spring L=215mm <3.2mm | 80 | TEPL-200-211/A |  | 96 | TEPL-200-211/A | | ||||||||
| Safety pad | 1 | TEPL-12-333-FL-green or AVGR-12-333-FL-grey or ABVL-12-333-FL-black |  | 1 | TEPL-14-333-FL-green or AVGR-14-333-FL-grey or ABVL-14-333-FL-black | | ||||||||
| Fastener for safety pad | 24 | TEPL-ELAS-D |  | 24 | TEPL-ELAS-D | | ||||||||
| Fastener for safety pad | 24 | TEPL-ELAS-B |  | 24 | TEPL-ELAS-B | | ||||||||
| C-tube | 4 | TEPL-12-FL-114 |  | 4 | TEPL-14-FL-114 | | ||||||||
| H-tube | 4 | TEPL-12-FL-115 |  | 4 | TEPL-14-FL-115 | | ||||||||
| C-tube | 4 | TEPL-12-113 |  | 4 | TEPL-14-113 | | ||||||||
| K-tube | 4 | TEPL-12-114 |  | 4 | TEPL-14-114 | | ||||||||
| Tool for spring | 1 | TOOL-SPRING |  | 1 | TOOL-SPRING | | ||||||||
| Screw | 8 | M8-16 |  | 8 | M8-16 | | ||||||||
| Plastic plate | 4 | 2112-121 |  | 4 | 2114-121 | | ||||||||
| Parker screw | 32 | M4-16 |  | 32 | M4-16 | | ||||||||
| Measuring rod L=220mm | 1 | MEASURING-ROD/A |  | 1 | MEASURING-ROD/A | | ||||||||
| Measuring rod L=800mm | 1 | MEASURING-ROD/B |  | 1 | MEASURING-ROD/B | | ||||||||
| Users Manual | 1 | 208010101 | 1 | 208010101 | ||||||||||
| Warning Card | 1 | 208040101 | 1 | 208040101 | ||||||||||
| Tie rip for warning card | 1 | 209010102 | 1 | 209010102 | ||||||||||
| Safety manual | 1 | 208010301 | 1 | 208010301 | ||||||||||
Assembly Procedurre
Safety net for Model 12 – FL / Model 14 – FL
| Model-12-FL <365cm | Model-14-FL <430cm | |||||
| Quantity | Part number | Quantity | Part number | |||
| Pole with sleeve for safety net | 8 | AVBL-12-802-A + AVBL-12-802-C |  | 8 | AVBL-12-802-A + AVBL-12-802-C |  |
| Pole for safety net | 8 | AVBL-12-802-B |  | 8 | AVBL-14-802-B |  |
| Clamp | 8 | CLAMP-TOOL-SN 12 |  | 8 | CLAMP-TOOL-SN 14 |  |
| Fiberglass Rod | 1set | FIBERGLASS-ROD-12 |  | 1set | FIBERGLASS-ROD-14 |  |
| Fastener for safety net | 8 |  | 16 | TEPL-ELAS-C |  | |
| Screw M6x30 | 8 | M6x30 ANBL-12 |  | 8 | M6x30 |  |
| Safety net | 1 | ANBL-12 |  | 1 | ANBL-14 | |
| Straps for safety net | 8 | TEPL-BAND |  | 8 | TEPL-BAND | |
| Closure for safety net | 2 | TEPL-KNOOPJE |  | 2 | TEPL-KNOOPJE | |
| Screw M8 | 32 | M8-20 |  | 32 | M8-20 | |
| Allen key | 2 | ALLEN-KEY |  | 2 | ALLEN-KEY | |
| Wrench | 2 | WRENCH |  | 2 | WRENCH | |
| Cap | 8 | TOP-CAP-BD |  | 8 | TOP-CAP-BD | |
