Avyna Round Trampolines Instructions
| Model 12-I 365cm | Model 14-I 430cm | |||||
| Quantity | Part number | Quantity | Part number | |||
| Jumping mat | 1 | TEPL-12-222 |  | 1 | TEPL-14-222 | |
| Galvanized spring L=215mm 3.2mm | 80 | TEPL-200-211/A |  | 96 | TEPL-200-211/A | |
|
Safety pad |
1 | TEPL-12-333-I (green) or AVGR-12-333-I (grey) or CAM-12-333-I (camouflage) or AVBL-12-333-I (black) |  |
1 | TEPL-14-333-I (green) or AVGR-14-333-I (grey) or CAM-14-333-I (camouflage) or AVBL-14-333-I (black) | |

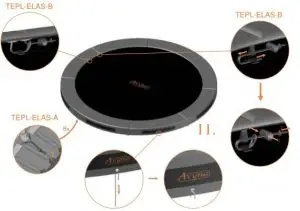

| Fastener for safety pad | 8 | TEPL-ELAS-A |  | 8 | TEPL-ELAS-A | |
| Fastener for safety pad | 24 | TEPL-ELAS-B |  | 24 | TEPL-ELAS-B | |
| Inground pin | 8 | TEPL-PIN |  | 8 | TEPL-PIN | |
| C-tube | 4 | TEPL-12-113 |  | 4 | TEPL-14-113 | |
| K-tube | 4 | TEPL-12-114 |  | 4 | TEPL-14-114 | |
| H-tube | 4 | TEPL-12-115 |  | 4 | TEPL-14-115 | |
| Inground pin safety pad | 24 | TEPL-SP-PIN |  | 24 | TEPL-SP-PIN | |
| Tool for spring | 1 | TOOL-SPRING |  | 1 | TOOL-SPRING | |
| Users Manual | 1 | 208010101 | 1 | 208010101 | ||
| Warning Card | 1 | 208040101 | 1 | 208040101 | ||
| Tie rip for warning card | 1 | 209010102 | 1 | 209010102 | ||
| Safety manual | 1 | 208020301 | 1 | 208020301 | ||

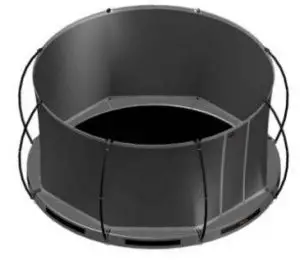

Safety net for Model 12-I / Model 14-I
| Model12-I Ⱦ365cm | Model14-I Ⱦ430cm | |||||
| Quantity | Part number | Quantity | Part number | |||
|
Pole with sleeve for safety net |
8 | AVBL-12-802-A + AVBL-12-802-C |  |
8 | AVBL-12-802-A + AVBL-12-802-C | |
| Pole for safety net | 8 | AVBL-12-802-B |  | 8 | AVBL-14-802-B | |
|
Clamp |
8 |
CLAMP-TOOL-SN-12-i |  |
8 |
CLAMP-TOOL-SN-14-i | |
| Safety net | 1 | ABNL-12 |  | 1 | ANBL-14 | |
| Straps for safety net | 8 | TEPL-BAND |  | 8 | TEPL-BAND | |
| Closure for safety net | 2 | TEPL-KNOOPJE |  | 2 | TEPL-KNOOPJE | |
| Screw M6 | 8 | M6-30 |  | 8 | M6-30 | |

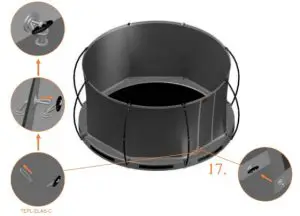

| Fastener for safety net | 8 | TEPL-ELAS-C |  | 16 | TEPL-ELAS-C | |
| Screw M8 | 32 | M8-20 |  | 32 | M8-20 | |
| Allen key | 2 | ALLEN-KEY |  | 2 | ALLEN-KEY | |
| Wrench | 2 | WRENCH |  | 2 | WRENCH | |
| Fiberglass Rod | 1set | FIBERGLASS-ROD-12 |  | 1set | FIBERGLASS-ROD-14 | |
| Cap | 8 | TOP-CAP-BD |  | 8 | TOP-CAP-BD | |
