Avyna 213-FL Pro-Line FlatLevel Trampoline
Product Information
The Model 213-FL is a rectangular trampoline that comes with jumping mat, galvanized springs of two types (L=175mm, 3.2mm and L=175mm, 3.8mm), safety pad, K-tube, L-tube, H-tube, C-tube, J-tube, T-tube, measuring rod, Parker screw, plastic plates, and fasteners for the safety pad. The package also includes a user manual, safety manual, warning card, and tie rip for the warning card. Additionally, the safety net for Model 213-FL is available separately and includes pole with sleeve for safety net, pole for safety net, clamp screw M6x30, straps for safety net, closure for safety net, fastening for safety net, screw M8, Allen key, and wrench.
Product Usage Instructions

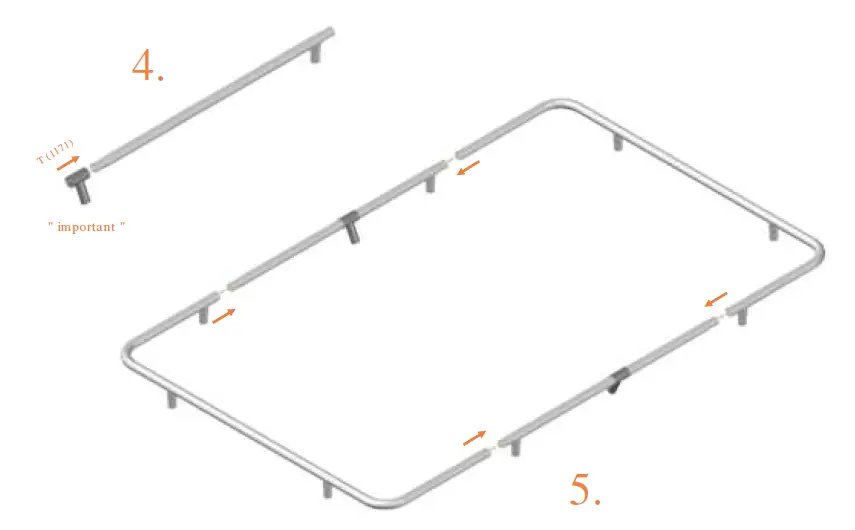

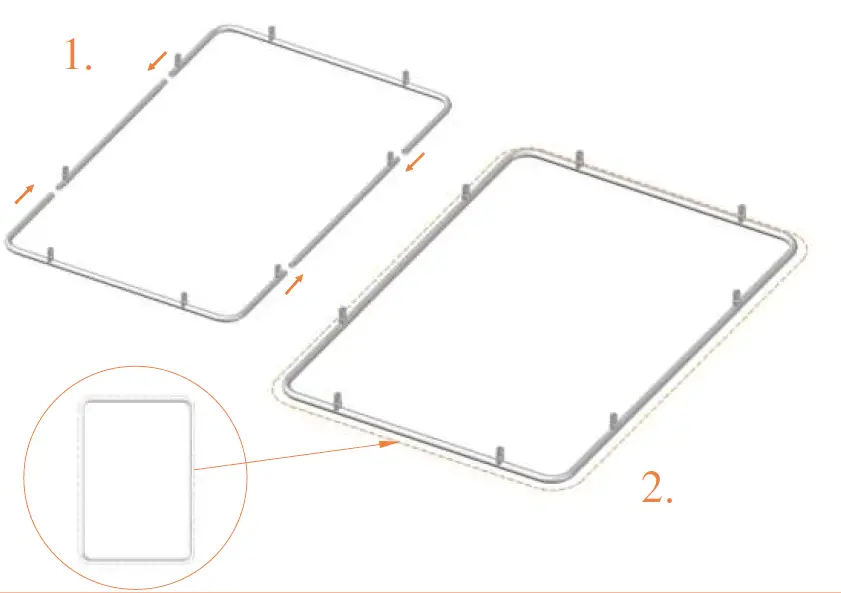

- Start by assembling the frame of the trampoline using the L-tubes, H-tubes, C-tubes, J-tubes, and T-tubes as per the assembly manual.

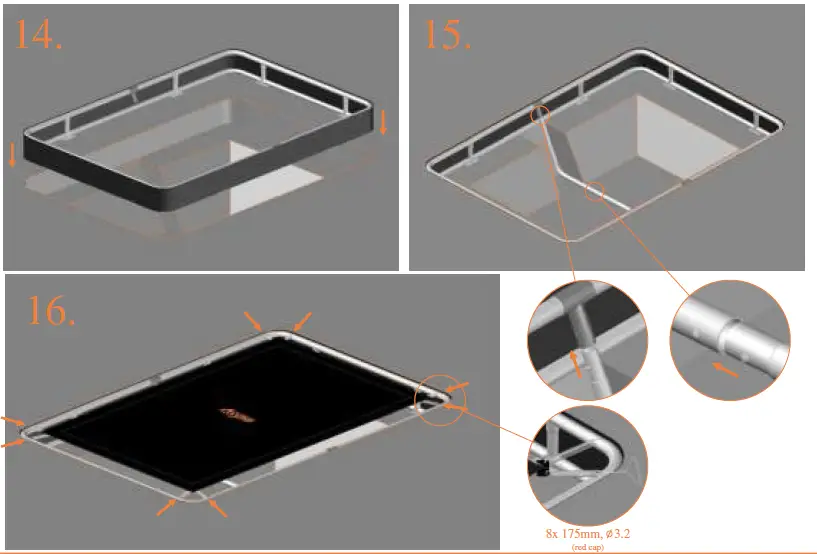

- Attach the jumping mat to the frame using the springs provided. Use galvanized spring L=175mm, 3.2mm for this purpose.
- Install the safety pad around the perimeter of the trampoline. Use the K-tubes to attach the safety pad to the frame.

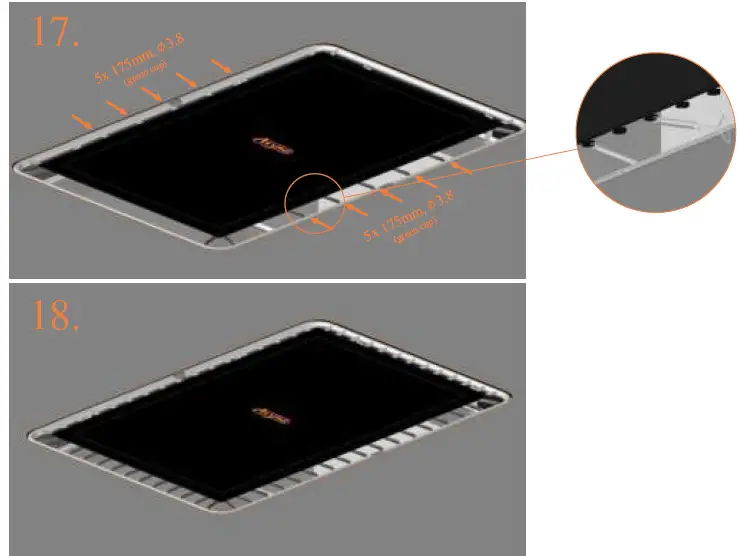

- Attach the galvanized spring L=175mm, 3.8mm to the jumping mat.
- Use the Allen key to tighten the screws M6 (4 in number) on the TEPL-213-fl-802 / A part.

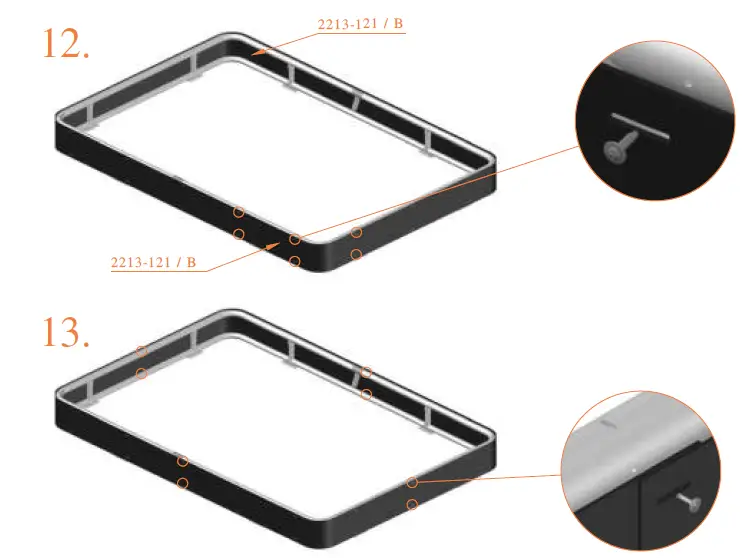

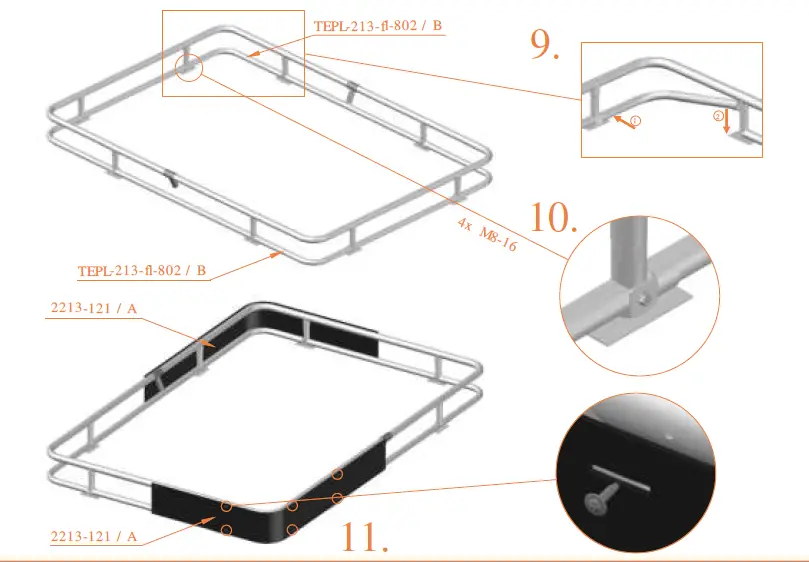

- Attach the plastic plates (2213-121 / A and 2213-121 / B) to the frame using the screws M8 (8 in number) on the TEPL-213-fl-802 / A and TEPL-213-fl-802 / B parts.
- Attach the safety net to the trampoline using the poles, clamp screw M6x30, straps, closure, fastening, screw M8, Allen key, and wrench provided.
- Make sure to follow the safety instructions provided in the safety manual and warning card.
Model 213-FL
| 275×190 cm | ||||||||
| Quantity | Part number | |||||||
| Jumping mat | 1 | TEPL-213-fl-222 |  | |||||
| Galvanized spring L=175mm, ¢3.2mm | 46 | TEPL-200-211/C (red cap) |  | |||||
| Galvanized spring L=175mm, ¢3.8mm | 10 | TEPL-200-211/C (green cap) | | |||||
| Safety pad | 1 | AVBL-213-333-fl-black or AVGR-213-333-fl-grey |  | |||||
| K-tube | 2 | TEPL-213-fl-1141 |  | |||||
| L-tube | 2 | TEPL-213-fl-1142 | | |||||
| H-tube | 2 | TEPL-213-fl-1152 |  | |||||
| H-tube | 2 | TEPL-213-fl-1151 |  | |||||
| Allen key | 2 | ALLEN KEY |  | |||||
| Screw M6 | 4 | 090-M6-45 |  | |||||
| Screw M8 | 8 | 090-M8-16 |  | |||||
| Wrench | 1 | WRENCH |  | |||||
| Fastener for safety pad (Attached to pad already) | 20 | TEPL-ELAS-B |  | |||||
| Plastic plate | 2 | 2213-121 / A |  | |||||
| Plastic plate | 2 | 2213-121 / B |  | |||||
| 275 x 190 cm | ||||||||
| Quantity | Part number | |||||||
| C-tube | 2 | TEPL-213-fl-802 / A |  | |||||
| C-tube | 2 | TEPL-213-fl-802 / B |  | |||||
|
| ||||||||
| Tool for spring | 1 | TOOL-SPRING |  | |||||
| I-tube | 1 | TEPL-213-1161 |  | |||||
| J-tube | 1 | TEPL-213-1162 / A |  | |||||
| J-tube | 1 | TEPL-213-1162 / B |  | |||||
| T-tube | 2 | TEPL-213-1171 |  | |||||
| Measuring rod | 1 | MEASURING-ROD / A |  | |||||
| Measuring rod | 1 | MEASURING-ROD / B |  | |||||
| Parker screw | 32 | M4-16 |  | |||||
| Fastener for safety pad (Attached to pad already) | 20 | TEPL-ELAS-D |  | |||||
| Safety Manual | 1 | 208010301 | ||||||
| Users Manual | 1 | 208010101 | ||||||
| Warning Card | 1 | 208040101 | ||||||
| Tie rip for warning card | 1 | 209010102 | ||||||
Assembly Procedure
Safety net for Model 213-FL
| 275x190cm | |||
| Quantity | Part number | ||
| Pole with sleeve for safety net | 8 | AVBL-213-fl-802 A |  |
| Pole for safety net | 8 | AVBL-213-fl-802 B |  |
| Clamp | 8 | CLAMP-TOOL-SN 213-fl |  |
| Screw M6x30 | 8 | M6x30 |  |
| Safety net | 1 | AVBL-213-fl-black or AVGR-213-fl-grey |  |
| Straps for safety net | 16 | TEPL-BAND |  |
| Closure for safety net | 2 | TEPL-KNOOPJE |  |

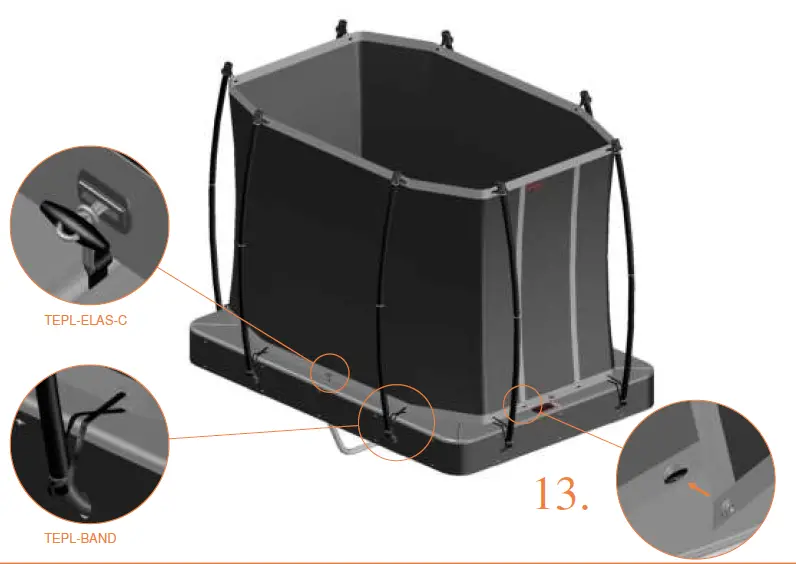

| Fastening for safety net | 4 | TEPL-ELAS-C |  |
| Screw M8 | 32 | M8-20 |  |
| Allen key | 2 | ALLEN-KEY |  |
| Wrench | 2 | WRENCH |  |

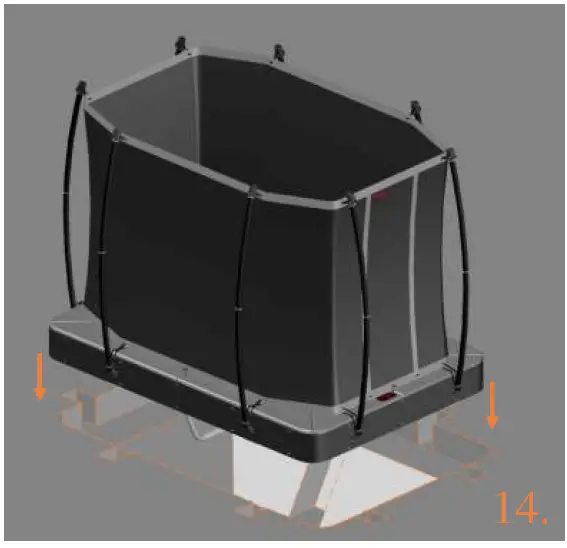

How To Assemble?
