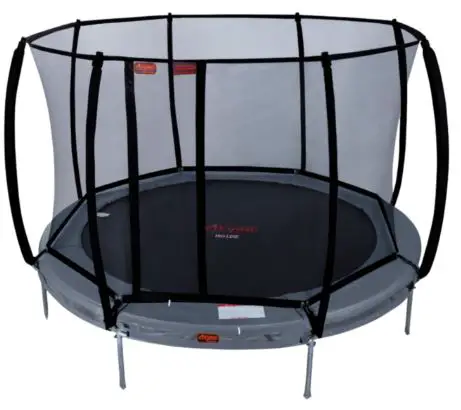

Avyna 08 Trampoline Safety Net
Product Information
The Model 08 and Model 10 are round trampolines that come with an assembly manual, jumping mat, safety pad, W-tube, I-tube, C-tube, K-tube, tool for spring, user’s manual, warning card, tie rip for warning card, and safety manual. The Model 08 has a diameter of 245cm while the Model 10 has a diameter of 305cm. Both models have a galvanized spring with L=175mm and 3.2mm thickness. The safety pad is available in green (TEPL-08-333), grey (AVGR-08-333), or camouflage (CAM-08-333) for Model 08 and green (TEPL-10-333), grey (AVGR-10-333), or camouflage (CAM-10-333) for Model 10. The trampolines also come with fasteners for the safety pad.
The package also includes a safety net for both models. The safety net has a pole with sleeve (AVBL-08-802-A) and six pole sleeves (AVBL-08-802-C) for Model 08 and pole sleeves (AVBL-10-802-B) for Model 10. The safety net also includes clamps
(CLAMP-TOOL-SN-08 for Model 08 and CLAMP-TOOL-SN-10 for Model 10), fiberglass rods (FIBERGLASS-ROD-08 for Model 08 and FIBERGLASS-ROD-10 for Model 10), fasteners for the safety net (TEPL-ELAS-C), screws M6-30, safety net (ANBL-08 for Model 08 and ANBL-10 for Model 10), straps for safety net (TEPL-BAND), closure for safety net (TEPL-KNOOPJE), Allen key wrench (ALLEN-KEY), and top cap (TOP-CAP-BD).
The trampolines and safety nets are available for purchase from the sales office located at Beneluxbaan 7, 5121 DC Rijen, The Netherlands. For inquiries, you may send an email to [email protected] or visit their website at www.avyna.eu.
Product Usage Instructions
- Read the assembly manual carefully before setting up the trampoline and safety net.
- Make sure that you have all the necessary parts before starting the assembly process.

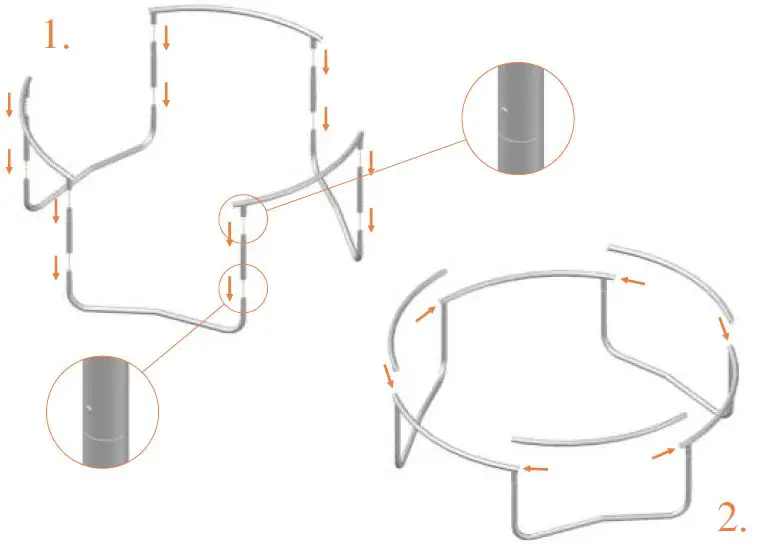

- Assemble the W-tube, I-tube, C-tube, and K-tube according to the instructions provided in the assembly manual.

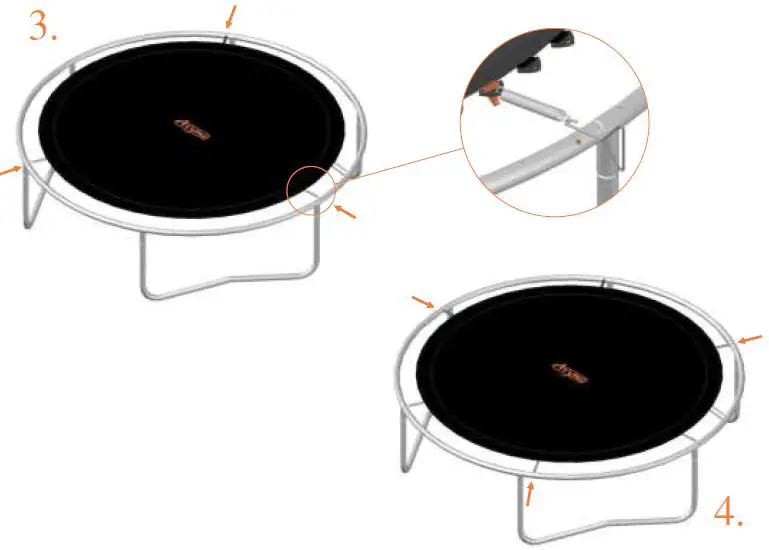

- Attach the galvanized spring to the jumping mat by using the tool for spring.

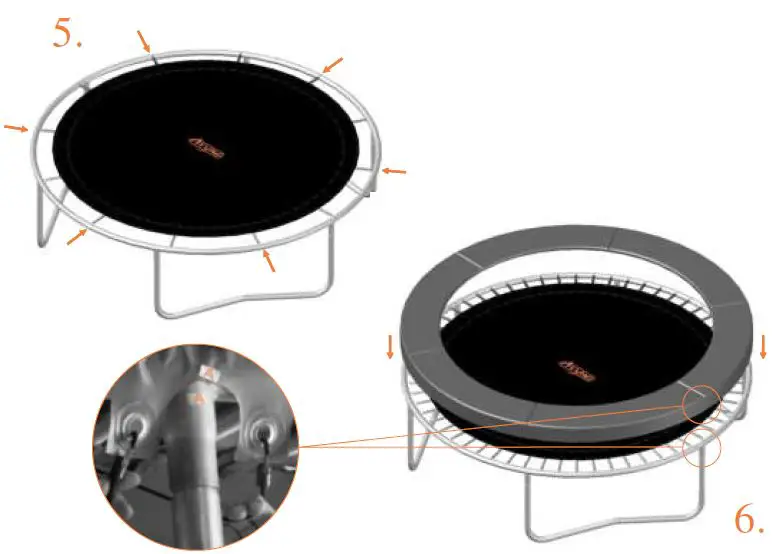

- Place the safety pad on top of the trampoline and secure it using the fasteners provided.

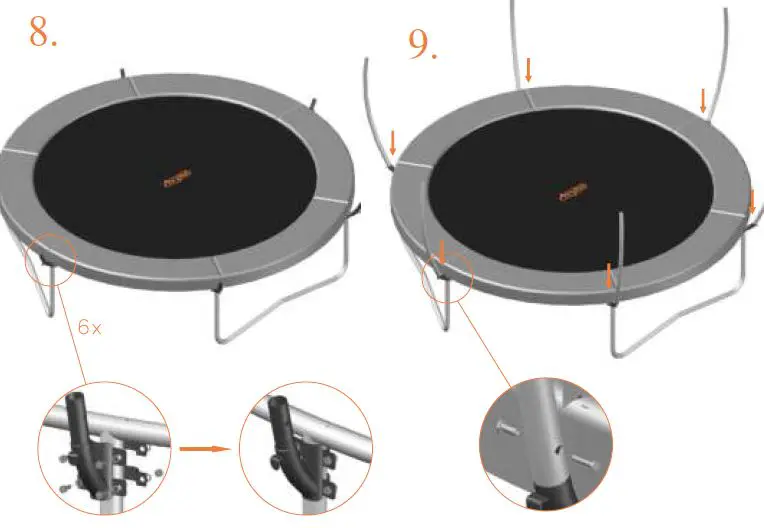

- Install the safety net by attaching the pole sleeves and clamps to the poles.

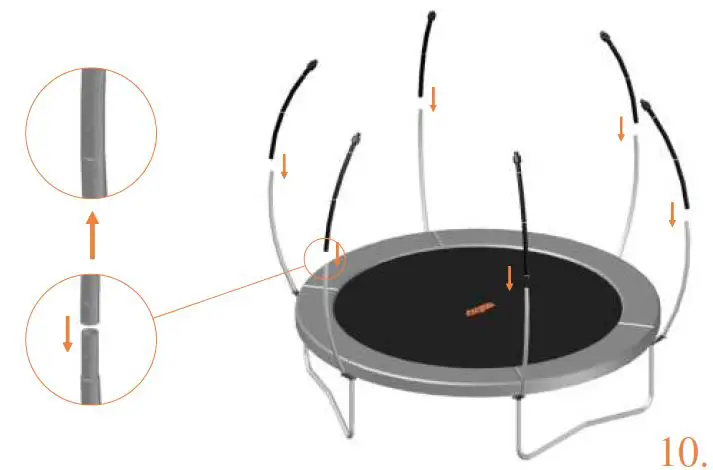

- Insert the fiberglass rods into the safety net and secure them using the fasteners provided.

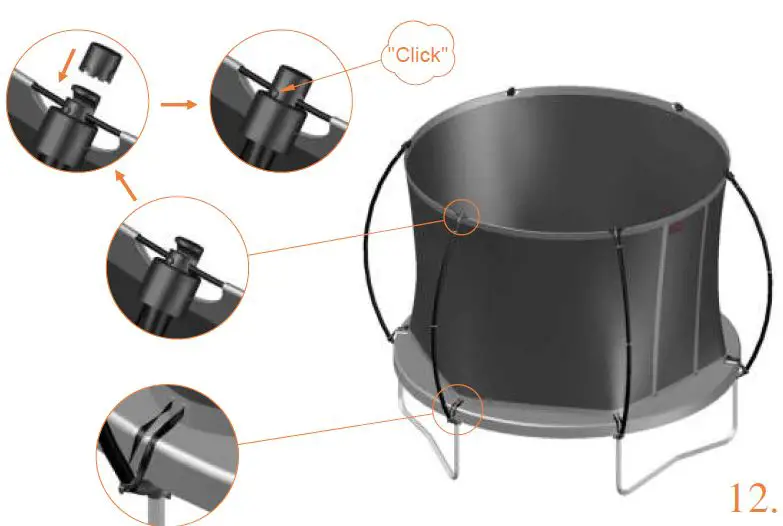

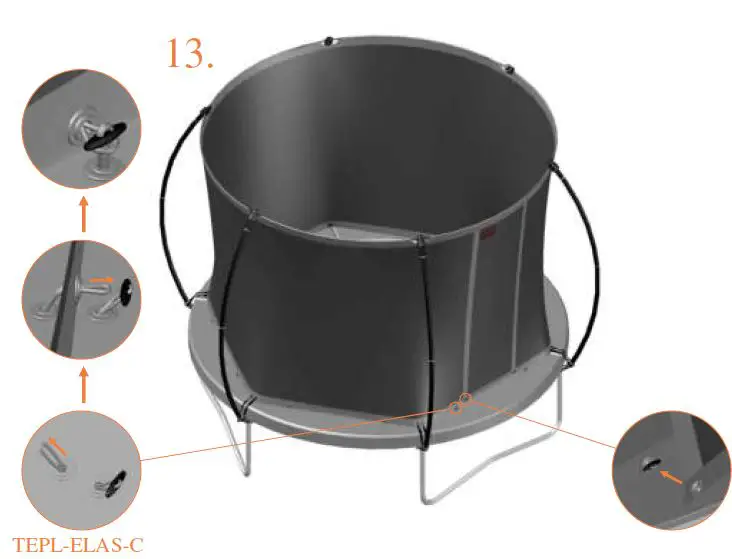

- Attach the safety net to the trampoline using the straps and closure provided.
- Make sure that all parts are securely attached before using the trampoline and safety net.
- Read the user’s manual, warning card, and safety manual before using the trampoline and safety net.

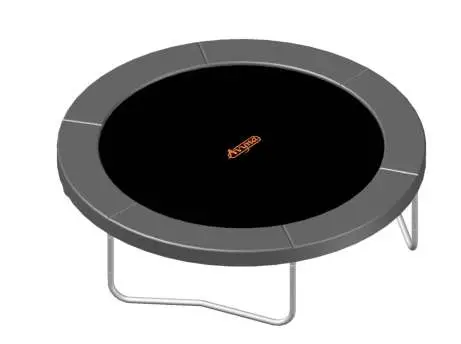

Round trampolines
Model 08 / Model 10
| Model 08 <245cm | Model 10 <305cm | |||||
| Quantity | Part number | Quantity | Part number | |||
| Jumping mat | 1 | TEPL-08-222 |  | 1 | TEPL-10-222 | |
| Galvanized spring L=175mm <3.2mm | 60 | TEPL-200-211/C |  | 72 | TEPL-200-211/C | |
| Safety pad | 1 | TEPL-08-333(green AVGR-08-333(grey) CAM-08-333(camouflage) |  | 1 | TEPL-10-333(green)AVGR-10-333(grey) CAM-10-333(camouflage) | |
| Fastener for safety pad | 6 | TEPL-ELAS-A |  | 6 | TEPL-ELAS-A | |
| W-tube | 3 | TEPL-08-111 |  | 3 | TEPL-10-111 | |
| I-tube | 6 | TEPL-08-112 |  | 6 | TEPL-10-112 | |
| C-tube | 3 | TEPL-08-113 |  | 3 | TEPL-10-113 | |
| K-tube | 3 | TEPL-08-114 |  | 3 | TEPL-10-114 | |
| Tool for spring | 1 | TOOL-SPRING |  | 1 | TOOL-SPRING | |
| Fastener for safety pad | 12 | TEPL-ELAS-B |  | 18 | TEPL-ELAS-B | |
| Users Manual | 1 | 208010101 | 1 | 208010101 | ||
| Warning Card | 1 | 208040101 | 1 | 208040101 | ||
| Tie rip for warning card | 1 | 209010102 | 1 | 209010102 | ||
| Safety manual | 1 | 208010301 | 1 | 208010301 | ||

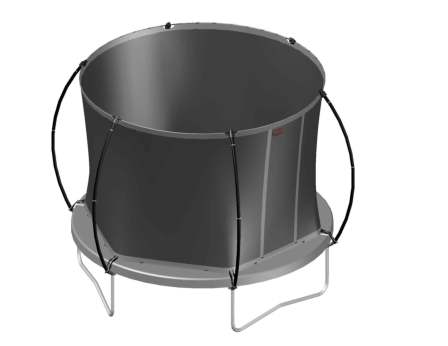

Safety net for Model 08 / Model 10
| <245cm | <305cm | |||||
| Quantity | Part number | Quantity | Part number | |||
| ole with sleeve for safety net | 6 | AVBL-08-802-A + AVBL-08-802-C |  | 6 | AVBL-08-802-A + AVBL-08-802 C | |
| Pole for safety net | 6 | AVBL-08-802-B |  | 6 | AVBL-10-802-B | |
| Clam | 6 | CLAMP-TOOL-SN-08 |  | 6 | CLAMP-TOOL-SN-10 | |
| Fiberglass Rod | 1set | FIBERGLASS-ROD-08 |  | 1set | FIBERGLASS-ROD-10 | |
| Fastener for safety net | 6 | TEPL-ELAS-C |  | 12 | TEPL-ELAS-C | |
| Screw M6-30 | 6 | M6-30 |  | 6 | M6-30 | |
| Safety net | 1 | ANBL-08 |  | 1 | ANBL-10 | |
| Straps for safety net | 6 | TEPL-BAND |  | 6 | TEPL-BAND | |
| Closure for safety net | 2 | TEPL-KNOOPJE |  | 2 | TEPL-KNOOPJE | |
| Screw M8 | 24 | M8-20 |  | 24 | M8-20 | |
| Allen key | 2 | ALLEN-KEY |  | 2 | ALLEN-KEY | |
| Wrench | 2 | WRENCH |  | 2 | WRENCH | |
| Cap | 6 | TOP-CAP-BD |  | 6 | TOP-CAP-BD | |
Sales office: Beneluxbaan 7
5121 DC Rijen
The Netherlands
[email protected]
www.avyna.eu
