Rectangular trampolines
Assembly manual
Model 352-FL
| Model 352-FL APPROX 520x305cm | |||
| Quantity | Part number |  | |
| Jumping mat | 1 | TEPL-352-fl-222 |  |
| Galvanized spring L=215mm 3.2mm | 120 | TEPL-200-211/A | |
| Galvanized spring L=140mm 3.2mm | 4 | TEPL-200-211/E |  |
| Safety pad | 1 | TEPL-352-FL-333-green/ AVGR-352-FL-333-grey/ AVBL-352-FL-333-BLACK |  |
| Fastener for safety pad | 24 | TEPL-ELAS-B |  |
| I-tube | 6 | TEPL-352-FL-802 / A |  |
| I-tube | 2 | TEPL-352-FL-802 / B |  |
| C-tube | 2 | TEPL-352-FL-113 |  |
| K-tube | 2 | TEPL-352-FL-114 |  |
| Tool for spring | 1 | TOOL-SPRING |  |
| Screw M8 | 24 | M8-16 |  |

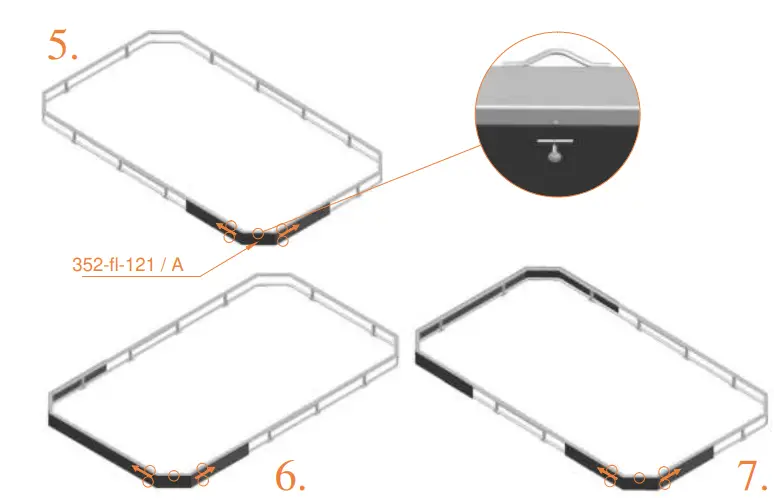

| Plastic plate | 4 | 352-FL-121/A | |
| Plastic plate | 2 | 352-FL-121/B |  |
| L-tube | 4 | TEPL-352-FL-802 |  |
| I-tube | 12 | TEPL-352-FL-115 |  |

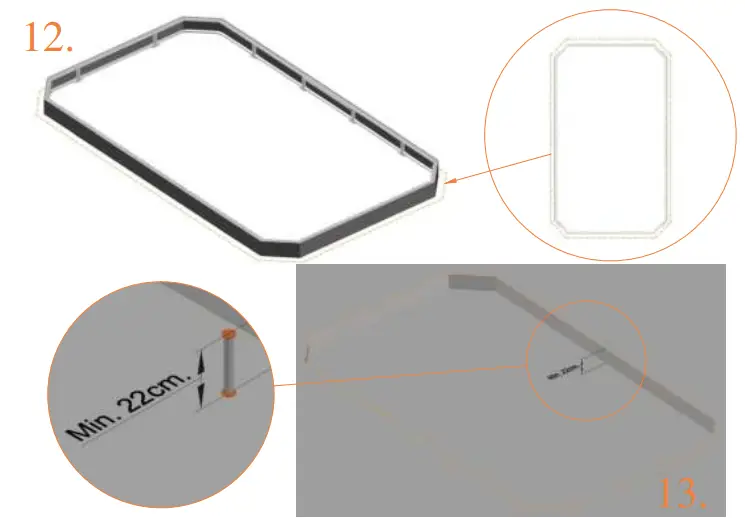

| Measring rod L =220mm | 1 | 2300-131/A |  |

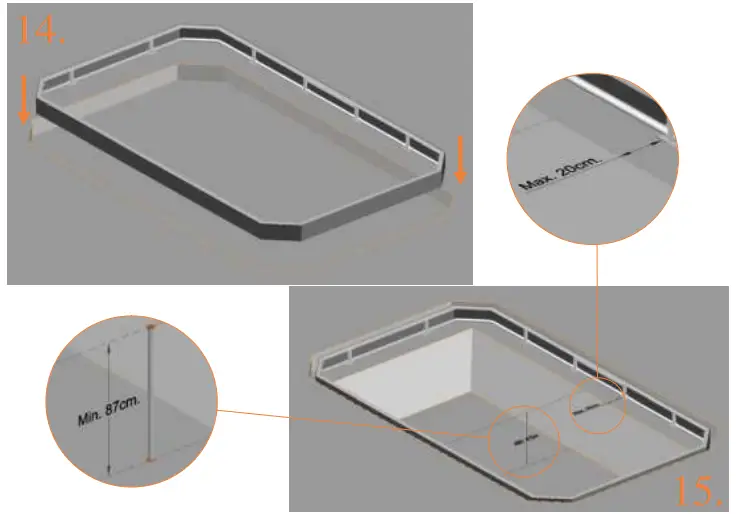

| Measring rod L = 870mm | 1 | 2300-131/B |  |
| Parker screw | 36 | M4x16 |  |
| Fastener for safety pad | 24 | TEPL-ELAS-D | |
| Users Manual | 1 | 208010101 | |
| Warning Card | 1 | 208040101 | |
| Tie rip for a warning card | 1 | 209010102 | |
| Safety manual | 1 | 208010301 | |
Model 352-FL
| Model-352-FL APPROX 520x305cm | |||
| Quantity | Part number | ||
| Pole with sleeve for safety net | 12 | AVBL-352-FL-802 A |  |
| Pole for safety net | 12 | AVBL-352-FL-802 B |  |
| Clamp | 12 | CLAMP-TOOL-SN 352-FL |  |
| Screw M6x30 | 12 | M6x30 |  |
| Safety net | 1 | ANBL-352-FL |  |
| Straps for safety net | 28 | TEPL-BAND 24x short: 1,0m 4x long: 1,5m |  |
| Closure for safety net | 2 | TEPL-KNOOPJE |  |
| Screw M8 | 24 | M8-25 |  |
| Allen key | 2 | ALLEN-KEY |  |
| Wrench | 2 | WRENCH |  |
