Model 213-FL
Rectangular Trampolines
Assembly manual
Model 213-FL

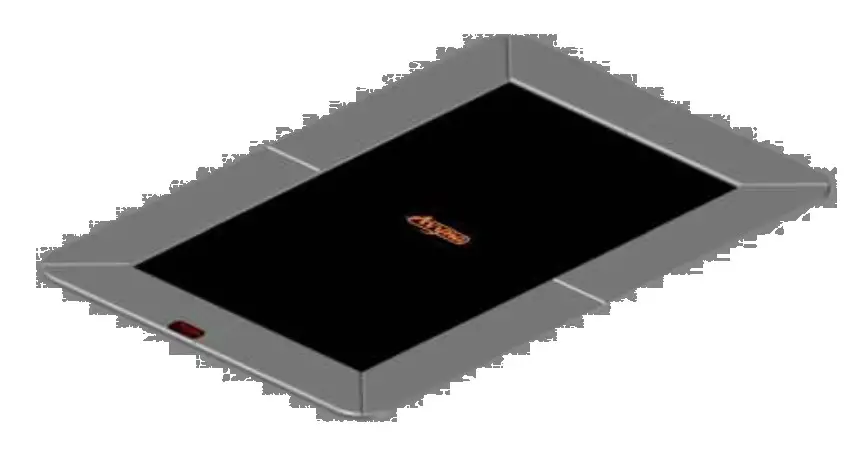

213-FL Pro-Line Rectangular Trampolines
 |  |
 |  |
 |  |
 |  |

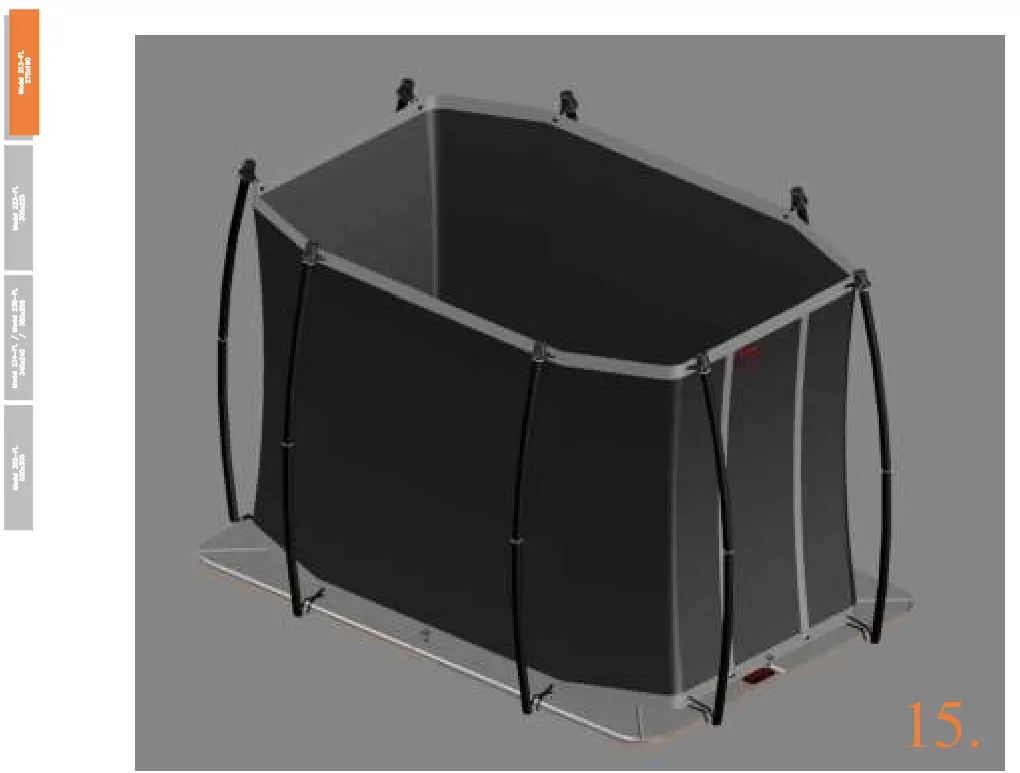

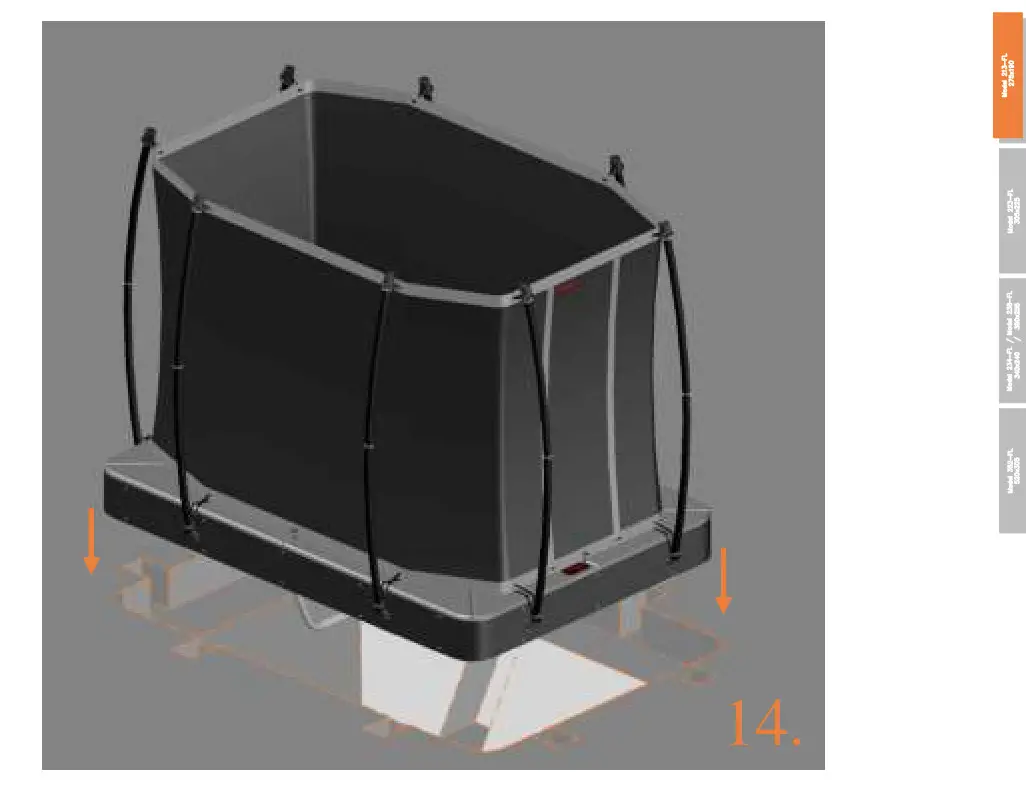

Safety net for Model 213-FL
| Model 213-fl 275x190cm | |||
| Quantity | Part number | ||

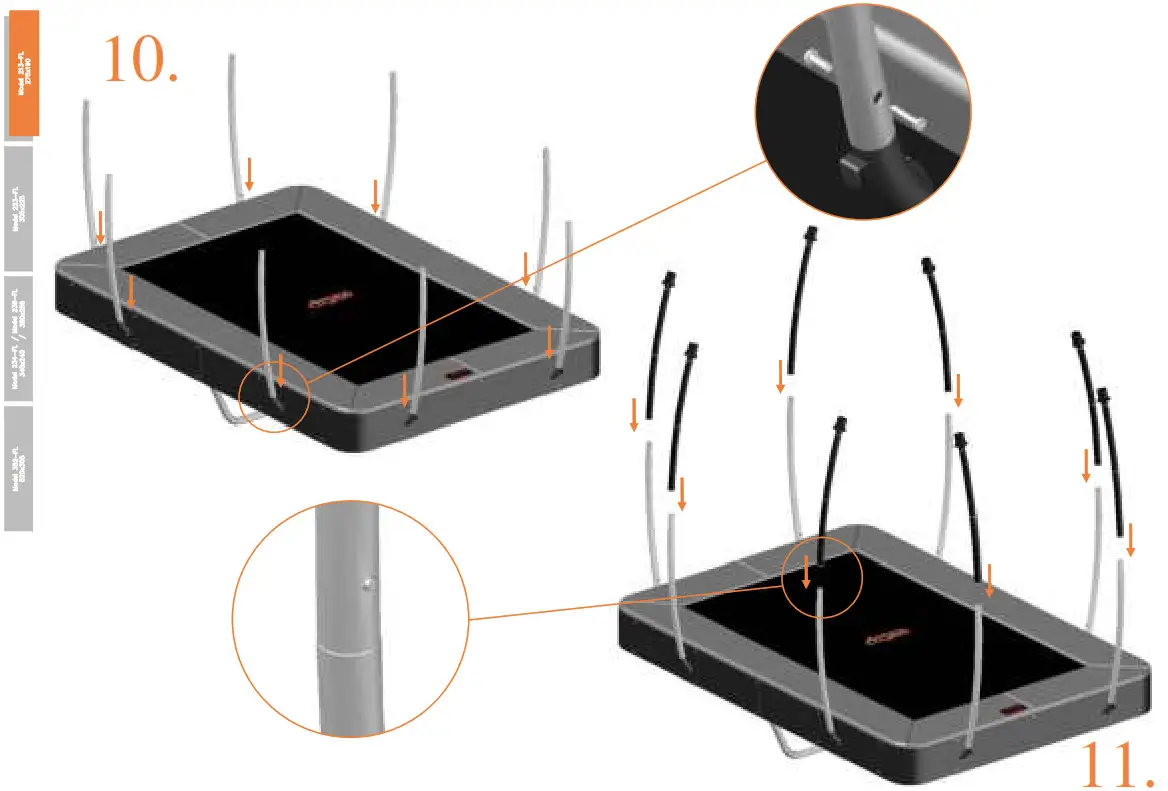

| Pole with sleeve for safety net | 8 | AVBL-213-fl-802 A |  |
| Pole for safety net | 8 | AVBL-213-fl-802 B |  |
| Clamp | 8 | CLAMP-TOOL-SN 213-fl |  |
| Screw M6x30 | 8 | M6x30 |  |
| Safety net | 1 | AVBL-213-fl-black or AVGR-213-fl-grey |  |
| Straps for safety net | 16 | TEPL-BAND |  |
| Closure for safety net | 2 | TEPL-KNOOPJE |  |

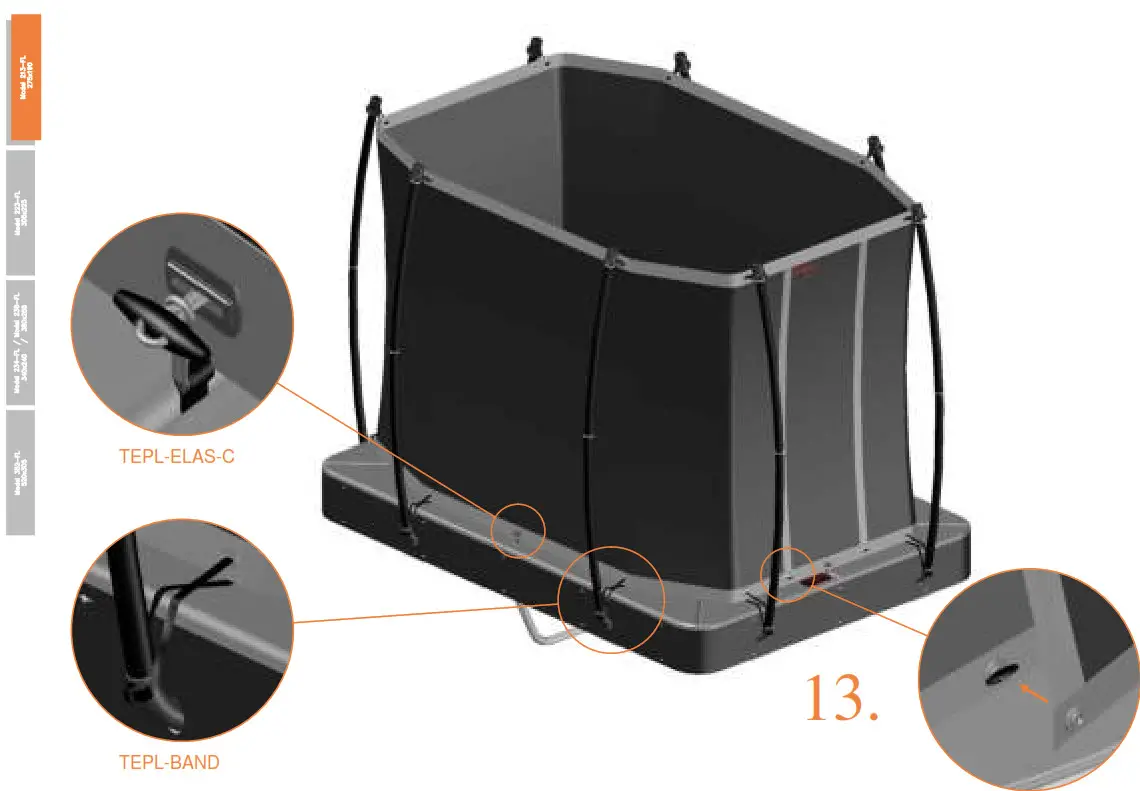

| Fastening for safety net | 4 | TEPL-ELAS-C |  |
| Screw M8 | 32 | M8-20 |  |
| Allen key | 2 | ALLEN-KEY |  |
| Wrench | 2 | WRENCH |  |
 |  |
 |  |
 |  |
 |  |
