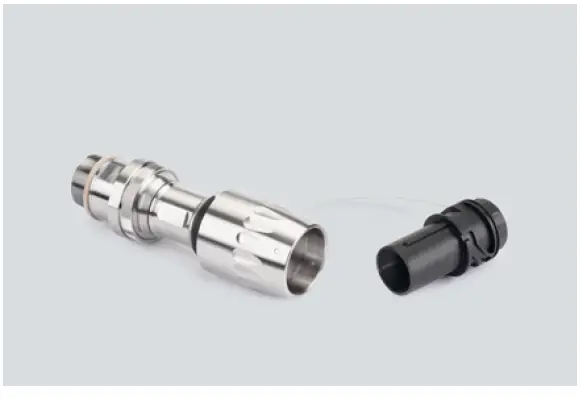

miniCON plug connector

• Simple handling using hot swap technology
• Versatile application possibilities thanks to modular structure
• Most extreme operating conditions in hazardous areas
• Reliable data and signal connections or power supplies
• Simple connection and disconnection thanks to one-handed operation

WebCode 8595A

The up to 8- pole, explosion-protected miniCON plug connectors in R. STAHL’s 8595/ 1 series keep you safely connected. The high-quality plastic or stainless steel plug connectors have impressed many customers with their reliability and versatility in application. Their hot swap disconnecting capacity means that intrinsically safe signal supplies and power supply up to 500 V/ 16 A can be connected and disconnected reliably and safely without the need for a hot work permit or other hot work authorization. The miniCON connectors designed for conductor cross-sections of 0.25 mm² to 2.5 mm² are available for directly connecting electrical lines or for device installation in the device plug and flange socket types of construction. The new plug connectors for hazardous areas in Zones 1 and 21 stand out from the competition thanks to their modular structure and logically arranged components, which enable quick, easy assembly. Our patented single-handed operation means that matching plug connectors, which can be defined by the installer using internal coding for up to three applications, can be connected in no time

Technical Data

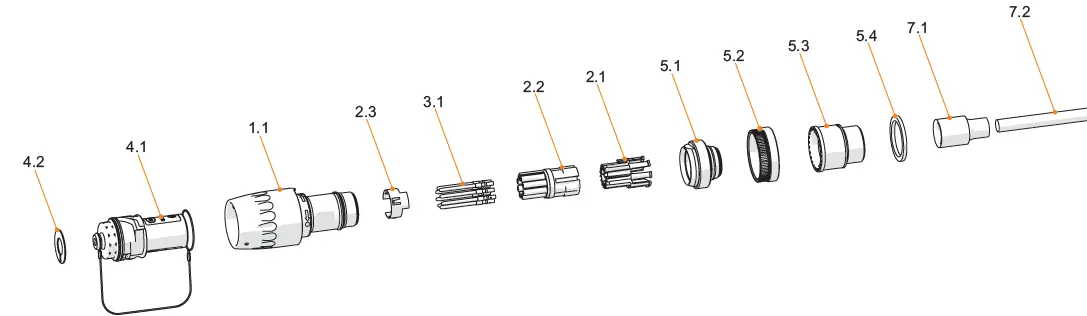

Technical Drawings – Subject to Alterations

• 4.2 Code disk
• 4.1 Protective cap
• 1.1 Plug basic part
• 2.3 PE contact (only for metal variant)
• 3.1 Contacts
• 2.2 Insulator
• 2.1 Contact holder
• 5.1 Adapter
• 5.2 Union nut
• 5.3 Bushing
• 5.4 Seal
• 7.1 Bushing
• 7.2 Conductor

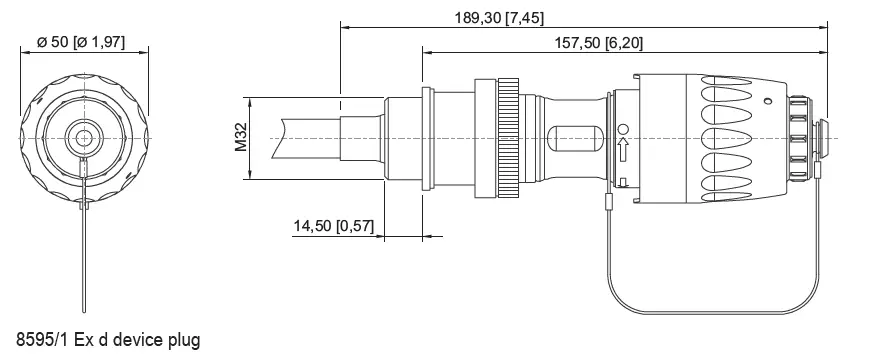

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

Accessories

Coupling                                                                                                                                             Art. No.
	Enclosure material: Plastic Contact type: Socket contact Connection cross-section: 0.75 – 1 mm² No. of poles: 7 P + PE / 8 P Connection type: crimp	286558
	Enclosure material: Plastic Contact type: Socket contact Connection cross-section: 0.75 – 1 mm² No. of poles: 7 P + PE / 8 P Connection type: crimp	286559
	Enclosure material: Stainless steel 1.4404 Contact type: Socket contact Connection cross-section: 0.75 – 1 mm² No. of poles: 7 P + PE / 8 P Connection type: crimp	286599

	Enclosure material: Stainless steel 1.4404 Contact type: Socket contact Connection cross-section: 0.75 – 1 mm² No. of poles: 7 P + PE / 8 P Connection type: crimp	286600
Code disks                                                                                                                                          Art. No.
	KIT code disk 8595, four colours, without labelling Customer-specific labelling available on request	289939
Protective cap                                                                                                                                   Art. No.
	KIT 8595 protective cap plug (pin/socket) Incl. KIT code disk 8595, four colours, without labelling	286161

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
