Installation Equipment
Plug 63 A
8579/12-405 Art. No. 153023

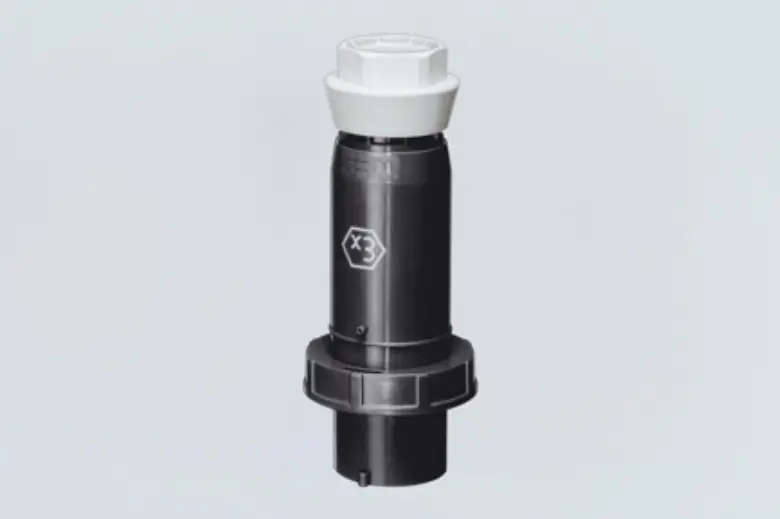

8579E 63A Plug
- Wide temperature range for use
- High mechanical impact and shock resistance
- Perfect protection against the ingress of liquids and dust
- 3D data available to download from the website
WebCode 8579E
R. STAHL Series 8579/ 12 plugs for Zone 1/ 21 are 4- or 5- pole versions up to 63 A. The floating pins allow them to be inserted and removed quickly and easily. The pivoting strain relief makes it easier to install the cable. Self-cleaning and corrosion-free plug pins made from high-quality materials ensure optimum electrical contact.
Technical Data
| Explosion Protection | |
| Scope of validity | European Union (ATEX) IECEx |
| Application range (zones) | 1 2 21 22 |
| IECEX gas certificate | IECEx PTB 06.0020 |
| IECEx gas explosion protection | Ex DB eb IIC T6 … T5 Gb |
| IECEX dust certificate | IECEx PTB 06.0020 |
| IECEx dust explosion protection | Ex tb IIIC T60 °C / T75 °C Db |
| ATEX gas certificate | PTB 01 ATEX 1150 |
| ATEX gas explosion protection | E II 2 G Ex db eb IIC T6 … T5 Gb |
| ATEX dust certificate | PTB 01 ATEX 1150 |
| ATEX dust explosion protection | E II 2 D Ex tb IIIC T60 °C / T75 °C Db |
| Certificates | ATEX (PTB), Brazil (ULB), IECEx (PTB), Korea (KGS), Taiwan (ITRI) |
| Explosion protection note | The product label may vary. Series devices have certification according to ATEX and IECEx. |
| Electrical Data | |
| Rated operational voltage AC | 600 to 690 V AC |
| Rated operational current | max. 63 A |
| Mechanical service life | > 1×103 mating cycles |
| Type of voltage | Low voltage |
| Frequency range | 50 / 60 Hz |
| Ambient Conditions | |
| Ambient temperature | -30 °C … +40 °C (T6) -30 °C … +55 °C (T5) |
| Ambient temperature | -22 °F … +104 °F (T60 °C) -22 °F … +131 °F (T75 °C) |
| Mechanical Data | |
| IP degree of protection (IEC 60529) | IP66 |
| IP degree of protection (IEC 60079) | IP66 |
| Enclosure material | Polyamide |
| Silicone-free | Yes |
| Finely stranded connection cross-section | 1 x 2.5 mm² … 1 x 16 mm² |
| Connection cross-section AWG finely stranded | 1 x AWG 14 … 1 x AWG 6 |
| Width | 113 mm |
| Width in inches | 4.45 in |
| Height | 113 mm |
| Height, inches | 4.45 in |
| Length | 264 mm |
| Length, inches | 10.39 in |
| Impact strength (IEC 60079) | 7 J |
| Impact strength (IEC 62262) | IK10 |
| Colour code | Black |
| Coding (clock hour position) | 5 |
| Series | SolConeX |
| The detailed number of poles | 3 P + PE |
| Weight | 0.88 kg |
| Weight | 1.94 lb |
| Mounting / Installation | |
| Connection | Screw terminal |
| Components | |
| Cable diameter | 24 – 36 mm |
| Cable diameter inch | 0.94 – 1.42 in |
Technical Drawings – Subject to Alterations

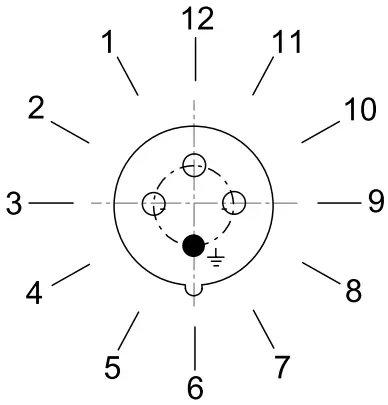

Position of clock hour position Example: 6 h position

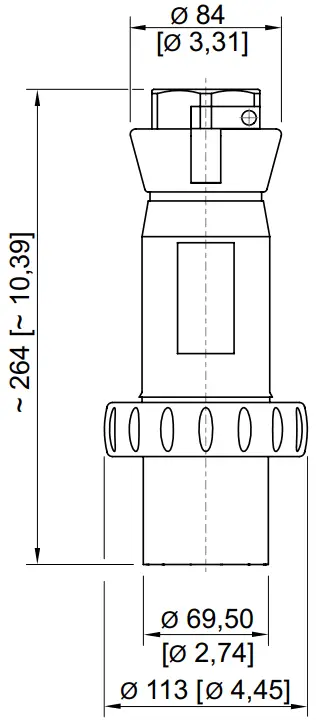

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
Accessories
Protective cap for plugs 63 A | Art. No. | |
 | 4-/5-poles | 153261 |
We reserve the right to make alterations to the technical data, dimensions, weights, designs, and products available without notice. The illustrations cannot be considered binding.
