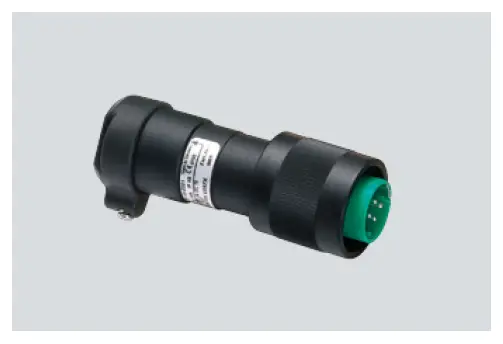

STAHL 169185 miniCLIX Plug Connector Plug

Welcome

R. STAHL Series 8591/ 1 and 8591/ 4 4- pole, explosion-protected miniCLIX plug connectors disconnect non- intrinsically safe circuits up to 250 V/ 10 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.

Multiple options for easy use, simple installation and maintenance
Safe and fast disconnection under load
4/ 4+1- pole, up to 10 A, high transfer rate (100 MBit/ s) ideal for Fieldbus installations
Suitable for harsh industry environments, IP66/ IP68, for Zones 1, 2, 21 and 22

Technical Data

Explosion Protection

Explosion Protection
Application range (zones)	1 2 21 22
IECEx gas certificate	IECEx BKI 07.0001X
IECEx gas explosion protection	Ex db eb IIC T6 Gb
IECEx dust certificate	IECEx BKI 07.0001 X
IECEx dust explosion protection	Ex tb IIIC T60 °C Db
ATEX gas certificate	PTB 03 ATEX 1097 X
ATEX gas explosion protection	E II 2 G Ex db eb IIC T6 Gb
ATEX dust certificate	PTB 03 ATEX 1097 X
ATEX dust explosion protection	E II 2 D Ex tb IIIC T60 °C Db
Certificates	ATEX (PTB), IECEx (BKI)
Electrical Data
Rated operational voltage AC	230 – 250 V
Switching capacity	IEC/EN 60947-4 AC-3: 250 V / 1 A DC-3: 60 V / 0.5 A IEC/EN 61984 AC: 250 V / 10 A DC: 60 V / 2.5 A
Frequency Hz (for AC)	60 50
Ambient Conditions
Ambient temperature	-55 °C … +40 °C

Installation Equipment

miniCLIX plug connector Plug
8591/171-06-0001 Art. No. 169185

Ambient Conditions

Mechanical Data

Degree of protection (IP)	IP66
Degree of protection note	IP68 (2 m water column, 1 hour) according to IEC/EN 60529 (with protective caps closed and secured as well as properly fitted and secured compo- nents)
Enclosure material	Plastic
Clamping range	4…. 7.5 mm
Recommended colour ring coding	Red
Coding (clock hour position)	6
Detailed number of poles	2 P + PE
Weight	0.2 kg
Weight	0.44 lb

Mounting / Installation

Connection type

1.5 mm² crimp

Components

Locking device present	No
Protective cap available	No

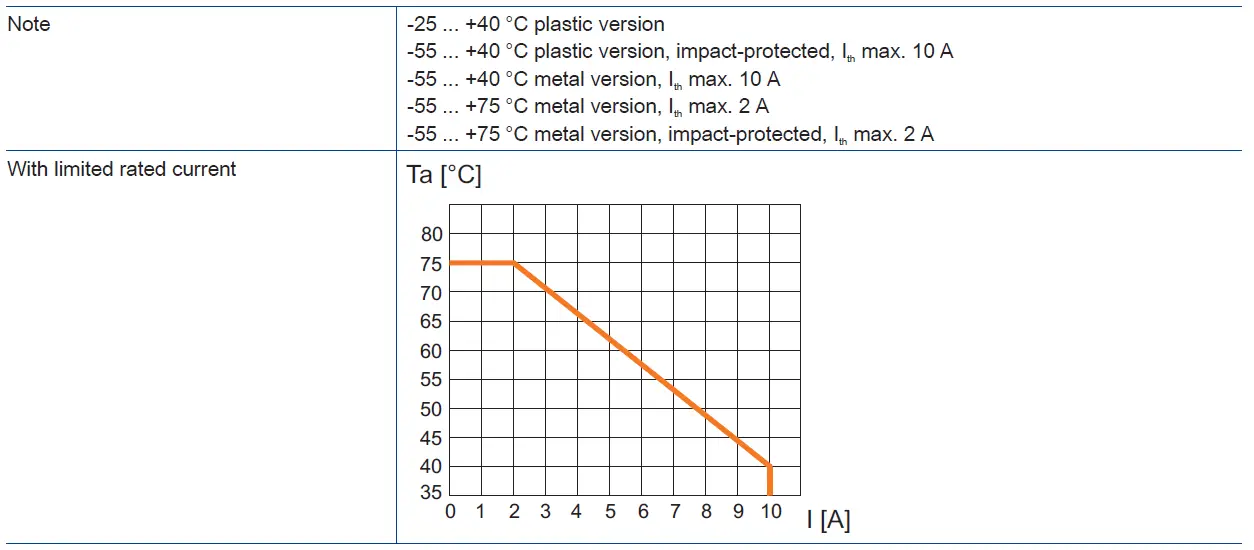

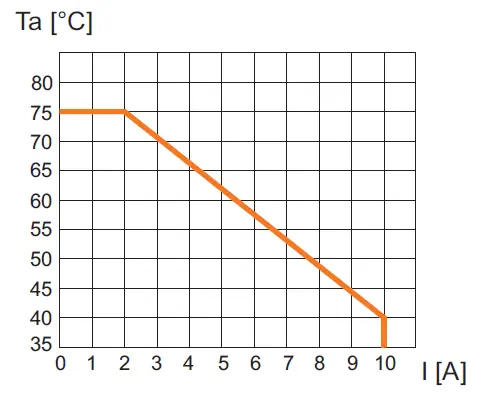

Technical Drawings – Subject to Alterations

Ta [°C]

Dimensional Drawings

(All Dimensions in mm [inches]) – Subject to Alterations

Accessories

Angled adaptor

	plastic (polyamide)	154472
	brass, nickel-plated	154476

Anti- twist protection

for flange socket, device plug

154570

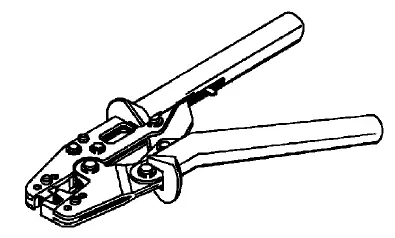

Crimping tool

for all crimp connection versions up to 4 mm²

109116

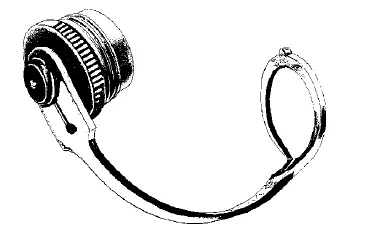

Protective cap

for plug, device plug: plastic (polyamide)

109349

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
