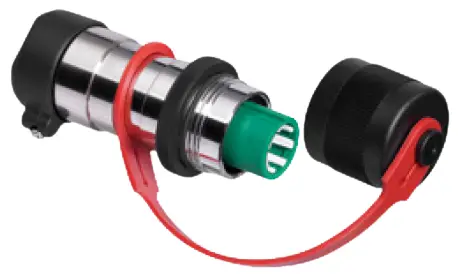

STAHL 210731 miniCLIX Plug Connector Coupling

Introduction

Simple installation and maintenance in Zone 1, safe and fast disconnection under load
6+1- pole, rated voltage up to 400 V AC, rated current up to 16 A
Suitable for harsh industry environments, IP66/ IP68, for Zones 1 and 2

WebCode 8591B
R. STAHL Series 8591/ 2 7- pole, explosion-protected miniCLIX plug connectors disconnect non-intrinsically safe circuits up to 400 V/ 16 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel-plated brass, or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.

Technical Data

Explosion Protection
Application range (zones)	1 2
IECEx gas certificate	IECEx BKI 07.0001X
IECEx gas explosion protection	Ex db eb IIC T6 Gb
ATEX gas certificate	PTB 07 ATEX 1028 X
ATEX gas explosion protection	E II 2 G Ex db eb IIC T6 Gb
Certificates	ATEX (PTB), IECEx (BKI)
Electrical Data
Rated operational voltage AC	230 – 250 V
Switching capacity	IEC/EN 60947 AC-1: 400 V / 16 A DC-1: 400 V / 1 A DC-3: 60 V / 0.5 A
Frequency Hz (for AC)	50 60
Ambient Conditions
Ambient temperature	-55 °C … +40 °C
Note	– 20 … + 40 °C plastic version – 20 … + 75 °C plastic version Ith max. 1 A – 55 … + 40 °C metal version – 55 … + 75 °C metal version Ith max. 1 A
Mechanical Data
Degree of protection (IP)	IP66
Degree of protection note	IP68 (2 m water column, 1 hour) according to IEC/EN 60529 (with protective caps closed and secured as well as properly fitted and secured compo- nents)

Mechanical Data

Mechanical Data
Enclosure material	Nickel-plated brass
Clamping range	7 … 11 mm
Recommended colour ring coding	Red
Coding (clock hour position)	6
Detailed number of poles	6 P + PE
Weight	0.1 kg
Weight	0.22 lb
Mounting / Installation
Connection type	1.5 mm² crimp
Components
Locking device present	No
Protective cap available	No

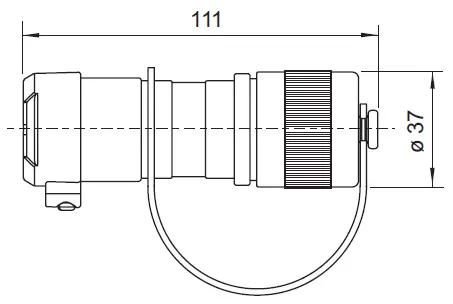

Dimensional Drawings

(All Dimensions in mm [inches]) – Subject to Alterations

Coupler (plastic, metal)

Accessories

		Art. No.
		165671
	for coupler, flange socket: brass, nickel-plated	154577

Anti-twist protection

for flange socket, device plug

154587

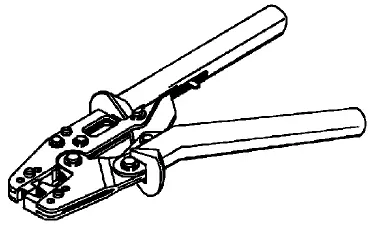

Crimping tool

	for all crimp connection versions up to 4 mm²	109116
	for all crimp connection versions up to 4 mm²	109116

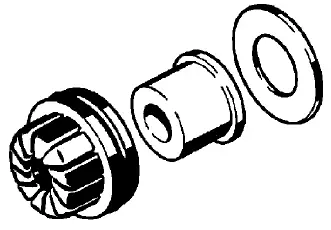

Strain relief Art. No.
	Ø 7 … 11 mm, with gasket/washer + PE connection	154585

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
