STAHL 210746 miniCLIX Plug Connector Flange Socket Owner’s Manual

• Simple installation and maintenance in Zone 1, safe and fast disconnection under load
• 6+1-pole, rated voltage up to 400 V AC, rated current up to 16 A
• Suitable for harsh industry environments, IP66/IP68, for Zones 1 and 2

WebCode 8591B

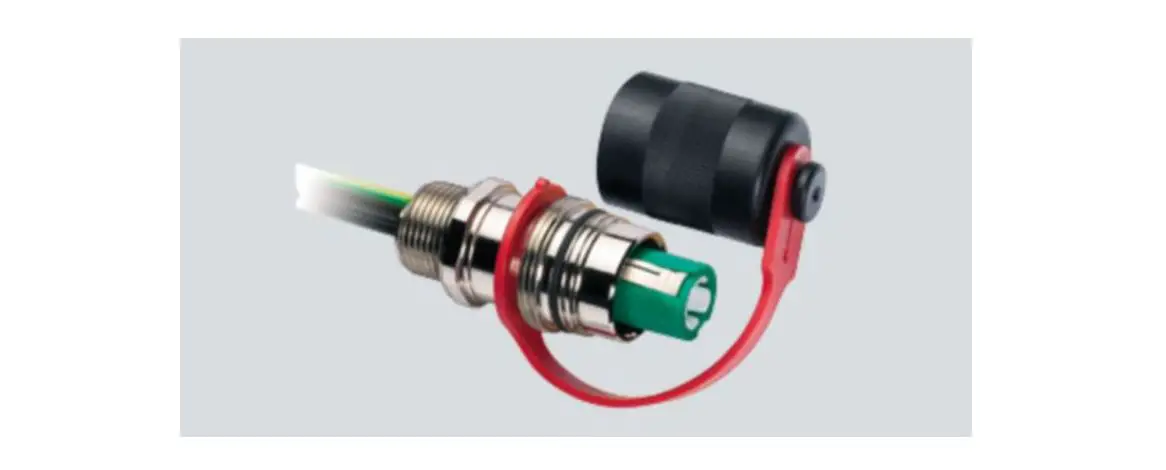

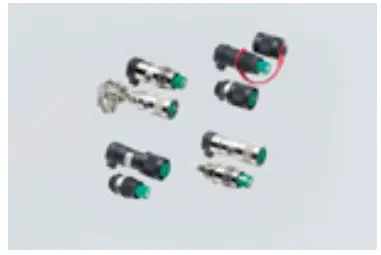

R. STAHL Series 8591/2 7-pole, explosion-protected miniCLIX plug connectors disconnect noninstrinsically safe circuits up to 400 V/16 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/couplers made of polyamide, nickel-plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.

Technical Data

Explosion Protection
Application range (zones)	1 2
IECEx gas certificate	IECEx BKI 07.0001X
IECEx gas explosion protection	Ex db eb IIC T6 Gb
ATEX gas certificate	PTB 07 ATEX 1028 X
ATEX gas explosion protection	II 2 G Ex db eb IIC T6 Gb
Certificates	ATEX (PTB), IECEx (BKI)
Electrical Data
Rated operational voltage AC	230 – 250 V
Switching capacity	IEC/EN 60947 AC-1: 400 V / 16 A DC-1: 400 V / 1 A DC-3: 60 V / 0.5 A
Frequency Hz (for AC)	50 60
Ambient Conditions
Ambient temperature	-55 °C … +40 °C
Note	– 20 … + 40 °C plastic version – 20 … + 75 °C plastic version Ith max. 1 A – 55 … + 40 °C metal version – 55 … + 75 °C metal version Ith max. 1 A
Mechanical Data
Degree of protection (IP)	IP66
Degree of protection note	IP68 (2 m water column, 1 hour) according to IEC/EN 60529 (with protective caps closed and secured as well as properly fitted and secured compo- nents)

2022-11-16 R. STAHL Schaltgeräte GmbH | Am Bahnhof 30 | 74638 WALDENBURG 1/2 V 0.64 EN Tel. +49 7942 943 1700 | +49 7942 943 1777 | Email: sales.de@r stahl.com | r-stahl.com

Installation Equipment

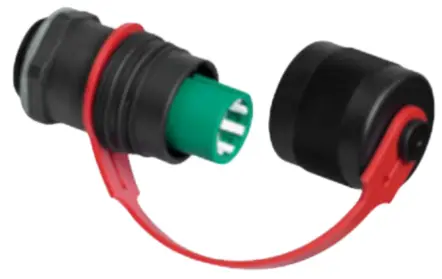

miniCLIX plug connector Flange socket
8591/281-06-0000 Art. No. 210746

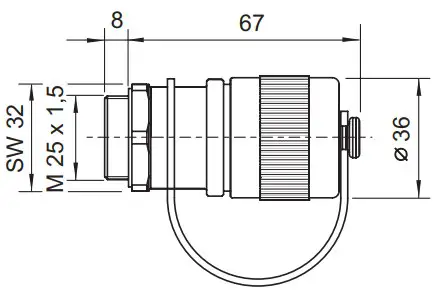

Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations

Flange socket (plastic)

Accessories

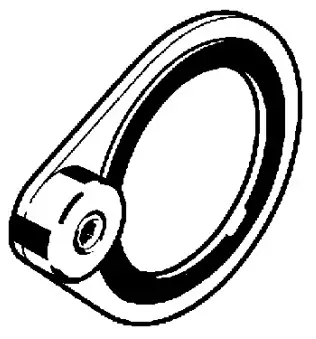

Anti-twist protection

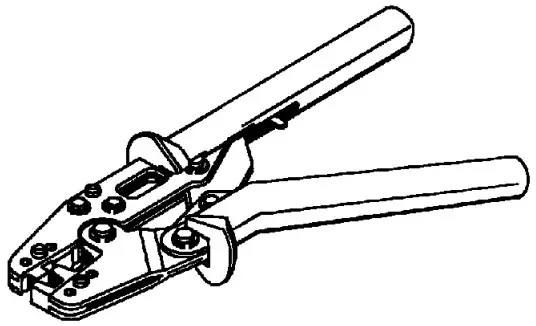

Crimping tool

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
