STAHL-logoSTAHL 210733 miniCLIX Plug Connector Coupling

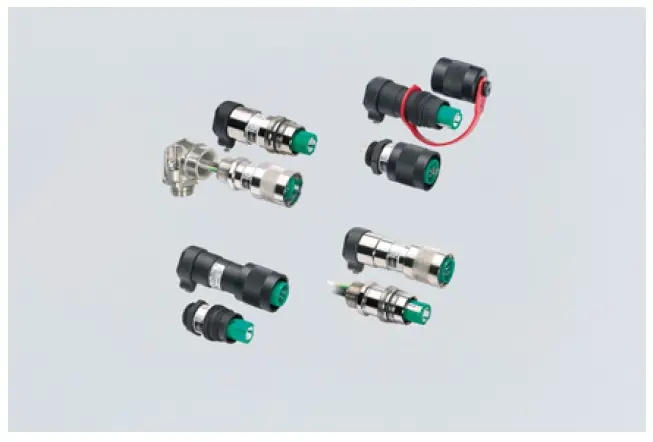

STAHL-210733-miniCLIX-Plug-Connector-Coupling-product

Welcome

R. STAHL Series 8591/ 2 7- pole, explosion-protected miniCLIX plug connectors disconnect non- intrinsically safe circuits up to 400 V/ 16 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel- plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.

  • Simple installation and maintenance in Zone 1, safe and fast disconnection under load
  • 6+1- pole, rated voltage up to 400 V AC, rated current up to 16 A
  • Suitable for harsh industry environments, IP66/ IP68, for Zones 1 and 2

Technical Data

Explosion Protection
Application range (zones)1

2

IECEx gas certificateIECEx BKI 07.0001X
IECEx gas explosion protectionEx db eb IIC T6 Gb
ATEX gas certificatePTB 07 ATEX 1028 X
ATEX gas explosion protectionE II 2 G Ex db eb IIC T6 Gb
CertificatesATEX (PTB), IECEx (BKI)
Electrical Data
Rated operational voltage AC380 – 415 V
Switching capacityIEC/EN 60947

AC-1: 400 V / 16 A

DC-1: 400 V / 1 A

DC-3: 60 V / 0.5 A

Frequency Hz (for AC)50

60

Ambient Conditions
Ambient temperature-55 °C … +40 °C
Note–  20 … + 40 °C plastic version

–  20 … + 75 °C plastic version Ith max. 1 A

–  55 … + 40 °C metal version

–  55 … + 75 °C metal version Ith max. 1 A

Mechanical Data
Degree of protection (IP)IP66
Degree of protection noteIP68 (2 m water column, 1 hour) according to IEC/EN 60529

(with protective caps closed and secured as well as properly fitted and secured compo-

nents)

Installation Equipment

miniCLIX plug connector Coupling
8591/231-10-3003 Art. No. 210733

Mechanical Data
Enclosure materialNickel-plated brass
Clamping range7 … 11 mm
Recommended color ring codingBlue
Coding (clock hour position)10
The detailed number of poles6 P + PE
Weight0.1 kg
Weight0.22 lb
Mounting / Installation
Connection type1.5 mm² crimp
Components
Locking device presentNo
Protective cap availableNo

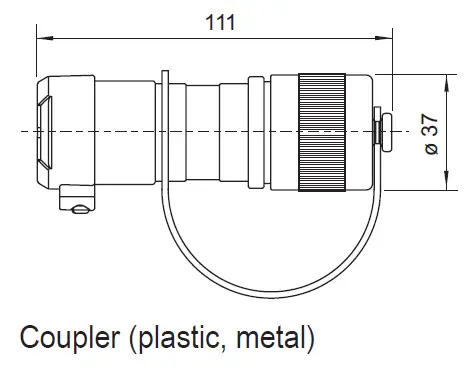

Dimensional Drawings

(All Dimensions in mm [inches]) – Subject to AlterationsSTAHL-210733-miniCLIX-Plug-Connector-Coupling-fig-1

Accessories

STAHL-210733-miniCLIX-Plug-Connector-Coupling-fig-2 165671

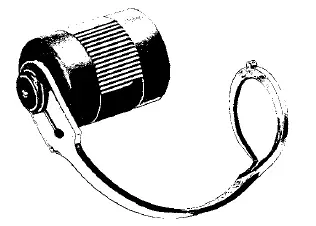

STAHL-210733-miniCLIX-Plug-Connector-Coupling-fig-3for coupler, flange socket: brass, nickel-plated154577

Anti- twist protection

STAHL-210733-miniCLIX-Plug-Connector-Coupling-fig-4for flange socket, device plug154587

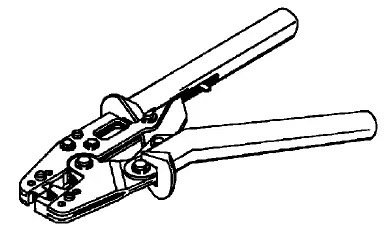

Crimping tool

STAHL-210733-miniCLIX-Plug-Connector-Coupling-fig-5for all crimp connection versions up to 4 mm²109116
for all crimp connection versions up to 4 mm²109116

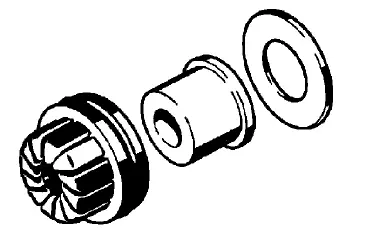

Strain relief

STAHL-210733-miniCLIX-Plug-Connector-Coupling-fig-6Ø 7 … 11 mm, with gasket / washer + PE connection154585

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.

R. STAHL Schaltgeräte GmbH | Am Bahnhof 30 | 74638 WALDENBURG
Tel. +49 7942 943 1700 | +49 7942 943 1777 | Email: [email protected] | r-stahl.com
