Installation Equipment
miniCLIX plug connector Device plug < 2 dm³
8591/291-08-3000 Art. No. 210760

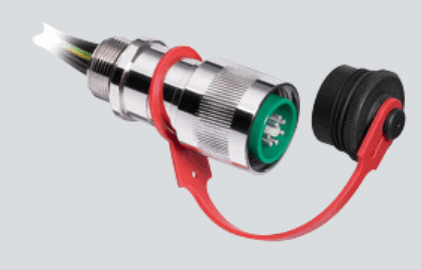

210760 miniCLIX Plug Connector Device
- Simple installation and maintenance in Zone 1, safe and fast disconnection under load
- 6+1- pole, rated voltage up to 400 V AC, rated current up to 16 A
- Suitable for harsh industry environments, IP66/ IP68, for Zones 1 and 2
WebCode 8591B
R. STAHL Series 8591/ 2 7- pole, explosion- protected miniCLIX plug connectors disconnect non- instrinsically safe circuits up to 400 V/ 16 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel-
plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.
R. STAHL Series 8591/ 2 7- pole, explosion- protected miniCLIX plug connectors disconnect non- instrinsically safe circuits up to 400 V/ 16 A and are used as a hot swap plug connection for signal and data cables. They are available in various versions and materials: Device plugs, flange sockets, plugs/ couplers made of polyamide, nickel- plated brass or stainless steel. The cable can be connected using a crimp or spring clamp terminal. Preinstalled cables for device plugs and flange sockets enable fast and safe installation in the end devices.
Technical Data
| Explosion Protection | |
| Application range (zones) | 1 2 |
| IECEx gas certificate | IECEx BKI 07.0001X |
| IECEx gas explosion protection | Ex db eb IIC T6 Gb |
| ATEX gas certificate | PTB 07 ATEX 1028 X |
| ATEX gas explosion protection | E II 2 G Ex db eb IIC T6 Gb |
| Certificates | ATEX (PTB), IECEx (BKI) |
| Electrical Data | |
| Rated operational voltage DC | 24 V |
| Switching capacity | IEC/EN 60947 AC-1: 400 V / 16 A DC-1: 400 V / 1 A DC-3: 60 V / 0.5 A |
| Ambient Conditions | |
| Ambient temperature | -55 °C … +40 °C |
| Note | – 20 … + 40 °C plastic version – 20 … + 75 °C plastic version Ith max. 1 A – 55 … + 40 °C metal version – 55 … + 75 °C metal version Ith max. 1 A |
| Mechanical Data | |
| Degree of protection (IP) | IP66 |
| Degree of protection note | IP68 (2 m water column, 1 hour) according to IEC/EN 60529 (with protective caps closed and secured as well as properly fitted and secured compo- nents) |
| Enclosure material | Nickel-plated brass |
| Cable entry | M25 |
Installation Equipment
miniCLIX plug connector Device plug < 2 dm³ 8591/291-08-3000 Art. No. 210760
| Mechanical Data | |
| Recommended colour ring coding | Grey |
| Coding (clock hour position) | 8 |
| Detailed number of poles | 7 P |
| Weight | 0.1 kg |
| Weight | 0.22 lb |
| Mounting / Installation | |
| Connection type | 1.5 mm² conductor 30 cm |
| Components | |
| Locking device present | No |
| Protective cap available | No |
Dimensional Drawings (All Dimensions in mm [inches]) – Subject to Alterations
Device plug for Ex d enclosure with volume < 2 dm 3 (metal)
Accessories
| Art. No. | ||

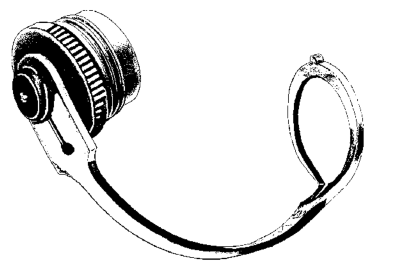

| 165671 | |
| for plug, device plug: brass, nickel-plated | 154580 |
Anti- twist protection
 | for flange socket, device plug | 154587 |
Crimping tool
 | for all crimp connection versions up to 4 mm² | 109116 |
| for all crimp connection versions up to 4 mm² | 109116 |
We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
2022-11-16
V 0.62 EN
