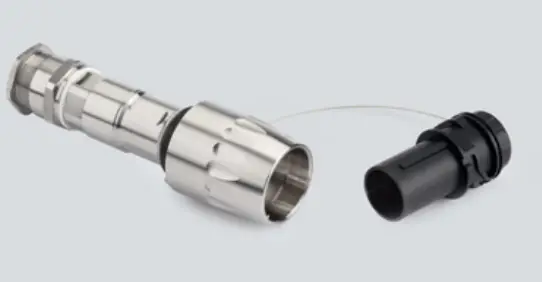

STAHL 286585 miniCON Plug Connector

ABOUT

Simple handling using hot swap technology
Versatile application possibilities thanks to modular structure
Most extreme operating conditions in hazardous areas
Reliable data and signal connections or power supplies
Simple connection and disconnection thanks to one- handed operation

WebCode 8595A

The up to 8- pole, explosion- protected miniCON plug connectors in R. STAHL’s 8595/ 1 series keep you safely connected. The high- quality plastic or stainless steel plug connectors have impressed many customers with their reliability and versatility in application. Their hot swap disconnecting capacity means that intrinsically safe signal supplies and power supplies up to 500 V/ 16 A can be connected and disconnected reliably and safely without the need for a hot work permit or other hot work authorisation. The miniCON connectors designed for conductor cross- sections of 0.25 mm² to 2.5 mm² are available for directly connecting electrical lines or for device installation in the device plug and flange socket types of construction. The new plug connectors for hazardous areas in Zones 1 and 21 stand out from the competition thanks to their modular structure and logically arranged components, which enable quick, easy assembly. Our patented single- handed operation means that matching plug connectors, which can be defined by the installer using internal coding for up to three applications, can be connected in no time.

Technical Data

Explosion Protection
Scope of validity	European Union (ATEX) IECEx
Application range (zones)	1 2 21 22
IECEX gas certificate	IECEx EPS 20.0035X
IECEx gas explosion protection	Ex db eb IIC T6 Gb
IECEX dust certificate	IECEx EPS 20.0035X
IECEx dust explosion protection	Ex tb IIIC TT80 °C / T95 °C Db
ATEX gas certificate	EPS 20 ATEX 1075 X
ATEX gas explosion protection	E II 2 G Ex db eb IIC T6 Gb
ATEX dust certificate	EPS 20 ATEX 1075 X
ATEX dust explosion protection	E II 2 D Ex tb IIIC TT80 °C / T95 °C Db
Certificates	ATEX (EPS), IECEx (EPS)
Electrical Data
Rated operational voltage AC	500 V
Rated operational voltage DC	max. 110 V
Voltage tolerance	+10%
Rated insulation voltage	690 V
Rated operational current for AC	16 A

Electrical Data
Rated operational current for DC	8 A
Rated operational current for DC 2	16 A
No. of poles	7 P + PE / 8 P
AC frequency range	50 – 60 Hz
Device Specific Data
Back-up fuse with thermal protection	25 A GL
Back-up fuse without thermal protection	16 A GL
Ambient Conditions
Ambient temperature	-60 °C … +75 °C
Ambient temperature	-76 °F … +167 °F
Mechanical Data
Version	Plug
IP degree of protection (IEC 60529)	IP66 IP67
IP degree of protection (IEC 60079)	IP64
Base part	Plug
Enclosure material	Stainless steel 1.4404
Contact type	Pin contact
Connection cross-section	0.5 mm²
Connection cross-section 2	0.25 mm²
Connection cross-section AWG	AWG20
Connection cross-section AWG2	AWG24
Connection thread	M25 x 1.5
Impact strength (IEC 60079)	7 J
Coding	1-3, freely selectable
Seal	Silicone
Weight	0.6 kg
Weight	1.32 lb
Mounting / Installation
Connection type	crimp
Connection type 2	solder
Components
Protective cap available	Yes

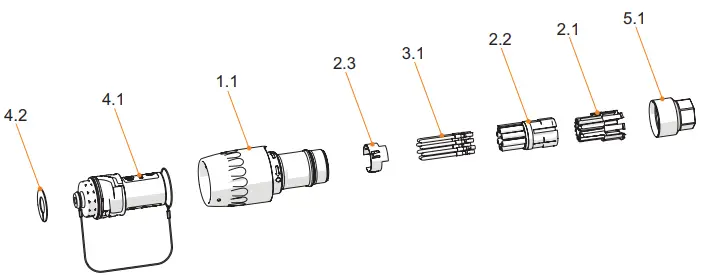

Technical Drawings – Subject to Alterations

4.2 Code disk
4.1 Protective cap
1.1 Plug basic part
2.3 PE contact (only for metal variant)
3.1 Contacts
2.2 Insulator
2.1 Contact holder
5.1 Adapter for cable gland

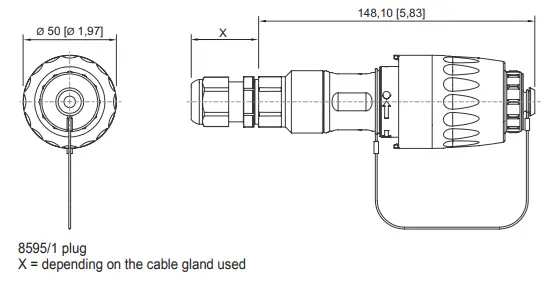

Dimensional Drawings

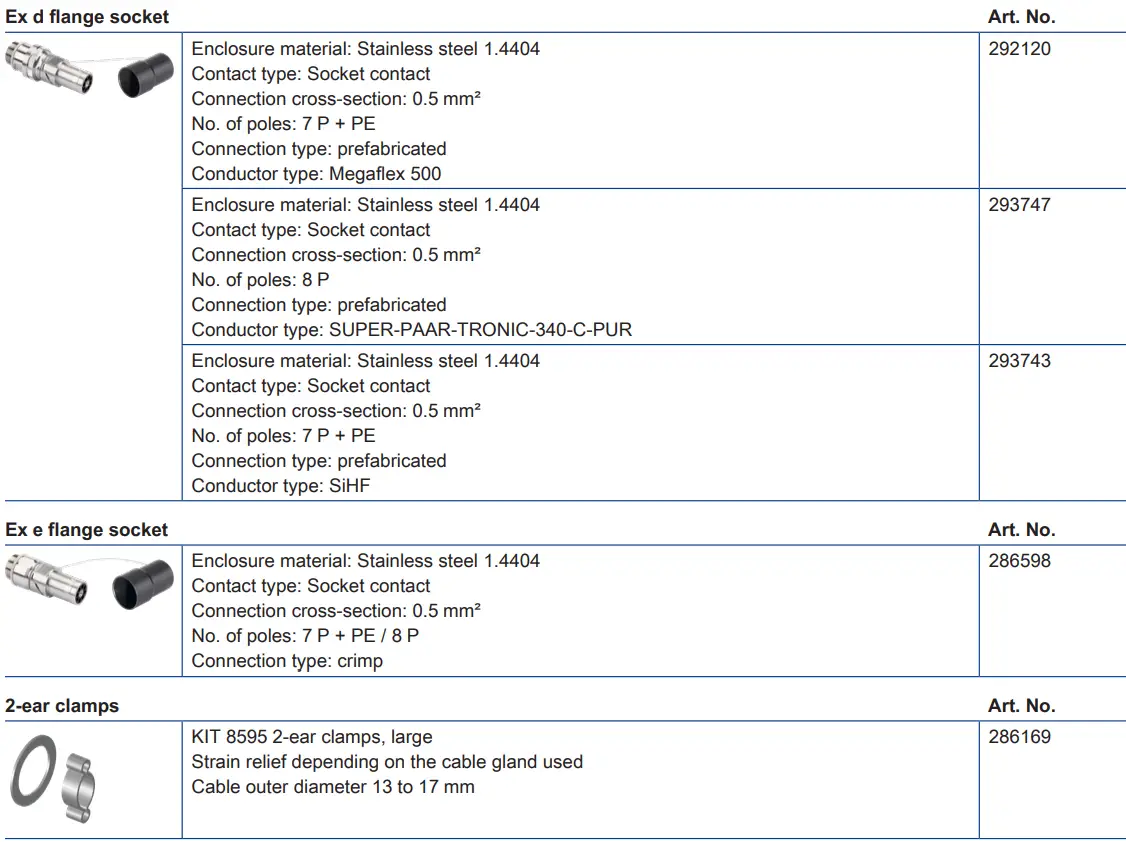

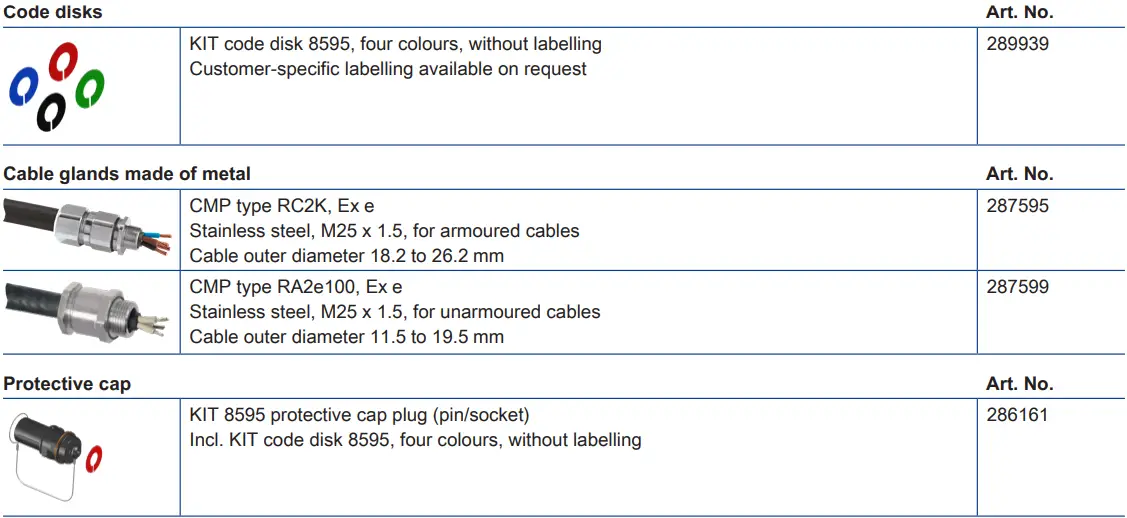

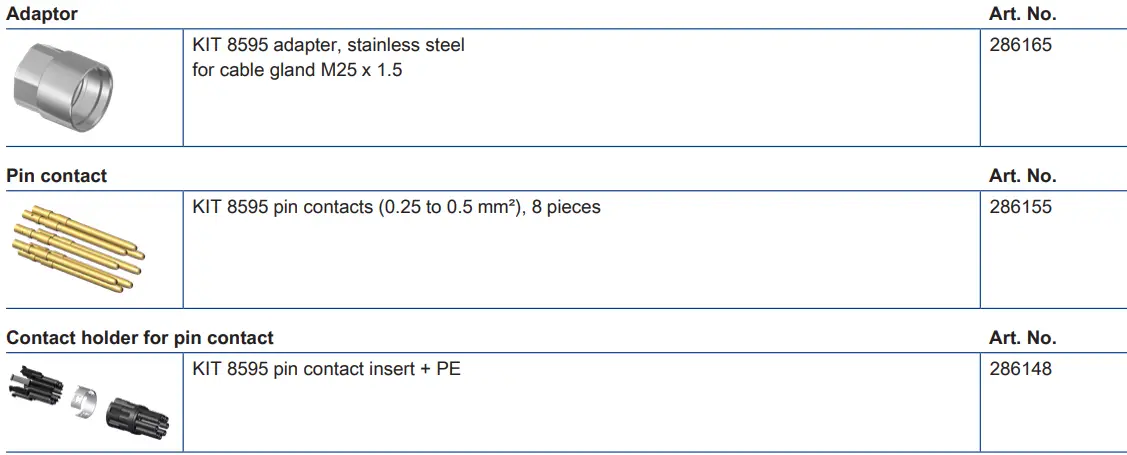

Accessories

We reserve the right to make alterations to the technical data, dimensions, weights, designs and products available without notice. The illustrations cannot be considered binding.
